Product Description

Overview

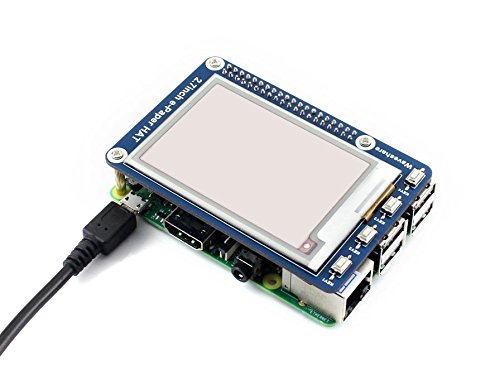

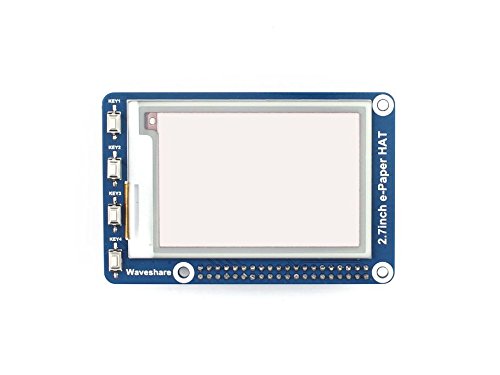

This is an E-Ink raw display panel, 264*176, 2.7inch, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display, what's more, it is extremely low power consumption, wide viewing angle, great effect under sunlight, which could satisfy many kinds of applacations,such as shelf label, industrial instrument, and so on.

Specification

-Operating voltage: 3.3V

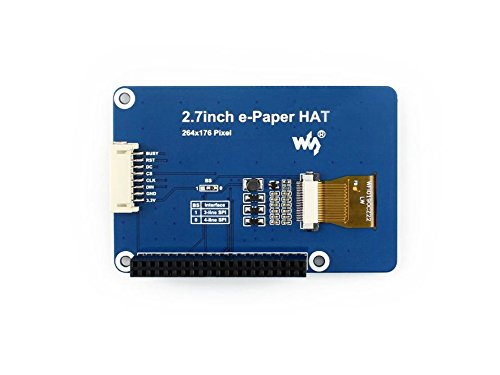

-Interface: 3-wire SPI, 4-wire SPI
-Outline dimension: 85mm * 56mm
-Display size: 57.288mm * 38.192mm
-Dot pitch: 0.217 * 0.217
-Resolution: 264 * 176

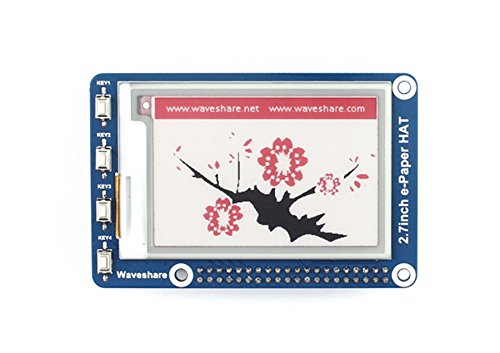

-Display color: red, black, white
-Grey level: 2
-Refresh power: 26.4mW(typ.)
-Standby power: less than 0.017mW
-Viewing angle: more than 170 degree
-Weight: 0.036 kg

Shipping List

-2.7inch e-Paper HAT (B) *1
-RPi screws pack (2pcs) *1

Feature

No backlight, wide viewing angle, great effect under sunlight.
Extremely low power consumption, power only beling needed in refreshing.
Three colors: black,white and red can satisfy office and industrial users.

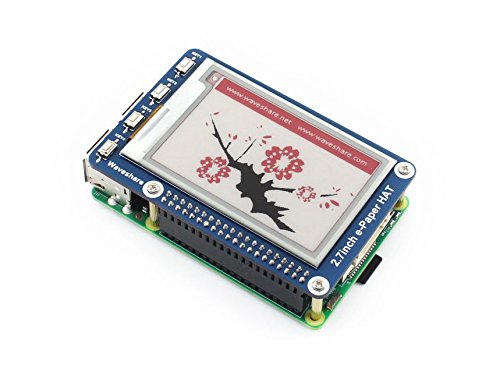

Compatible with for Raspberry Pi 2B/3B/Zero/Zero W/,SPI interface, can connect Arduino/STM33/Nucleo.
Keeps displaying last content for a long time even when power down.
