Product Description

Specification:
Specially designed for 3 ~ 6S LiPo
Linear Output voltage: 12V (4 ~ 6S IN)， regulation accuracy 2.5%
Linear Output Current: 500mA (4S IN)， 200mA (6S IN)
Dimension: 40 * 22 * 3mm
Installation pitch: 24mm.
Weight: 3g

Package includes:
Usmile Mini PDB x2

Note:
This PDB supports 3 ~ 6S battery
When using the 4S lipo battery， the output is 500mA; using 6S， it is 200mA;
Solid 12V output when connected with 4-6s lipo battery with high accuracy ;
When connected with a 3S battery， the actual output voltage is 1V lower;
During our test， When the room temperature is 25 centidegree， after working for 5 mins with a 16V input， the maximum temperature of the chip reaches no more than 54 centidegree.

Feature

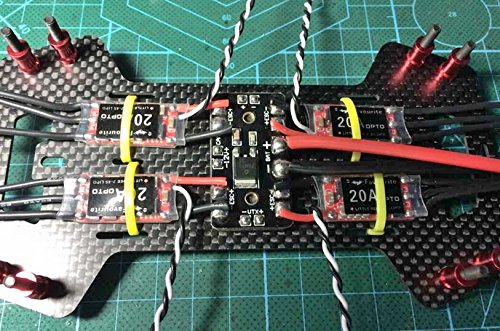

This PDB is special designed for 3~6S LiPo used on the Quad copter， Generally the input voltage of FPV camera is 7~13V， When 4-6S LiPo is mounted， the linear regulator can power the 12V camera & 12V LED without ripple & noise.
40*22*3mm dimension， super Mini ， weighs only 3g
Use 2oz copper foil， sustain high current.
Brand : Usmile
EAN : 0735980947440
