Features:

• Gear ratio: 7.2
• Maximum drag force (kg): 4.5
• Spool size (diameter mm / width mm): 34/22
• Nylon thread wound amount (lb.-m): 12 - 120, 14 - 100, 16 - 85
• Maximum winding length (cm / one turn of handle): 77
• Handle length (mm): 42
• Number of bearings (S A - RB / Ball / Roller): 2/2/1

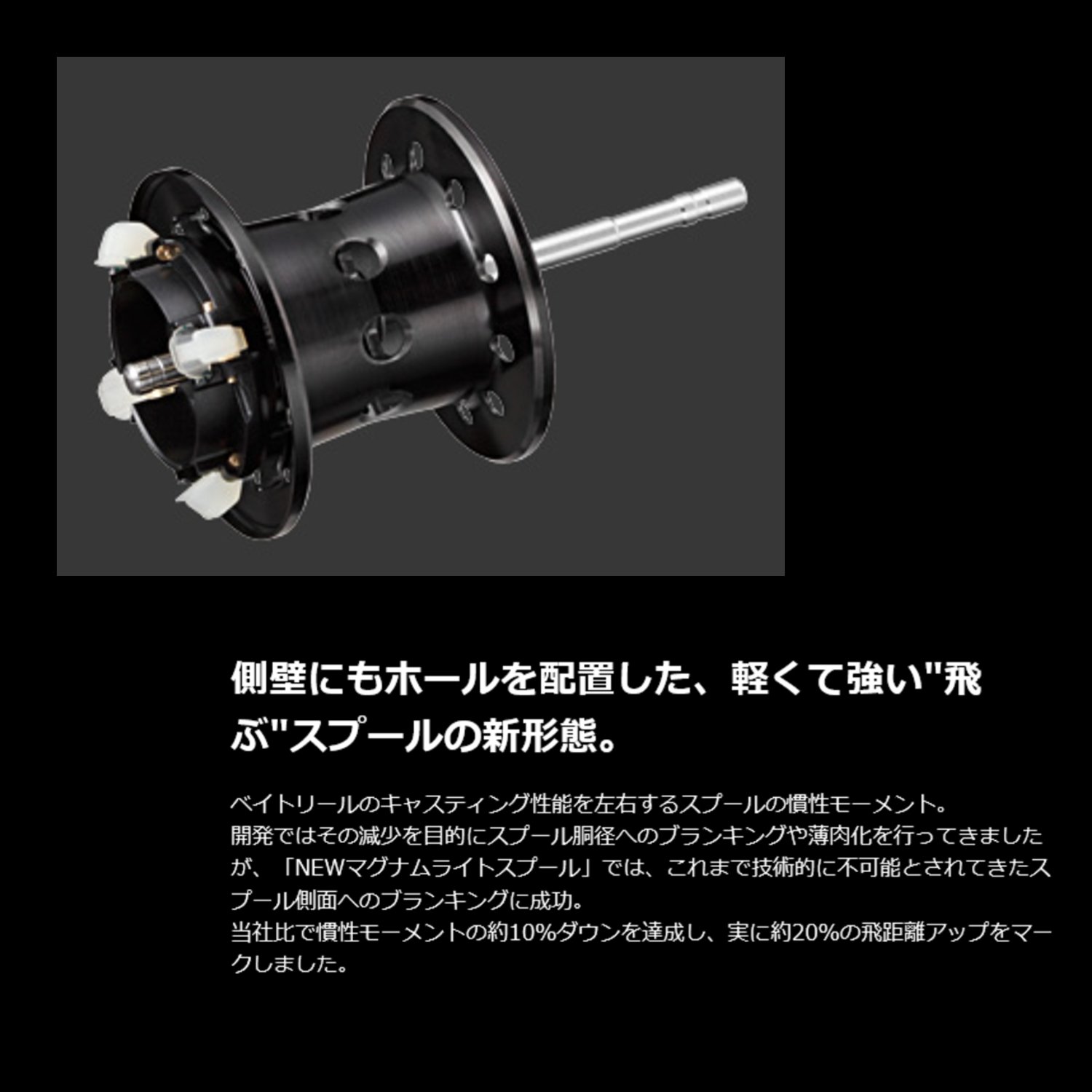

• [Magnum light spool] A new form of a light and strong "flying" spool with a hole on the side wall.
• : The moment of inertia of the spool that affects the casting performance of the bait reel.
• In development, we have made blanking and thinning to the spool cylinder diameter for the purpose of decreasing it, but in "NEW Magnum Light Spool", in order to drill a hole in the side of the spool which has been considered technically impossible
• success.
• We achieved about 10% reduction in moment of inertia compared to our company, and in fact marked up about 20% increase in flight distance.
• [NEW SVS ∞ (Infinity)] It can correspond widely with external dial adjustment.
• Next-generation centrifugal brakes further evolve.
• : "NEW SVS ∞ (Infinity)" is a centrifugal brake, but realizes the brake adjustment range that can correspond to most situations only by adjusting the external dial.
• Adjustment of the internal brake shoes is not necessary if 4 brake shoes are turned on during casting.
• When finer setting is required, fine adjustment with internal brake shoe is possible.
• (The four brake shoes are on when shipped.)
• S3D spool: It is a spool which improves weight balance and dimensional accuracy and suppresses vibration during casting.
• Vibration noise has been reduced by half from conventional products (compared to our company).
• Even during release of the line at high speed, rattling and uneven rotation are extremely few, demonstrating stable casting performance.
• Both the flight distance and casting accuracy have dramatically improved.
• S A - RB: It is the industry 's first "surface reforming" to form a "passive layer", realizing a rust - free bearing A - RB.
• In addition, SA-RB has sealed its side with a rustproof material and greatly reduced salty garbage due to salt recrystallization inside the bearing.
• Super free spool: When clutch is disengaged, only two bearings support the spool.
• It is a system that suppresses backlash, yet has a spool-free performance as light as possible.
• Seawater OK: Shimano's unique high-performance bearing, S A-RB, A-RB, which prevents rust, and antiseptic treatment of the exterior, you can use it with confidence in sea fishing.
• We recommend cleaning with a shower after use so that you can use it forever comfortably.

Product information:

Shipping Weight: 312 g

Package Dimensions: 8.89 x 13.11 x 15.01 cm
