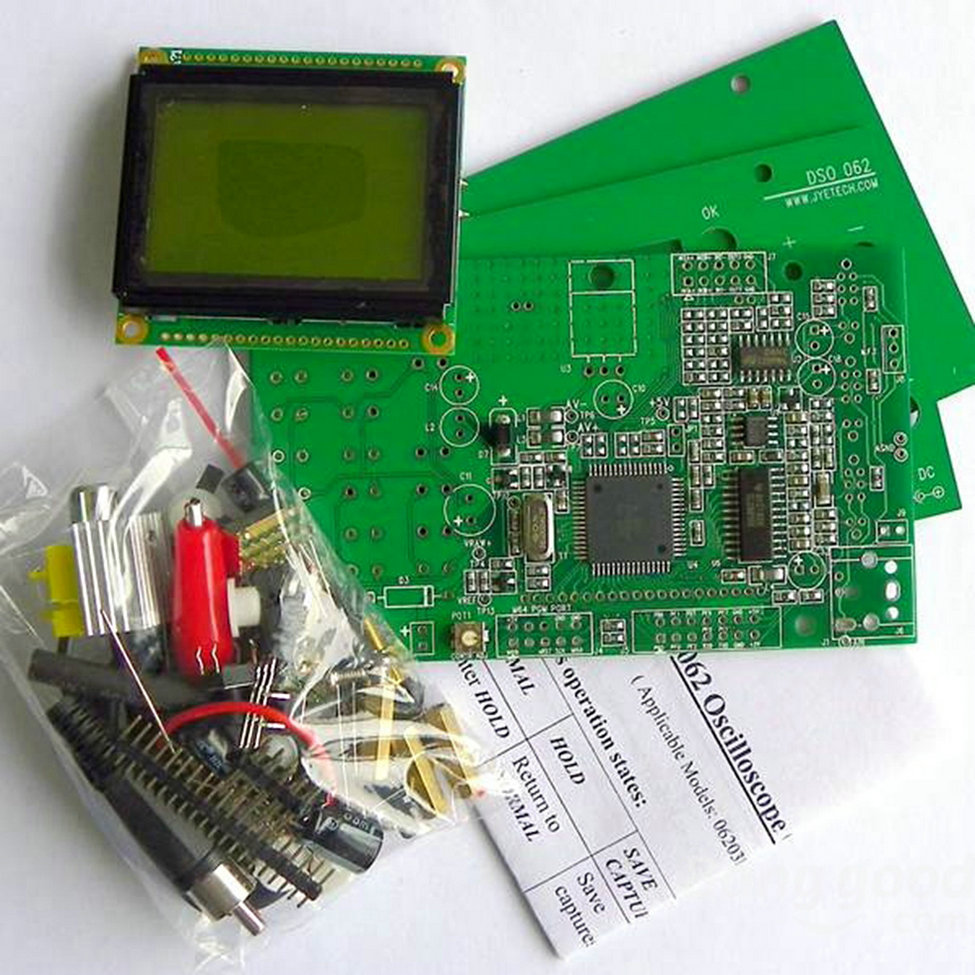

Features: 100% Brand new and high quality Auto / Normal / Single trig modes Rising / Falling edge trigger External trig available Trigger output is available which makes it possible to cascade scopes to do multi-channel capture. Trigger level adjustable with indicator Hold / run feature Save / recall up to 6 captures FFT function available - size of 256 points and 512 points selectable sampling rate of 1Ksps to 2Msps selectable Transfer screen to PC as bitmap file via serial connection Built-in 500Hz / 5Vpp test signal Frequency Meter (For TTL level input signal) Auto switching between Oscilloscope Mode and Frequency Meter Mode 9V DC power supply Specification: Maximum equivalent-time sampling rate (repetitive signal): 20MSa / s Maximum real-time sampling rate: 2MSa / s Resolution: 8 bits Record length: 256 bytes Analog bandwidth:1MHz Vertical sensitivity: 100mV / Div - 5V / Div Vertical position adjustable with indicator Input impedance:1M ohm Max input voltage: 50Vpk (1x probe) [500Vpk for 10x probe] DC / AC / GND coupling Horizontal: 0.5us / Div - 10m (minute) / Div Color: Green Dimension: 110mm X 65mm X 25mm (without case) Net weight: Approx. 110g Package Included: 1 x DIY Digital Oscilloscope Kit Set
