DEUTSCH 2-PIN CONNECTOR KIT WITH HOUSING, PINS & SEALS CRIMP STYLE TERMINALS, 14-16 GAUGE

FEATURES

  • Water and dust proof automotive connector kit
  • Cost effective connectors
  • Reliable product
  • Suitable for use in automotive applications: Harley, John Deer, Caterpillar, Nascar Racing cars etc

SPECIFICATION

Model No.DT2_Stamp_Kit
Item Dimension15.24 x 2.54 x 22.86 Cm
Package Dimension5.08 x 0.03 x 5.08 Cm
Package Weight0.00 ~ 0.01 Kg
Product GroupAutomotive Parts and Accessories
AvailabilityAvailable (Usually ships in 1-4 business days)

DESCRIPTION

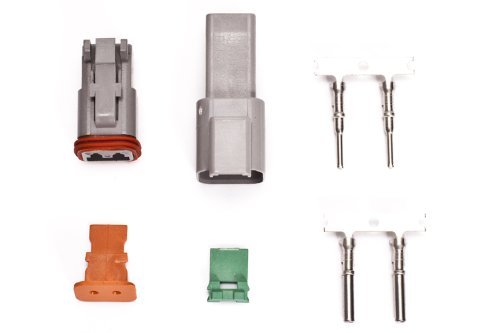

Kit content:2 x 1060-14-0122 (14-16 awg nickel male strip terminal)2 x 1062-14-0122 (14-16 awg nickel female strip terminal)1 x dt04-2p (connector)1 x dt06-2s (connector)1 x w2p (wedge) 1 x w2s (wedge). Flame-retardant: Deutsch engineers specify flame-retardant, high grade thermoplastics for all deutsch connector molded components to reduce the risk of fire. Impact resistant materials thermoplastic materials are selected to avoid breakage caused by impact during use. Operating temperatures: from -67 degrees f to +257 degrees f (-55 c to +125 c). DT series current rating: 13 amps. Durability: No electrical or mechanical defects after 100 cycles of engagement, or disengagement. Submersion: properly wired and mated connections will withstand immersion below 3 feet of water without loss of electronic qualities or leakage. Vibration: maintains continuity and exhibits no mechanical or physical damage after vibration of 20 g's at 10-2000 hz. Durability: No electrical or mechanical defects after 100 cycles of engagement, or disengagement.
