Item Descriptions:

size:

USB goods

Key button short press

1 time: Switch information display screen

Please do the following operation on the screen where "Electric" is displayed.

2 times: Ah reset

3 times: Wh reset

4 times: Reset the count up timer

5 times: Timer setting mode (1 - 24 h / AUTO / Always ON) → missed mode with no operation for several seconds

Press and hold for data reset

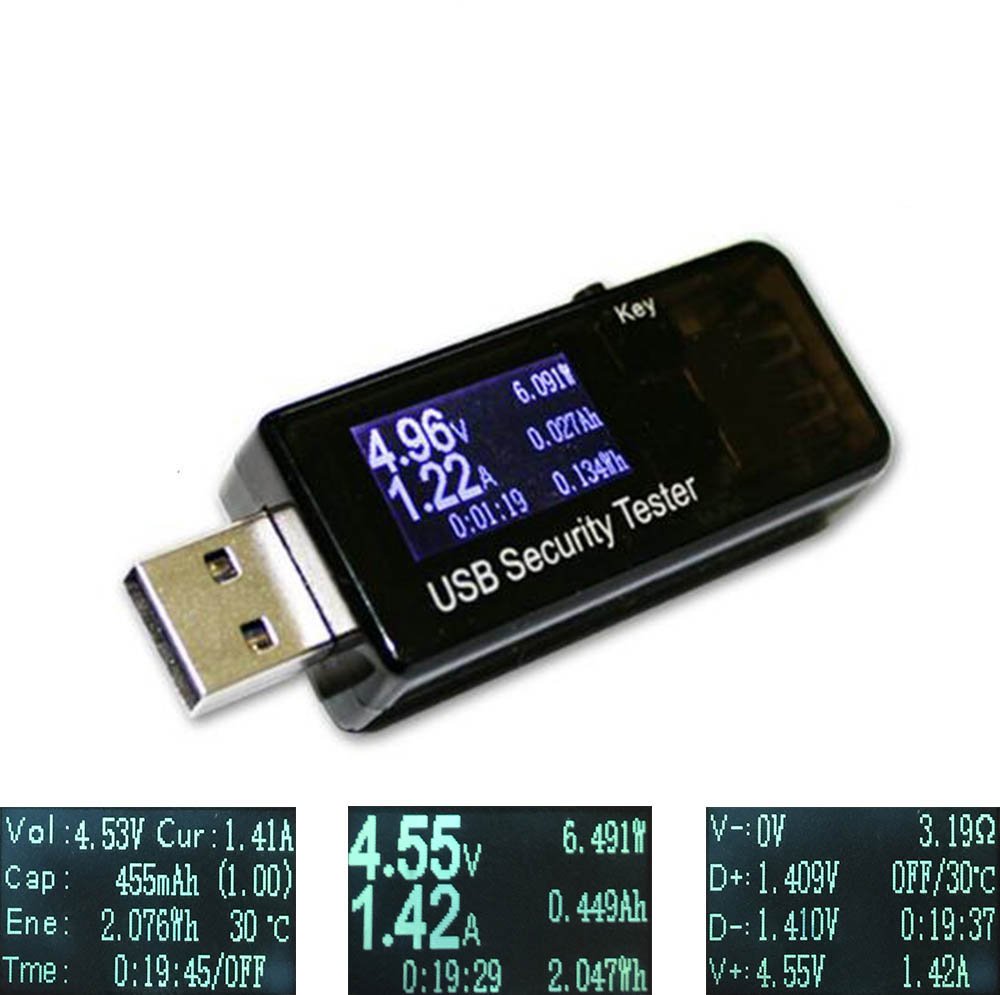

Display contents: Voltage / Current / Power / Integrated current amount / Integrated electric energy amount / Connection time / Resistance value / Off timer / Main body temperature

Measurement range and unit (display unit and number of digits are different depending on screen)

Voltage: 3 to 30 V (measurement unit: 0.01 V)

Current: 0 to 5.1 A (measurement unit: 0.01 A)

Integrated current amount: 0 to 99999 mAh (measurement unit: 0.001 Ah)

Integrated electric energy: 0 to 999999 mWh (measurement unit: 0.001 Wh)

Power: 0 to 299.999 W (measurement unit: 0.001 W)

Connection time: 0 to 999 hours 59 minutes 59 seconds (measurement unit: 1 second)

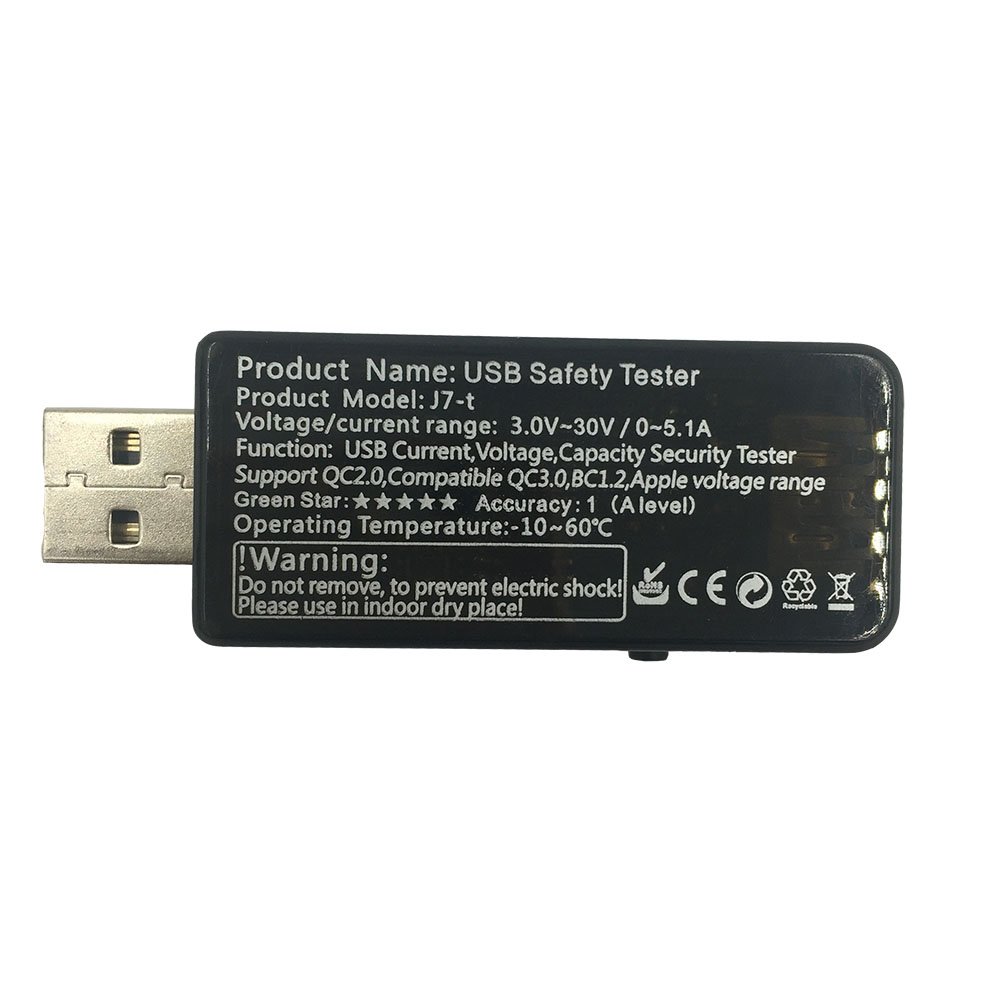

Operating temperature range: -10 to 60 ° C

Support range: QC 2.0, QC 3.0, BC 1.2, Apple voltage range

Supports USB 2.0 / 1.1 standard

Connector shape

Power supply side: USB 2.0 Standard-A male reversible

Peripheral side: USB 2.0 Standard-A female

Size: W24 × D65 × H14 mm (excluding the button)

Material: Plastic

Color: Clear Black

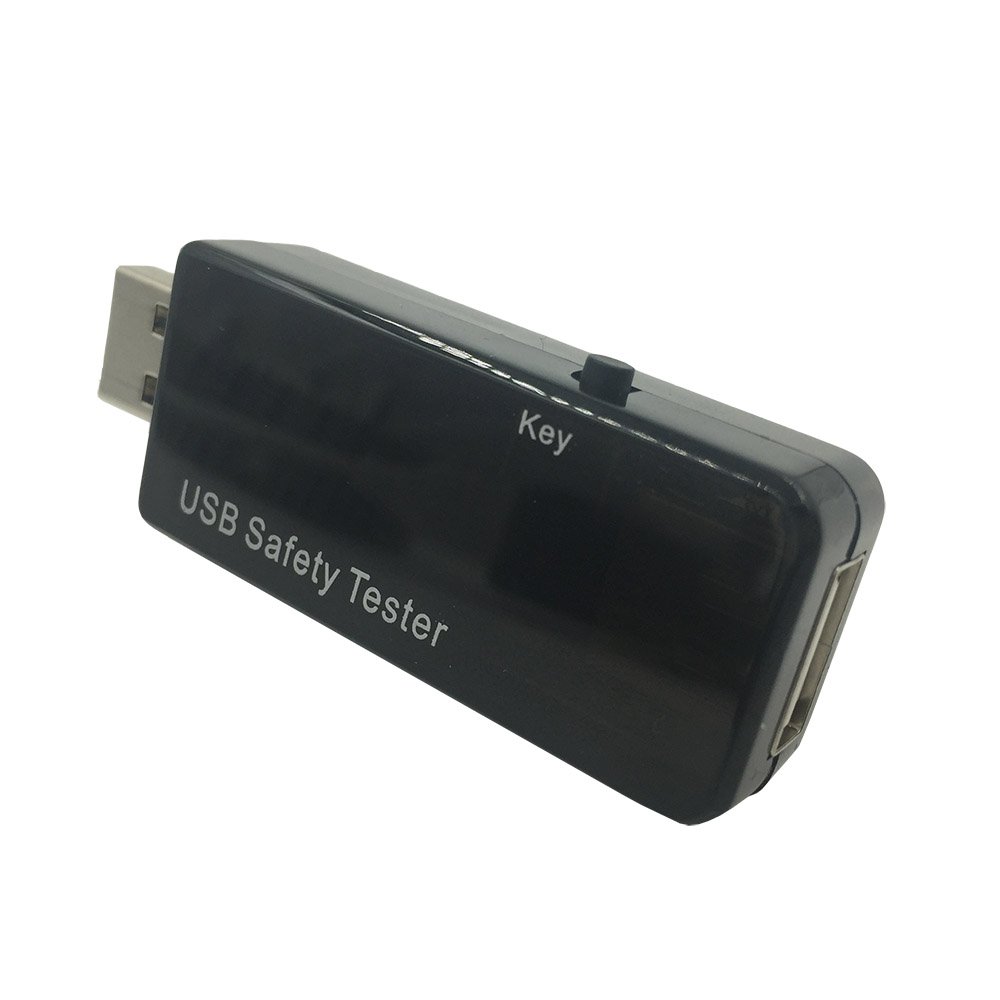

USB current voltage checker

, The best combination of cable, battery etc!

Performance may change greatly with a combination of mobile battery, USB charger, and cable to charge smartphones and tablets.

I can not confirm the output side capability, the voltage that can be flown by the cable, etc, but I can check with the numerals clearly using this measuring instrument.

Have you ever felt that charging speed is different depending on the USB port and cable you use?

Or are you concerned about the operation of the USB battery?

With this USB doctor, it is possible to measure the voltage and current value from the port.

【Notes】

Please refrain from using for important communication devices and devices that exchange large amounts of data

Be sure to back up the various memory of the connected device before use.

Before installing, please take dust and dust on the equipment body well.

If it is attached with dust, there is a risk that the main body will be scratched.

Please be careful when dropping, etc. when attaching, removing.

It is not adjusted to the current value / voltage value that exceeds the charger's performance or equipment requirements.

Since the size and weight of the product are all measured, there may be some errors depending on the product.

It may differ slightly from the color of the real thing due to the lighting of the photography and the adjustment of the image processing.

Please note on your purchase beforehand.

Features:

• Please enter model number Confirm this is compatible:

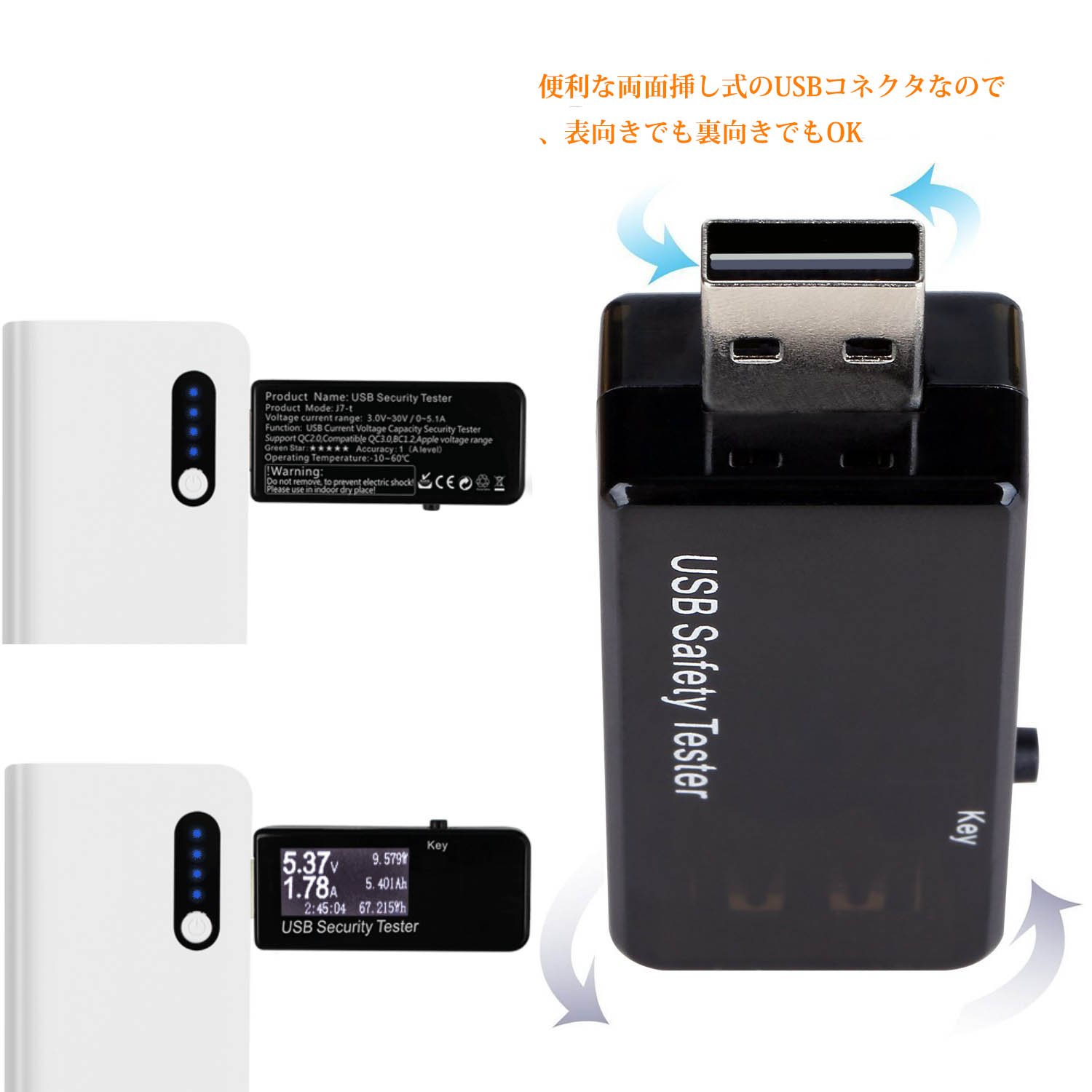

• Double sided USB connection possible, easy to use.
• Compact and easy to carry, no additional power supply required.
• Measurement range: voltage U = 3-30 V, current I = 0 - 5.1 A.
• Size: 67 mm * 14 mm * 14 mm
• Since the decoupling memory function is attached, data can be recorded when disconnecting.
• In addition to voltage and current, power (voltage × current), elapsed time, current amount mAh (charge capacity) are also calculated and displayed in real time
• You can switch the display by pressing the mode change button KEY at the top.
• Press the Key button for a short time and switch the information display screen once.
• Press and hold for data reset.
• Measurement range: voltage U = 3-30 V, current I = 0 - 5.1 A.
• Fast charge QC 2.0 / QC 3.0 / BC 1. 2 / MTK - PE / iphone 2.4 A supported.
• Warranty period: 12 months
• With compact design, you can easily carry it anywhere.

Product information:

Shipping Weight: 40 g

Package Dimensions: 2.90 x 8.89 x 10.39 cm
