Item Descriptions:

【Characteristic】

● Dual scan digital image color sensor

Built-in infrared cut filter

● 2.8 - 12 mm megapixel zoom lens

- Diameter 5 mm Infrared LED 24 pieces, projection distance: 25 m

● Wide dynamic range: 78 dB - 120 dB

● Camera system integrated on system on chip (SOC)

● Built-in microcomputer for easy operation

● Digital noise removal, lens shading correction, defective pixel correction

● Color correction, gamma correction

● Hue / Saturation, Light / Dark / Brightness Adjustment

● Outline emphasis

● On-screen display

● Auto exposure, automatic white balance

● Prevent flicker, black level correction

● NTSC encoder has high accuracy of 10 bit DA conversion

Built-in on-screen display processor

【specification】

Image sensor: 1/3 inch DIS wide dynamic range Vertical resolution 750 TV book

Scanning method: Progressive

Standard · Number of pixels: NTSC: 768 (H) × 494 (V)

Internal processor: 16 bits

Lens: 2.8 - 12 mm zoom for megapixel

LED for floodlighting: 24 pieces Diameter 5 mm

Infrared reaching distance: 25 m

Infrared cut driver: External drive

Electronic shutter: NTSC = 1/60 s - 1 / 100,000 s

Minimum illumination: 0.1 Lux (during AGC level)

Smart IR: support

Video output: BNC 1.0 Vp - p 75 ohm, BNC connector

S / N ratio: over 50 dB (AGC OFF)

Image color correction: support

Gamma correction: 0.45

Mirroring: Support

Upside down: Support

DIS: Support

ATR: Automatic

AES: Automatic

AGC: OFF / Low / Middle / High

AWB: Automatic

WDR: Hardware type (dual scan)

D & N: Support

OSD: yes

Language: English

DLC: yes

HLM: yes

ICR: yes

DNR: 2-DNR

Highlight correction: Yes

Black part correction: yes

Strobe: Automatic correction

Operating temperature: -20 ℃ ~ + 60 ℃

Storage temperature: -40 ° C to + 80 ° C

Humidity: 20% to 90%

Power supply: DC 12 V ± 20%

Weight: 200 g

Dimensions: Bottom diameter 110 mm Height 95 mm

Installation location: indoor

Features:

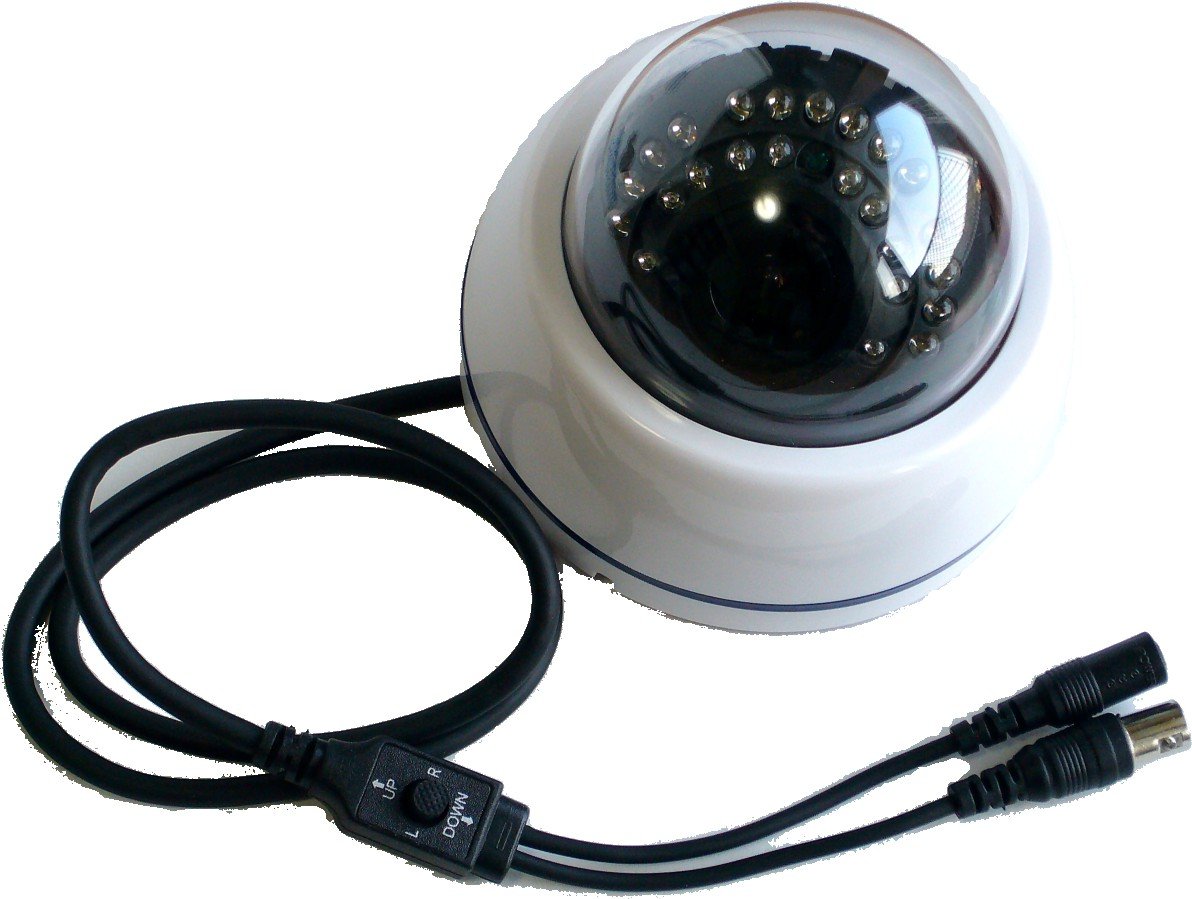

• A 1/3-inch digital image sensor (DIS) with a wide dynamic range uses a dome camera.
• The viewing angle can be changed according to the situation of the site by installing a wide angle zoom lens.

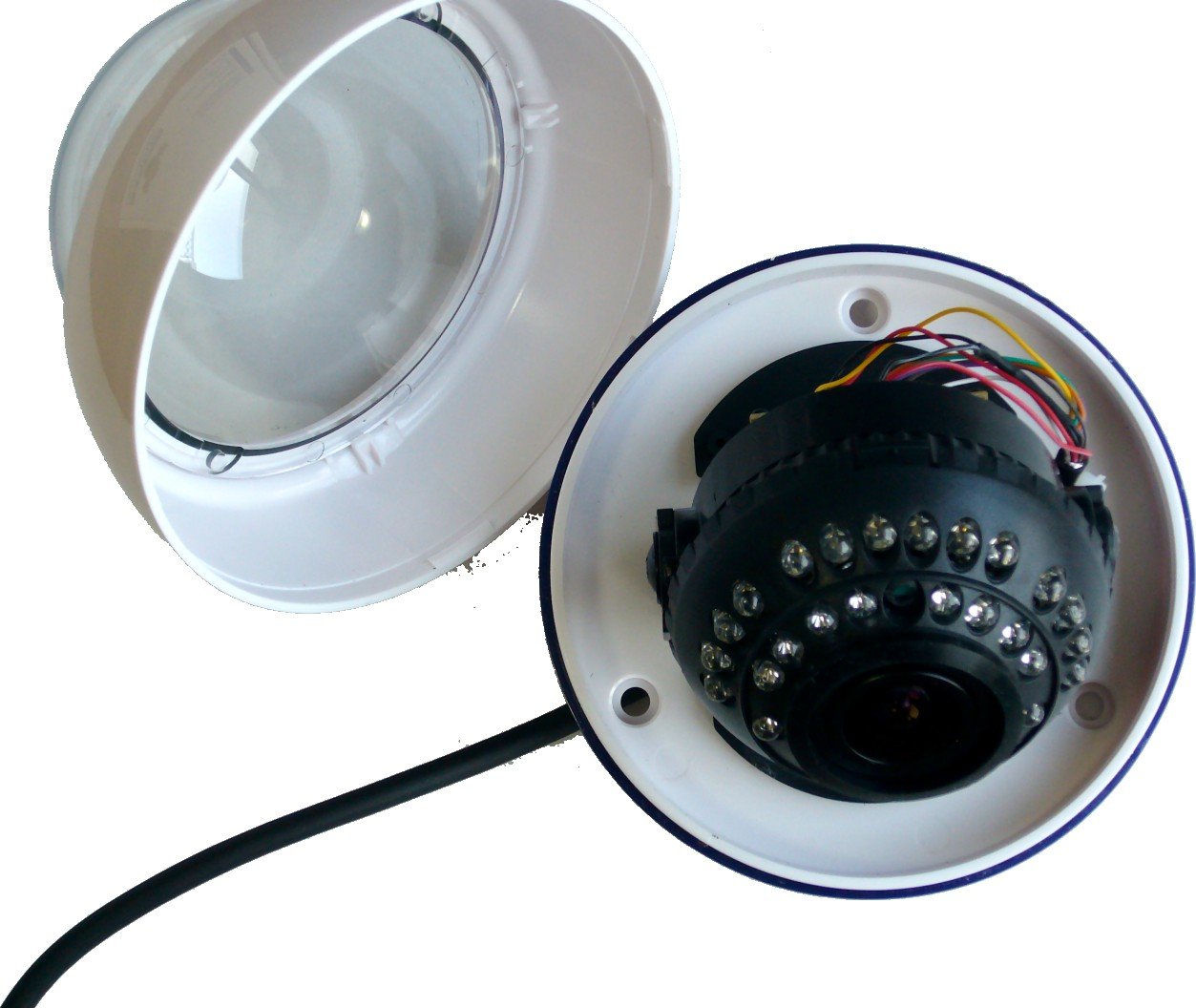

• Built-in infrared projector that can shoot even in the dark.
• The focal length of the lens is 2.8 - 12 mm so you can easily adjust the visible range.
• Usually, please install the dome camera in a state of being upside-down on the ceiling.
• Control various functions with on-screen display.
• It is easy to adopt not only in companies and shops at affordable prices but also in private management classrooms and private rooms.
• Power supply DC 12 V is sold separately.
• 【12V1A - PSE】 can be used.
• It is initial failure 2 weeks correspondence.

Product information:

Shipping Weight: 335 g

Package Dimensions: 12.80 x 14.20 x 15.19 cm
