Item Descriptions:

Elise (ELLISSE) ... It means Italian ellipse.

A forging peg with a round steel material heated to a bright red to about 1100 ° C and crushed into an elliptical cross section at once with a strong force of about 1 ton.

By applying strong pressure to heated steel, peg with excellent strength is completed.

Forging

(Tanzou, forging) is a kind of plastic working method of metal working.

By hitting the metal with a hammer or the like to apply pressure, the voids inside the metal are crushed, the crystal is refined, the direction of the crystal is adjusted, and the strength is increased and the shape is formed into a desired shape.

It has been used as a manufacturing technique such as knives, weapons, hardware for a long time.

Make metal by plastically flowing by applying pressure with a metal mold or the like.

Since the fiber flow continues, the structure becomes dense and it is difficult to form a casting cavity (hollow) as compared with casting, so it is possible to produce a rough shape excellent in strength.

(From Wikipedia)

Normal round rod peg is not easy to use around peg underground, but elliptical peg can get in even hard ground with gravel and stone, do not turn around with kurukuri in the ground,

Fix it.

Also, as the rope pulling direction is designed with a thick material, it is made to withstand strongly.

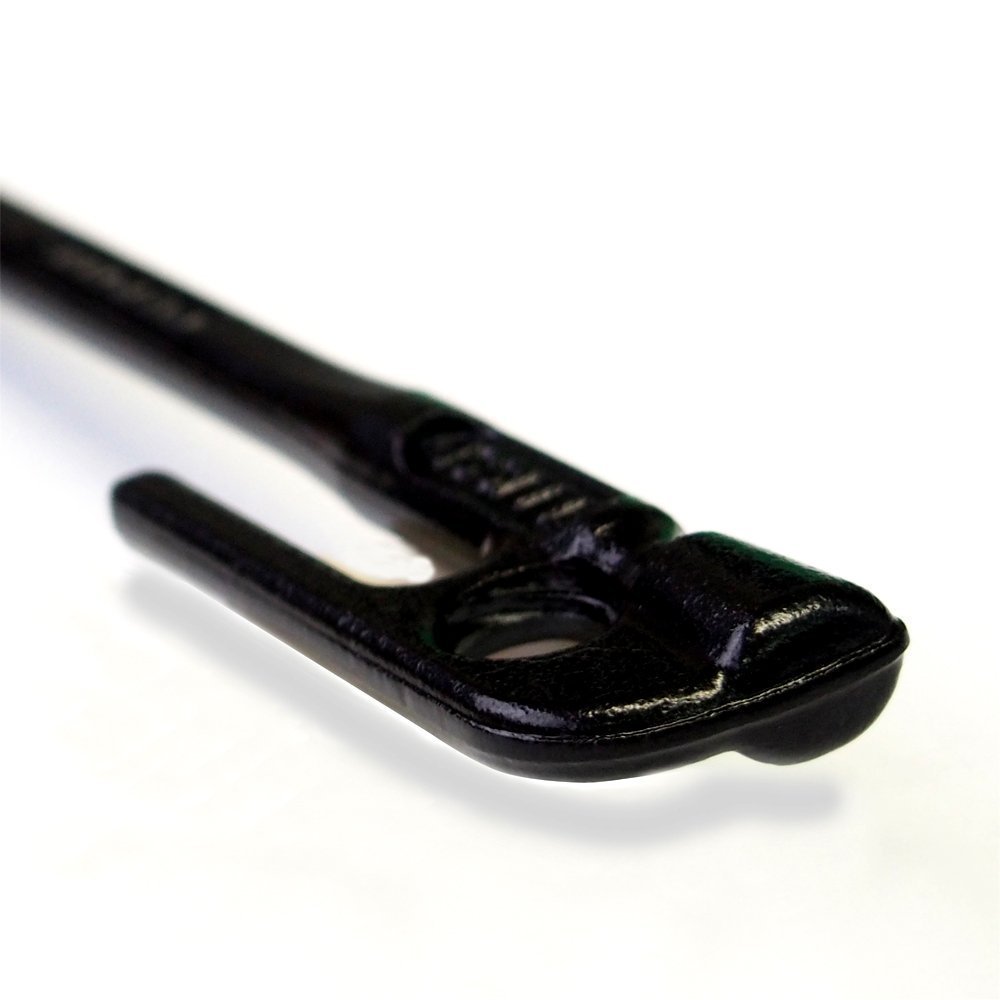

The point where the rope touches is trimmed so that the rope does not cut in Bali, and we are measuring extreme caution.

Painting is excellent in rust prevention performance, cation electrodeposition coating which can withstand salt spraying for more than 1,000 hours.

It is 280 mm in length which is easy to handle in any scene.

Results of bending test at Niigata Prefecture Industrial Technology Research Institute Prefectural Technology Support Center

Stress at the beginning of bending

Elise stake Lateral direction: 3 kN (about 300 kgf)

Elise stake Vertical direction: 4 kN (about 400 kgf)

Elise Stake Ultimate Horizontal direction: 8 kN (about 800 kgf)

Elise Stake Ultimate Horizontal direction: 10 kN (about 1000 kgf)

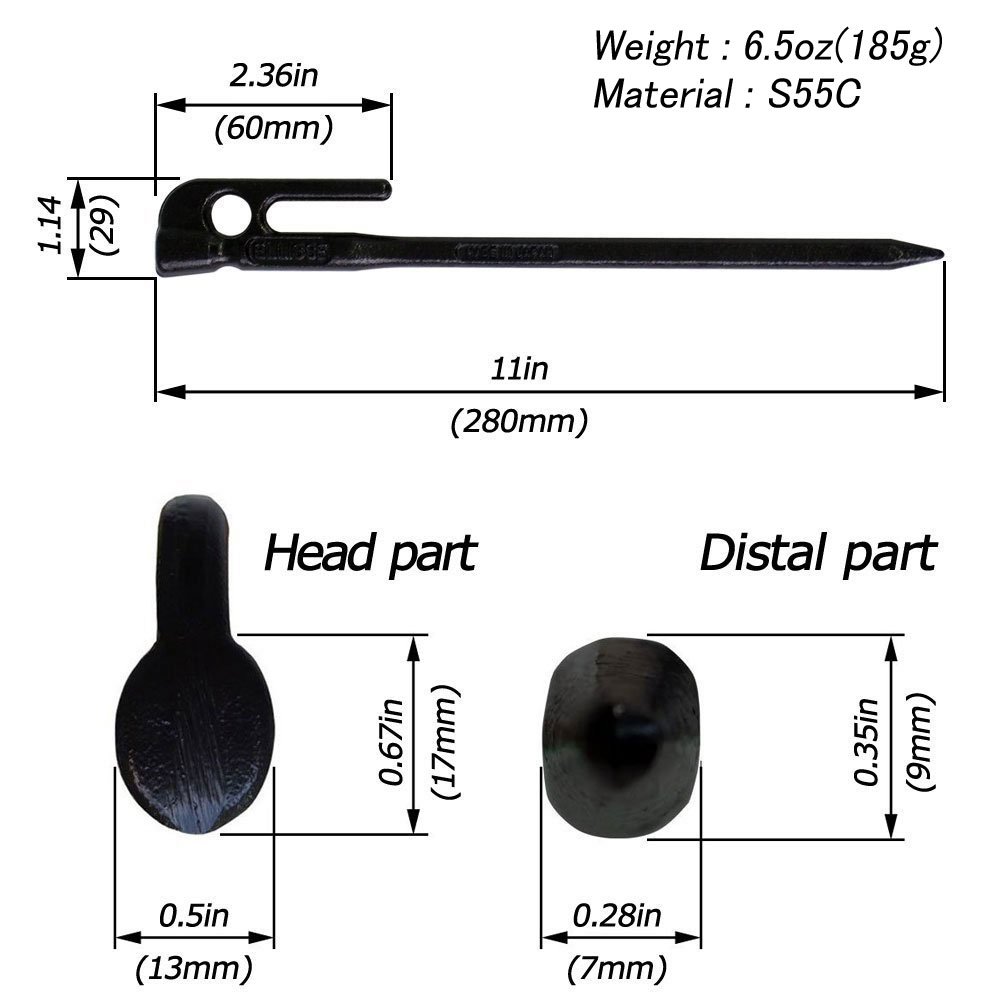

【Elise Stake Specification】

Total length: 280 mm

Head part: ellipse 13 × 17 mm

Driving part: thickness 9 × 7 mm

Material: S55C steel

Painting: Cation electrodeposition painting

Weight: (approx) 190 g / book

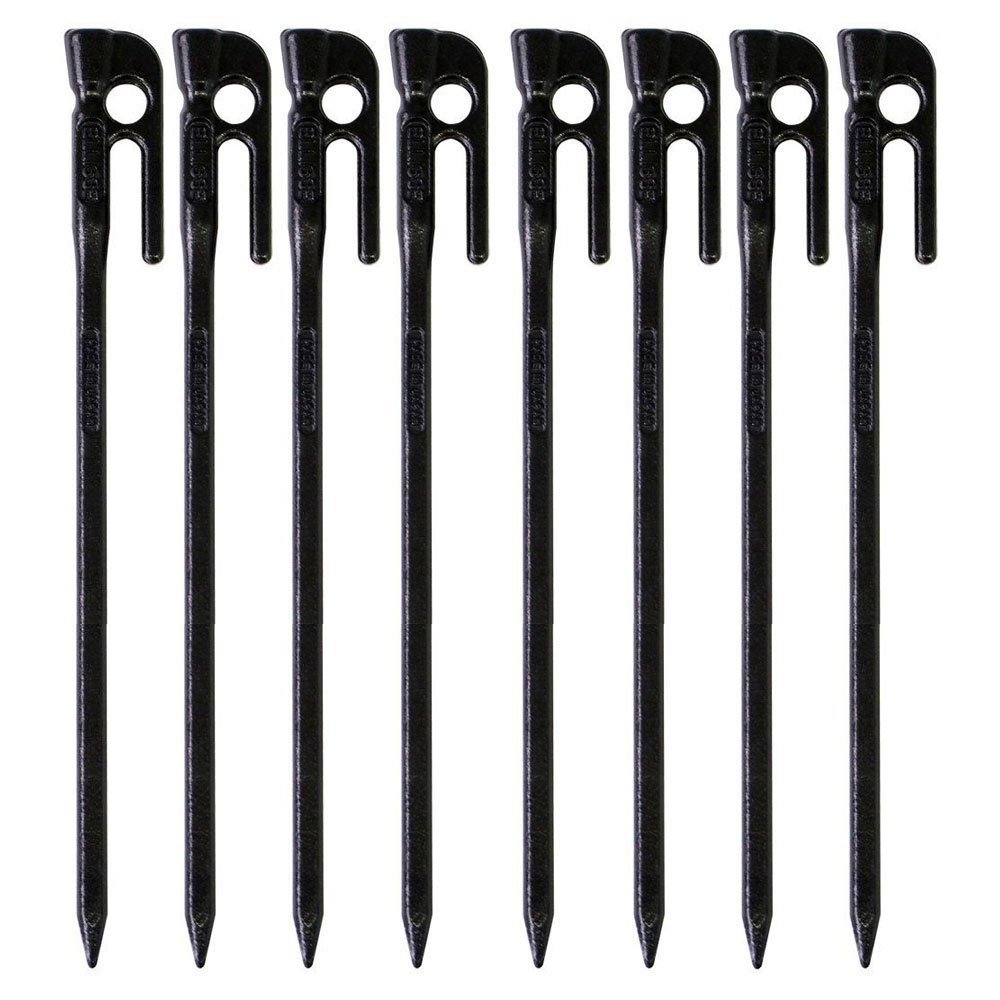

Quantity: 8

Manufacturing: Niigata ken Sanjo

Please note that product specifications, designs, etc. may be changed without prior notice.

In case

Please acknowledge that the color of the product may look different depending on your PC environment etc.

Features:

• A forging peg with a round steel material heated to a bright red to about 1100 ° C and crushed into an elliptical cross section at once with a strong force of about 1 ton.
• By applying strong pressure to heated steel, peg with excellent strength is completed.
• Normal round rod peg is not easy to use around peg underground, but elliptical peg can get in even hard ground with gravel and stone, do not turn around with kurukuri in the ground,
• Fix it.
• Also, as the rope pulling direction is designed with a thick material, it is made to withstand strongly.
• The point where the rope touches is trimmed so that the rope does not cut in Bali, and we are measuring extreme caution.
• Painting is excellent in rust prevention performance, cation electrodeposition coating which can withstand salt spraying for more than 1,000 hours.
• It is 280 mm in length which is easy to handle in any scene.

Product information:

Shipping Weight: 1651 g

Package Dimensions: 2.31 x 11.40 x 33.10 cm
