Product Description
A perfect assistant for your router
This Wireless Range Extender is like personal assistant for your router. It works alongside your router to enhance transfer rates and to extend the range of your Wi-Fi network. Improve wireless coverage in all WLAN networks. The Wireless Repeater is designed to extend the range of the current wireless network and improve coverage , giving you the freedom roam anywhere in the house and access Internet.



Main Feature:
Wireless N speed, Up to 300Mbps data rate .

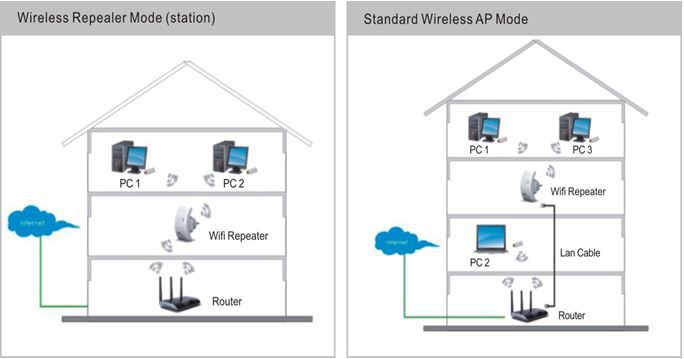

Support Wireless Repeater Mode and Standard AP Mode .
Supports WiFi Protected Setup ( WPS) feature.
Provides one 10/100Mbps Auto-Negotiation Ethernet LAN ports.
Software wizard for simple setup

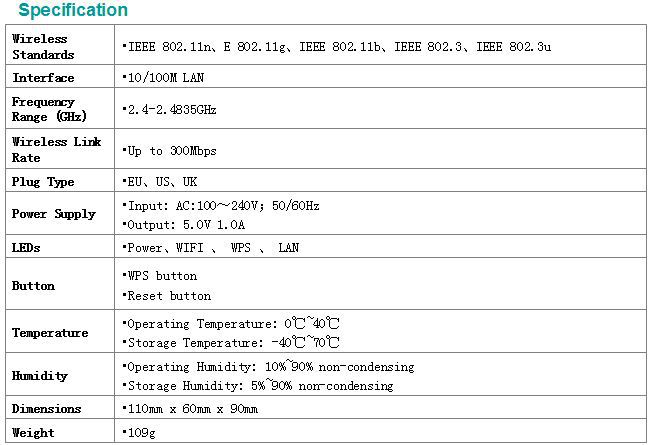

Specification
Ports:1x RJ45
Button: Reset 、WPS
LED:1x LAN,1x WLAN,1x Power,1x WPS
Wireless Data Rates:300Mbps
Chipset:RTL8196E
Power Plug: EU/US/UK/Australia(option)
Power Supply: Internal DC5V/1A
Rated Voltage: AC 100-240V.50/60Hz

System Requirements
WLAN access point/client according to IEEE 802.11n.g.b
110~ 230~volt socket
The WLAN client must support at least the WPA encryption standard
WLAN access point and the WLAN client with automatic IP address assignment (DHCP)
Forwarding of IPv4-based protocols/Address Resolution Protocol
The network name (SSID) of the WLAN access point must be set to "visible"

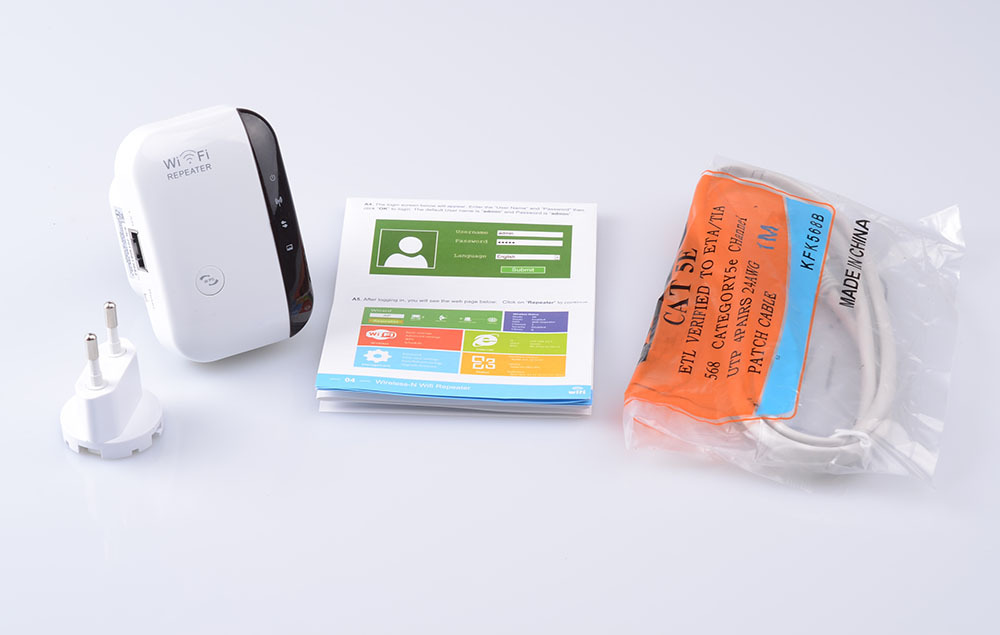

Package Included
1 x Wireless-N WiFi Repeater
1 x RJ-45 Networking Cable
1 x English user manual



undefined

undefined



Features:
Improve wireless coverage in all WLAN networks.
Support Wireless Repeater Mode and Standard AP Mode.
WLAN 802.11n for wireless high-speed access, downwards compatible with 802.11g(54Mbit/s) and 802.11b(11Mbit/s) standard.
Provides up to 300Mbps transmission rates.
Support 2.4GHz WLAN networks.
Maximum WLAN security with WPA2, WPA and WEP(128/64).
Software wizard for simple setup.
Antennas integrated.



Color White + Black
Product size Approx. 9.5 * 8cm / 3.74 * 3.15in
Product weight Approx. 108g / 3.8oz
Package size Approx. 18 * 11.8 * 6.6cm / 7.09 * 4.65 * 2.6in
Package weight Approx. 218g / 7.68oz
