Item Descriptions:

color:

black

Product introduction

· Equipped with a unidirectional stereo condenser microphone · Sound pressure 125 dB SPL resistant sound pressure design · 180 degree rotating vari-angle microphone mechanism (patent applied) · A / D converter mounted, digital transmission to iPhone · 30 g lightweight design,

Compact size entering pocket · Driven by power from iPhone · Charging of iPhone from mini-USB connector is possible

From Amazon

Microphone setting that can be selected according to the application

■ X-Y type iM2X suitable for single sound source recording

"IM2X" is an X - Y type microphone setting, which is suitable for recording aimed at a single sound source such as an interview, acoustic guitar, or drum.

In the X - Y system, the central sound is weak, it is difficult for a blank area phenomenon to occur, and you can record the sound closer to the center.

Since "iM2X" can also check the level with the LED display, it is also ideal for those with knowledge of recording and for those who want to record fancy.

■ A-B type iM2 that can obtain spreading sound

"IM2" is a microphone setting of the A-B method, and it is possible to obtain a spreading sound in the recording of live concerts, recording of traveling sounds, and so on.

Also, since the AB system has the same structure as the human ear, it is possible to record sounds close to the sounds actually heard, so it is natural not only for music but also for family movie recording in rooms and outdoor recording without target setting

You can record with sound.

Main features

■ Unidirectional stereo condenser microphone with quality equivalent to DR-07MKII is installed

A unidirectional stereo condenser microphone equivalent to the linear PCM recorder TASCAM DR - 07 MKII is mounted on a compact body.

Just connecting to the iPhone enables stereo recording full of presence.

In analog circuit design including microphone, technology which was cultivated for professional audio equipment was generously introduced, realizing a wide frequency characteristic of S / N ratio 95 dB or more, 20 to 20 kHz.

In addition, because it carries an analog limiter that does not distort even at high volume, it can be used for various purposes.

■ Sound Pressure 125 dB Reliable for Band Recording with Loud Volume with High Pressure Resistant Pressure Resistant Accurately Capturing Large Volume of SPL

High sound pressure resistant design is realized with high sound quality such as band and train passages.

You can record with confidence from small volume sound source such as lecture, acoustic live to loud volume of rock band.

■ Self-recording, stage shooting, interviewing is also free 180 degrees rotating vari-angle microphone mechanism

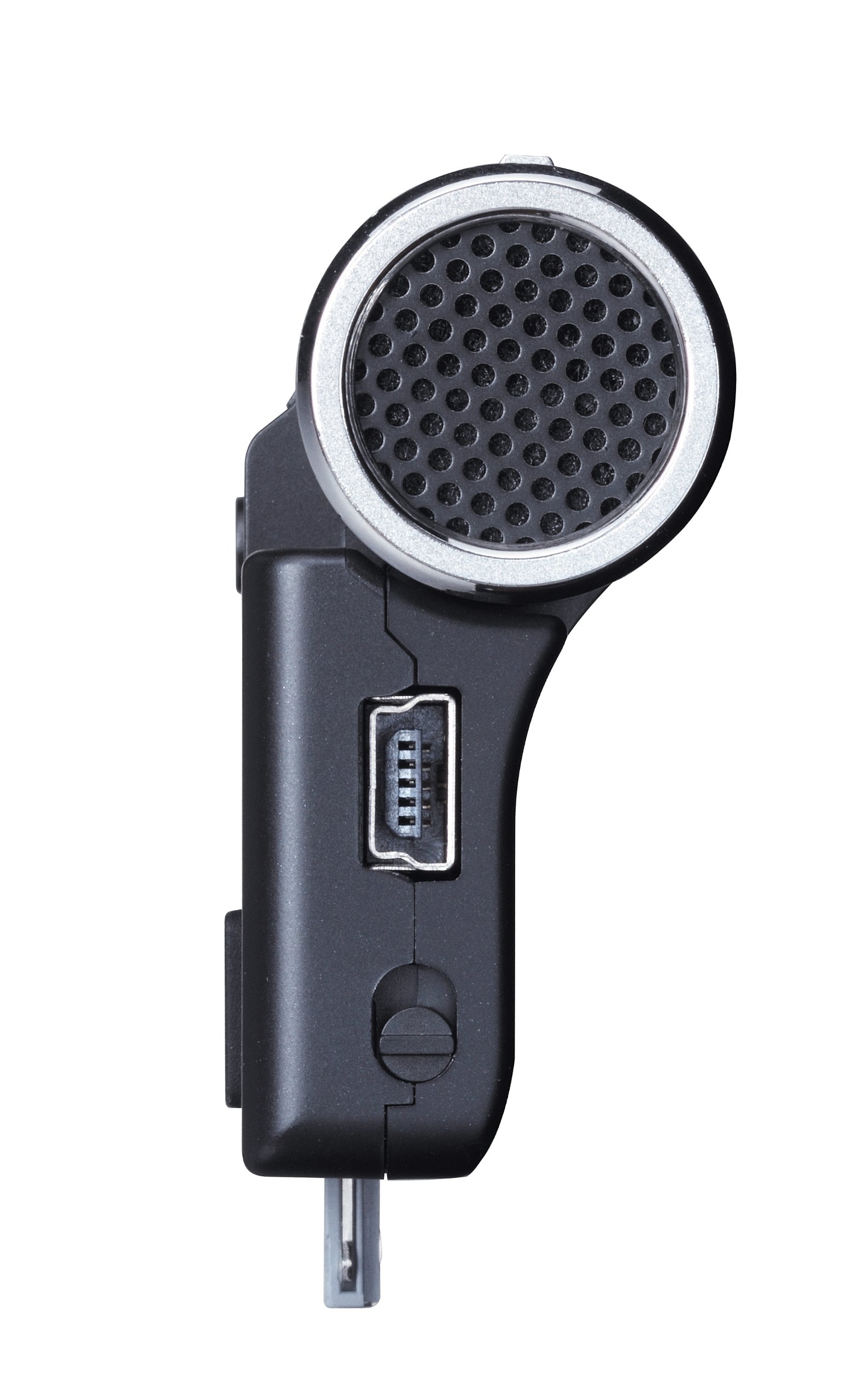

It is equipped with a vari-angle microphone mechanism (patent pending) that relieves angle constraints due to dock connection.

Since the angle of the microphone can be varied by 180 degrees, interview recording for the speaker from the recording of putting the iPhone main body in the breast pocket,

It allows free miking until you record yourself by defeating the microphone to yourself.

The microphone body has a red marker so that you can see the angle of the microphone.

■ Equipped with A / D converter, digital transmission of stereo audio to iPhone

Stereo audio passed through an analog circuit boasting excellent acoustic characteristics is digitized by the A / D converter installed in the iM 2 main unit.

Since it is a digital signal, it transmits stereo audio to iPhone without deterioration.

■ 30 g lightweight design, compact size to fit in your pocket

Lightweight design with a body weight of 30 g, which carries high sound quality stereo condenser microphones, does not make it easy to carry.

The size is also 59 x 57 x 19 mm compact size, it is not bulky even if you let it always be a bag.

Always carry with your iPhone to carry with ease.

■ Unnecessary battery power to drive with power from iPhone

The main battery is unnecessary, and power is supplied from the iPhone via the dock connector.

By eliminating the need to worry about running out of batteries, we are improving portability.

If you connect the power adapter to the mini-USB connector of "iM2", iPhone charging while using it is also possible.

※ When charging via mini-USB, please use Apple's original charger for iOS device and purchase mini-USB cable separately.

■ Linear PCM Recorder Application for iOS TASCAM PCM Recorder

Although it is possible to shoot movies with iOS standard built-in voice recorder or camera application, linear PCM recording is possible by using linear PCM recorder application TASCAM PCM Recorder.

The application

App Store

You can download it for free.

Feature list

· Unidirectional stereo condenser microphone installed

· Sound pressure 125 dB SPL soundproof high pressure design

· Vari-angle mechanism in which the microphone rotates 180 degrees (patent applied)

· Built-in analog limiter

· A / D converter mounted on the main unit

· Recording in 16 bit / 44.1 kHz format (dependent on iOS)

· Dock connector connection

· Support for stereo recording application

· 30 g lightweight design

· Driven by electric power of iPhone (battery unnecessary)

· IPhone can be charged with iM2 connected via mini-USB connector

Features:

• Please enter model number Confirm this is compatible:
• ※ iPhone is not included.
• Unidirectional stereo condenser microphone installed, sound pressure 125 dB SPL soundproof high pressure design
• A vari-angle mechanism (patent applied) in which the microphone rotates 180 degrees, an analog limiter mounted, an A / D converter mounted on the main body
• Supports recording in 16 bit / 44.1 kHz format (depending on iOS), dock connector connection, stereo recording application, 30 g lightweight design, powered by iPhone power (no battery required)
• iPhone can be charged while connecting iM 2 via mini-USB connector

Product information:

Shipping Weight: 58 g

Package Dimensions: 3.40 x 7.80 x 12.19 cm
