made in China

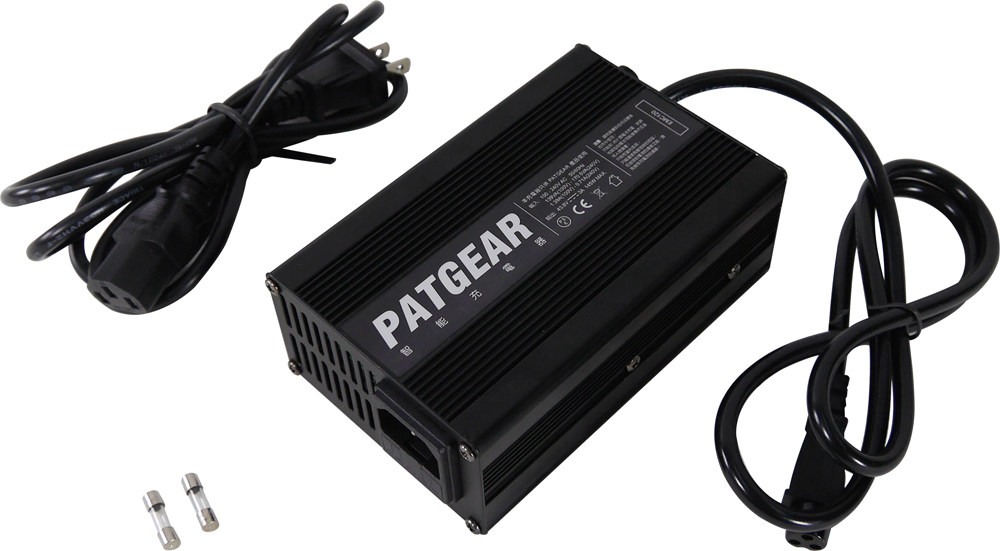

Applicable to: PATGEAR electric scooters 36V 250W

Input voltage: 100-240V AC 50 / 60Hz

Output voltage: 43.8V ---- 3A 145W MAX

Other: full power automatic power-off protection

LCD panel displays charge timing and charging:
1. When the process of moving. LCD panel or grid box appears when flashing left a cell when the charging time.
2. Charging best timing data mode: Remove the battery when charging is complete switch to turn the plug open power of the original single LCD panel will return mileage 0000.0 when the meter shows over the following is the best time to charge:.. 24V6AH: 12km ; 36V8AH: 20km.
3. LCD panel there are two buttons to switch .POWER start switch is switched .MOOE mileage and zero switch. When the POWER button is pressed the start will be displayed TRIP TRIP. When MOOE click will transfer the total mileage ODO. Single Choose when the display views mileage zero TRIP. Press and hold the key for 3 seconds MOOE automatically reset to zero. The total mileage is not zeroed.
Battery charging / storage places:
★ indoor， dry， no rain， no wet
★ avoid direct sunlight and well ventilated.
★ Do not allow children near.
★ ambient temperature 5 ℃ -25 ℃.
★ no flammable materials around.
Maintenance Note:
1. The battery should be done with the use of charge at all times ensure that the battery power.
2. The period of inactivity (lithium over two months)， should be stored fully charged.
3 .. Please keep the body clean， carry and clean.
4. Fold the body touches the earth at， should be cleaned before storage， so as not to affect the folding function.
5. When the instrument display without electricity， do not ride again， in order to avoid over-discharge， affect battery life.
Chargers use and precautions:
1. Charger input line， output line and battery after qualifying in the circuit lines of convergence can not be folded， squeezed in order to avoid damage caused by short-circuit line.
2. Taiwan PATGEAR electric scooter equipped with charger has: overcharge protection， overcurrent protection， overvoltage protection， charge mode used are: constant current constant voltage charging charging → → full automatic shutdown; 100% The full battery charge. Charging for about two hours and can be filled quickly.
3. charger products have passed CE and other international certification， it is a safe， reliable， high quality green products.
4. Charge Description: The first and portable charger electric vehicle charging interface connection is good， then connect the AC input plug AC100-240V AC and turn on the power， the charger indicator light that is bright red， the battery is being charged. When the battery charge is full， the charger from red light into green light， that indicates fully charged. NOTE: Chargers normal connections， be sure to connect the charger and battery， and then connected to an AC power source.
Keep out of reach of children to a safe place 5. charging.
6. charger green light before they can carry electric car ride， do not arbitrarily pull out the charging process.
7. Do not use the charger other brands， other types of batteries should not use the charger.
8. The charger contains high voltage circuit inside， do not disassemble.
9. After the summer travel， due to higher battery temperature， not immediately charged， to be placed about half an hour after the start of charging.
