Item Descriptions:

color:

black

This product is a practical tool necessary in the fields of security and living at home for the purpose of crime prevention and security for protecting important families and property.

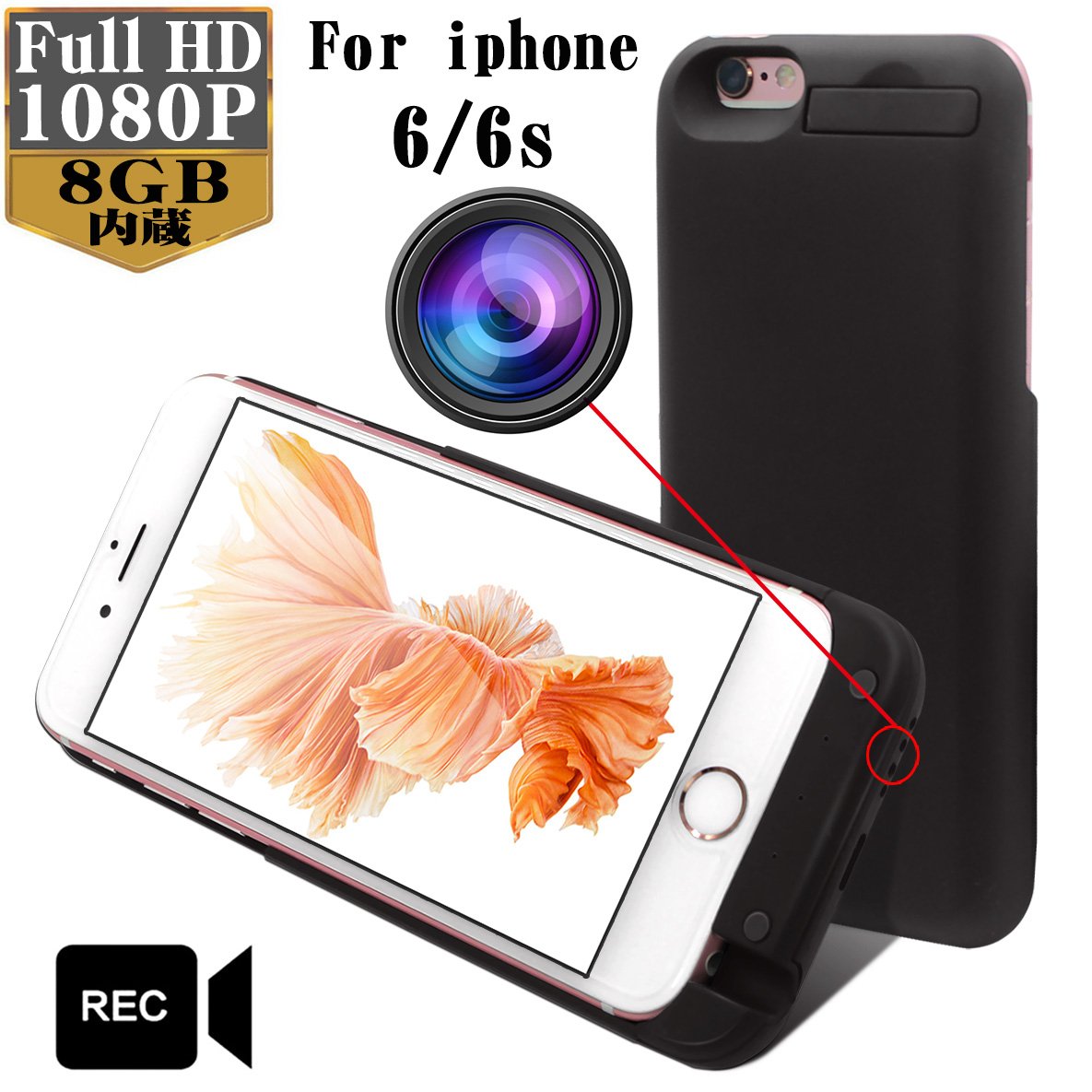

【Product function】 Movie shooting · Motion detection function · Recurrent recording function · High sound quality microphone · Date setting function · Can be supplied to 4.7 smartphone of iPhone 6 / 6s.

This machine equipped with a large capacity battery records 1080p full HD.

When used in motion detection recording mode, it will function sufficiently as a security camera on the go.

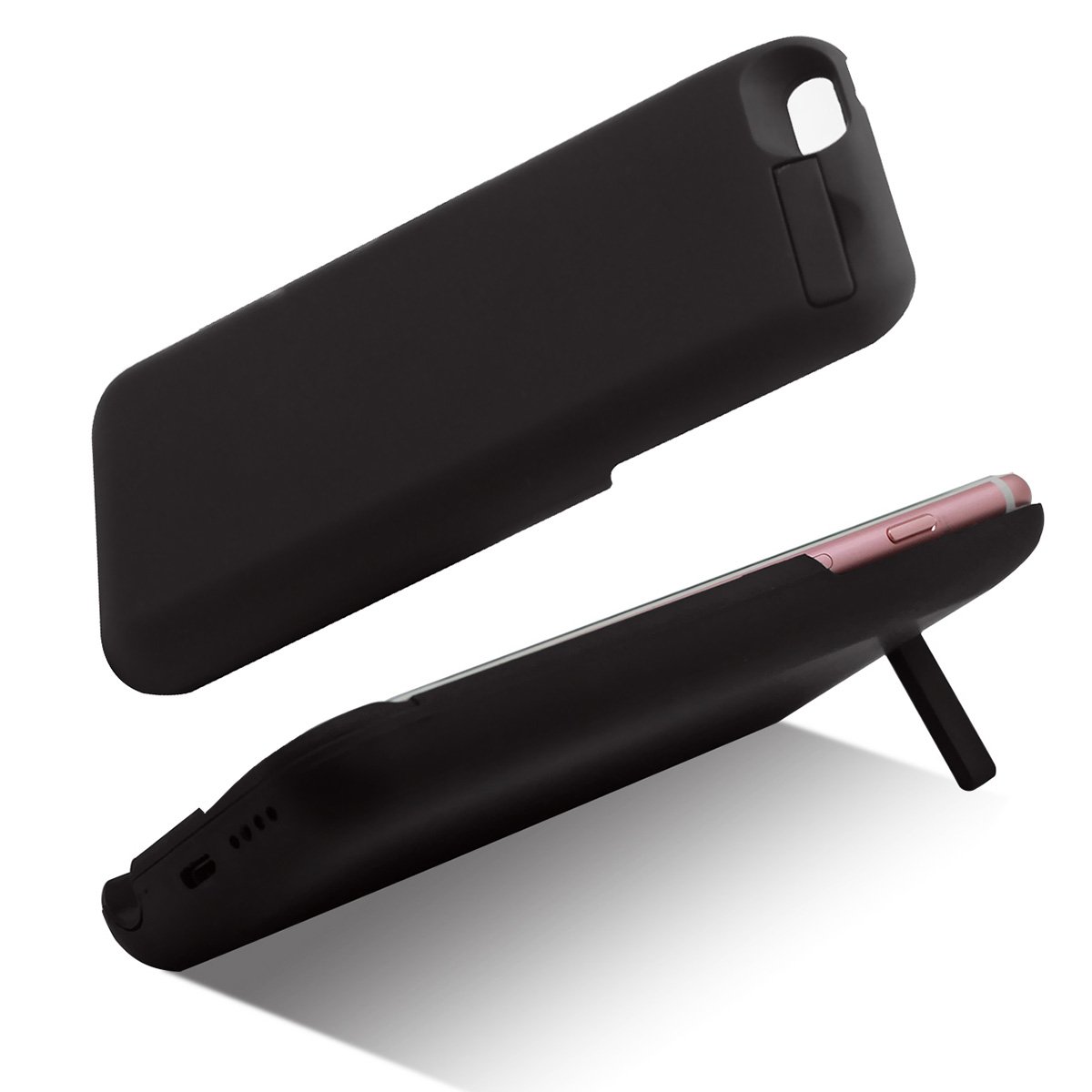

The appearance that is imitated as a smartphone cover type is hard to be noticed by intruders and it is easy to set it for anyone because it only puts it in place without socket outlet.

This machine is a model with built-in 8GB memory.

There is no need to prepare microSD card etc. separately.

Overwriting recording which adopts deletion of the old file and continuing the recording when the free space runs out is adopted.

※ When shooting for more than 1 hour, motion detection recording is recommended.

For smartphones equipped with mobile charger function, compatible smartphone For those who have smartphones, the more nice feature is the mobile charging function.

Since the case itself can be used as a mobile battery, you do not need to carry a mobile battery separately or dedicated cable for smartphone connection.

To charge the attached smartphone, simply press the charge button of the machine once.

Smashcase Anti-confidential cameras are ideal for evidence shooting!

If you have a compatible smartphone (iPhone 6 / 6s), you can attach it as a case to a smartphone and use it as a camera for record shooting at negotiations and seminars and as a camera for evidence shooting in research work.

Introduction

This instrument has a built-in lithium battery, please use it before charging for the first time before charging.

Caution:

Even when not using the product, the battery may be exhausted.

Please confirm the presence or absence of the remaining battery of the battery in use, when the battery becomes low, after the lamp blinks rapidly, switch to the direct protection state, please charge this equipment at this time.

Product specification

Video format

T: AVI

Video code

: M-JPEG

Video Resolution

: 1920 × 1080 P

Video frame rate

: 30 fps

Image proportion

: 4: 3

Built-in microphone

: New high performance microphone

Charging voltage

: DC-5 V

Motion detection function:

Light Sensing Method

Motion detection range:

Approximately 6 m (change in brightness)

Viewing angle:

90 °

Battery capacity:

2500 mAh

Interface type

: USB 1.1 / 2.0

Save support:

Built-in microSD card 8GB

Battery type:

High capacity polymer lithium battery

Media Player

: Operating system included, or mainstream audio / video media player

Supported OS

: Windows me / 2000 / xp / 2003 / vista; Mac OS; Linux

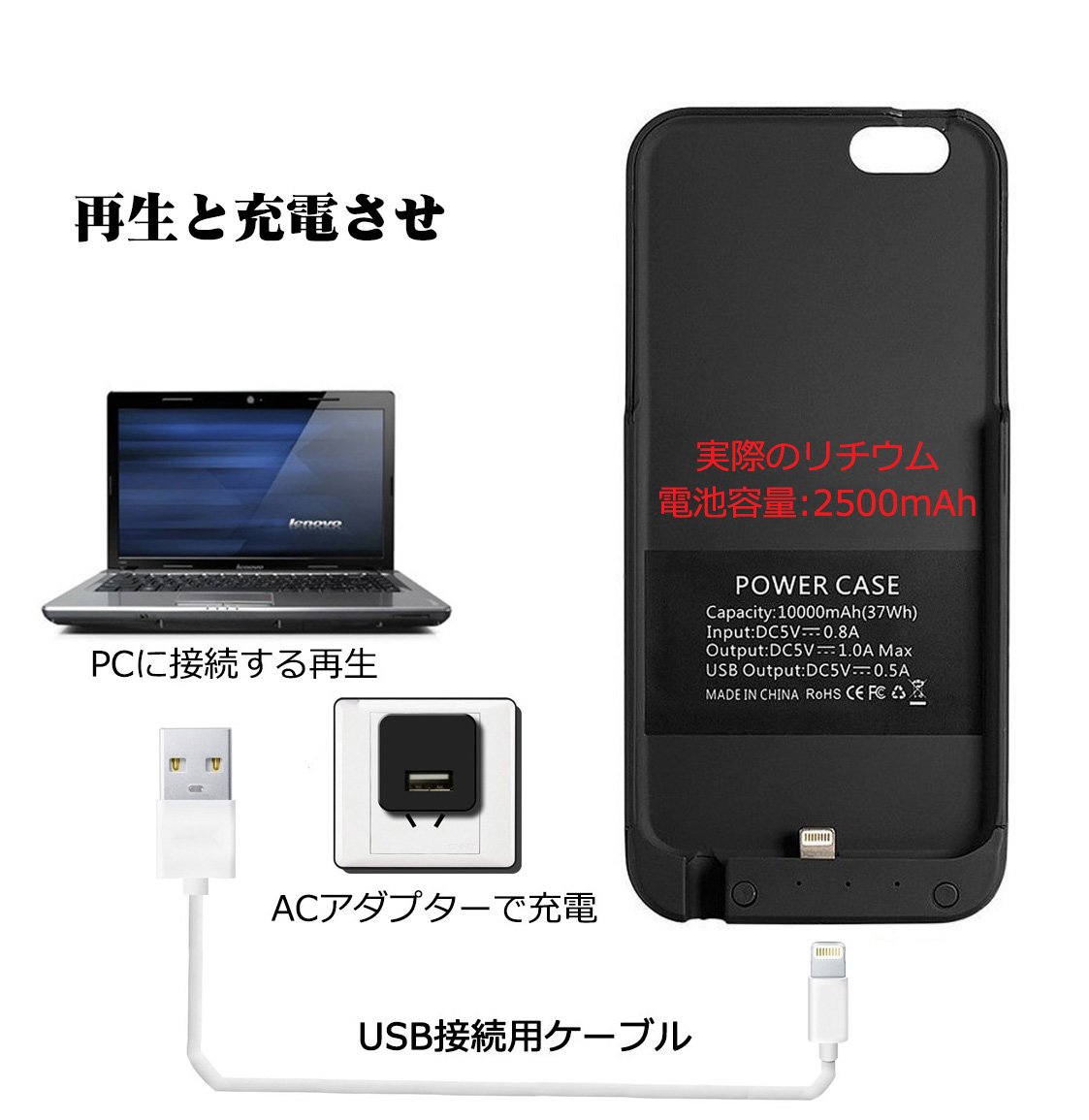

Connecting to a PC (About playback)

Whether switch ON standby or switch off state, when connected to a PC without being removed, it can be used as a U disk.

Copy files, cut and paste, delete, U disk initialization, etc. can be operated freely.

When this device is inserted in the USB interface of the PC, the PC pops up the mobile disk icon after a few seconds.

When the red / blue lamp lights up, USB equipment is recognized and data can be transmitted.

Presentation: If you can not recognize after connecting to the PC with the USB connection cable with this device,

Please reinsert the iPhone 's terminal for USB connection with the reverse side, you can play smoothly.

(The both sides of the iPhone terminal of the attached USB connection cable are not the same).

Recording time correction setting

As for the installation method, connect to the computer, locate the mobile disk, click the right button in the blank part of the disc, and name "time" as "new" → "text document" on the menu as follows.

The name of the extension is "txt".

By the above method, you can copy to the folder and copy it to the disk file.

Open the "time" folder, set the time format according to the method of 2016.01.01 12: 12: 12, divide by year, month, day with hour, minute, second by space.

Then save it.

Save the file and exit.

Restart, time setting is completed.

After setting the time, the time set for the video file became the same as the set time.

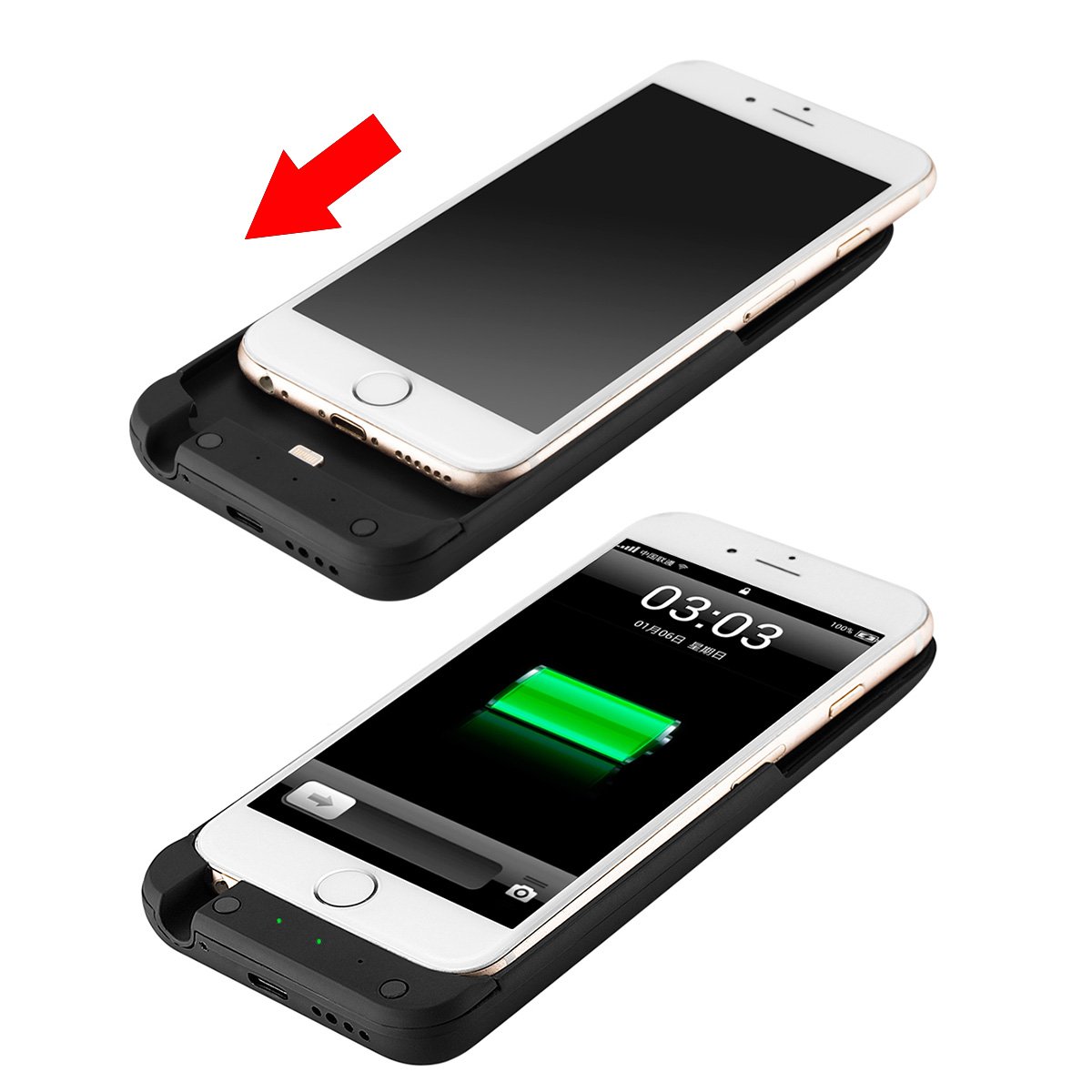

Charged to 4.7 smartphone of iPhone 6 / 6s:

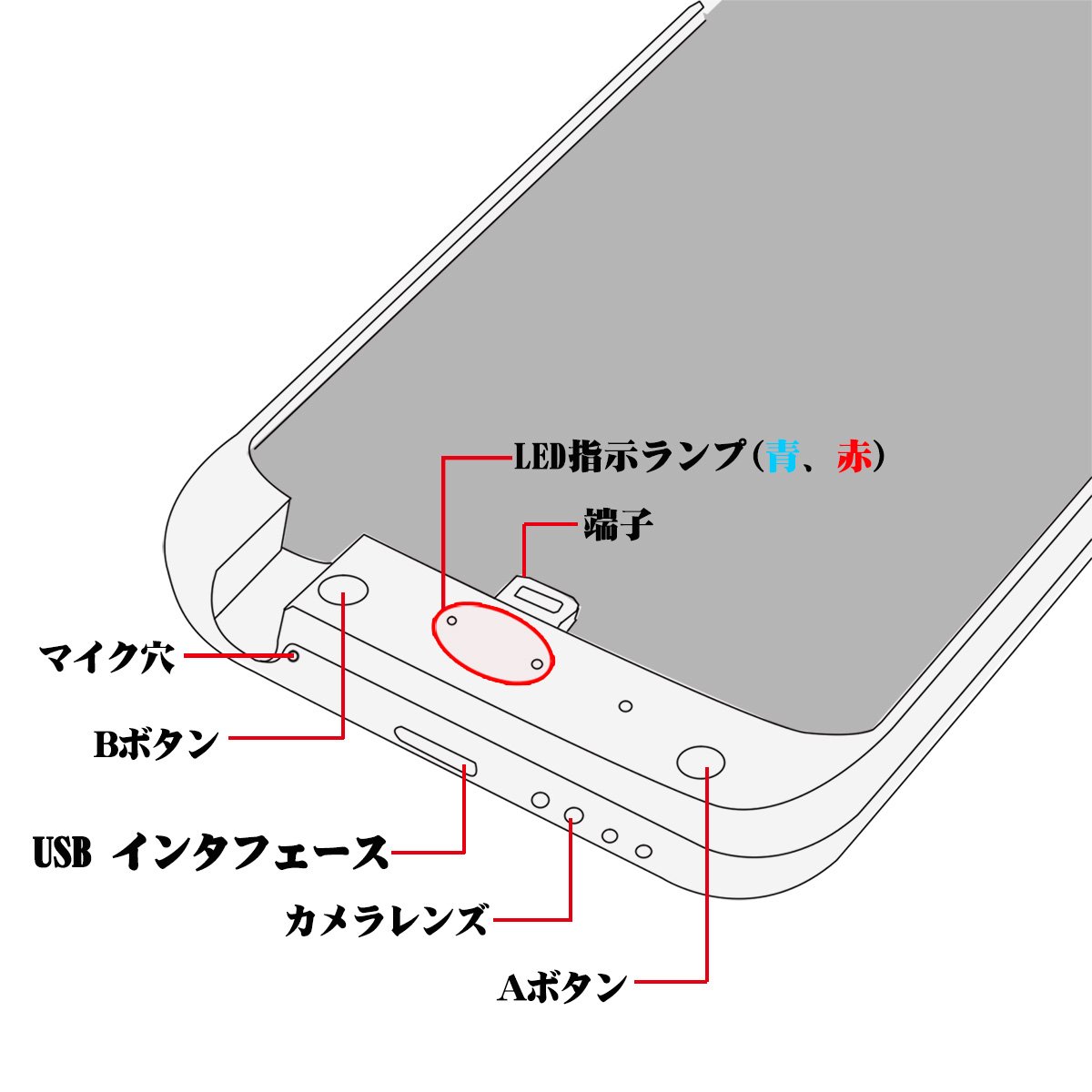

First of all, please insert the smartphone into the product, press and hold the A button for about 3 seconds, press the B button to wait for the red lamp to light up, charge the smartphone again when the blue lamp lights up, once more

Press B to stop charging.

reset:

This device can be reset to this device when freezing, button invalid.

Please press and hold A button and B button, Reset will be done if indication lamp wipes completely.

After resetting, it can be used normally.

Product Handling Precautions:

The warranty for this product is only for the camera part.

Since the smartphone charging function is an attached element only, it is out of the scope of warranty.

Please note.

Compatible models are Lightning cable compatible models

iPhone 6 / 6s

And we are.

Charging is not possible for other models.

You can not use the camera function while power is being supplied to the smartphone.

accessories

Body · USB cable · Japanese instruction manual · service card ·

【security】

SeiTang manufacturer's warranty is attached to this product.

We will exchange new items only in case of trouble based on correct use from purchase.

Please do not hesitate to contact us if you have any questions.

Features:

• Please enter model number Confirm this is compatible:
• 【Product function】 Movie shooting · Motion detection function · Recurrent recording function · High sound quality microphone · Date setting function · Can be supplied to 4.7 smartphone of iPhone 6 / 6s.
• 【High Quality / High Resolution】 It is possible to shoot vivid images up to the full high definition of Full HD 1920 × 1080pix video resolution, realizing shooting with overwhelming high image quality resolution compared to conventional models.
• [Motion detection recording] Automatically start and stop recording in response to surrounding movement, Reduce useless recording in motion detection recording.
• [Built-in microSD model] Built-in 8GB microSD card, no other microSD is sold separately, even if the memory card becomes full Overwrite recording function is deleted from the old file.
• [Actual chargeable] Just by pressing the button on the battery case, you can charge 4.7 inch of iPhone 6 / 6s anytime anywhere.
• Of course, it has a charge complete automatic stop function.
• It is in a mobile battery with a real capacity of 2500 mAh.

Product information:

Shipping Weight: 167 g

Package Dimensions: 3.10 x 10.49 x 21.31 cm
