Product Description
Description:
Die-Cast Aluminum Housing with epoxy sealed containers.
100% Waterproof with Anti-shock protection.
Light weight and ultra-compact size.
More than 90% power conversion efficiency.
Built-in over/under-voltage input, overload, over-heat and short circuit fully protection.
Auto-recovery when converter is back to normal operating.
Stable and reliable performance.
Easy and simple installation.
Specifications:
Brand new and high quality.
Input voltage :48V DC.
Input voltage range: 35 ~ 60V DC.
Output voltage: 12V DC.
Output current: 10A (max), 120W.
Transfer efficiency >85%.
Load regulation:£º¡À2%.
Voltage regulation factor:¡À0.5%.
Dynamic response speed: 1% 200uS.
Operating temperature: -10¡ãC ~ +60¡ãC(Temperature more than 40¡ãC, please reduce power use, or the use of aluminum plate thermal conductivity, or air-cooled enhance heat dissipation).
Wire lengths: 20cm.
Construction: Die-cast aluminum casing, Epoxy sealed potting.
Dimensions: 7.7cm X 4.9cm X 3.6cm.

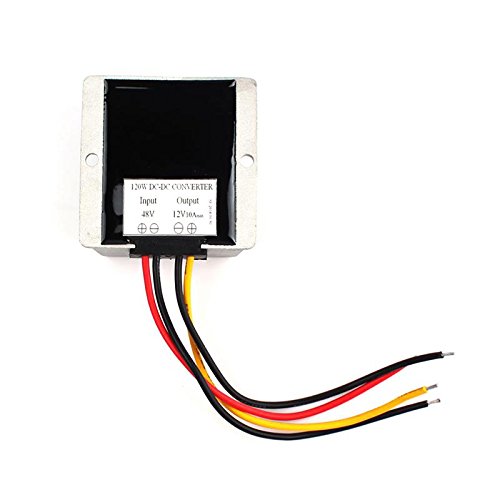

Wiring:
lnput : red, power +; black, power -
Output: yellow +; black: -
Note: Please shorten for electric lines a long distance between the input from the < 30 cm, to avoid input line is too long, cause the line pressure drop, make the power supply voltage is not enough, damage to power supply and electrical appliances, the input voltage of positive and negative polarity shall not reverse.
Package Included:
1 x 120W Voltage Reducer Converter Regulator DC/DC 48V To 12V 10A
NO Retail Box. Packed Safely in Bubble Bag.
Feature
Die-Cast Aluminum Housing with epoxy sealed containers
100% Waterproof with Anti-shock protection
Light weight and ultra-compact size.
More than 90% power conversion efficiency.
Built-in over/under-voltage input, overload, over-heat and short circuit fully protection.
Brand : ExGizmo
MPN(PartNumber) : 52635
EAN : 0701466796789
Package Dimensions(LxWxH) : 10x9x3cm ; 272 g
