Item Descriptions:

[Free Tilt Function]

● Realize various actions.

● Bracket: 15 degrees up and down, 45 degrees left and right.

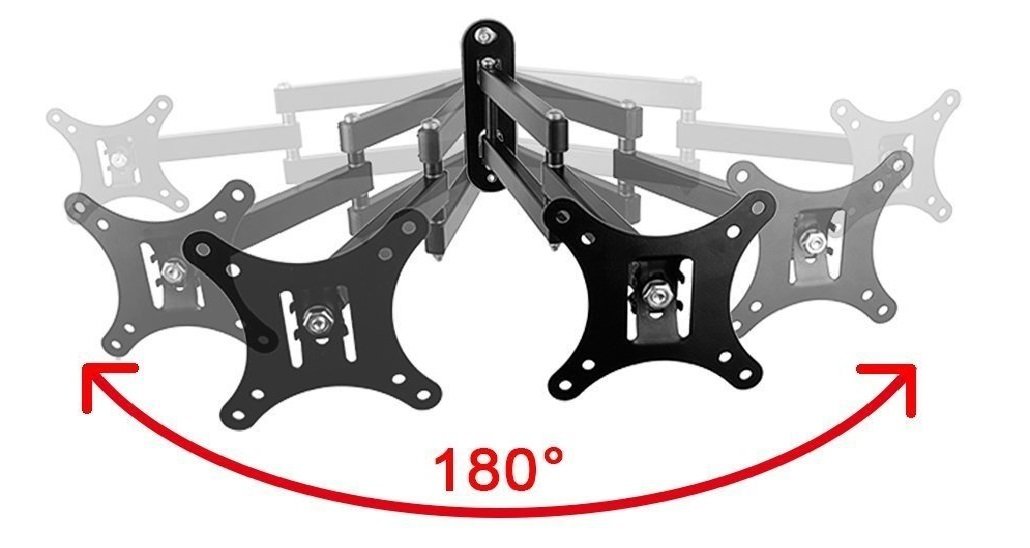

Arm: 180 degrees left and right, maximum distance 390 mm

Since you can freely adjust the distance from the wall, you can adjust your favorite viewing angle.

【Dimensions and Materials】

* There are points you want to check before installation!

1. There must be four screw holes on the back of the TV.

2. If installed on a stud, please measure the width and height of the stud.

①.

Corresponding size standard: 10 to 30 inches.

(10 inches, 13 inches, 14 inches, 16 inches, 17 inches, 19 inches, 20 inches, 21 inches, 23 inches, 24 inches, 27 inches, 29 inches)

②.

LCD · LED · liquid crystal TV · monitor also correspond.

③.

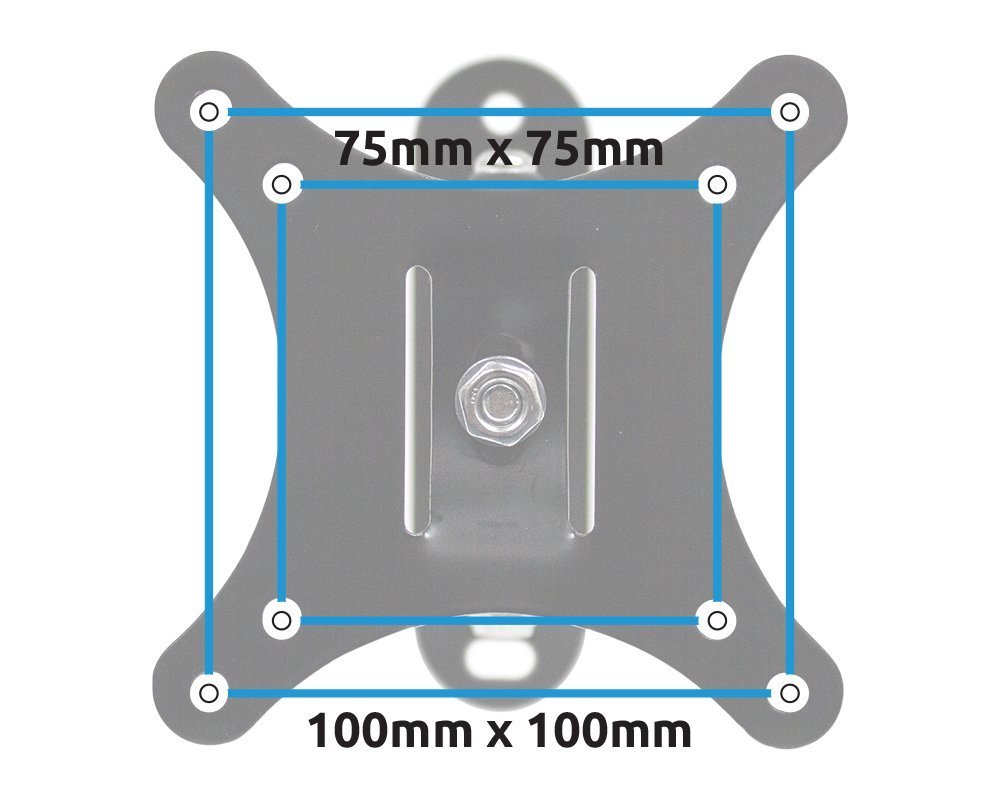

Distance between threaded holes on the back: "75 mm x 75 mm 100 mm x 100 mm or less (compliant with the VESA standard)"

④.

Load capacity: up to 20 kg.

⑤.

Distance from the wall: 4.5 - 38.5 cm

⑥.

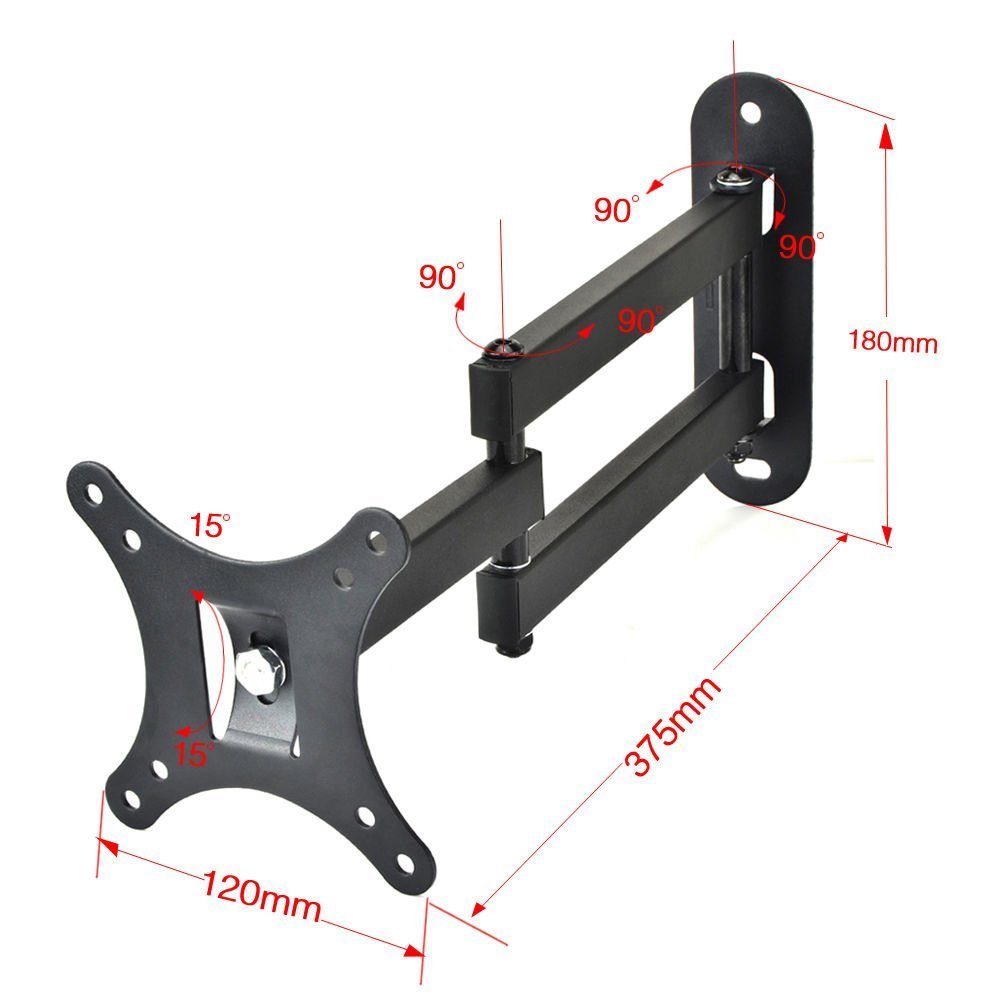

Arm length: 37.5

⑦.

Material: High quality steel made

* There is no corresponding brand limit.

We will correspond to the brand and the brand.

(Sharp AQUOS, Panasonic, ORION, OEN, TOSHIBA, BenQ, Pioneer, etc.)

【Good quality】

● Made of thick steel thicker than 2 mm

● Products that acquired ISO 9001, TUV / GS, UL certification

* Since this item ships from Amazon, it can be shipped within 24 hours.

When you receive the item, please check first that all the parts are complete.

Please contact us if any necessary parts were missing.

[Mounting range and mounting method]

【TV installation method】

1. Decide where to install wall bracket, wall material (wood, concrete, etc.).

Make sure the wall to be installed has sufficient strength.

2. Installation of wall hangings on the wall.

①.

Mark metal fittings on the wall two screw hole positions.

②.

Using a drill, drill a hole of 10 mm in diameter and 50 mm in depth on the wall.

③.

Drive a white plastic plug (included B) into the hole.

④.

Use screws (A in the package) to fix the brackets to the wall.

3. Attach the brackets to the TV.

※ Please be sure to install TV set with two or more people.

①.

Using screws for the TV mounting bracket (E / F of the supplied items) and spacers (C / D of the supplied items) to the screw position on the back of the TV, tighten firmly.

※ The mounting position of the brackets will vary depending on the model of the TV.

* TV mounting screws vary depending on the TV model.

(This product comes with two types of M4 x 20 mm · M 5 x 20 mm.) If the screws do not fit, please purchase separately appropriate one.

4. Lastly adjust your favorite angle.

When adjusting this angle, please be sure to tighten the tool securely using this tool.

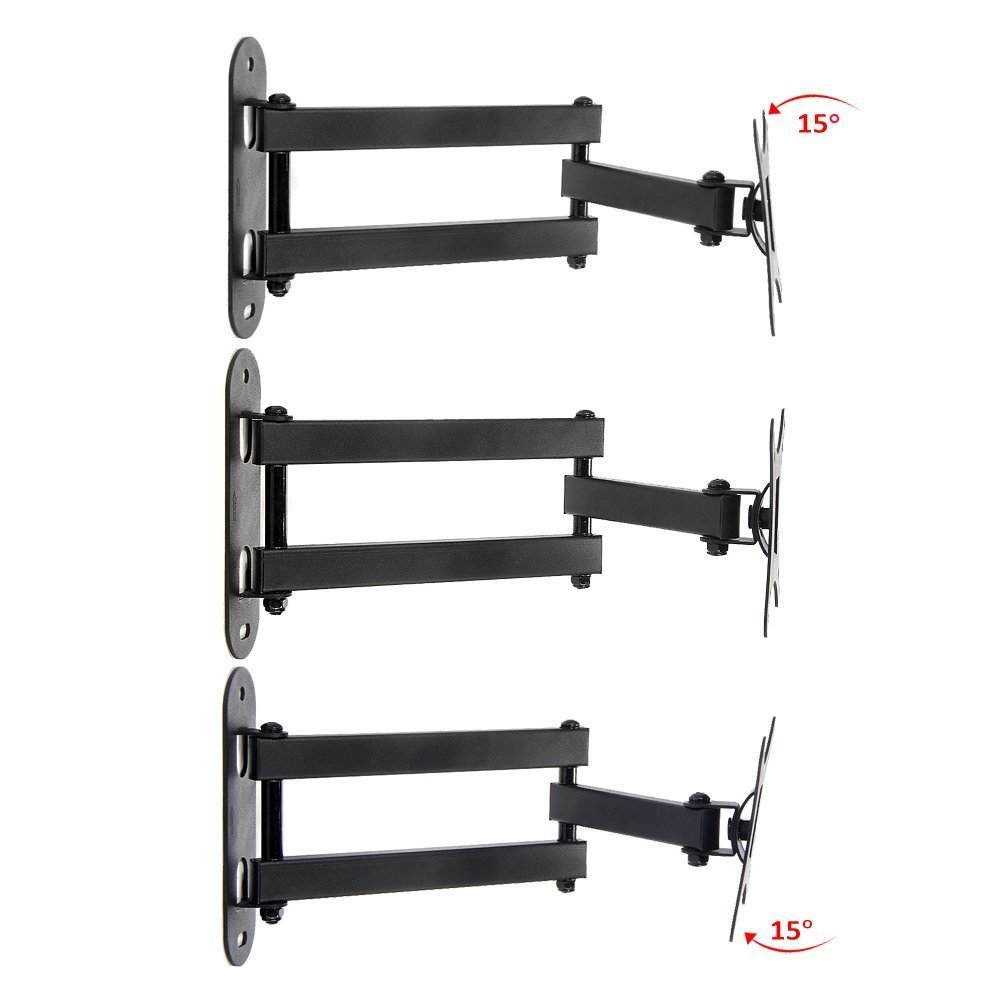

※ This product can be adjusted from -15 ° to + 15 °.

Depending on the weight of the TV or the angle it is lowered, the arm may be lowered somewhat.

Features:

• Please enter model number Confirm this is compatible:
• [Range of motion] Bracket: 15 degrees up and down, 45 degrees left and right.
• Arm: 180 degrees left and right, maximum distance 390 mm.
• * Adjustable angle for easy viewing.
• [Corresponding size standard] 10 inch to 30 inch type LCD · LED · LCD TV compatible.
• Distance between threaded holes on the back "75 mm x 75 mm 100 mm x 100 mm or less (compliant with the VESA standard)"
• 【Style】 Arm type, retractable type, small type.
• Can be installed between pillars, save space.
• 【Maximum load capacity】 20 kg.
• Body weight 1 kg.
• [Contents of goods] Bracket body | Various screw set | Installation instructions

Product information:

Shipping Weight: 961 g

Package Dimensions: 4.19 x 18.90 x 25.40 cm
