Studio : ANTOP

Publisher : ANTOP

Binding : Electronics

Product Description
ANTOP's latest Generation Digital Technology

1. Smartpass Amplifier, exclusive ANTOP technology, uses an all-in-one design allowing easier connection while delivering the correct balance between short and long range reception.
2. 4G LTE Filter: built into all ANTOP amplified antennas, blocks 3G and 4G wireless signals for noise-free digital reception.
3. High Gain reception technology, shielded for minimum interference.
4. Works perfect in AM FM wave band.
5. Supports VHF UHF digital signals.


Product Features:

Range: 40 to 50 miles from point of signal origination
Reception Pattern: Multi-directional
Polarization: Horizontal

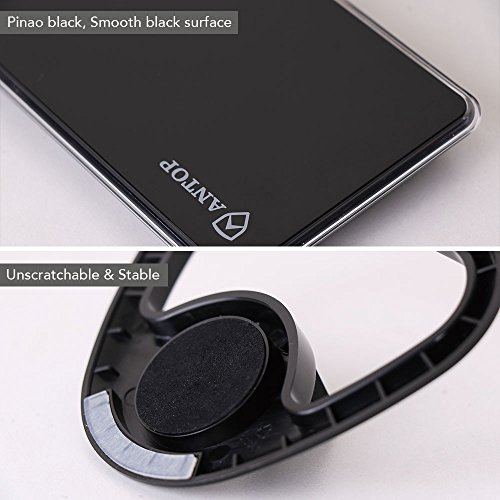

Color: Piano Black

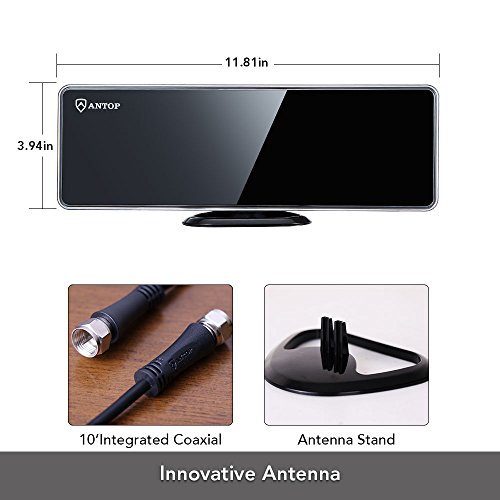

Size: 11.81 x 3.94 x 0.67 in
Coaxial Cable: 10ft Integrated
Exclusive Technology: Smartpass Amplifier, Built in 4G LTE Filter
Smart Switch On: Long range reception
Smart Switch Off: Short range reception


Technical Specification

Frequency Range: 174-230MHz, 470-700MHz
Power Supply: DC 5V via power adapter
Receiving Range: VHF/UHF
Gain: 6-8dB or 19dB Max
Output level: 100dBuV Max
Impedance: 75Ω
Noise figure: ≤2dB


What's in the box

AT-202B FLAT PANEL Smartpass Amplified Digital Indoor TV Antenna
AC/DC Power Adapter
Stand bracket
10ft Coaxial Cable
Instruction/User Manual
