Item Descriptions:

Product introduction

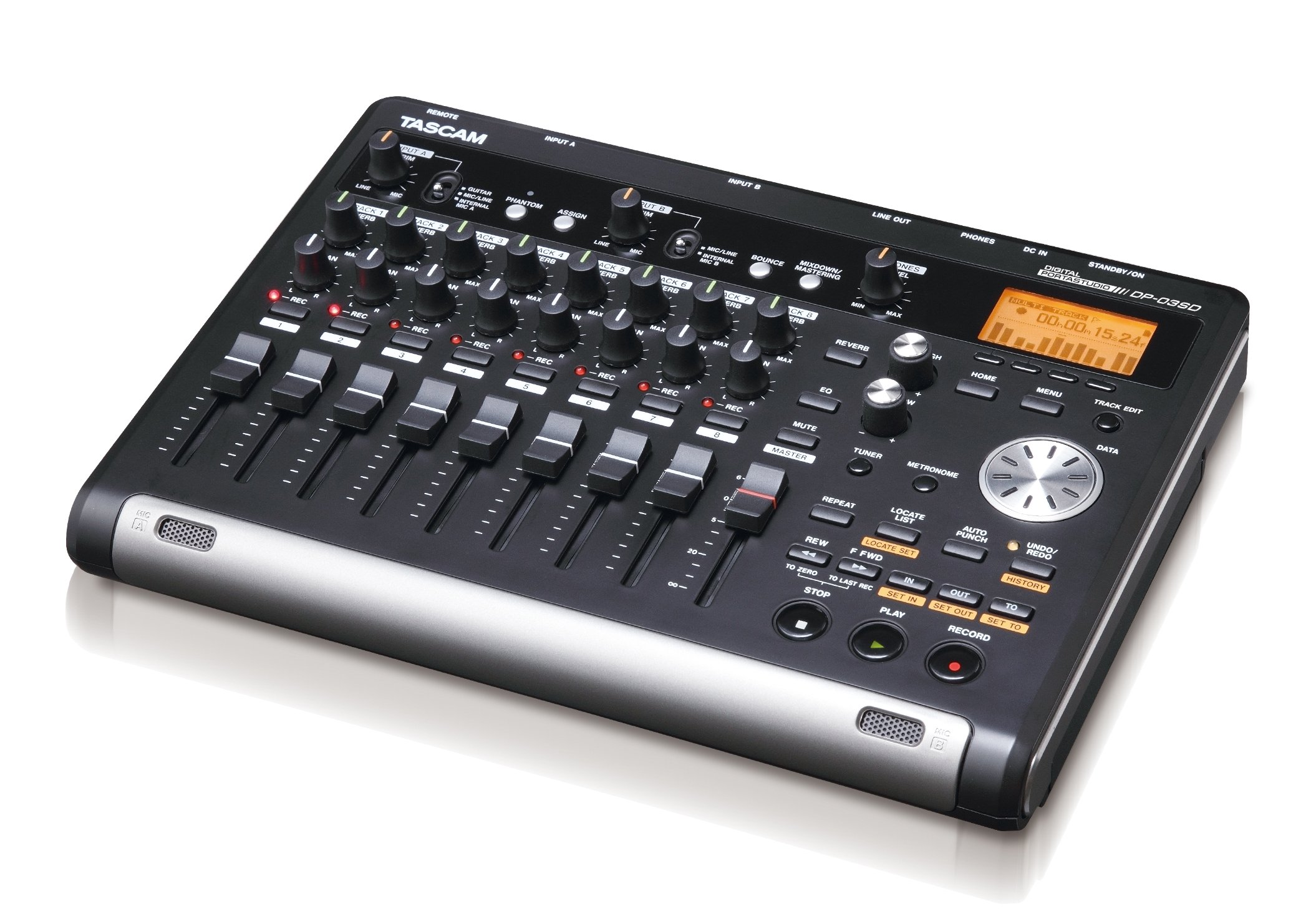

"DP - 03" is an 8 - track digital multitrack recorder that anyone can easily produce high - quality music.

Equipped with XLR microphone input compatible with 48V and TRS input which can directly connect guitar.

Moreover, it can easily record the acoustic guitar and drum etc with built-in stereo condenser microphone in the main body.

Each track is equipped with a level fader, pan, built-in reverb effect feed knob.

EQ special knob is also equipped, intuitive mixdown is possible.

After mixdown, we realized professional level finishing by making full use of mastering effector.

Compact yet comprehensive feature and ease of use "DP-03" is an authentic recorder that can be completed with one unit from recording to mastering.

From Amazon

Full-scale music production even without a PC.

Easy recording with built-in microphone, 8 track MTR which can do mastering.

DIGITAL PORTASTUDIO "DP-03SD" is the latest MTR that inherits genealogy of the first cassette MTR (multitrack recorder) "144" that was released in 1979. It has the sound quality and convenience that is unique to digital and an analog-

It merged.

Cassette Recording of 8 tracks is possible in a simple body realizing intuitive operation like MTR, the number of simultaneous inputs is 2 channels.

It corresponds to the input with the XLR terminal corresponding to the condenser microphone or the TRS phone terminal to which the guitar or the keyboard can be connected, and it can correspond to various instruments used in the band recording.

In addition, the body is equipped with two condenser microphones.

It is a high quality sound condenser microphone applying the technology cultivated in handy recorder development.

You can do music casually at any time without preparing an external microphone.

Each track is equipped with a level fader, pan, built-in reverb effect feed knob.

An independent EQ dedicated knob allows intuitive mixdown.

By making full use of the mastering effect, it is possible to finish master sound source of professional quality only with "DP - 03SD".

It is an authentic multi-track recorder compatible with compact yet fulfilling functions and ease of use.

Intuitive operation cassette User interface like MTR

"DP - 03SD" realizes a simple operation like cassette MTR, so it is possible to start recording smoothly when melody comes down.

A 45 mm fader that can adjust the volume intuitively is prepared for each track and master section, plus a reverb and PAN knob for each track.

Equalizer is also dedicated HIGH / LOW knob, so it's easy to select the track and adjust the EQ knob.

It is not necessary to memorize the menu structure for mixdown.

Built-in high-quality stereo condenser microphone that can record without preparations

Two omnidirectional condenser microphones are mounted on the front of the main unit.

It is possible to record instruments that require microphones, such as vocals and acoustic guitar at any time.

Tuning was carried out by elaborate listening evaluation of the mounted condenser microphone.

We introduced the expertise of developing a linear PCM recorder with high evaluation in the market, and completed the built-in microphone with high sound quality.

Because it is an omnidirectional microphone, it can be installed more easily than a unidirectional microphone, and it is possible to record high quality sound with simple setting.

■ High quality microphone preamplifier that can supply phantom power

High-quality preamplifier is installed in microphone input.

We provide high quality sound recording.

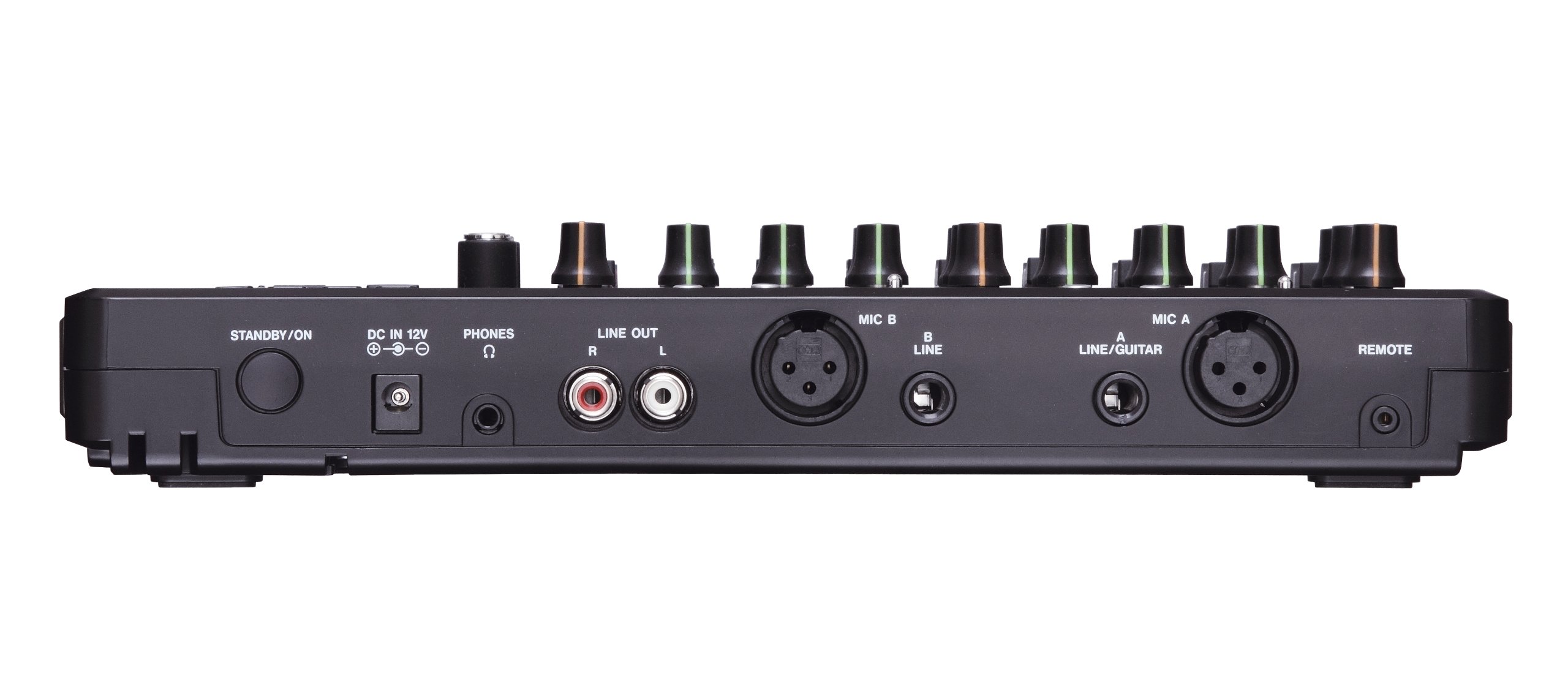

The XLR input corresponds to the phantom power supply, and it is possible to use a condenser microphone.

Since the phone jack input is a TRS type that can balance connection with less noise, if it is a keyboard that can balance output, connection with less noise is possible.

It corresponds to + 4 dBu line level input.

* Dynamic microphone can be supplied with phantom power at the time of balanced connection in terms of structure, and there is no problem.

Therefore, it is possible to use A as a condenser microphone and B as a dynamic microphone.

(Mike and cable, all must be compatible with balanced connection, please do not supply phantom power in case of unbalanced connection There is a possibility of malfunction)

Equipped with INPUT A / B and each equalizer on each track

We equip each track and INPUT A / B with an equalizer essential to enhance quality in mixdown.

Even for input sounds, you can also apply equalization and record from sound quality correction to aggressive sound making.

Even if you have only a dynamic microphone, you can boost the high range with the input equalizer and make it a high frequency extended sound like a condenser microphone.

■ Reverb effect with beautiful echoing of acoustic and vocal

Convenient reverb effect for vocals and acoustic guitar.

You can select optimum reverb from 6 types.

When reverb is applied, it is easy operation just by turning the dedicated knob of each track.

It is possible to select the type from Hall 1/2, Room, Studio, Plate 1/2, and it is possible to adjust the reverb time and master level.

You can set the reverb according to the song.

■ Mastering effects with built-in, realistic master sound generator only on the main body

"DP-03SD" has a mastering effect, supports master audio production with only the main body without using a personal computer.

Three of the 2 band equalizer, 3 band multiband compressor, normalization effect to adjust the auditory sound pressure are installed in the mastering effect section, and you can further drive the completed stereo master file and create a master file with high quality

■ UNDO / REDO function that allows you to overlap ideas freely

While MTR of destruction editing is abundant, TASCAM 's PORTASTUDIO / POCKETSTUDIO series adopt a nondestructive editing method, so free undo is possible.

If there is a mistake in performance, you can easily return to the previous state, so you can record one after another without concern for mistakes.

In addition, since it has the UNDO HISTORY (UNDO history) function, it is possible to designate and return the previous state several stages.

Without concern for mistakes, we can actively and repeatedly draw ideas.

Features:

• Please enter model number Confirm this is compatible:
• A user interface such as a cassette MTR that can perform intuitive operation
• Built-in high-quality stereo condenser microphone that can record without preparation
• High quality microphone preamplifier that can supply phantom power
• Equipped with INPUT A / B and each track respectively equalizer
• Reverb effect with beautiful sounding acoustic and vocal sound

Product information:

Shipping Weight: 2404 g

Package Dimensions: 12.19 x 26.16 x 41.40 cm
