Item Descriptions:

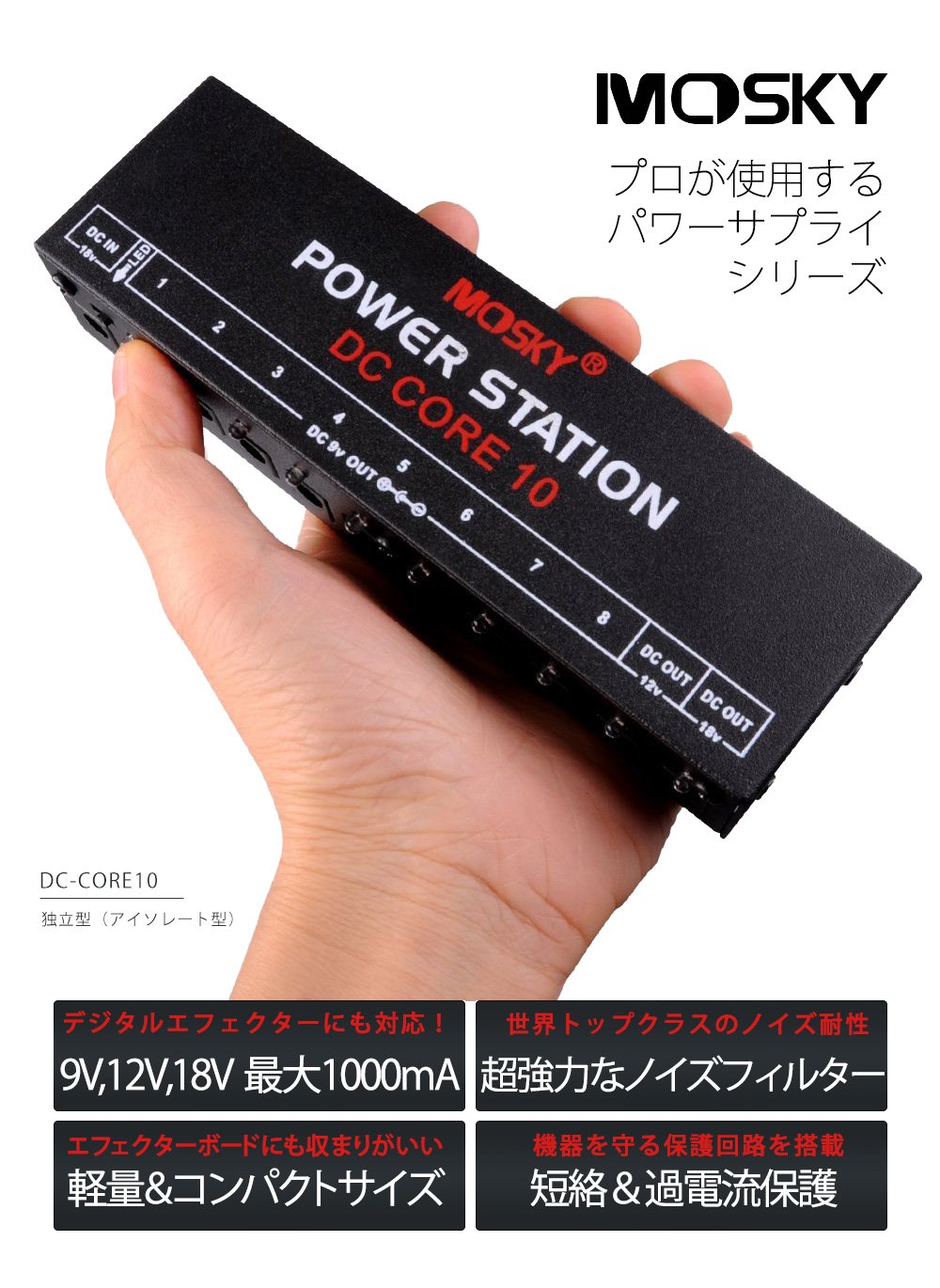

Independent type (isolate type) power supply "DC-CORE 10" appears from COSPA's high MOSKY series!

MOSKY is a series used by top European artists for important live performances and rehearsals.

More than 400,000 units were shipped to countries around the world in a few seconds after the launch in 2013.

I have won first prize ranking and have always been ranked high.

This model "DC-CORE 10" combines 12V output and 18V output in addition to 9V output, which is a good usability model.

12V necessary for effector mounted on vacuum tube and delay of space system etc, 18V etc. commonly seen in digital effector etc are firmly corresponded.

[Reason for using by professional]

Proprietary Noise Processing Technology: Multi Decoupling Noise Reduction

- Super powerful noise filter which combines multiple capacitors and coils which are also used for models of expensive power supply is carried.

Suppresses voltage fluctuation, voltage drop and influence by different frequency bands to the utmost limit, and supplies clean and stable power supply to connected effectors and others.

You can enjoy playing with sounds that are clear and distinctive without disturbing noises in the sounds that have been applied

Measures against heat generation

· MOSKY provided heat generation measures so that you can use it for a long time.

By providing spaces in the equipment and ventilation openings of the main unit to carefully select and cool down PCB boards with a small amount of heat generation, we have taken measures against heat generation to minimize heat generation.

Short circuit (short), overcurrent protection measure

· If the inside of the circuit is short-circuited due to misuse or accident, a large current in the equipment may flow to the connected effector etc., which may result in malfunction.

Noise may come out even if it does not break down.

The power supply series of MOSKY has a protection function to avoid failure of the power supply itself due to short circuit or overcurrent generation.

When the load current tries to flow more than the overcurrent detection value, the protection function works, suppressing the output current and protecting equipment such as effectors connected to the power supply body.

[MOSKY series]

MOSKY is a top European artist

It is a series to use with important live performances and rehearsals.

After being released in 2013 it became rumored that it was diffused by SNS and soon,

More than 400,000 units were shipped to countries around the world in a blink of an eye.

I also won first prize ranking in Japan in Japan.

[Specification]

Output 1 to 7 DC 9 V, maximum 100 mA

Output 8 DC 9 V, maximum 500 mA

Output 9 DC 12 V, maximum 100 mA

Output 10 DC 18 V, maximum 100 mA

Total of all channels up to 1000 mA

Power supply available

In addition to 9 V output, 12 V output and 18 V output are also available

It is a good usability model that combines.

Effector mounted with vacuum tube and delay of space system

12 V required for digital effects, etc.

It corresponds firmly to commonly seen 18 V etc.

[body size]

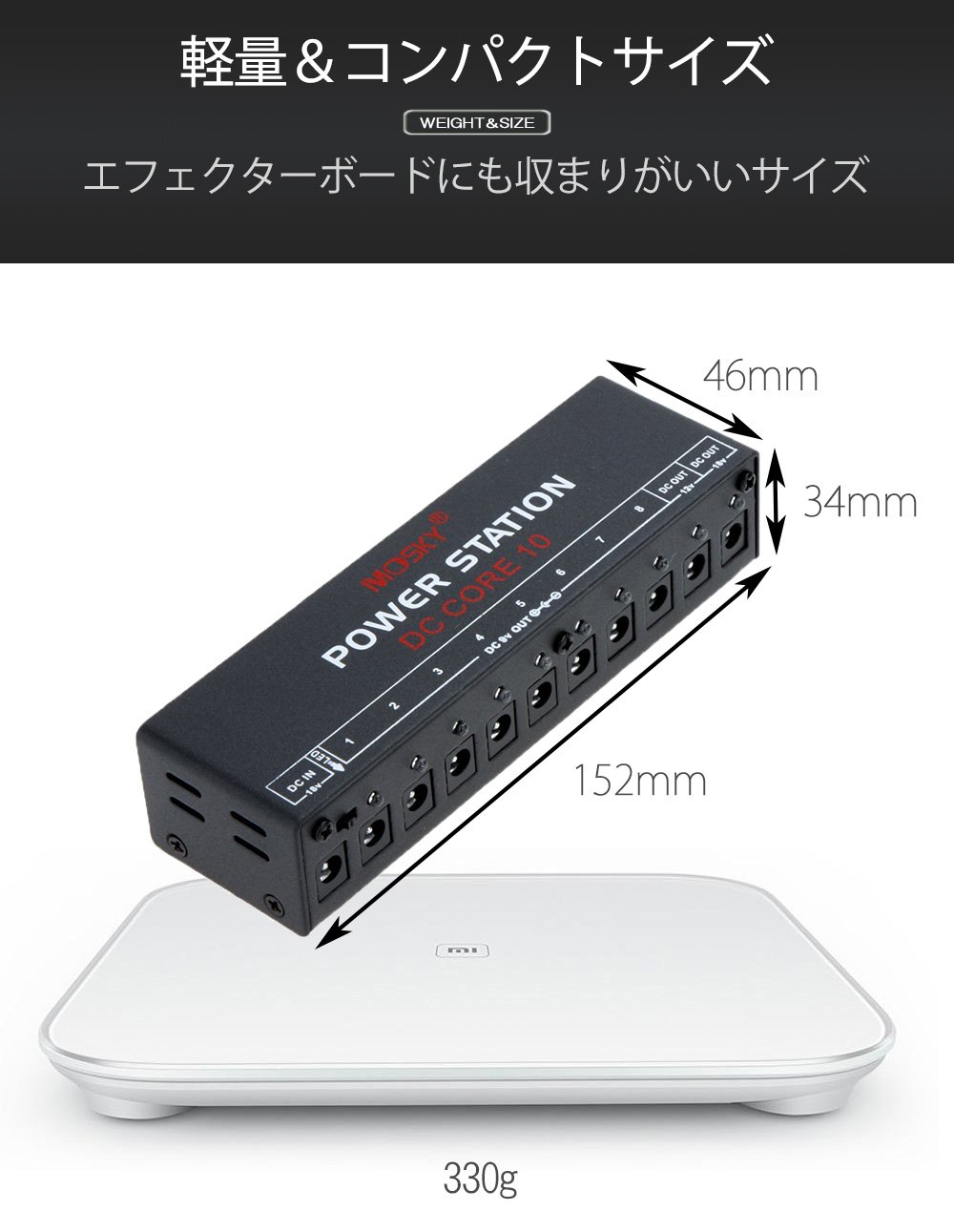

15.2 × 4.6 × 3.4 cm

[Main unit weight]

330 g

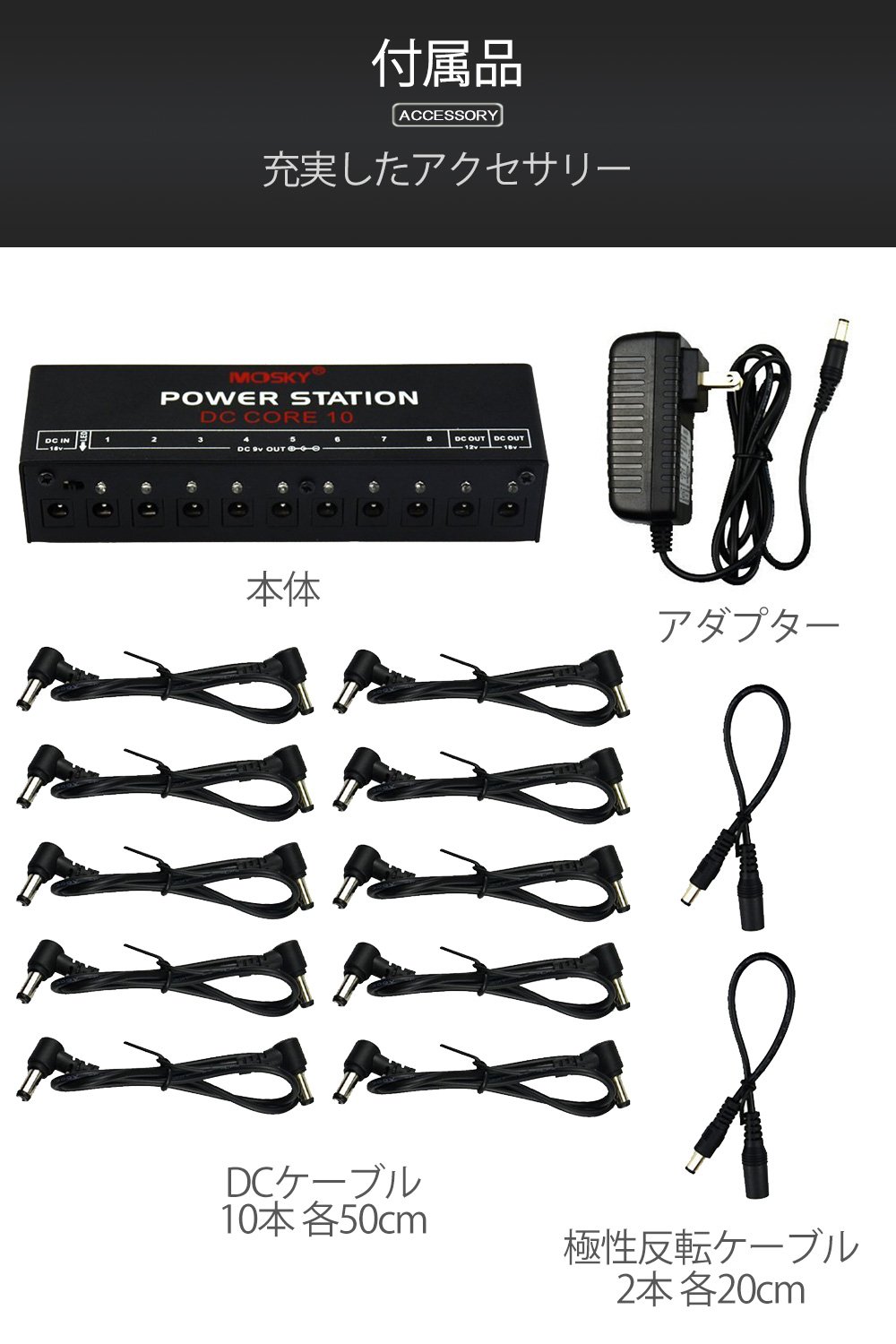

[set content]

Power supply body

Power adapter

10 DC cables 50 cm long

Polarity inverted cable length 20 cm

Instruction and warranty card

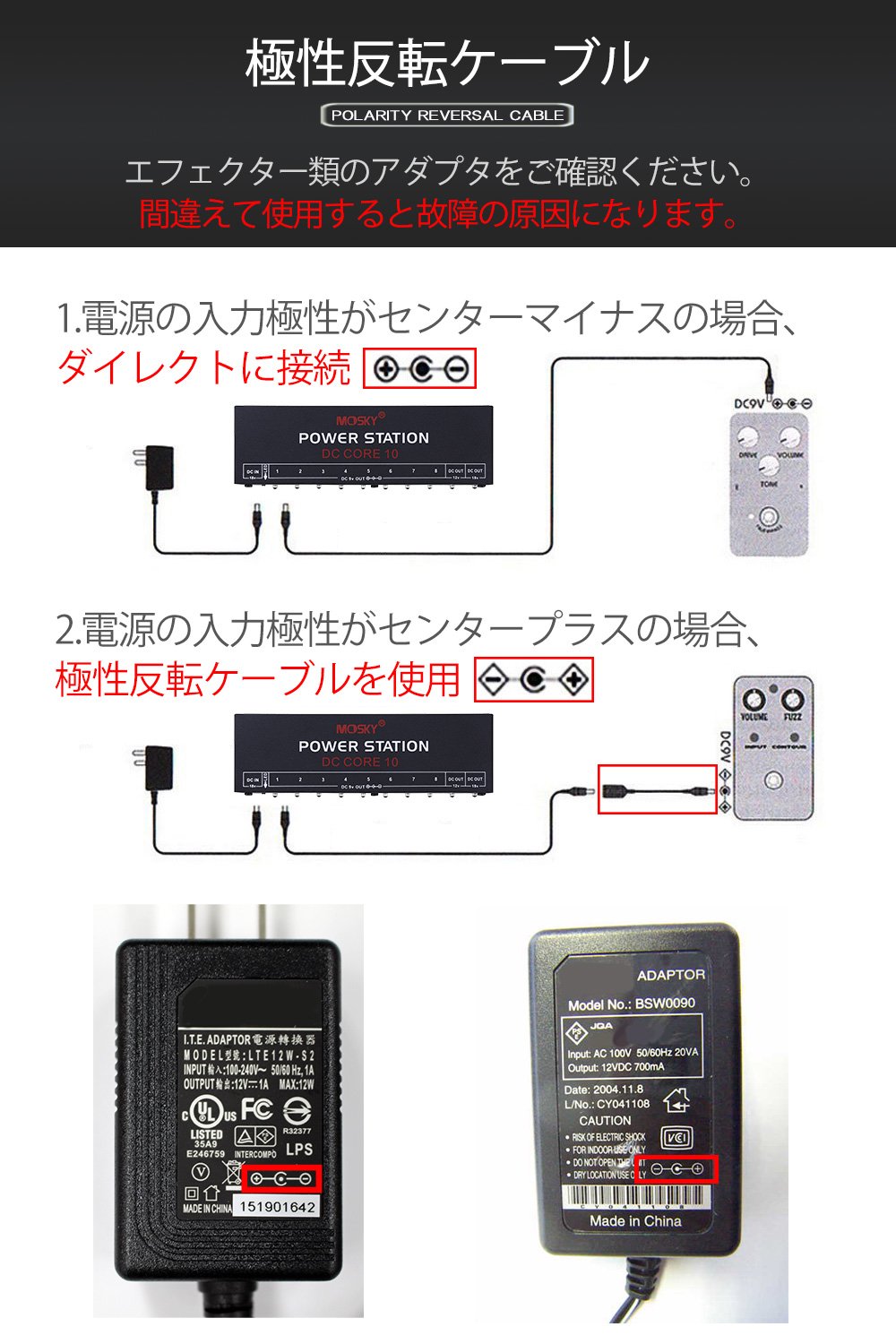

Be sure to use the polarity reversing cable when the equipment such as the effecter to be connected is the center plus.

If the polarity is reversed, malfunction or noise may result.

Features:

• Please enter model number Confirm this is compatible:
• [Features] MOSKY is a standalone power supply that live by live European top artists.
• Stable supply of 9, 12, 18 V power supply.
• [Specifications] Output ① ~ ⑦: DC 9V, maximum 100mA ⑧ DC 9V, maximum 500mA ⑨DC 12V, maximum 100mA ⑩ DC 18V, maximum 100mA Power supply possible up to 1000mA for all channels Power adapter: AC 100 - 240V, 50 /
• Input: DC 18 V, 1000 mA
• [Ultra strong power noise filter installed] Supply a clean power supply with first-class noise immunity.
• It supports clear and firm sound.
• [Measures against heat generation] By providing space inside the equipment and ventilation openings of the main unit to carefully select and cool down PCB boards with a small amount of heat generation, heat generation measures to suppress the heat generation which is likely to cause trouble to the utmost is given
• Did.
• [Short circuit (short circuit), overcurrent protection measures] Protection is provided to protect the power supply itself and effectors by protecting themselves when short circuit (short circuit) in the circuit to accidental use or large current in the equipment occurs
• To do.

Product information:

Shipping Weight: 603 g

Package Dimensions: 5.89 x 10.49 x 21.41 cm
