Product Description

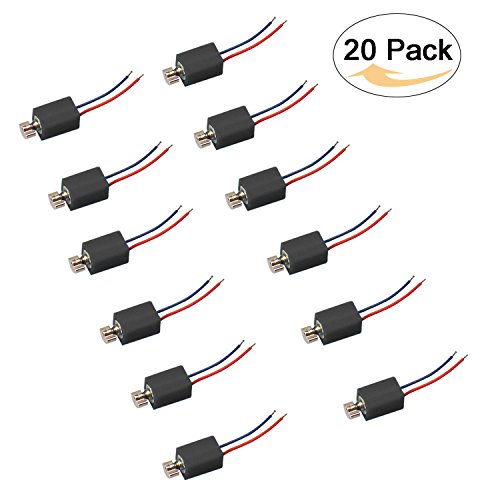

WeiMeet Micro Vibration Motor
Operating voltage: 2.5 a€" 4.0 VDC, Rated voltage: 3.0 VDC, Starting voltage: 2.3V DC Max
Rated rotor speed: 3500RPM
Rated current: 70mA Max, Starting current: 90mA Max
Insulation resistance:10Mohm Min
Direction of rotation: arbitrary direction, can be operated in either direction simply reverse power supply polarity

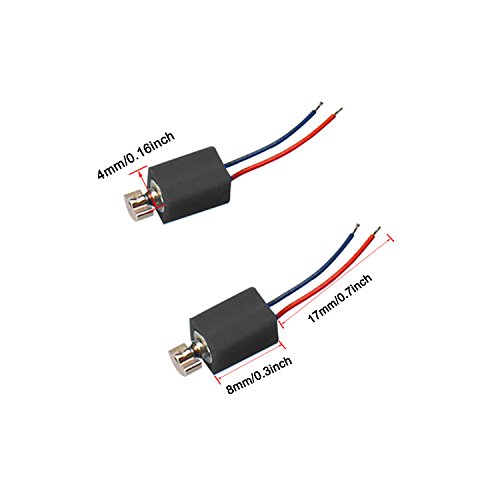

Dimensions: 4mm x 8mm(D*H)
Made for vibration alerts in cell phones and pagers, comes with a removable rubber boot with two leads
