Item Descriptions:

For LCD TV only!

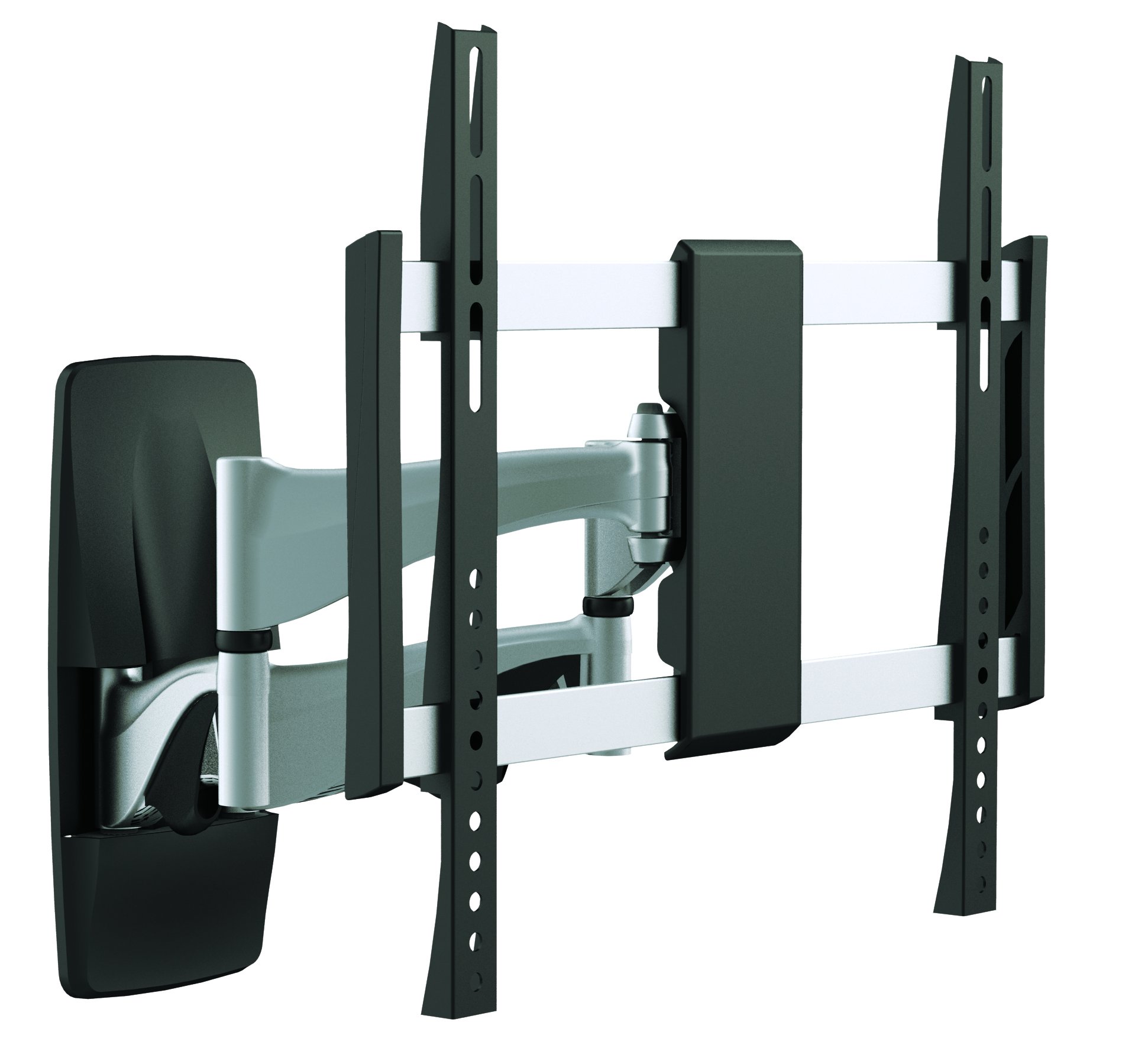

Television Wall Mount Bracket

High quality texture and rigid PA series

[Item point]

· High quality texture and rigidity are achieved at the same time by using aluminum alloy!

· ± 15 degrees up and down, ± 60 degrees right and left (until hitting the wall) with angle adjustment function

· Screen level adjustment is possible!

Easy horizontal installation at the time of installation!

【Points of installation】

The cover may be visible from the bottom

There is about 119 mm gap in the center height of the wall side base plate and the TV side bracket.

Depending on the TV, the cover may be visible from below.

If the horizontal shift, adjust

As one arm supports heavy television, a chaotic appearance occurs in the play portion of each joint.

Moving the arm by the influence of the droop causes the screen to shift horizontally, but it can be adjusted each time.

Japanese manual and necessary screws are all included

【Installation method】

① Attach the monitor bracket to the back of the TV

② Install the base plate

③ Hook the monitor bracket to the base plate and fix it

It can be attached to a single stud

It is a slim type that can be installed with two screws.

Be sure to check before purchasing!

[Full-fledged vibration test implementation]

One of the things that customers are worried about when hanging on TV is "earthquake resistance".

In this product, vibration waveform inspection which reproduces the seismic waveform of seismic intensity 7 observed at the time of the Great East Japan great earthquake as much as possible is carried out,

In order to communicate as much security as possible to everyone, we really do genuine safety inspections from the customer's point of view.

[Relief goods that you can rest assured]

If you can not install it even though it meets the following conditions, we will respond to returned items.

· Threaded holes on the back of the monitor

· Removable stand (television with built-in stand is rare)

· The back of the monitor must be flat

· The monitor size is 37 to 52 inches.

· The weight of the monitor is 30 kg or less

· The distance between the screw holes on the back of the monitor is within the range of "length: 100 to 410 mm width: 200 to 440 mm"

Features:

• Please enter model number Confirm this is compatible:
• 【Product features】 Advanced design to increase interior nature.
• TV setter advance PA 114 M size.

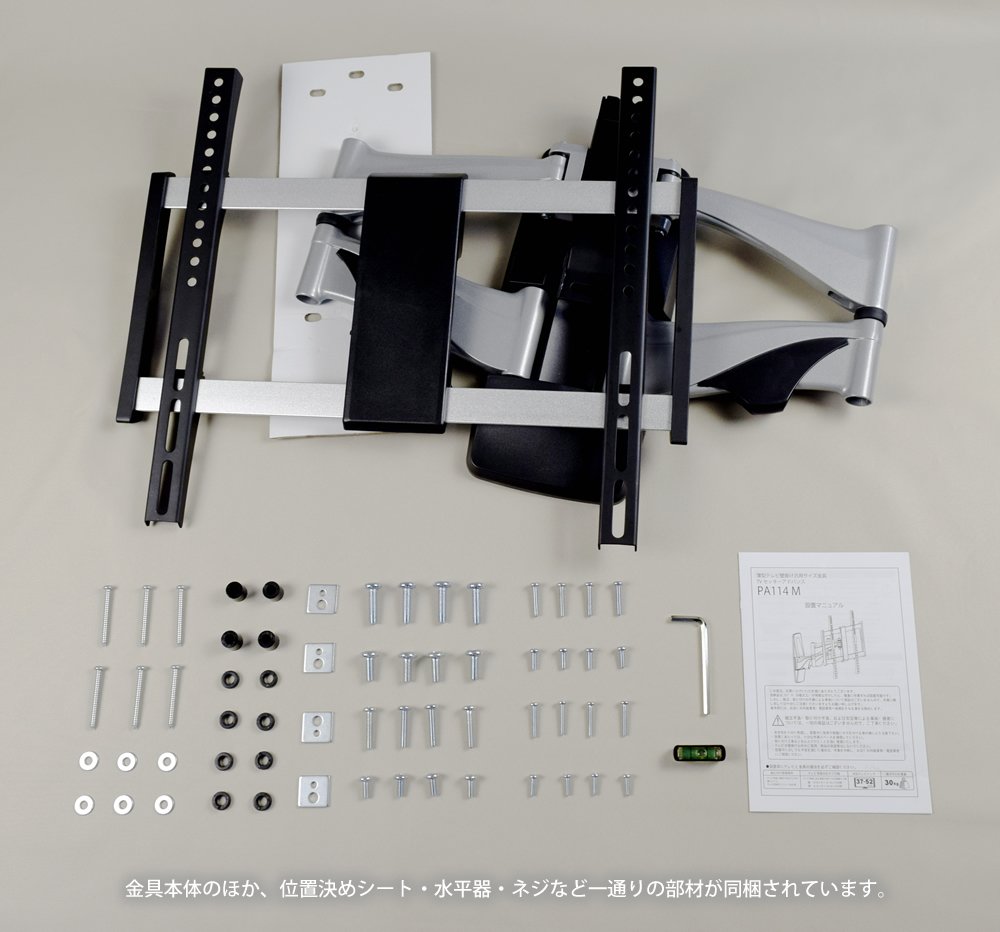

• 【Contents of contents】 TV setter body | Mounting screw set | Clear installation instructions
• [Product specifications] General purpose type | Applicable inch: 37 to 52 inches | Applicable weight: up to 30 kg supported | Body weight: 8.1 kg.
• For details on dimensions, please see the image at the top.
• 【Reliable Returns】 It is a safe returnable product with a 3 year warranty.
• For details, please refer to our "Returns and refunds" column.
• [Corresponding number of inches] 37 inches 38 inches 39 inches 40 inches 41 inches 42 inches 43 inches 44 inches 45 inches 46 inches 47 inches 48 inches 49 inches 50 inches 51 inches 52 inches
• 【About STARPLATINUM】 It is a specialized shop of TV wall hanging metal fittings, ceiling hanger metal stand, DIY.
• Such as SHARP "AQUOS", Toshiba "REGZA", HITACHI "Wooo World", Mitsubishi "REAL", PANASONIC "VIERA", Sony "BRAVIA (BRAVIA)", LG Electronics "OLED"
• We deal abundantly with TV fittings that correspond to any TV maker.

Product information:

Shipping Weight: 8101 g

Package Dimensions: 10.79 x 48.21 x 59.79 cm
