Studio : Billet Specialties

Publisher : Billet Specialties

Binding : Automotive

Product Description
Brand New Polished Independent Alternator Bracket for SBC Short Water Pumps.

• This Bracket is produced by Billet Specialties (Part # 10220).
• This bracket mounts the alternator on the top driver's side of the engine and positions it inside of the driver's side valve cover.

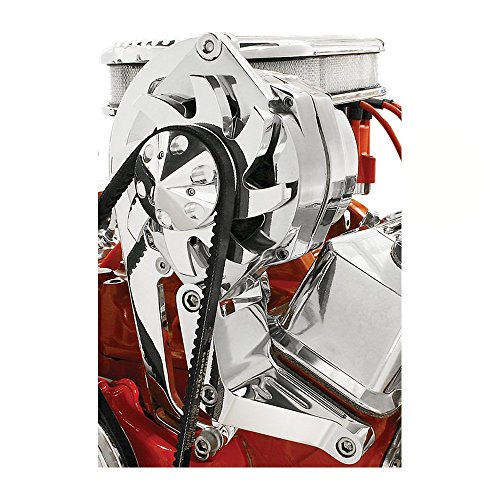

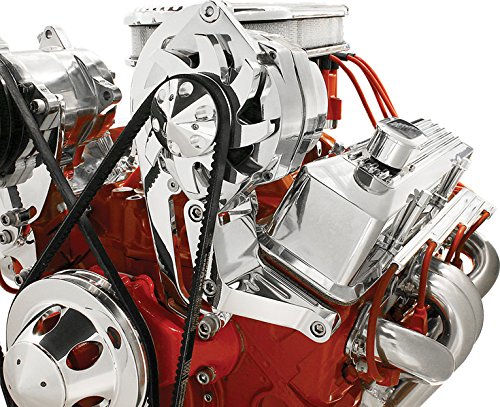

• You can see where it mounts the alternator in the picture and diagram (shown in images).

This bracket is for use with:

• Small Block Chevy standard heads
• SBC Short water pumps
• GM 10SI or 12SI alternators
• These alternators were popular on numerous GM vehicles from 1962-1994

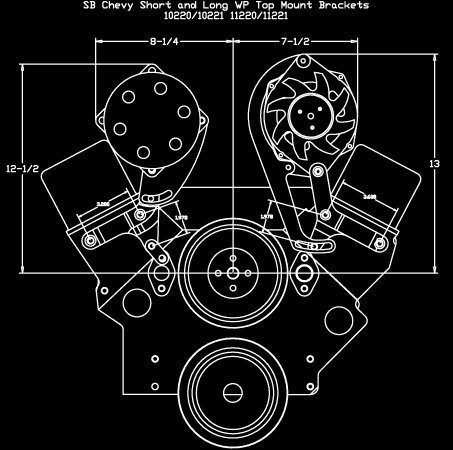

• They have a 2 bolt mounting pattern (one at 12 o'clock and one at 6 o'clock) that measure 168mm (or 6.61") center-to-center; (see the diagram shown)
• Even if you don't purchase that alternator, the description lists all of the many GM vehicles that this model was used on.
• V-groove pulleys
• Billet Specialties independent alternator brackets are CNC machined from 6061-T6 billet aluminum and polished to a mirror finish.
• They are independently adjustable without stabilizer bars for a clean look.
• Multi-point fastening ensures stability and belt tension.

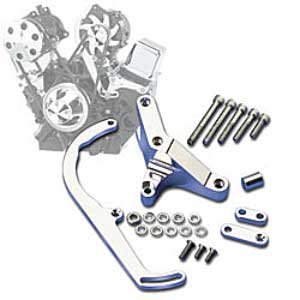

*** The Bracket Itself Shown In The Images(these are the items included in this listing). ***
