Product Description

✔Introduction

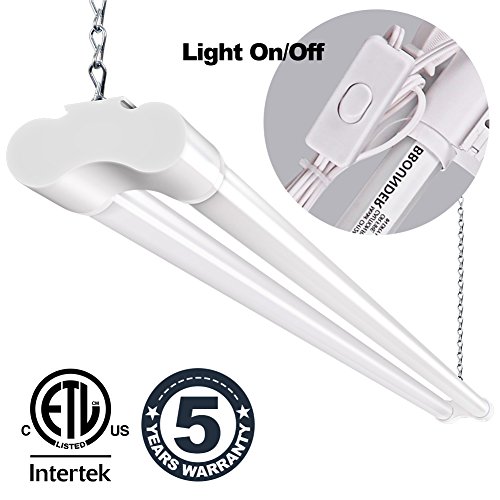

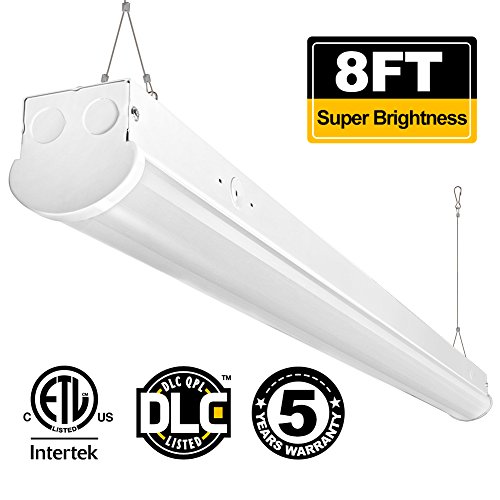

This LED wraparound lighting is high brightness to fulfill your lighting needs in wide application.

Application: our LED wraparound lights are smart and durable in many areas: offices, workbenches, kitchens, closets, stairwells, basements, garages, under cabinet, garages, hallways, schools, laundry room utility room and college dorms.

✔Feature:

The wraparound fixture is perfect choice for both residential and commercial lighting purpose. It is suitable for surface mount on ceilings. Optional two or more lights can be linked by connection terminal line to fit installation requirements.

✔Specification

Operated power:40W/100V      Beam Distribution:>120°

Color temperature:5000K Daylight     Luminous Flux: 4400 Lumen

Lifespan:50000HHanging Hight: 7ft-11ft.  Hanging Area Suggestion: the distance of 2 lights is 5-7ft.

✔Installation Guide

One fixture

• 1. Remove the frosted  PC cover from the housing,  pulling the bag wrapped on one end of the PC Cover to make the cover end out. And then pull out of the cover carefully. Along the edges of the housing
• 2. Install two screws into the junction box， then connect the house ground wire to the yellow/green ground wire on the mounting plate using the wire nut.
• 3.  Connect the house white wire to the mounting plate white wire using the wire nut，then connect the house black wire to the mounting palate black wire using the wire nut
• 4. Attach the housing to the junction box by aligning the hoes on the Housing with the screws on the junction box.
• 5. Turn housing clockwise to lock in place and tighten screws to ensure the fixture is secure and will not move.
• 6. Installing the Frosted PC cover，put in the drawbars at one end of PC Cover to the edges of the housing, then Press the cover as the direction of the


  Feature

  ✔Ultra brightness -- 4000 lumens output at 40 watt, high brightness level fulfill your lighting needs in large applications. Smooth cover allows for a uniform light distribution and no glance, effectively reduce the amount on electric bill.
  ✔Energy saving-- The wraparound lighting operating lifespan is 50,000 hours. LED construction enhances lighting durability, 40W LED Wraparound light, beaming is equivalent of 100W traditional overheads, the beam angle is >120° which is sufficient for the whole space lighting.
  ✔Easy installation- Simply connect the housing wire to your junction box, then attach its diffuser up. Designed to be surface mounted easily for anyone. We take pride in our products knowing that they're safe, efficient and long lasting.
  ✔Wide applications -The LED wraparound lighting fixtures are ideal for both residential and commercial lighting, and are perfect for offices, workbenches, kitchens, closets, stairwells, basements, garages, under cabinet, garages, hallways, schools, laundry room, utility room and recreation rooms etc
  ✔Satisfaction Guarantee-- 5-year product warranty, an unlimited warranty means if any issues arises, all customers can get comprehensive services for problem solving and maintenance-free, this is extra protection to you.
  Brand : BBOUNDER
  EAN : 0615150278720
  Package Dimensions(LxWxH) : 125x33x19cm ; 8482 g
