Item Descriptions:

Detailed Product Description Function:

1. PCE (passive keyless entry)

a. PKE function arm: After starting the engine, after operating the remote control within the range of the detector, get off the car and close the door.

After the driver got away from the car by car

Once 2.5 M - 3 M or more, flashing the light once will cause the siren to ring once, the car alarm will be received in arm mode and the window will close automatically.

b. PKE releasing function: In arm mode, it approaches the machine for 1 M - 1.5 M and the turn signal lamp blinks

If the horn does not beep three times, the system will be automatically released.

2. Arm / Block:

When the lock button is pushed, the siren sounds once, the direction indicator flashes once, the car alarm is automatically received in the hand mode, LED flash

The window is automatically closed and the car engine is locked.

3. Disarm / Release:

When you press the lock release button, siren does not make a beep, turn indicator

Flashes three times, the door is opened and the system is released.

Note: When the driver enters the car without opening the door, the system will automatically enter the hand mode again.

4. Remote trunk release: Press the lock release button for 3 seconds or press the trunk button twice.

5. Remote engine start: Press the trunk button three times to start the car from remote, the siren flashes twice, the direction indicator flashes twice.

Note: after

Remote start of the car engine, the car must be in 12 minutes driving mode.

If no measures are taken, the car engine will be stopped and the system will be in arm mode

Within 12 minutes

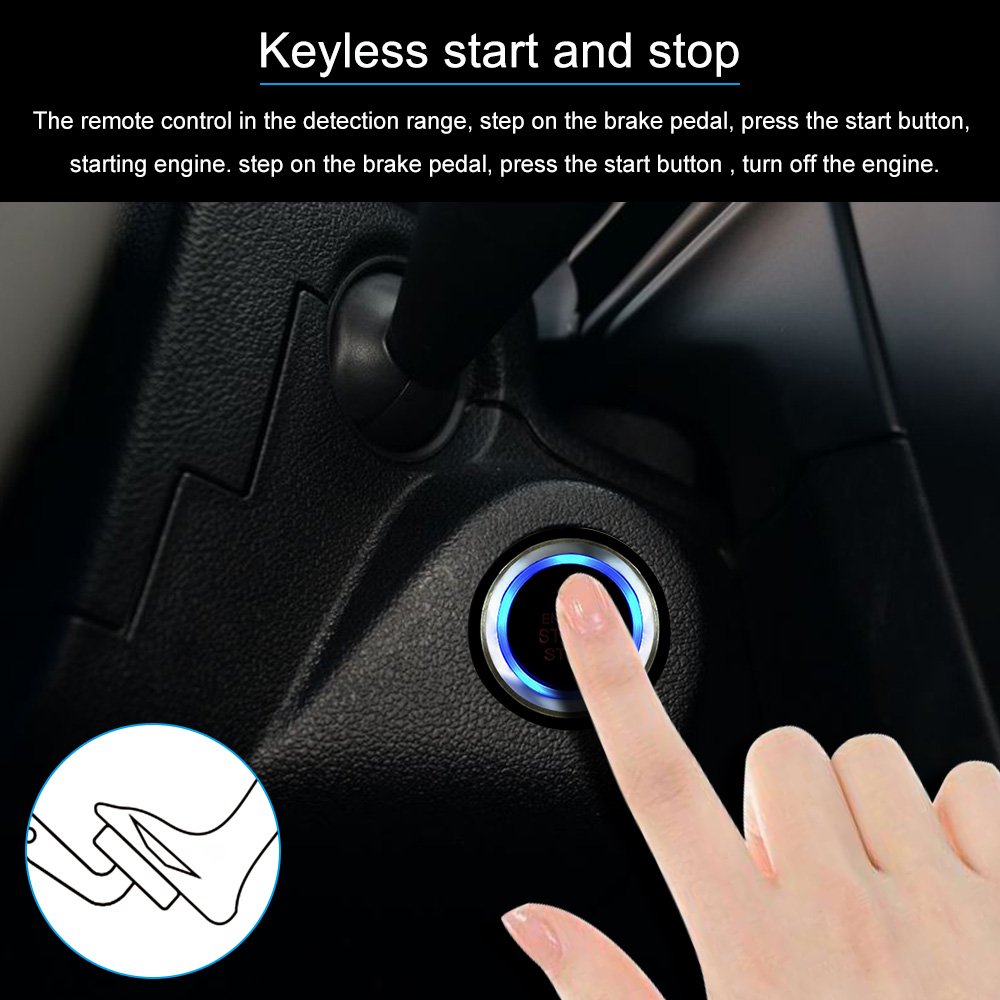

6. Start button:

Sitting in the car, closing the door of the car, also remote control of detection

Step on the brake pedal, press the engine start button, engine.

Depress the brake pedal, press the start button to stop the engine, and stop the engine.

specification:

Operating voltage: 12 VDC ± 3 V

Static current: ≤ 15 mA (Indicator, excluding sensor)

PKE discharge current: 40 mA

Shock sensor current: ≤ 1 mA

Coding: Ieaning code

Frequency: 433.92 MHz 125 KHZ

Boot system:

Operation Voitage: DC 12 V ± 3 V

ACC current: 30 A

On current: 30 A

Current start: 30 A

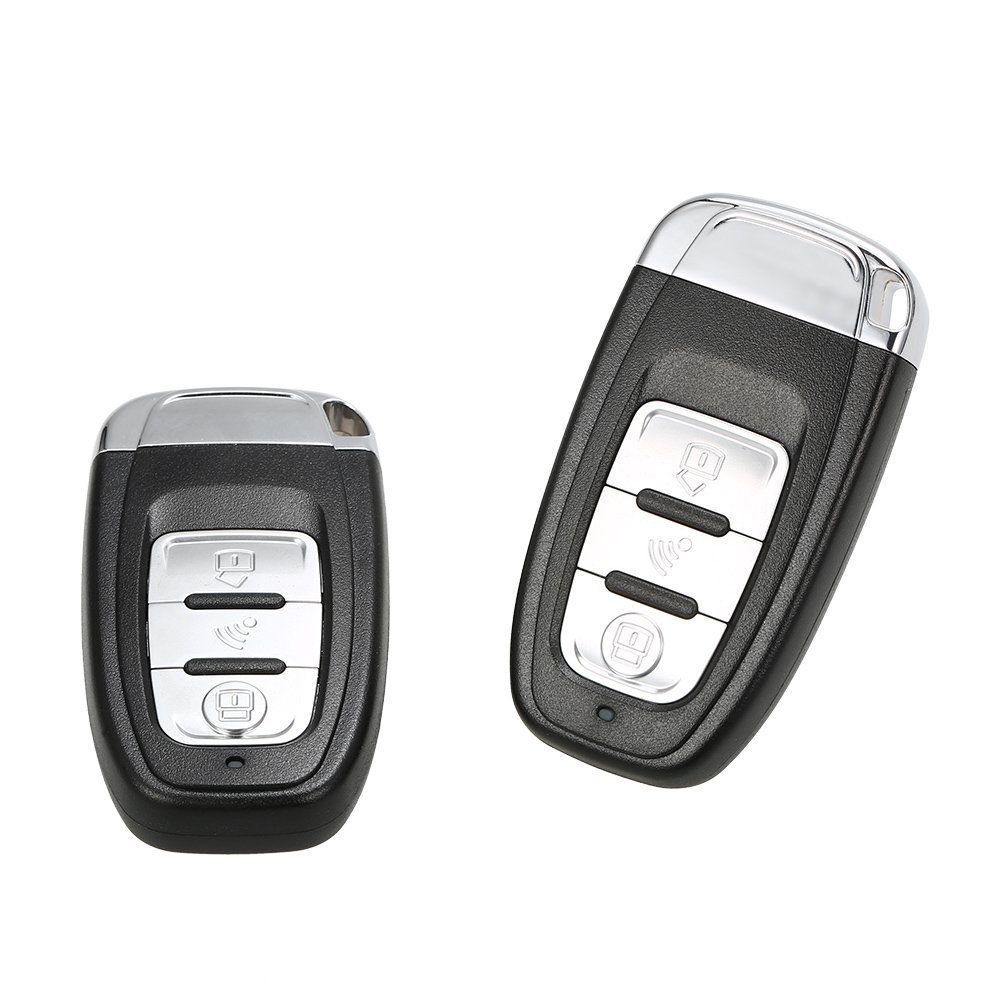

Remote controller:

Operating voltage: DC 3 V

Operating current: ≤ 8 mA

Static current: 8 uA

Coding: Ieaning code

Butter: CR 2032

Frequency: 433.92 MHz 125 KHZ

Package size: 24 * 16 * 7.5

Package weight: 754 g

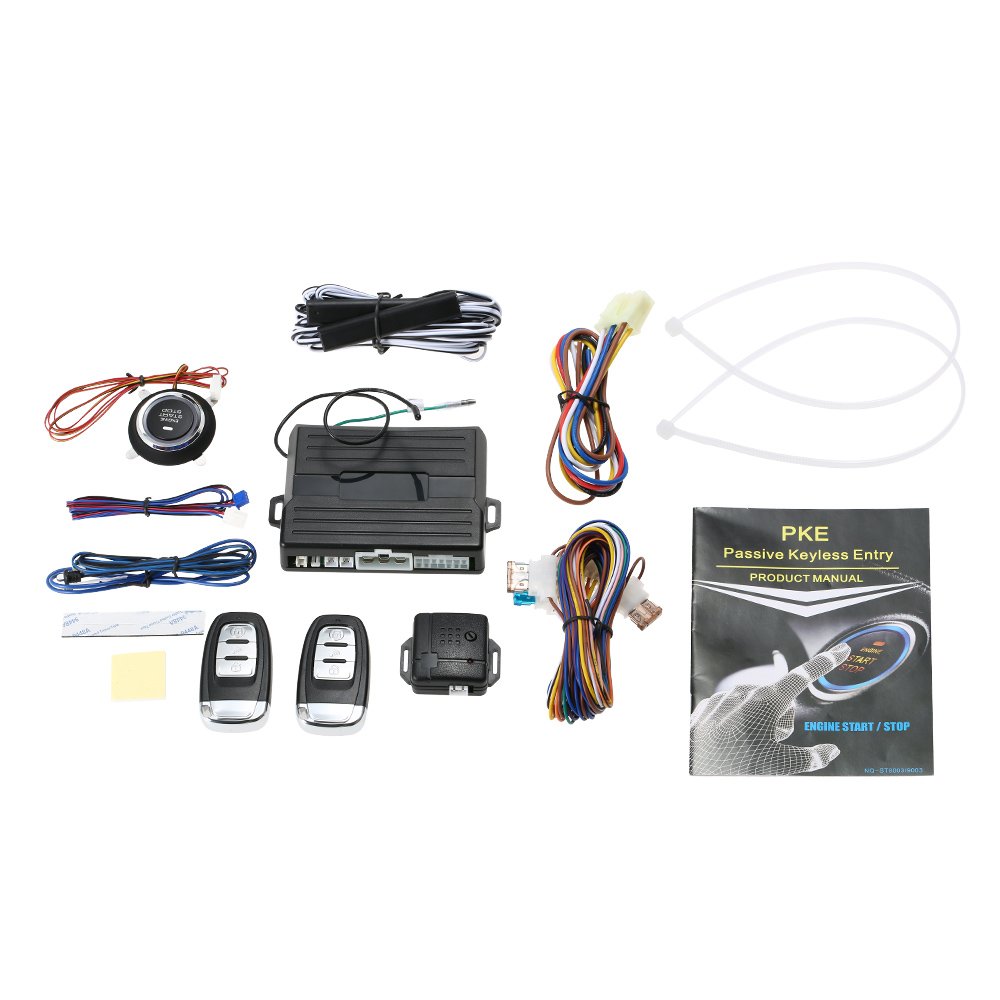

Package list:

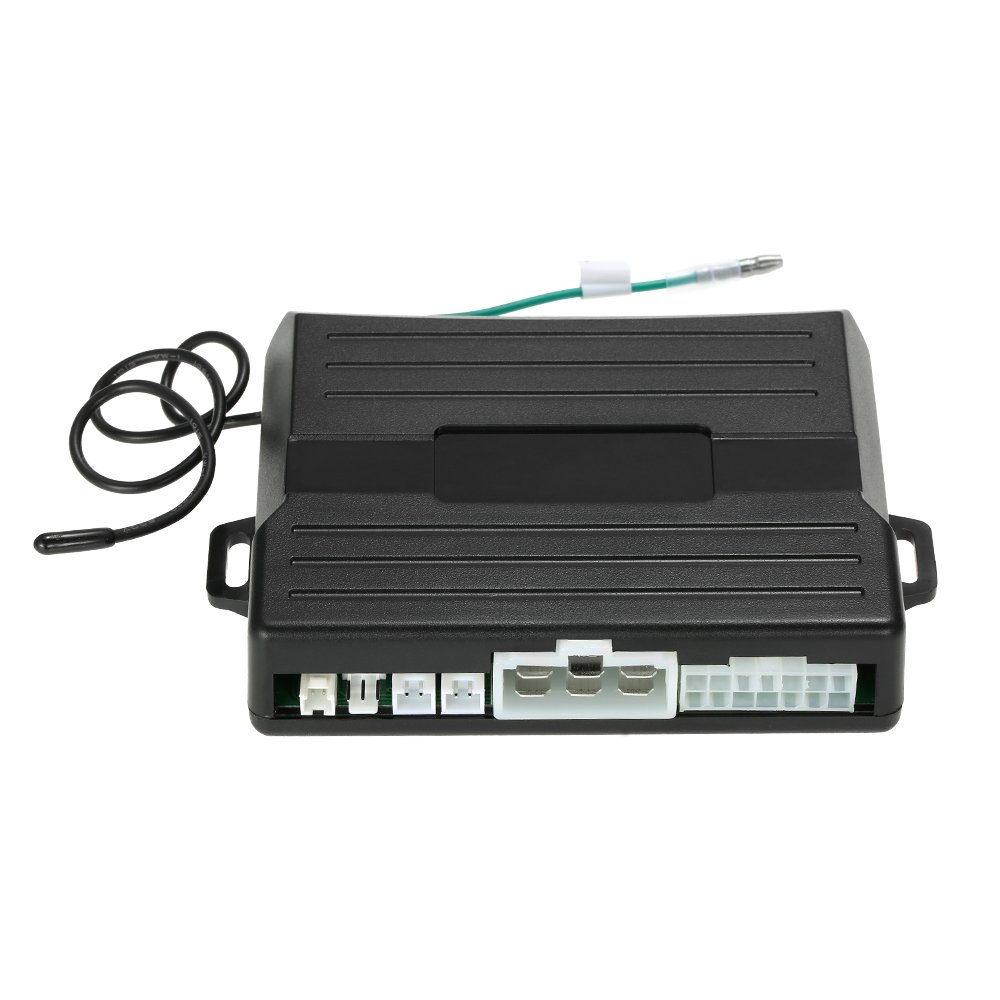

Control module x 1

Key fob x 2

PKE antenna x 2

Wire harness × 2

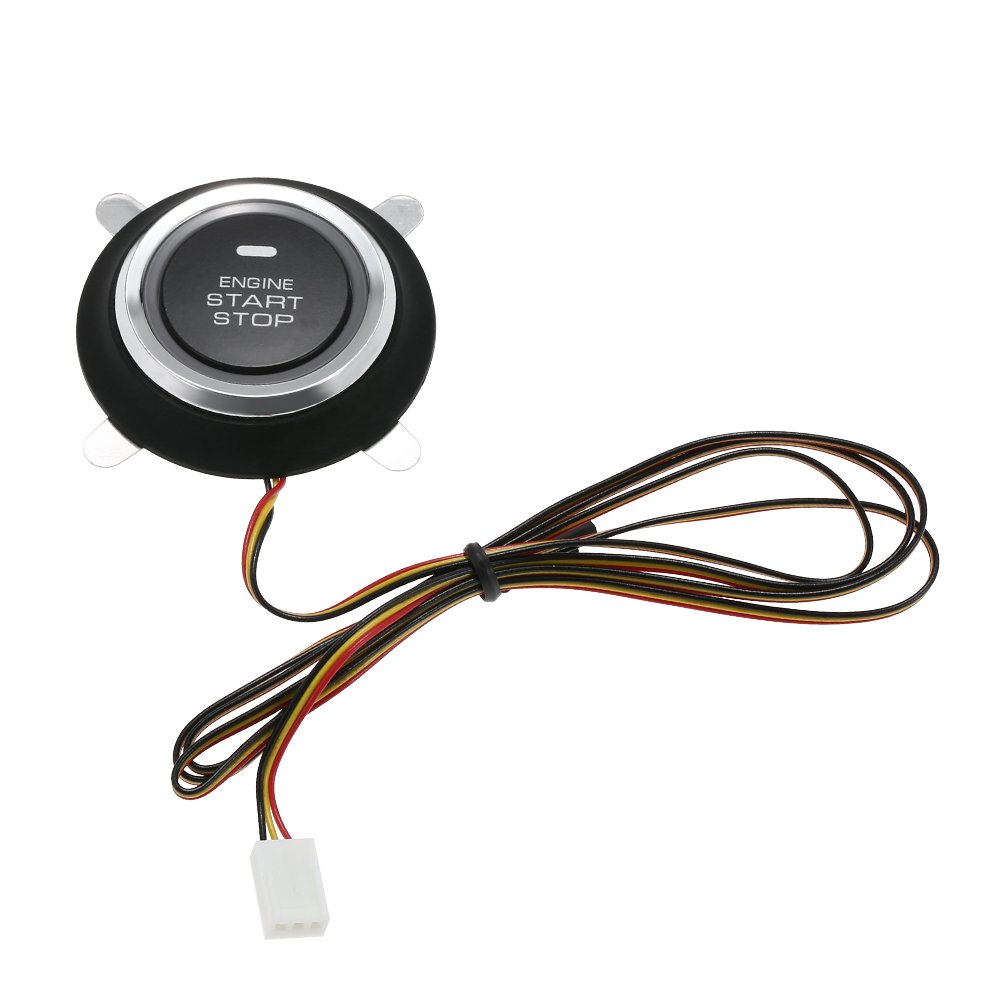

Push start button x 1

LED siren × 1

Shock sensor x 1

English user manual and wiring diagram x 1

Features:

• The PKE function automatically locks or unlocks the door when the owner leaves.
• Put a key fob in your hand or pocket and approach the car at 1 to 3 meters.
• The push start stop button allows you to start or stop your car more easily and more conveniently.
• It is not necessary to insert the key into the ignition cylinder.
• It fits 95% DC12 V gasoline car in the market.

Product information:

Shipping Weight: 721 g

Package Dimensions: 8.71 x 23.29 x 24.79 cm
