HDMI 1.4 Switch Switcher Box Selector 3 In 1 Out Audio Extractor Splitter ARC 4K
Features:
One MHL/HDMI double input and two HDMI input switch freely to one HDMI output.
Any input HD Source can do audio extract by the SPDIF ort LR audio output port.
Support Full HD 1080P， Full 3D，4K*2K
Support ARC Function: Without adding one extra HDMI Cable， it can reverse the audio to the AV Amplifier by HDMI Cable connection with HD TV while the HD TV receives the audio and video content.
MHL / HDMI working in dual mode， can reduce the number of ports
HDMI to achieve the synchronization of audio signal separation. There are PASS /
2.0CH / 5.1CH three kinds of audio mode options
LED indication: when source or sink is working， LED related will go bright.
Support input up to 10metres using AWG26 HDMI standard cable length， output up to 15metres using AWG26 cable length
IR Remote can do switch to the Input sources， and also you can press the switch button at device to do switch of the Input Sources.
Led Status Light allows the user to know the working status easily.
No loss of quality
Installs in minutes
Need DC5V/1A power supply
1-3:HDMI input led status light
IR: IR Receiver
ARC:ARC Led Status Light
SPDIF:SPDIF Port Led Status Light
PASS:Advance Audio Led Status Light
2CH:2CH Audio Led Status Light
5.1CH:5CH Audio Led Status Light
Auto: The Auto Detect Led Light for Input Sources
Switcher: Input Sources Switch Button
ARC:ARC Function On/Off Key
SPDIF/ LR: On/Off Button for SPDIF and LR audio
Audio:Switch button for Audio output mode， it can choose 5.1CH， 2.0CH， PASS three kinds of audio output mode by circulate switching (When switch to 5.1CH audio mode output， the Digital audio signal receiving terminal must can support DTS/DOLBY-AC3 decode， or the output audio signal receiving terminal will have no sound output; If pls switch to 2CH audio mode. the audio signal receiving terminal can output the audio. When audio output switch to the PASS mode， the audio output format will be decided by the audio signal receiving machine audio decode ability. The splitter will output 7.1 channel audio signal while the output end connects the AV receiver with HDMI port that support 7.1 channel audio decode. (The HD Source signal itself is 7.1 channels)
Auto: Auto Detect Button for the Input Signal

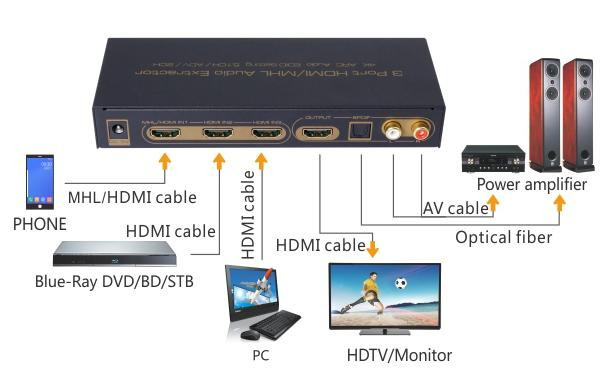

Operating and Connecting:
1.To use the HDMI cable to connect the input port of 3Port HDMI Audio Extractor with the HDMI sources or to use one MHL-HDMI cable to connect the MHL smart device to connect with the HDMI double mode input port.
2.To use one HDMI cable to connect the HDMI output port of the Switcher with the HD Display.
3.To use one optical cable to connect the SPDIF port of the Switcher with the AV receiver.
4.To use RCA audio cable to connect the LR audio port of Switcher with the Analog Audio Input port.
5.To use the IR remote or the switch button to do control and switch to the Input sources and the ARC/SPDIF function.
6.To connect the 5V adaptor with the device.
SPECIFICATIONS:
HDMI resolution ……………………………..4KX2K/1080p/1080i/720p/576p/576i/480p/480i
Support video color format …………………………..…………….24bit/deep color 30bit，36bit
Audio output………………………………………………...……………………….. L/R+SPDIF
Max transmission bandwidth…….………………….………………………………….. 300MHz
Max baud rate…………………………………………………………………………….9.0Gbps
Input/Output TMDS signal ………….…………………………..……………… 0.5~1.5Volts p-p
Input/Output DDC signal ……………………………………………..………… 5Volts p-p (TTL)
Input cable distance..…... ……………………….………..≤10m AWG26 HDMI standard cable
Output cable distance……………………………….…….....≤15 AWG26 HDMI standard cable
Max working current…………………………………………………………………………500mA
Power adapter format………………..Input: AC (50HZ， 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range……..…………….………………………………… (-10 to +55)
Storage Temperature range…………………………………………………………… -20 to +60
Operating Humidity range………………………….….……….10 to 90%RH (No Condensation)
Storage Humidity range………………………….….……….…5 to 95%RH (No Condensation)
Dimension (L x W x H) ……………………………….……………………..…179X67X28(mm)
Weight…..………………………………………………………..…….……..………365g
Notes:
Pls use the machine as the instruction listed to keep the long use lifetime of the machine.
1.The machine should be placed at the spot far from the Damp， High-Temperature， Dusty， Erosive， and oxidative environment.
2.All parts will be free from the strong shake， hit， fall.
3.Touching the power adaptor with the wet hands is prohibited.
4.Pls hold the power adaptor head and do not pull the power cord when cut off from the socket.
5.Pls turn the power off when the machine is not used for long time.
6.Pls do not open the cover and do not touch the inside parts.
7.Pls use the original factory power adaptor.
Before power on， pls check the connection line carefully. And make sure that all interfaces are normally connected. The common trouble shooting way shows below:
| Serial NO | Trouble Description | Cause and Ways to deal with |
| 1 | Non-Power-Connected | 1，Check if the power adaptor head is truly and correctly inserted the power socket. 2，Check the power switch if it is in on status. |
| 2 | No Picture | 1，Pls to make sure that the TV is on and has been connected with the machine，. 2，To check if the signal source is on and well connected. 3，Check the system connection quality. 4，Check if the line is all good quality. 5，Check the cable quality.. |
| 3 | Obscure Picture | 1，To try again to connect the cable to be free from the unsuccessful connection. 2，HDMI Cable Quality |
| 4 | No sound | 1，Please confirm the setting position of audio mode switch |
| 5 | Remote | 1，Pls check if the film that stops the current has been taken out. 2，To check if the remote battery is working well. |
';
