Product Description

The Etekcity UT61A Auto / Manual Ranging Multimeter is designed for both commercial and residential applications. It is an auto/manual ranging meter for measuring AC/DC current and voltage, resistance, capacitance, frequency, microamps, and duty cycles in commercial, home repair, automotive and electrical testing applications. It comes with non-contact voltage detection, a bright large backlit LCD display and auto power-off feature and also features Data Hold and Max/Min Reading.

Specifications
Safety/Compliances: IEC61010 CAT.III 1000V, CAT.IV 600V overvoltage and double insulation standard
Display: Maximum reading 4000(frequency 9999), analogue bar graph 41 segments
Range selection: Auto or Manual
Overload display: Display OL
DC voltage: 40mV, 400mV ±(0.8%+3), 4/40/400V ±(0.5%+1), 1,000V ±(1.0%+3)

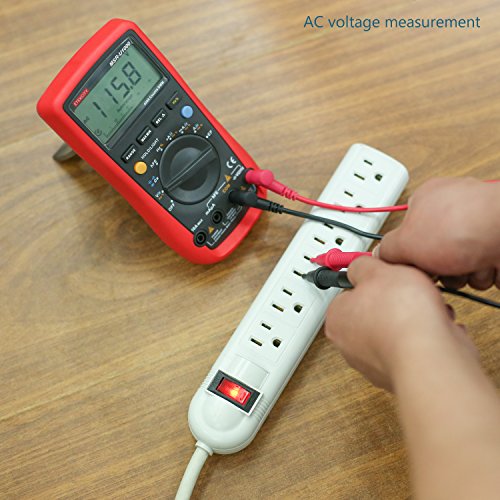

AC voltage: 40mV, 400mV ±(1.0%+3), 4/40/400V ±(1.0%+3), 750V ±(1.2%+5)
DC current: 400/4000μA (1.0%+2), 40/400mA (1.2%+3), 4/10A (1.5%+3)
AC current: 400/4000μA (1.2%+5), 40/400mA (1.5%+5), 4/10A (2.0%+5)
Capacitance: 40nF/400n/4µF/40µF ±(3.0%+5), 400µ ±(4.0%+5), 4000µF (unspecified)

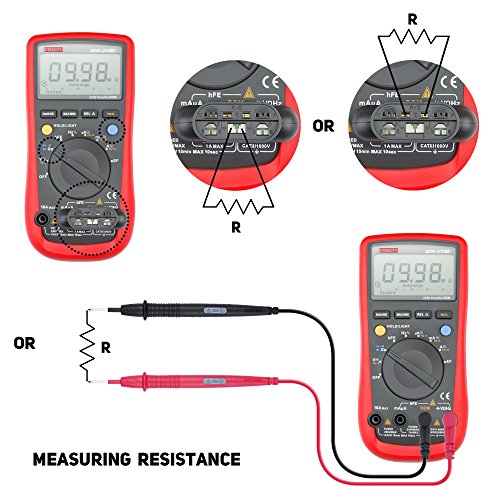

Resistance: 400ohm ±(1.2%+2), 4k/40k/400k ±(1.0%+2), 4Mohm ±(1.2%+2), 40Mohm ±(1.5%+2)
Frequency range: 10-10MHz ±(0.1%+4)
hFE: Yes
Diode test: Yes
Continuity test: Yes

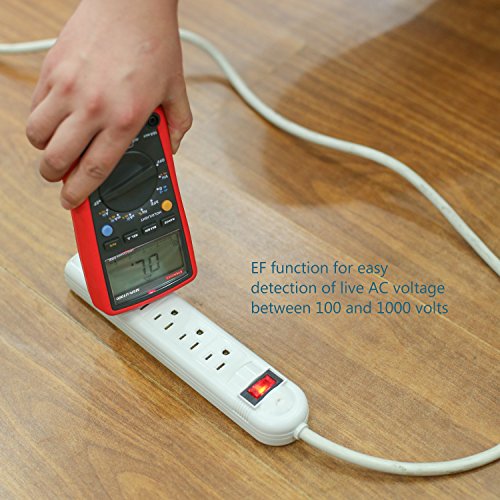

Non-contact voltage detection: Yes
Dimensions: 7 x 3.4 x 1.8 inches
Power: 9V 6F22 battery
Weight: 13 oz

Package Includes
1 x Etekcity UT61A Digital Multimeter
2 x Test leads(a pair of red and black）
1 x Multi-Purpose Socket
1 x Operating Manual

Feature

Test AC/DC voltage and current,resistance,capacitance; Check frequency,frequency response,duty ratio; Test diode,triode,EF probe,continuity buzzer
Featues Data Hold, Relative Measurement, Max/Min Reading function
Auto-ranging scales make electronic measurements much easier and a breeze
Comes with a super large Backlit LCD display which is visible in low light
Automatically enters sleep mode after 15 minutes of inactivity of rotary switch and buttons for saving power
Brand : Etekcity
Item model num : 679113374799
MPN(PartNumber) : 679113374799
EAN : 0679113374799
