Product Description

Rack Mounted PoE injector

Extend power to 328 ft or 100 meters

This device offers
* 12 shielded RJ45 jacks with Data + Power out
* power per port limited to 650 ma
* 12 shielded RJ45 jacks Data in - connect to your switch
* 2x 2.1mm x 5.5mm DC power jacks - primary and secondary DC power

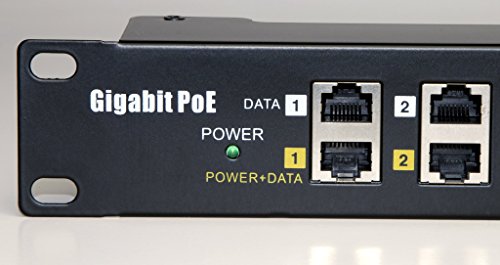

* LED power status
* LED power usage status per 4 ports
* 10/100/1000 operation
* 48v 60watt power supply, 100-240v, 50/60 hz * add a 2nd power supply for redundancy * we offer 7 different power supply options

Used to provide PoE power to:
* IP phones like Polycom, Cisco, Yealink
* WiFi Access points
* IP Cameras
* 802.3af devices

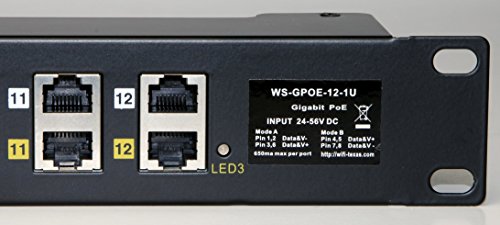

These devices provide power on the data lines 1 and 2, and 3 and 6. This is 802.3af mode A. All devices receive the same voltage - choose a power supply with more available power than the total all devices. Check device specs for power needs, it is under 4 watts for most Phones, other devices need more

We offer 18v, 24v and 48v supplies, with 60 and 120 watt versions, also 6 port versions.

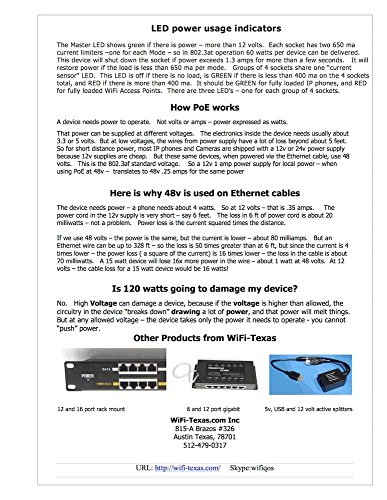

LED status show power for all 12 port, and for each group of 4. For each group of 4 port an LED indicates:
Port current 0 to 20ma = LED off
Port current 20 to 400ma = LED is green
Port current >400ma = LED is red

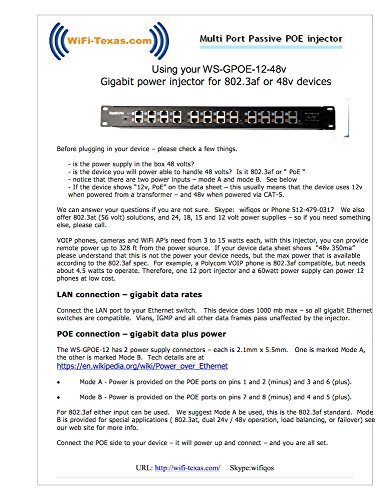

Full details and data sheet at http://wifiqos.com/

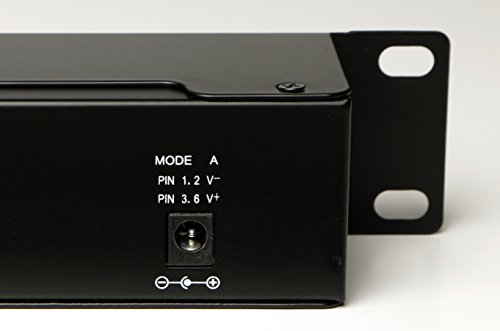

Uses a 2.1mm x 5.5mm DC connector times 2, connect 2 power supplies for redundant operation. We also stock 12v to 48v power supplies, and lower cost 100mb versions.
