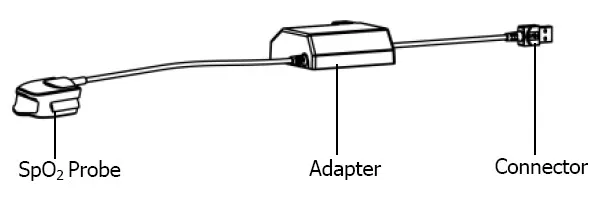

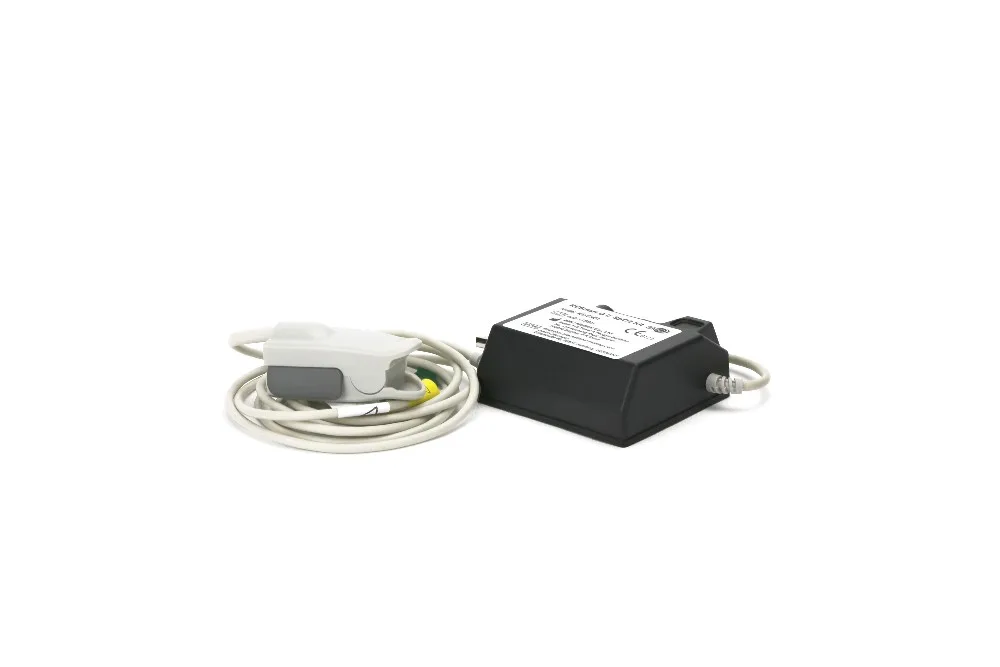

The SpO2 Kit consists of a SpO2 Probe, Adapter, and Connector, as shown in Fig.

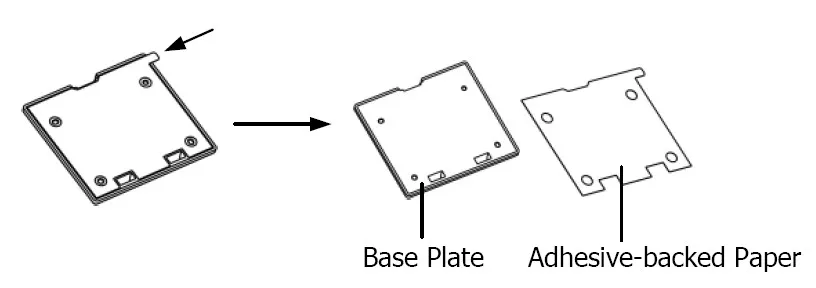

(1) Pull the Adhesive-backed Paper off the Base Platelatelate as indicated by the arrow icon in the top left of Fig.

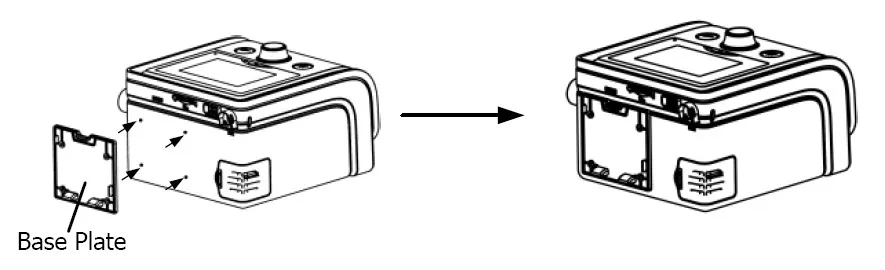

(2) Point the four holes of Base Platelatelate towards the four reference points on the back of the main device to properly stick the plate to the device, as shown in Fig.

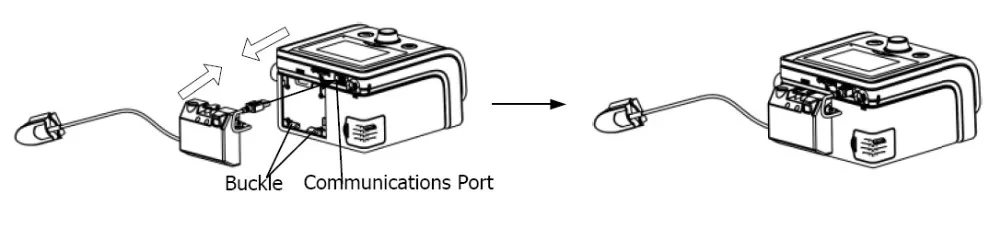

(3) Point the two Buckles at the back of the SpO2 Kit adapter towards the two buckles of the base plate, and push until the two units click into place. Insert SpOSpO2 Kit connector into the Communications Port of the main device, as shown in Fig.

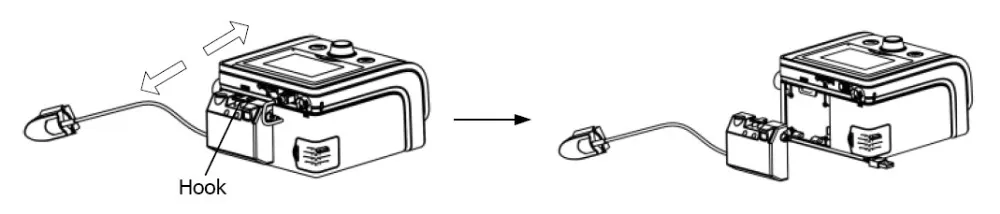

First disconnect the SpO2 Kit connector from the Communications Port; then press the Hook at the top of SpO2 Kit adapter, and at the same time, pull adapter and base plate apart in opposite horizontal directions, as shown in Fig.

The SpO2 Kit is intended to be used for continuous, non-invasive functional arterial oxygen saturation (SpO2) and pulse rate monitoring for adults weighting greater than 40 kg. It is 1.8 m in length without the function of preventing electromagnetic interference.

The SpO2 Kit is ready to use immediately when you connect it to the main device via the Communications Port.

The model of the SpO2 Kit is KS-CM01. The SpO2 Kit is calibrated to display FUNCTIONAL OXYGEN SATURATION.

Attach its sensor to the patient's index finger or any other finger. The sampling rate of the SpO2 signal is about 50 Hz, and the update rate of the frame is 1 Hz. The value of SpO2 and PR is calculated by the average of the former eight pulse waveforms.

If the SpO2 Kit is in an abnormal state, the value of SpO2 will be blank.

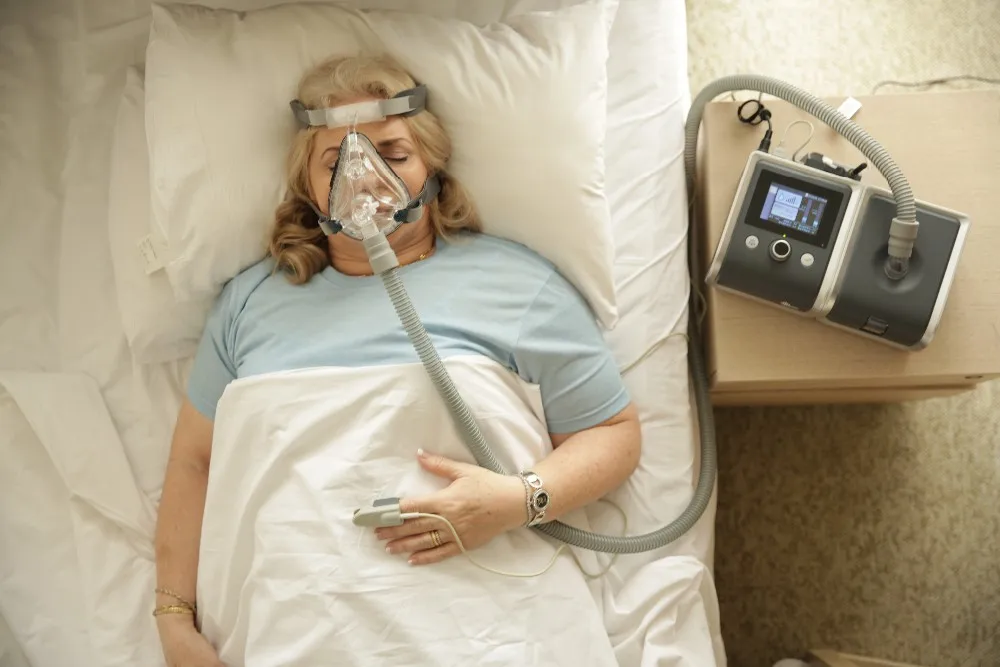

The screen of the main device then displays the Main Interface shown in Fig(1 or 2 or 3). The patient's blood oxygen saturation and pulse rate can be clearly seen during the course of therapy.

Q1:What kind of person need this product , and it's mainly for what indications ?

Sleep Apnea Syndrome (SAS) Presentation : Snoring , daytime sleepniss , impaired concentration , hypertension , morning headache , slow reaction time , decreased memory , decreased libido.

Q2:Does the machine suitable to use at home? Does it easy to operate ?

Yes, it's designed for sleep home care therapy and ventilation . After refer user manual , it will be very easy to operate by End-User.

Q3:How to set the machine airway therapy pressure or how to choose the work mode , and change other paramaters ?

All the settings can be changed in Clinical Menu. (Enter Clinical Menu : When the machine running , please press middle button and right button , hold them for 5 seconds will into the Clinical Menu.)

Q4:Where can I download the analyse software , any software fee required ?

Online documentation and software for your BMC products can be downloaded free of charge.

(2)Download Step : [Sevice] - [Document & Software] - [Therapy and Ventilation Devices]

(3)Ask AliExpress platform customer services to get free download account and password.

Q5:What is iCode function ? How to use iCode phone app ?

Software usually for doctor to analysize , but iCode shows basic using data for End-User , more convenient to know recent condition . iCode I is numbers , iCode II is QR picture .

(1)Go to iCode website(bmc-icode.com) , then input machine serial number to get data.

More instructions in [Help] page which on the top of the iCode website.

(2)Stop running machine , press humidifier button on the left of the machine , will come out iCode I numbers . Then d ownload phone app called BMC+ , o pen the phone app , type the iCode I numbers in the phone app to get data.

(3)Also can rotate middle button change iCode I numbers to iCode II QR picture , use phone app sweep QR picture on the machine screen , done !

Spo2 kit just like finger pulse rate oximeter , Show your blood oxygen percent on respirator LCD screen. Normal people's blood oxygen percent above 97% , Snoring & Apnea & COPD people usually lower than 95% . (From some point , get to known the effect after using machine for a period)
