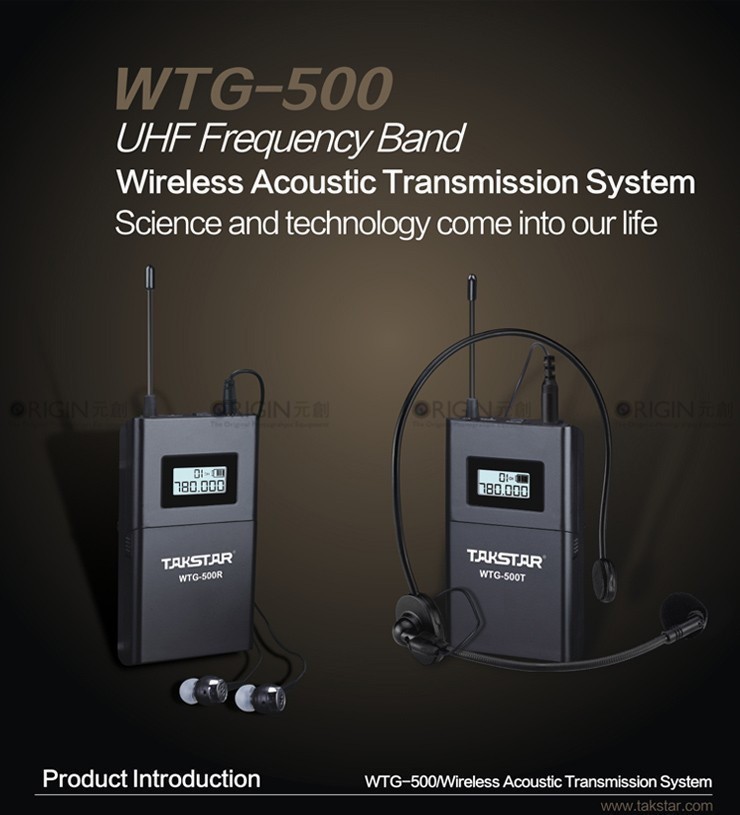

Takstar WTG-500/ WTG 500 UHF Wireless audio system for Tourist guide/Teaching Transmitter+Receiver+ microphone+earphone ，WTG500



WTG-500 6 major advantages:

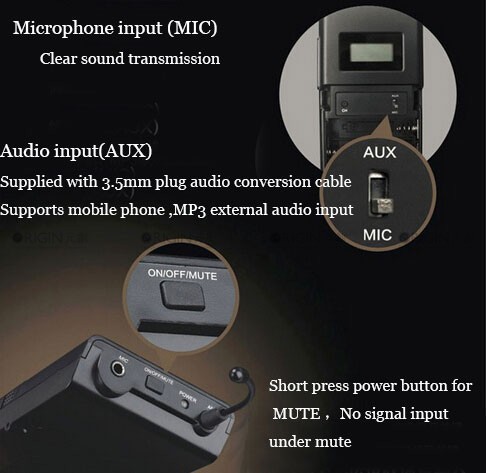

1 built-in adjust  transform switch， can be used to music/ Simultaneous guide， convenient and simple to operate.



2.6 channel regulator， UHF segment， if signals or other interference can stagger the frequency，easier to work.

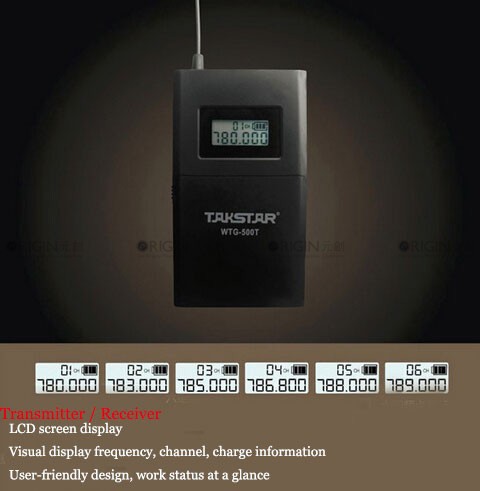

3.LED display， the display signal， power， frequency. Glance， easy use.

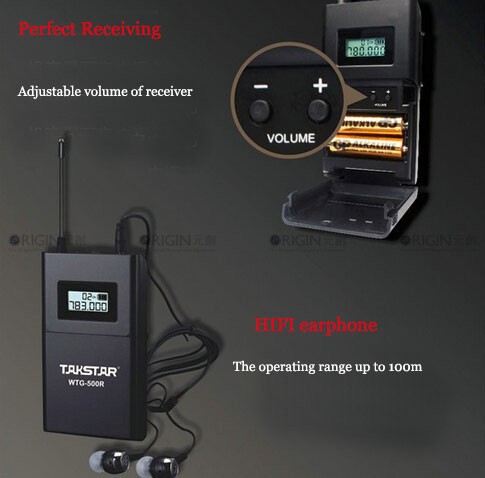

4 ultra-long distance up to 100 meters， signal stability， continuous tone， receiving strong， not distortion.

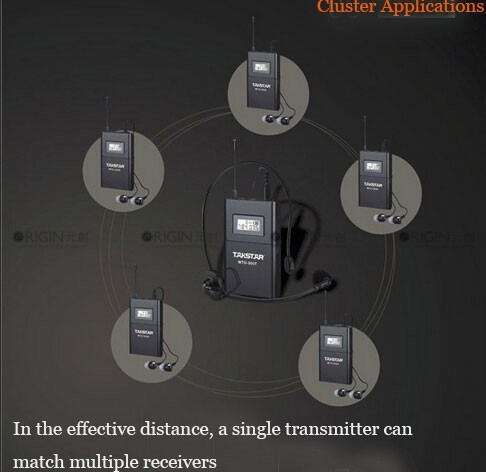

5 can be a host with multiple receivers， suitable for people occasions.



6 for stage bands， guided tours， people visiting team.



WTG-500

Characteristic



 using UHF band， PLL frequency synthesizer technology， stable and reliable

 UHF780-805MHz band， preset six channels to choose from

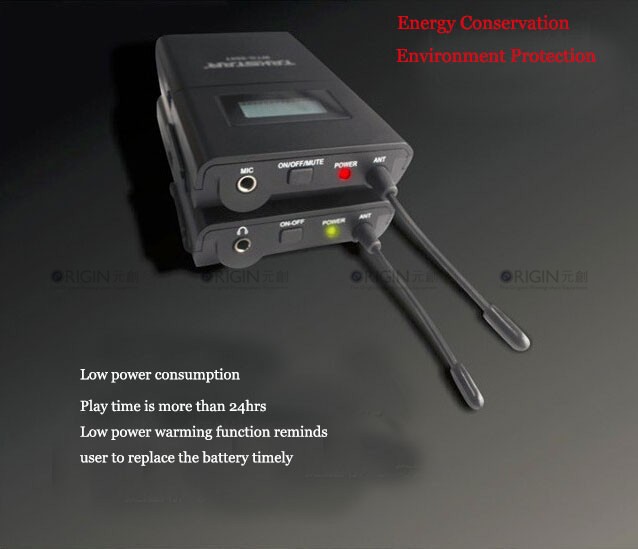

 low-power design， the receiver two alkaline batteries can work more than 24 hours

 A transmitter within range can be equipped with multiple receivers

 dynamic expansion of the circuit， high SNR

 composite jamming circuit can be used simultaneously more than four sets of non-interfering

 transmitters， receivers are used LCD frequency， channel， battery charge information

 The use of remote transmitter， distance up to 100 meters



Range

For wireless tour guide， simultaneous interpretation and audio-visual and other occasions

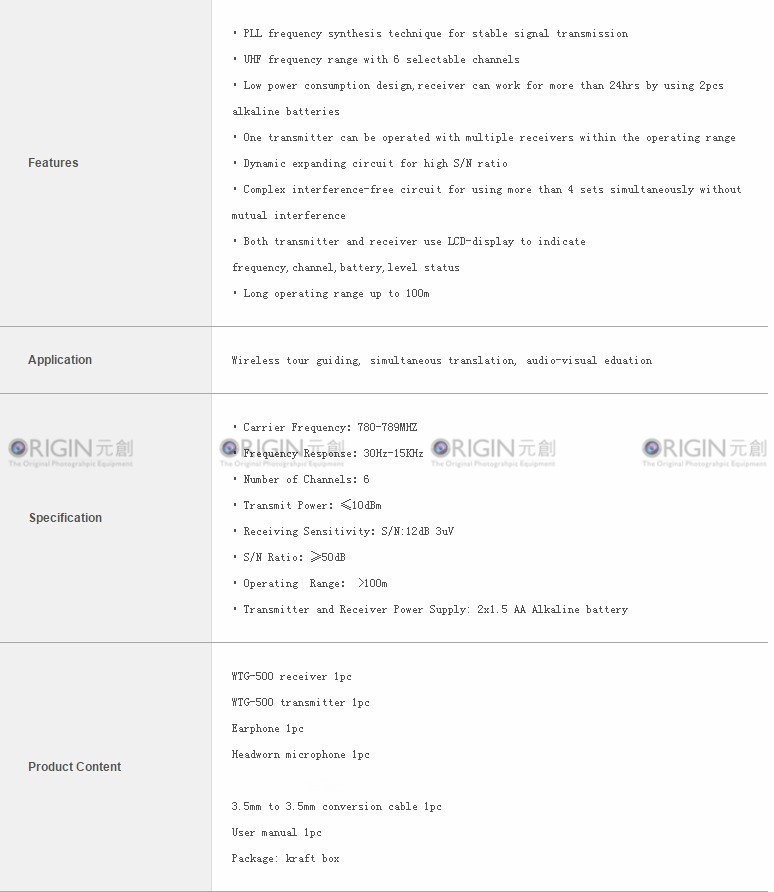

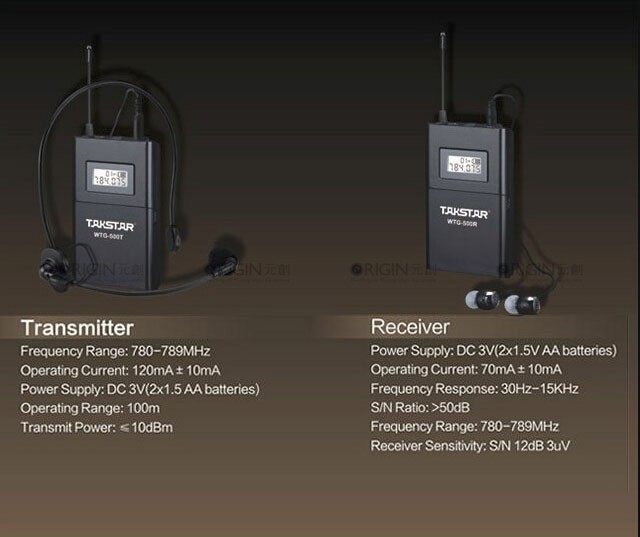

Technical Parameters / Parameter

Carrier frequency :780-805MHZ

Frequency Response: 30Hz - 15KHz

Channel: 6

Transmit Power: ? 10dBm

Receiver sensitivity: S / N: 12dB 3uV

SNR: ? 50dB

Transmission distance:> 100 meters

Transmitter power supply: two 1.5V alkaline batteries

Receiver Power: two 1.5V alkaline batteries





Configuration

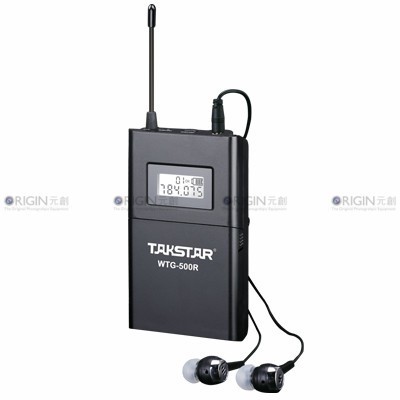

Receiver 1 ;

Transmitter 1;

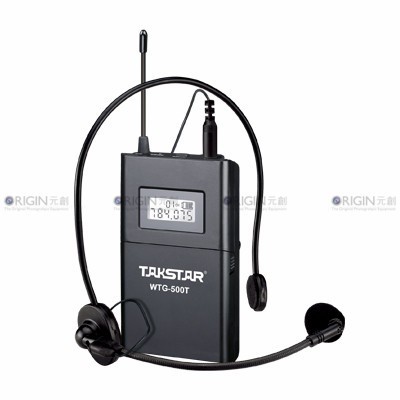

Wearing  microphone 1

Earplugs 1;

3.5mm plug adapter cable 1;

Manual 1
