Product Description

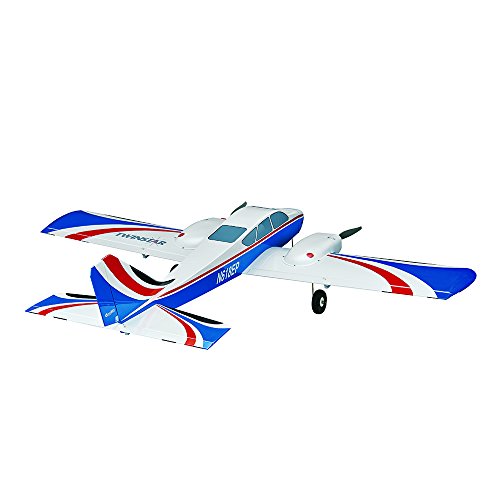

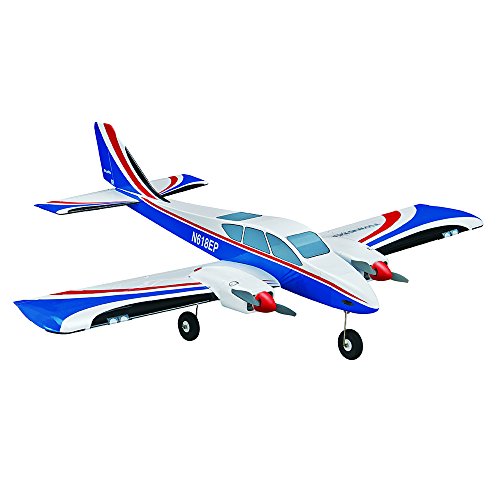

Twinstar Electric Powered Airplane.

Kit Contents
Built-up balsa and ply airframe
High-quality MonoKote covering material

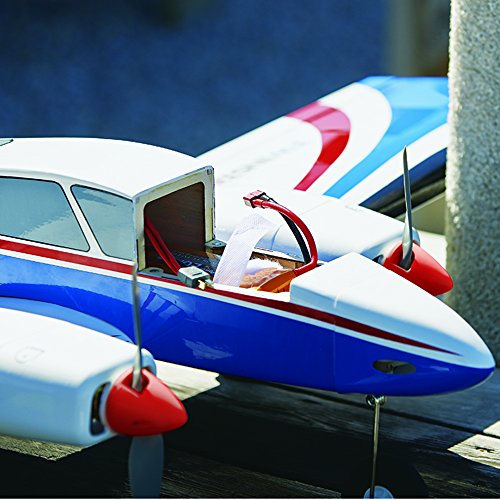

Fuselage with battery hatch
One-piece wing with laminated plywood joiner and pre-hinged ailerons
Pre-hinged elevator and rudder
Plastic motor cowls and nose cone painted to match the covering
Plywood nacelles and electric motor mounts
1-3/4in plastic spinners
Battery Y-harness extension
Complete hardware package
24-Page photo-illustrated instruction manual

Requirements:
Radio: 4-channel minimum, standard size receiver
Servos: Four 39 oz-in (2.8 kg-cm) minimum torque micro size servos
12in (305mm) Extensions: Two for aileron servos
Y-Harnesses: One for ailerons
Brushless Motors: Two RimFire .10 (35-30-1250) outrunner brushless
Electronic Speed Control: Two 25A
Propeller: 8x8 thin electric
LiPo Battery: 3S 11.1V 3800mAh 30C
Battery Charger: For selected battery
LiPo charging bag, building and field equipment

Specifications:

Wingspan: 47.5 in (1205 mm)
Length: 42.5 in (1080 mm)
Wing Area: 392 sq in
Weight: 4-4.25 lb
Wing Loading: 25 oz/sq ft
Receiver: Futaba R617FS
Servos: 3-39 oz-in and 1-51 oz-in
Battery: 3S LiPo, 3800mAh
Motor: 35-30 1250 Outrunner X2
ESC: 25 Amp X2
Prop: APC 8x8 2-Blade X2
Power WOT: 600 Watts
Transmitter: Futaba 8FG Super
