Item Descriptions:

size:

20 W output

| Type:

only a main part

Since its introduction in 2001, Valvetronix series has evolved its own evolution by combining Valve Reactor circuitry that recreates the tube power amplifier operation and advanced modeling technology.

In the latest VT20X / VT40X / VT100X, the modeling engine is renewed.

We adopted the VET (Virtual Element Technology) method which analyzes parts and the amplifier circuit itself, enabling more detailed modeling sound.

Also equipped with a new Valvetronix preamplifier.

The subtle tone color adjustment unique to a vacuum tube is performed by an analog circuit, and the nuance of the original amplifier is acquired.

In addition, it realizes a marvelous sounding with its unique enclosure design and unique bass reflex mechanism, which is unparalleled as a guitar amp.

We have incorporated a number of innovative features far beyond the traditional modeling and amp, such as ToneRoom, an editor software that allows you to customize and add amps / effects yourself.

In addition to playing, VT20X / VT40X / VT100X that can create amps / effects by themselves, this is the cutting edge of modeling and amplifiers.

Adopted VET (Virtual Element Technology) method different from conventional modeling

Equipped with Valvetronix preamplifier using multi-stage amplification circuit of vacuum tube

Hybrid power amplifier combining analog and digital

The difference of Class A / AB, sound quality by bias value and change of dynamic characteristics of vacuum tube are reproduced by pure analog circuit.

Adjustable by user

High performance DSP improves sampling frequency, amplifier modeling and effect quality

A unique bass reflex structure that acquires a rich low end while it is small size

Highly airtight enclosure design emits a powerful sound without loss

We prepare "ToneRoom ※" software which can customize and add amp / effects as well as editing

Yamamoto of former years, standard amps all over the world gather.

Eleven types (20 when editor / librarian software is used) amp model is installed

13 types of versatile effects boasting the same quality as a single unit

33 types of immediate fighting programs including signature sound of prominent guitarist (60 when using editor / librarian software)

Power level control equipment that can adjust volume without compromising drive feeling

Equipped with a manual mode in which the physical position the knob points is directly reflected in the sound

Headphone out, with AUX input

Built-in auto tuner with good visibility

Optional foot switch VFS 5 enables program / effect switching

20W, 40W, 100W and 3 types of models line up

※ Amplifier / Effects Customizable Editor / Librarian / Soft "ToneRoom"

For VT20X / VT40X / VT100X, prepare editor / librarian · soft "ToneRoom".

In addition to normal amp / effect editing, you can customize detailed parameters and you can adjust the parameters exactly like creating instruments.

Up to 3 amps / effects customized by you can be saved in the main body.

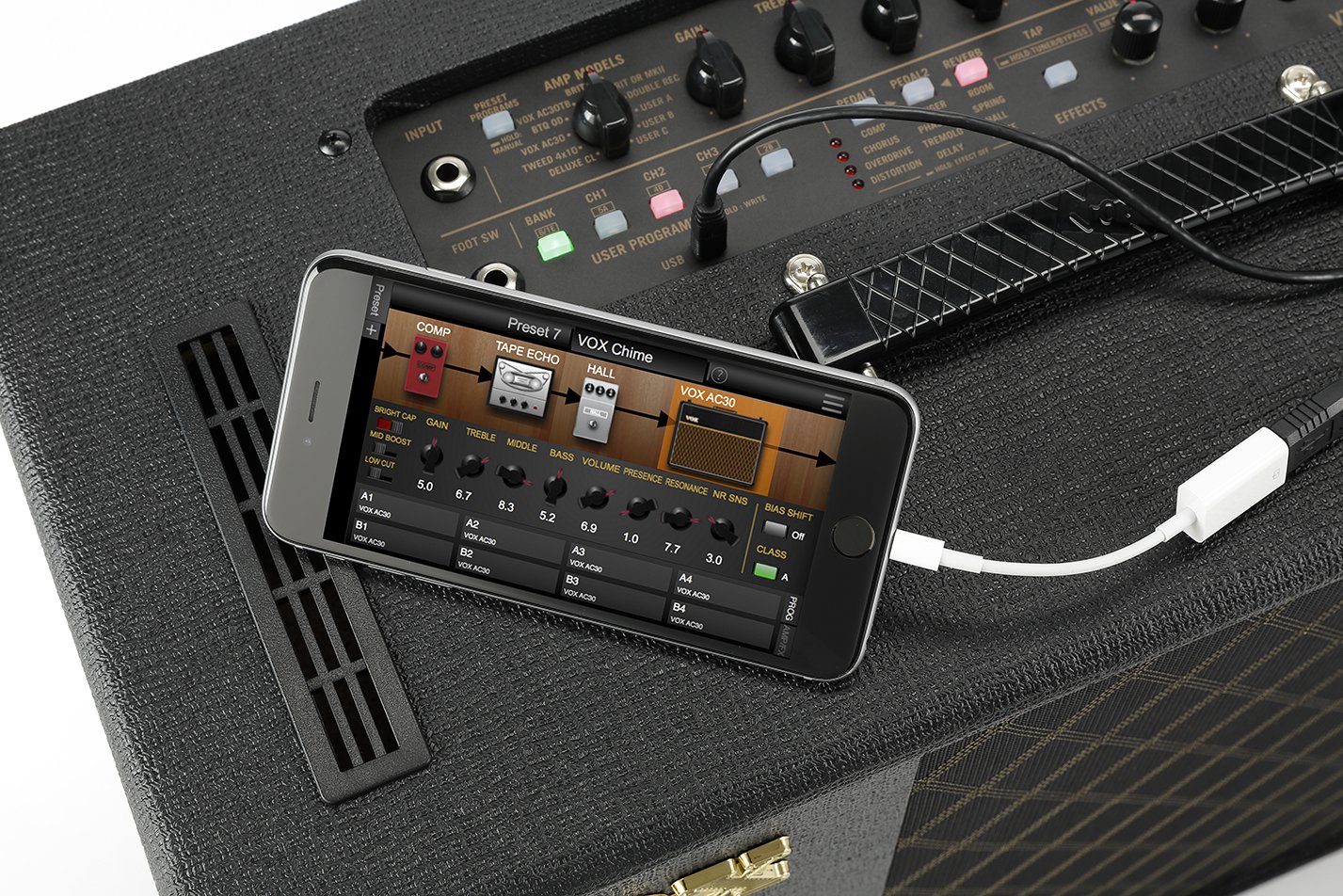

"ToneRoom" is prepared for Windows, Mac, as well as iOS, and editing on any device is possible.

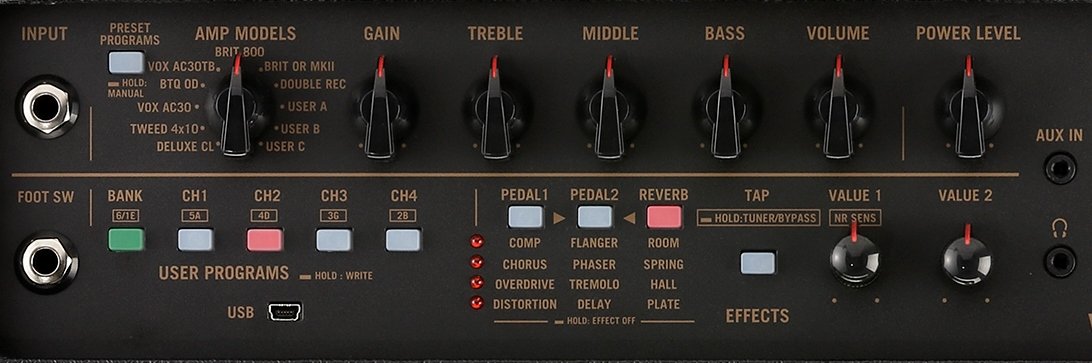

【Amplifier · Model】

DELUXE CL, TWEED 4 x 10, VOX AC 30, BOUTIQUE OD, VOX AC 30 TB, BRIT 800, BRIT OR MKII, DOUBLE REC, BOUTIQUE CL, BRIT 1959, BOUTIQUE METAL

【effect】

PEDAL 1 (COMP, CHORUS, OVERDRIVE, DISTORTION), PEDAL 2 (FLANGER, PHASER, TREMOLO, DELAY), REVERB (ROOM, SPRING, HALL, PLATE), NOISE REDUCTION

【specification】

Output: Up to about 20 W RMS (5 Ω)

Amps · Number of models: 11 (20 when using editor / librarian · software)

Number of effects: PEDAL 1 type 4, PEDAL 2 type 4, reverb type 4, noise reduction 1

Number of preset programs: 33 (60 when editor / librarian software is used)

Number of user programs: 8 (2 banks × 4 channels)

Speaker: 1 x 8 inch (5 Ω)

Input / output terminal: INPUT terminal, AUX IN terminal, headphone terminal, FOOT SW terminal, USB mini B terminal

Accessory: AC adapter (12 VDC)

Option (sold separately): VFS5 foot switch

Features:

• Please enter model number Confirm this is compatible:
• Equipped with Valvetronix preamplifier using multi-stage amplification circuit of vacuum tube
• We prepare "ToneRoom" software which can customize and add amp / effects as well as editing
• 13 types of versatile effects boasting the same quality as a single unit
• A unique bass reflex structure that acquires a rich low end while it is small size
• Power level control equipment that can adjust volume without compromising drive feeling

Product information:

Shipping Weight: 6713 g

Package Dimensions: 25.40 x 43.20 x 50.80 cm
