Data System (Rearview mirror monitor LTM 6023

Item Descriptions:

Product introduction

☆ 4.3 inch wide liquid crystal mounted original wind rearview mirror monitor ☆

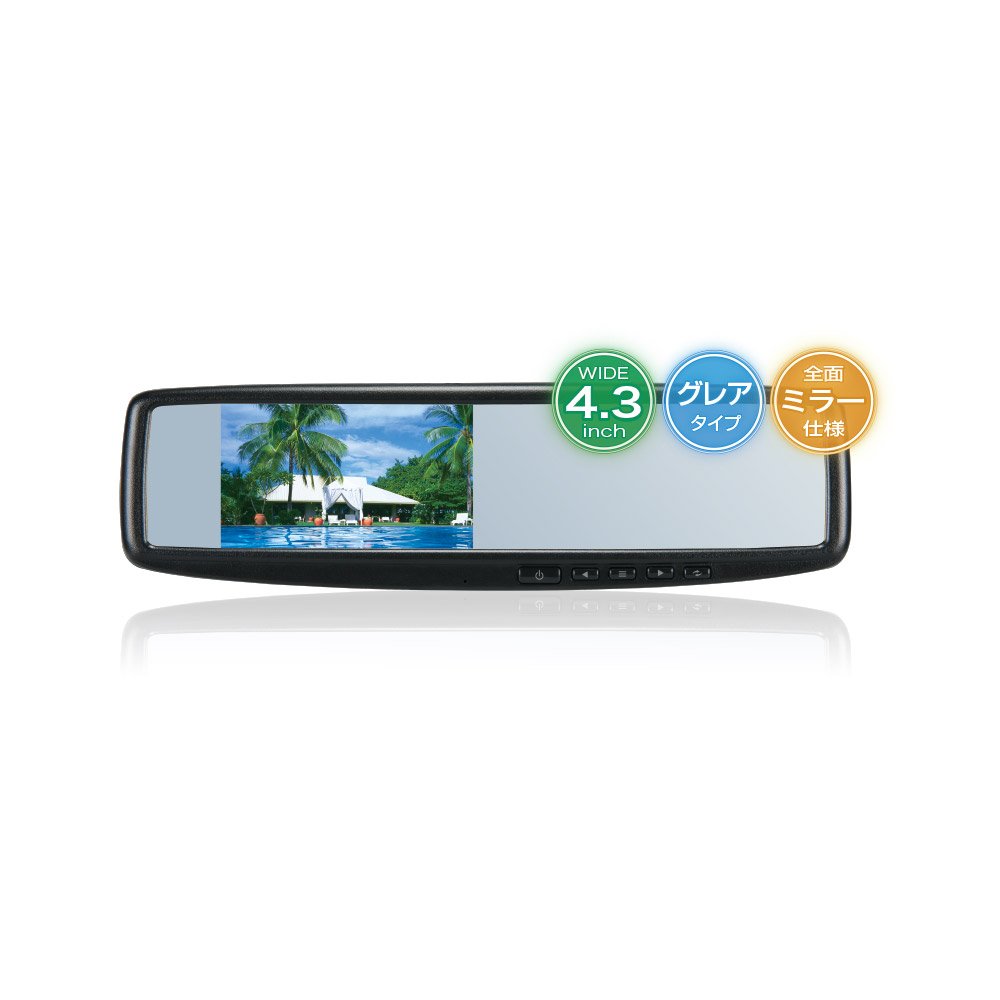

LTM 6023 is a mirror-integrated type 4.3-inch wide LCD mounted rearview mirror monitor.

Secure the function and performance of each of the clear LCD monitor and visibility mirror.

Lightweight design also reduces the load on the genuine rearview mirror.

Since it has two video inputs, it supports every drive scene from safety drive to car entertainment.

Also, if you connect an optional rear view camera, you can switch to the rear view screen automatically in conjunction with the reverse gear.

● Full mirror mirroring behind the back view

The LTM 6023 has a 4.3 inch LCD monitor inside the rearview mirror.

When the power supply of the monitor is off, the whole surface becomes a mirror, and you can secure secure visibility of the rear side securely.

● Comfortable navigation and terrestrial digital broadcasting with thorough noise control

With its unique noise countermeasure, it minimizes the influence on the terrestrial digital broadcast tuner and GPS reception, and almost clears the noise problem generated by many commercial rearview mirror monitors.

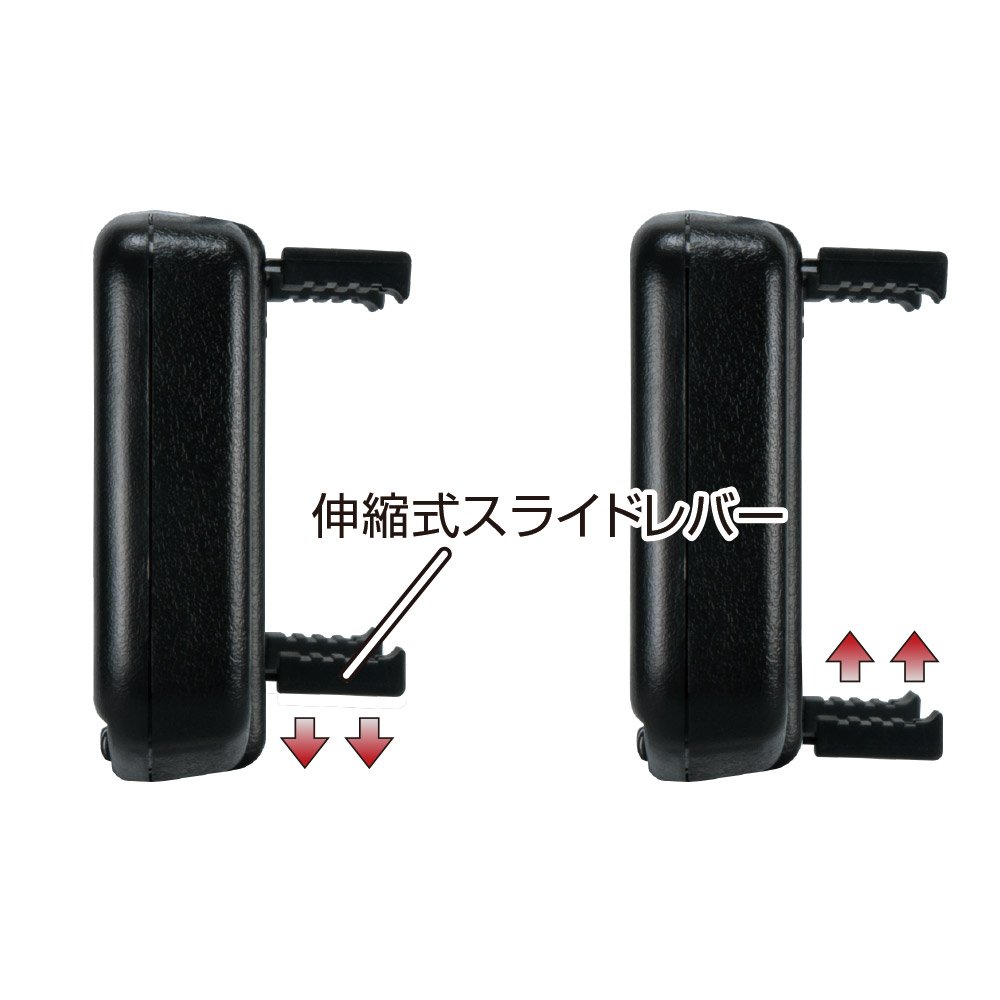

● Can be mounted to a wide range of vehicles

Easy attachment by telescopic type slide lever, just put on a genuine rearview mirror.

It made it possible to install on a wide range of models.

Lightweight design also reduces the load on the genuine rearview mirror.

* Slide lever movable range: 23 mm

※ Monitor Weight: Approx 315 g

* The height of genuine rear view mirror that can be attached: 55 - 75 mm

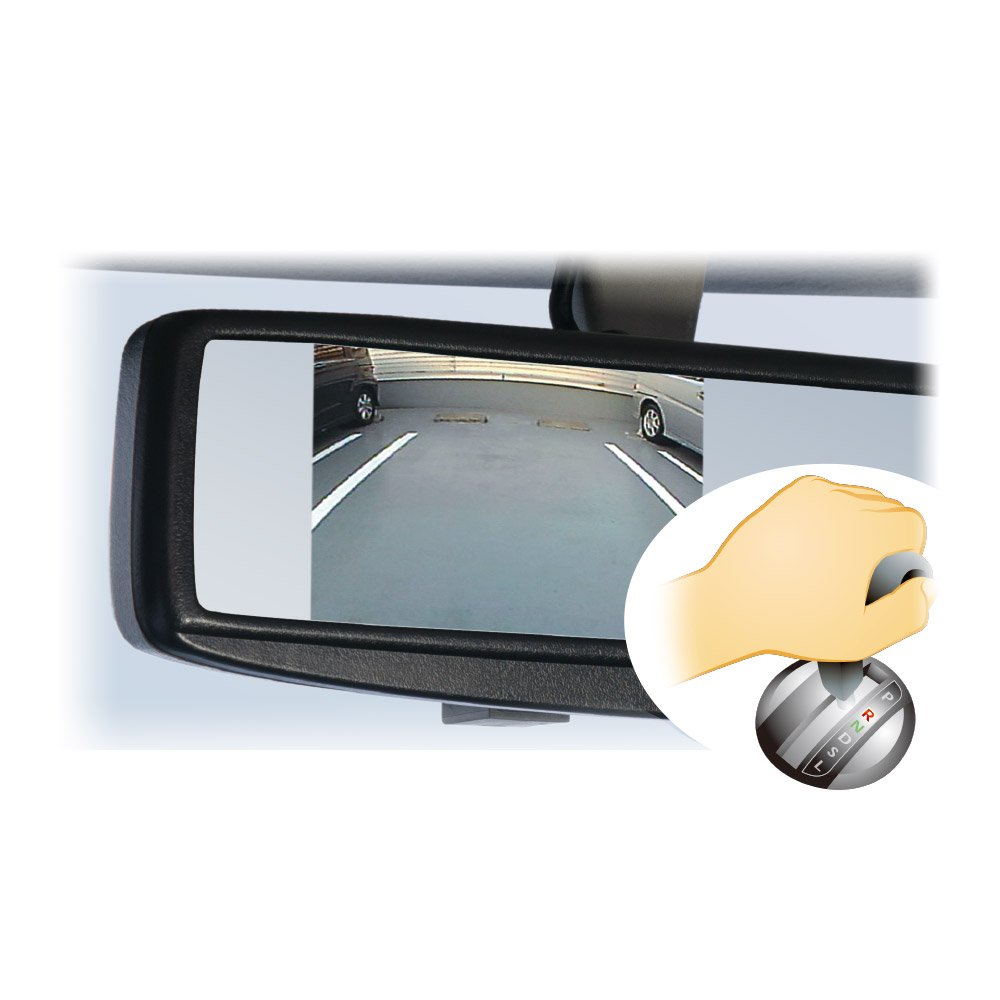

● Reverse interlocking function installed

Reverse interlocking function that automatically switches to the rear camera image (video input 2) in conjunction with the back gear is carried.

※ Because the image of the rear camera is displayed as it is, be sure to choose the mirror type of the rear camera.

● Convenient 2 input terminals installed

You can input two video equipment simultaneously such as in-vehicle camera video and terrestrial digital video.

● Enhanced image adjustment function

Three image quality adjustment functions of brightness, contrast, and color depth are carried and fine image quality adjustment is possible.

Usage notes

* When installing please check the back mirror monitor notes of the data system homepage.

Show all product descriptions

Features:

  • Accessory: · Rearview mirror monitor main body × 1 · Power supply / RCA cable × 1 · Parking adapter × 1 · electro tap × 4 · binding band × 4 · handling / installation manual · warranty card (user warranty registration card attached)
  • <Specification> ◆ Screen size: 4.3 inches wide ◆ Screen ratio: 16: 9 ◆ Number of pixels: 130,560 × RGB ◆ Fuse capacity: 3A ◆ Operating temperature range: 0 to 60 ° C ◆ Power supply voltage: DC 12V ◆ Current consumption:
  • Approx. 40 mA (in operation) Approx. 200 mA ◆ Monitor weight: Approx 315 g ◆ Video input: RCA terminal × 2 line NTSC ◆ Body dimensions: W274 mm × H 79 mm × D 24 mm (excluding protrusions and slide levers)
  • : 55 - 75 mm (※ height of genuine rearview mirror that can be installed) ※ Please be sure to confirm the size of the genuine rearview mirror.
  • In addition, please refer to the following dimensional drawing.

Product information:

Shipping Weight: 716 g

Package Dimensions: 7.70 x 20.50 x 30.91 cm
