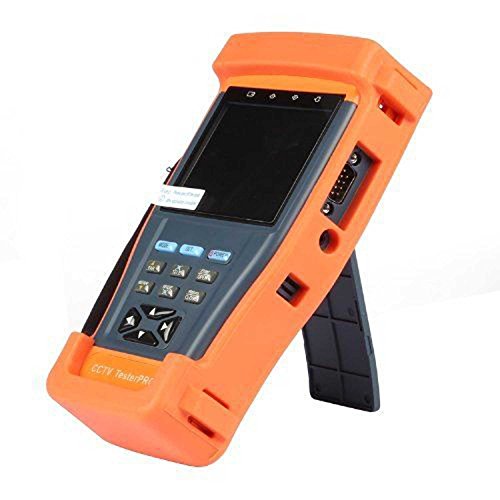

Logisaf 3.5" LCD Monitor CCTV Camera Tester Video PTZ RS485 UTP Test Detector for Security System Installation and Maintenance
[Product Information]- Enter your model numberto make sure this fits.
-

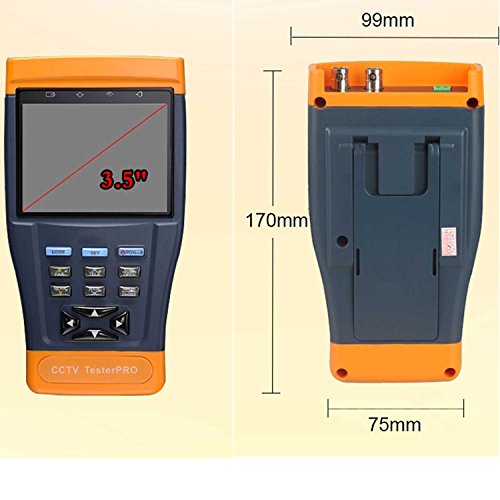

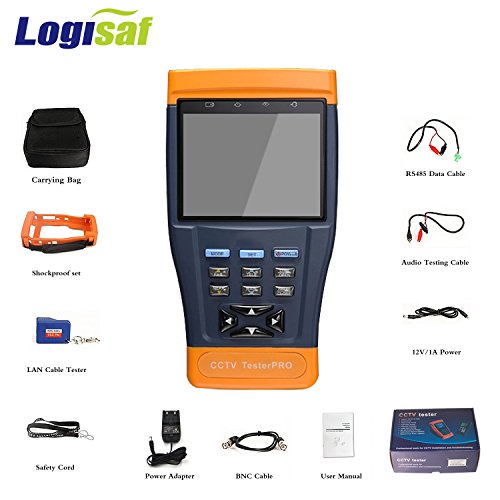

TIME SAVER FOR CCTV INSTALLATION. 3.5" TFT LCD screen, 960(H)×240(V) resolution. The case is really nice and it comes with everything you need to make your job much easier.
-
VIDEO GENERATING: The PAL/NTSC multi-system colorbar video generator (seven-system switchable, transmit/receive seven-system colorful imagines); Automatically adapts and displays the video format of NTSC/PAL.
-

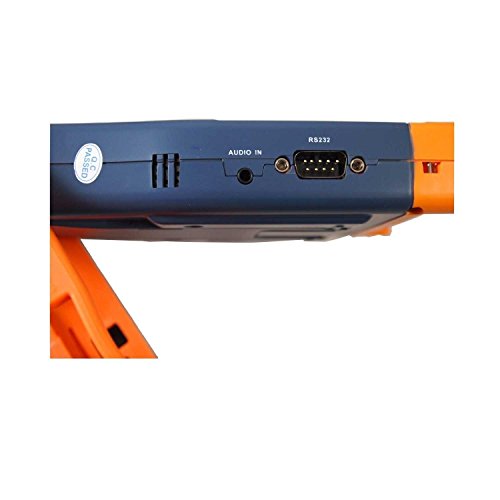

PTZ TEST: Pan/tilts the P/T unit, zooms in/out the lens, adjusts the focus, aperture and sets and calls the preset position; PTZ address scanning, search up the ID of PTZ camera; Multi-interface and Multi-baudrate. Support RS232 ,RS485 and RS422 interface; baud rate ranging from 150, 600 to 19200bps.
-

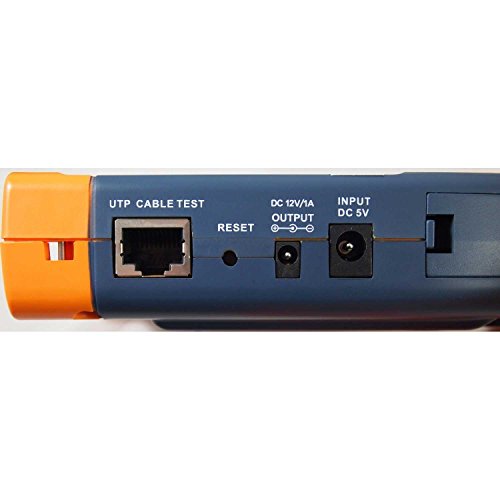

CABLE TESTING: It is powerful in testing LAN cables, measuring the connecting status displaying the sequence of connection and the NO. of the LAN cable; Data analysis. Captures and analyzes RS485 controlling data to help the technicians to find out the problem.
-
LONG LIFESPAN: Lithium Ion Polymer Battery (3.7V DC3000mAh). Adopts advanced power control and protection circuit. High power-efficient, energy saving and environmental protection. It can last 12 hours for normal use after charging for 4 hours. And it also has a power adapter with 12V DC 1A output for charging.
