Item Descriptions:

size:

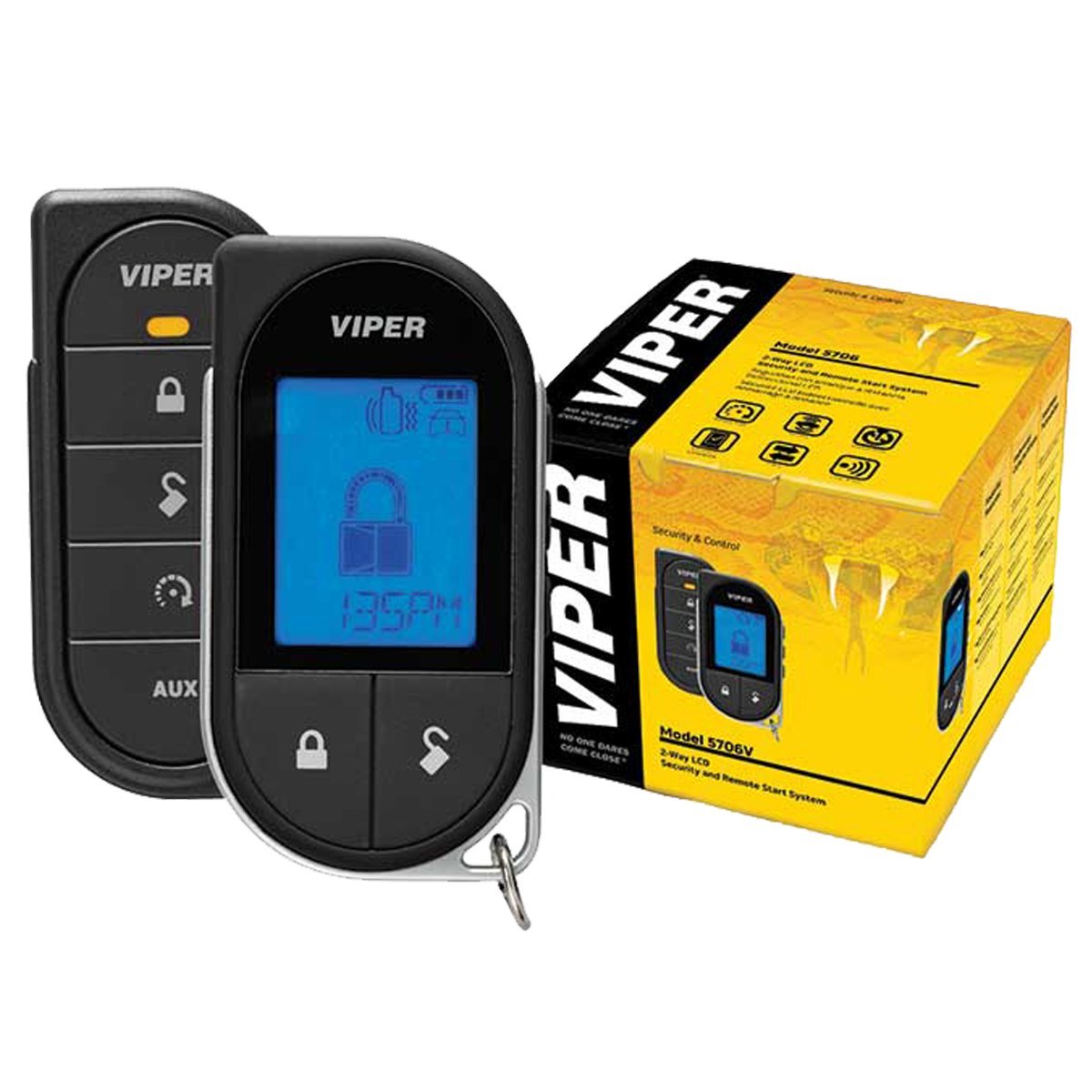

VIPER 5706V (model with monochrome liquid crystal remote control)

VIPER main body Basic security function

VIPER VIPER 5706 V function

Selectable siren

You can select a sound by cutting the wiring in the siren

Siren time selection

(The initial setting can be changed to 60 seconds in 30 seconds)

You can choose the time when the full siren sounds

Silent mode

Security can be operated without siren sound (click tone) sounded

Light flash answer back

Position and hazard will flash and security operation can be confirmed

(It depends on connection method)

Panic mode

Siren can be forcibly sounded and threatened

Linking security and door lock

In conjunction with security ON / OFF, you can lock (unlock) and unlock (unlock) the genuine door

With operation check LED

(Blue)

The LED blinks during security operation (It lights up in the burr mode)

Diagnostic function

After the security sounds, you can check which sensor has reacted by the LED flashing frequency

NPC function

(Nuisance prevention function)

If the same sensor reacts three times within one hour, temporarily cancel that sensor

Kill Relay function

I can not put on the engine while security is in operation (connection method, it varies depending on the model)

Forced release function

Security can be canceled without remote control when the remote control is damaged

Passive function

You can activate security automatically after closing the door (you need to set it up)

Valley mode

You can stop the security function and use it as a function of keyless engine starter only

AUX (-) signal output function

(There are 4 outputs)

Function to operate trunk open, slide door open etc with VIPER remote control

(Because it is a weak output, be sure to use relays.In addition, wiring varies depending on the model)

Remote engine starter

(12 minutes for initial setting, 24 minutes for setting change, 60 minutes for selection)

You can start the engine with remote control

Turbo timer

(The default setting is the turbo timer function is off, selectable 1 minute, 3 minutes, 5 minutes, 10 minutes)

By doing remote control operation when getting out of the car, we can enable after-idling

Convenience mode

(Barrett take over)

With the engine on, you can unlock the key and turn security on

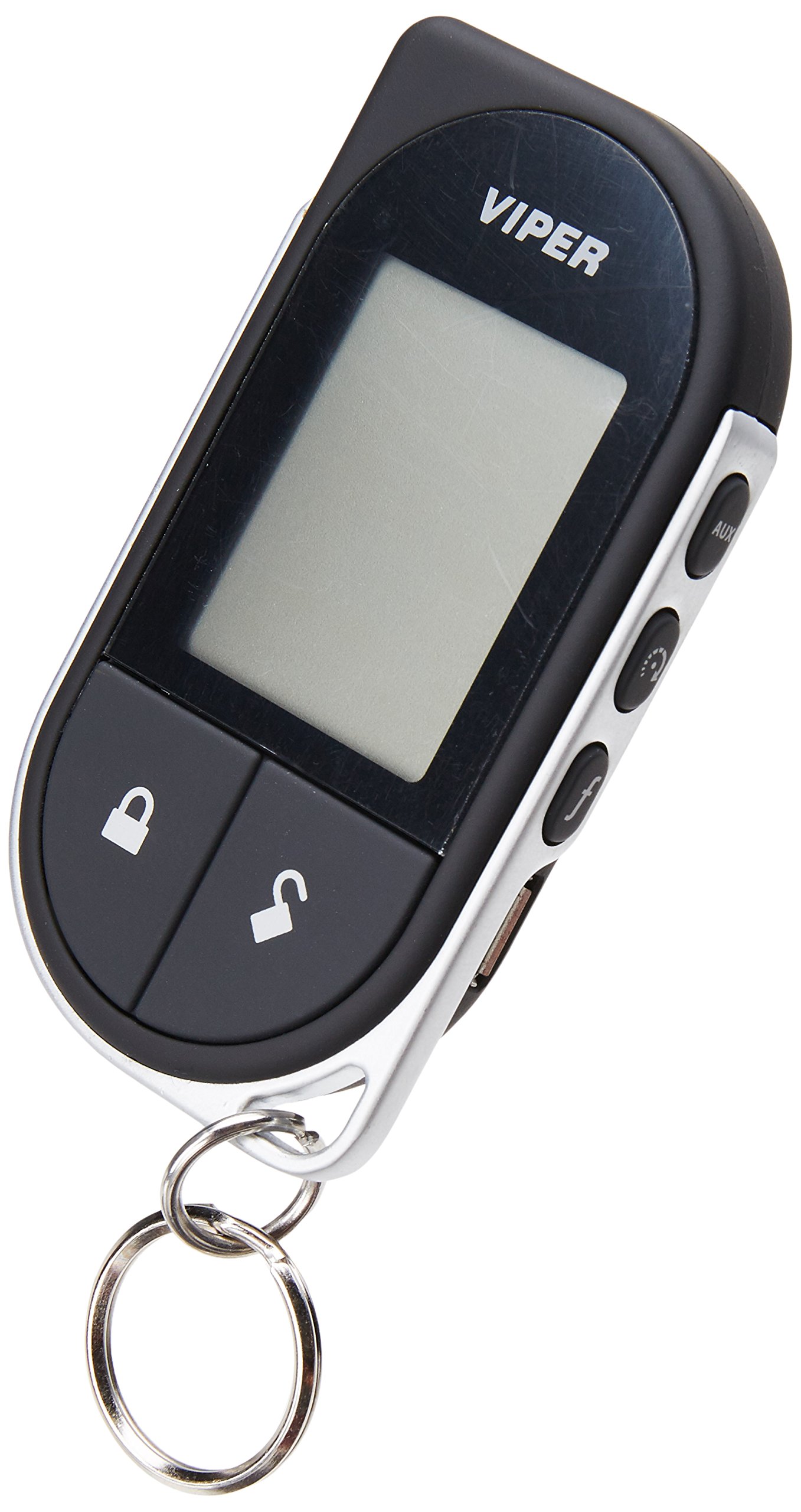

Black and white liquid crystal remote control

1 item included (Rechargeable type with attached USB cable)

Siren warns you, or when using a full siren or engine starter to notify the remote control

1way remote control

1 item included (button battery type selling at convenience stores etc.)

Spare remote control with no answer back function

JAMProduce original, [Japanese Installation Instructions · Instruction Manual] is included so you can be safe and use.

Recommended options

【508D field sensor】

10 cm from the windows of the driver's seat and the passenger's seat 10 cm The warning tone sounds and the thief is threatened, with the face approaching dark and looking into the car!

Opening and hitting the door ... Although it is not even if you touch the car, it is a recommended sensor that warns you of a thief just by coloring the inside of the car.

【516L Super Voice】

alias

【Engine Starter Voice】

It is called,

It is a voice unit used in combination with VIPER's Ensta model (5305, 5906/5706, etc.).

I speak even at the start of the engine compared to the normal voice unit 516U

【Talking a lot and it's cool

For those who bought Ensta model certainly recommend this!

[VIPER black and white liquid crystal remote control leather case]

All operation charge can be done without removing the remote control.

It is durable cushioning with leather and it scratches rubbing It is recommended also for the prevention of impact!

For home country specification Viper 5901 5702 V 5501 4702 V 5704 5704 V 4704 4704 V 3303 3303 V 5706 v etc.

Remote control leather case for 1WAY is also the Onza い ま す.

Features:

• Two-stage shock sensor attached to sense light vibration and strong vibration attached
• Built-in bonnet sensor, door sensor, trunk sensor
• Sensor that senses illegal ignition and kill relief equipment for getting on and off
• Equipped with a remote engine starter Equipped with convenience store mode that is active in convenience stores etc.
• Various functions including turbo timer mode etc.

Product information:

Shipping Weight: 1315 g

Package Dimensions: 14.50 x 16.79 x 16.79 cm
