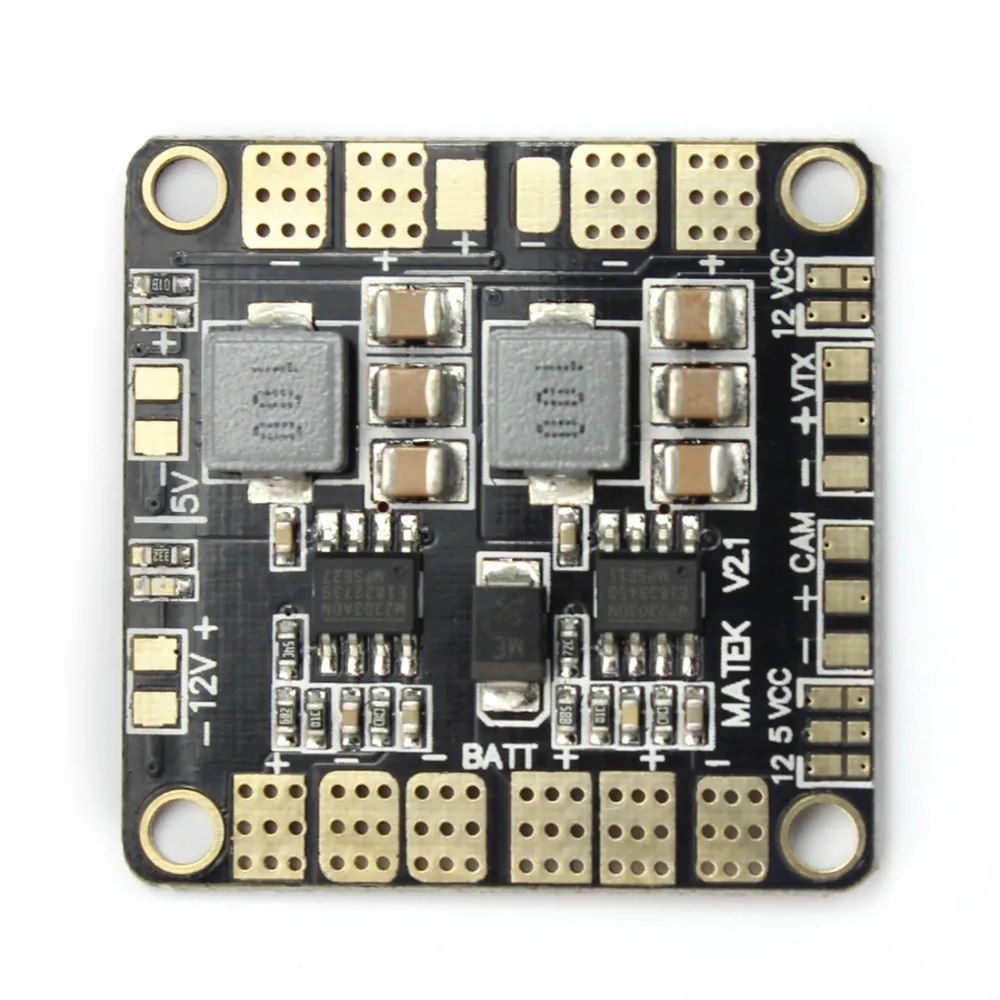

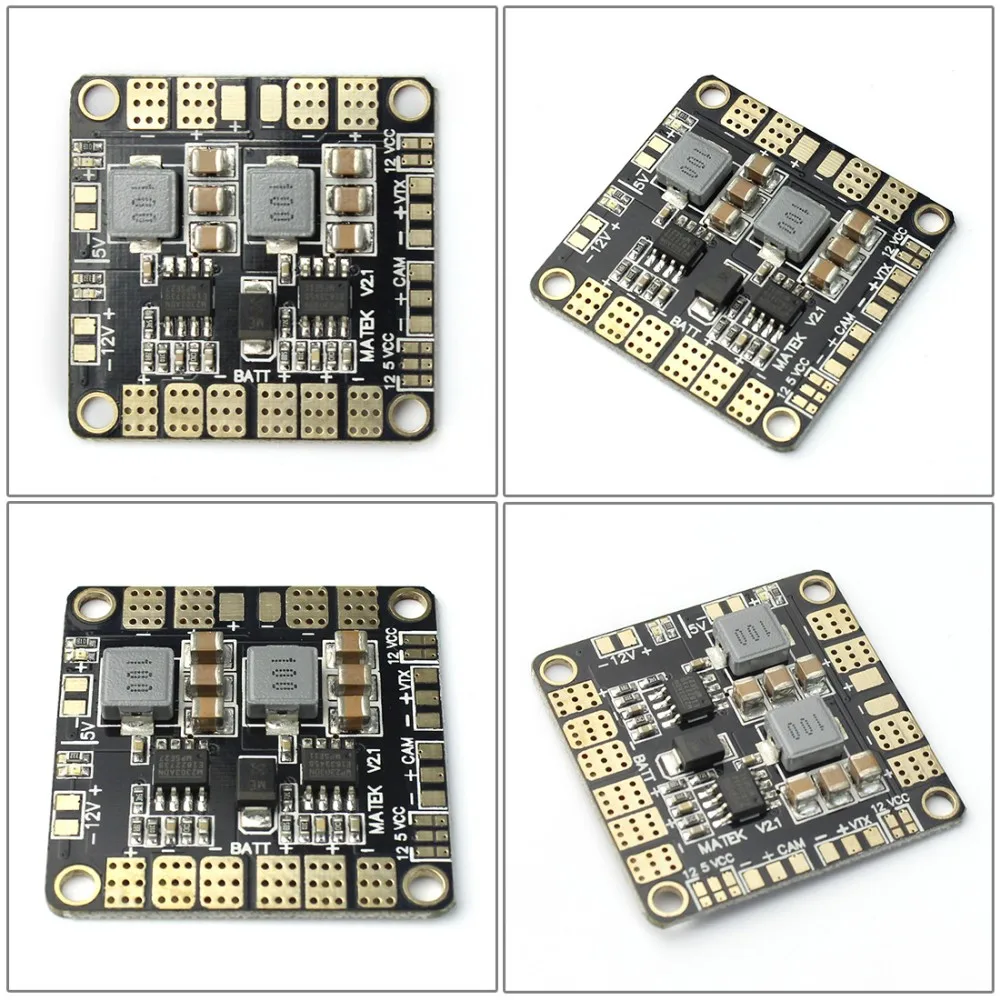

Mini Power Hub Power Distribution Board PDB with BEC 5V & 12V for FPV QAV250 ZMR250 Multicopter Quadcopter
The HUB distributes power from a battery pack to 4 ESCs as well as providing two synchronised & regulated DC outputs for powering cameras servos video transmitters LEDs etc. Batteries may range from 3S to 6S LiPo and the BEC input is TVS protected. The HUB also features convenient solder bridge of various voltage for camera & video transmitter.
Features:
- 2oz copper & 4-layers PCB.
- ESC & Battery solder tabs in pairs
- Solder Bridges of various voltage for Camera & VTX.
- DC/DC synchronous buck regulator Efficiency is up to 95%.
- TVS(Transient Voltage Suppressor) protection for DC/DC chip.
- 5V & 12V Output LED indicators & Short circuit tolerant
Specification:
General:
- Input voltage range (2S-6S operation): 7.2 - 26VDC
- Regulated 5V and 12V outputs
- LED power indicators ( 5V & 12V outputs )
- 4 ESC outputs
ESC outputs:
- Continuous current: 20A per output
- Peak current (10 seconds/minute): 30A per output
BEC 5V output:
- Designed for RC Receivers Flight controllers OSD and Servos.
- Voltage: 5.0 +/- 0.1VDC
- Continuous current: 3 Amps
- Short-circuit tolerant (10 seconds/minute)
- LED (indicates voltage is in regulation within 10%)
BEC 12V output:
- The battery should be 4S~6S LiPo
- Standard output designed to power cameras and video transmitters etc.
- Voltage: 12.0 +/- 0.2VDC
- Continuous current: 2 Amps (Max.3A 10s/minute)
- Short-circuit tolerant (10 seconds/minute)
- LED (indicates voltage is in regulation within 10%)

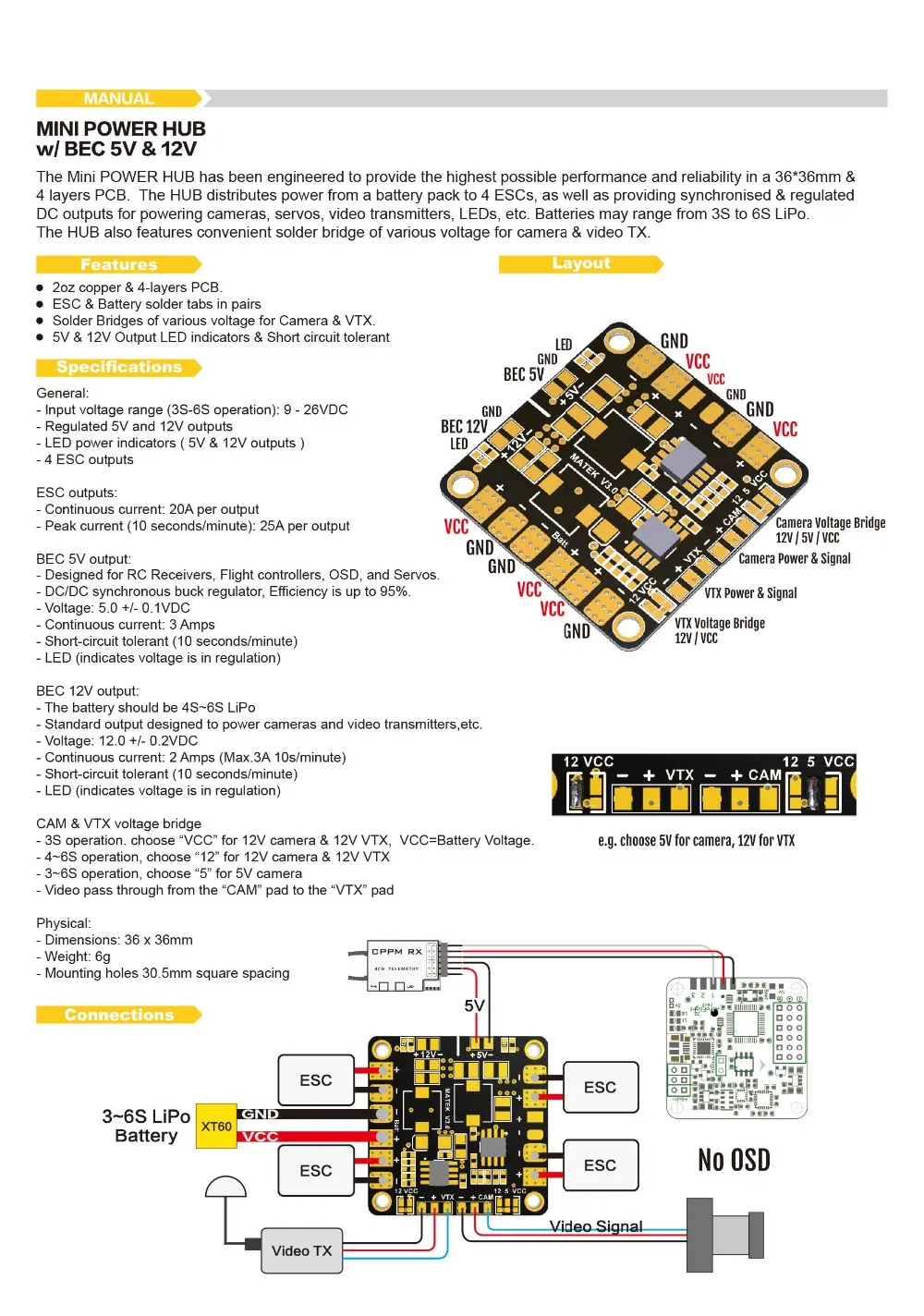

CAM & VTX voltage bridge
- 3S operation. choose VCC for 12V camera & 12V VTX VCC=Battery Voltage.
- 4~6S operation choose 12 for 12V camera & 12V VTX
- 3~6S operation choose 5 for 5V camera
- Video pass through from the CAM pad to the VTX pad
Physical:
- Dimensions: 36 x 36mm
- Weight: 6g
- Mounting holes 30.5mm square spacing
