Product Description

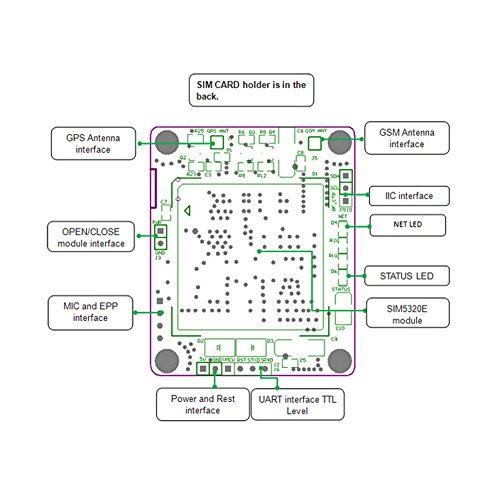

The description of pins:
5V GND VMCU RST TXD RXD

Use the TTL interface connect with a MCU
MCU SIM5320E MOULE
TXD SRXD
RXD STXD
DC power positive pole VMCU
GND GND
POWER(4.6-5.2v) 5V

Document Link:https://www.adrive.com/public/ZQCPkz/FZ1629-SIM5320E%20V1.0%20ENGLISH.zip

Package Included:

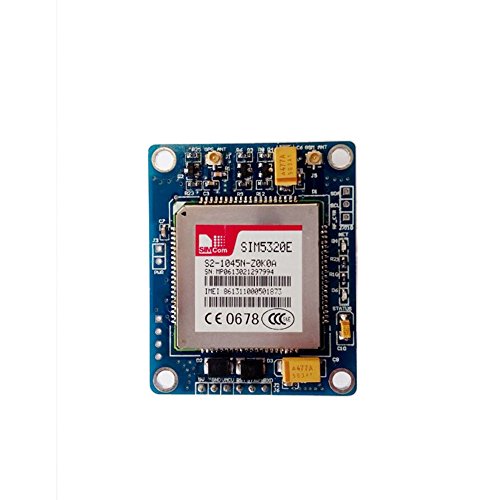

1 X SIM5320E 3G MODULE
1 X PCB Antenna
1 X GPS Antenna
1 X SMA Antenna

Feature

Arduino 51 STM32 AVR MCU compatible
The frequency: 850/900/ 1800/1900 /WCDMA 900/WCDMA2100 MHz.
Operating temperature range: -40 degrees C to +85 C
Communication interface: The TTL level serial interface compatible 2.85 3.3 5v MCU
Size:41*50mm
Brand : DIYmall
MPN(PartNumber) : FZ1629
EAN : 0717520590316
