Item Descriptions:
size:
Ball fan
parameter:
Adapted voltage range: DC 3.7 V-13
Adjustable current range: 0.15 A - 3.00 A
Discharge: Continuous 15 W
Temperature control: about 40 ℃
Description:

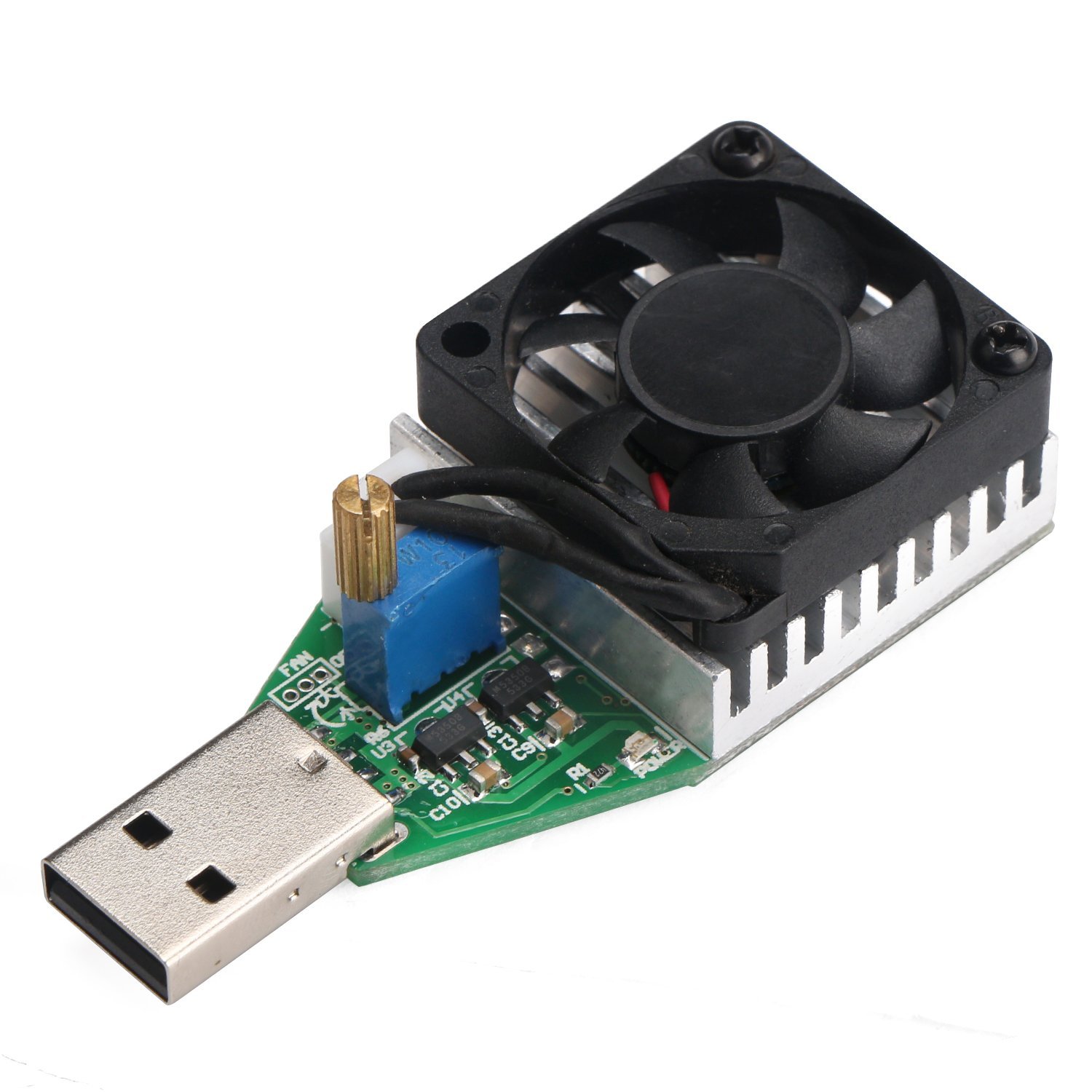

An industrial grade long-life electronic load tester adopts a long-life ball fan with high rotational speed and strong wind, and starts or stops operation at a temperature of about 40 ° C.
It supports continuous 15 W discharge for nonstop work and is suitable for long time discharge.
We also conduct aging tests on products.

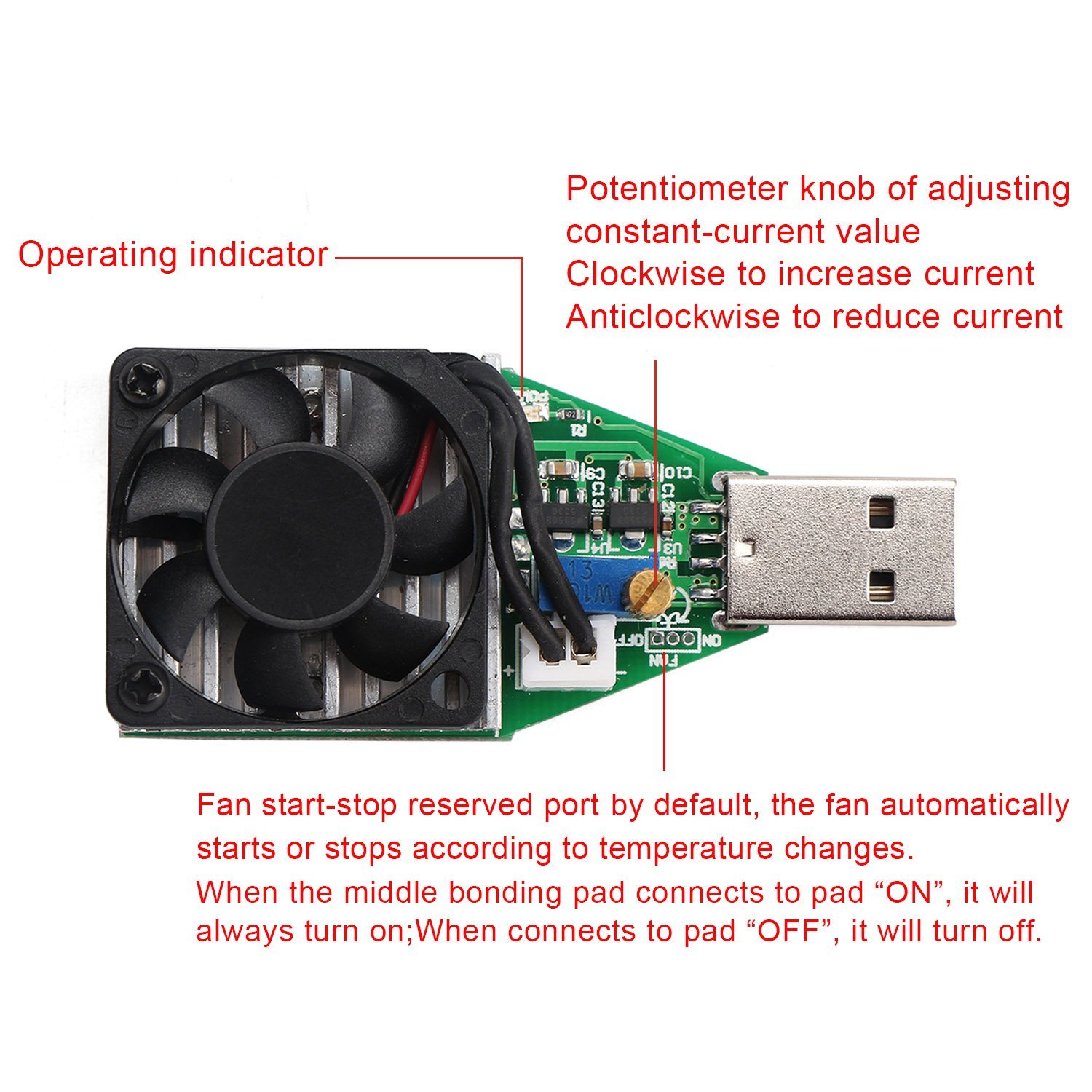

Constant current potentiometer adjustment knob: It is possible to increase the current in the clockwise direction and reduce the current counterclockwise.
Instructions:
Constant current potentiometer adjustment knob: It is possible to increase the current in the clockwise direction and reduce the current counterclockwise.
Starting or stopping the holding port: By default, the fan starts or stops automatically as the temperature changes.
When the center pad and the ON pad are shorted, the fan is always on.
When the middle pad and the off pad are shorted, the fan is always off.
USB positive and negative poles can be individually extracted and applied to more areas.
NTC thermistor: Controls the fan to start or stop automatically when the temperature reaches approximately 40 ° C.
Package includes:
1 * Load Test Instrument Discharge Resistance
Features:
- Please enter model number Confirm this is compatible:
- The USB load tester supports continuous discharge power 15 W and Quad Comb QC 2.0 high voltage discharge, operating voltage is 3.7 V to 13 V.
- It has a very stable discharging current and the adjustable constant current is 0.15 - 3 A, adjusting the screw clockwise / counterclockwise to increase or decrease the constant current.
- Equipped with a long-life ball fan that automatically turns on when the temperature suitable for long-life heat radiation is about 40 ° C.
- It has high compatibility, USB positive and negative poles can be separately made into LEDs, it can be applied to more areas.
- Please note that some heat will be generated when using.
- Please keep away from explosives and combustibles.
Product information:
Shipping Weight: 81 g
Package Dimensions: 3.40 x 5.41 x 13.59 cm
