fitur :
- Merek baru dan berkualitas tinggi .
- Kisaran suhu : -9-99 derajat .
- Akurasi : 1 derajat .
- Kontrol akurasi : 1 derajat .
- Pengaturan Range: -9-99 derajat .
- Refresh rate : 0.5s .
- Input Power: DC9V - 15V .
- Output: output relay , 220V kapasitas 10A / 12V 10A .
- Persyaratan lingkungan : -10-60 derajat .
- Kelembaban : 20 % -85 % .
- Sensor suhu : NTC ( 3950-10k 1 % ) .
- Ukuran : 7.8cm x 5.1cm x 3cm .
Lampu , tabung digital , deskripsi negara kunci :
- Mulai Indikator merah : MULAI ( red ) lampu indikator , yang berarti bahwa relay ditutup , perangkat mulai bekerja .
- Hijau berhenti cahaya : Berhenti ( hijau) menyala , yang berarti bahwa relay terputus , perangkat berhenti bekerja .
- Digital Tabung : red Tengah LED display untuk suhu deteksi saat ini, kiri hijau layar tabung digital karena suhu set awal , sisi kanan tampilan digital hijau untuk suhu yang disetel berhenti .
- Tombol : START UP dan Bawah untuk mengatur temperatur awal ; Hentikan tombol untuk mengatur suhu berhenti .
Instruksi operasi :
- 1 , suhu tinggi mulai .
- Mengatur nilai suhu mulai > menghentikan nilai suhu .
- Ketika ≥ suhu terdeteksi mulai suhu , relay ditutup , kerja peralatan pendingin .
- Ketika terdeteksi suhu berhenti suhu ≤ , relay off , peralatan pendingin berhenti bekerja .
- Sebagai contoh : Mengatur suhu awal adalah 30 derajat , menghentikan suhu 25 derajat .
- Ketika terdeteksi suhu ≥ 30 derajat , relay ditutup , Indikator awal ( red ) lampu .
- Ketika nilai suhu terdeteksi ≤ 25 derajat , relay off , berhenti Indicator ( hijau) cahaya .
- 2 , mulai dingin : mulai nilai suhu yang disetel.
- Ketika terdeteksi suhu ≤ suhu mulai relay ditutup , perangkat pemanas beroperasi .
- Ketika terdeteksi suhu berhenti suhu ≥ , relay off , alat pemanas dihentikan .
- Sebagai contoh : Mengatur suhu awal adalah 25 derajat , menghentikan suhu 30 derajat .
- Ketika nilai suhu terdeteksi ≤ 25 derajat , relay ditutup , mulai Indicator ( merah ) lampu .
- Ketika suhu terdeteksi ≥ 30 derajat , relay off , berhenti Indicator ( hijau) cahaya .
- 3 , Set untuk memulai ketika nilai nilai suhu = berhenti suhu , relay off .
Paket Termasuk:
- 1 x Temperature Control dengan NTC sensor suhu
features:
Brand new and high quality.
Temperature range: -9-99 degrees.
Accuracy: 1 degree.
Control accuracy: 1 degree.
Setting Range: -9-99 degrees.
Refresh rate: 0.5s.
Input Power: DC9V - 15V.
Output: relay output, capacity 220V 10A / 12V 10A.
Environmental requirements: -10-60 degrees.
Humidity: 20% -85%.
Temperature sensor: NTC (3950-10k 1%).
Size: 7.8cm x 5.1cm x 3cm.
Lights, digital tube, description of key countries:
Start red indicator: START (red) indicator light, which means that the relay is closed, the device starts to work.
Green stop light: Stop (green) lights up, which means that the relay is disconnected, the device stops working.

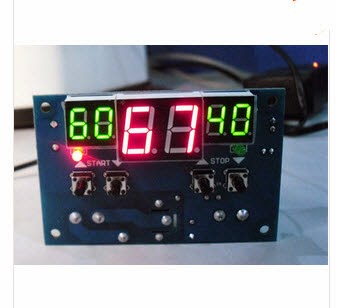

Digital Tube: Central red LED display for current detection temperature, the green left digital tube display for the initial set temperature, the right side of the green digital display for set temperature stops.
Button: START UP and DOWN to set the initial temperature; Stop button to adjust the temperature stop.
Operating Instructions:
1, high-temperature start.
Set the temperature values ranging> stop temperature value.
When the detected temperature ≥ start temperature, the relay is closed, the work of refrigeration equipment.
When the detected temperature ≤ stop temperature, the relay off, refrigeration equipment stopped working.
For example: Set the initial temperature is 30 degrees, stopping temperature of 25 degrees.
When the detected temperature of ≥ 30 degrees, the relay is closed, the early indicator (red) lights.
When the detected temperature values ≤ 25 degrees, the relay off, stop Indicator (green) light.
2, cold start: starting value of the set temperature.
When the temperature detected temperature ≤ start relay is closed, the heating operation.
When the detected temperature ≥ temperature stops, the relay off, the heater is stopped.
For example: Set the initial temperature is 25 degrees, stopping temperature of 30 degrees.
When the detected temperature values ≤ 25 degrees, the relay is closed, began Indicator (red) lights.
When the detected temperature ≥ 30 degrees, the relay off, stop Indicator (green) light.
3, set to start when the values of temperature = stop temperature, the relay off.
Package Includes:

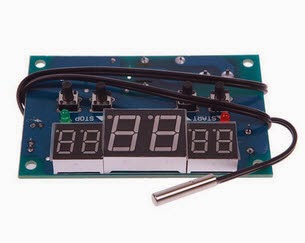

1 x Temperature Control with NTC temperature sensor
