Item Descriptions:
Product introduction
● To fully derive the potential from normal to the bore up engine, program the full digitization of the optimum ignition timing in the full revolution range.
Furthermore, it corresponds to Monkey · APE where various engine specifications exist, adopting selectable type which can select 3 stage ignition program and 4 stage limiter program.

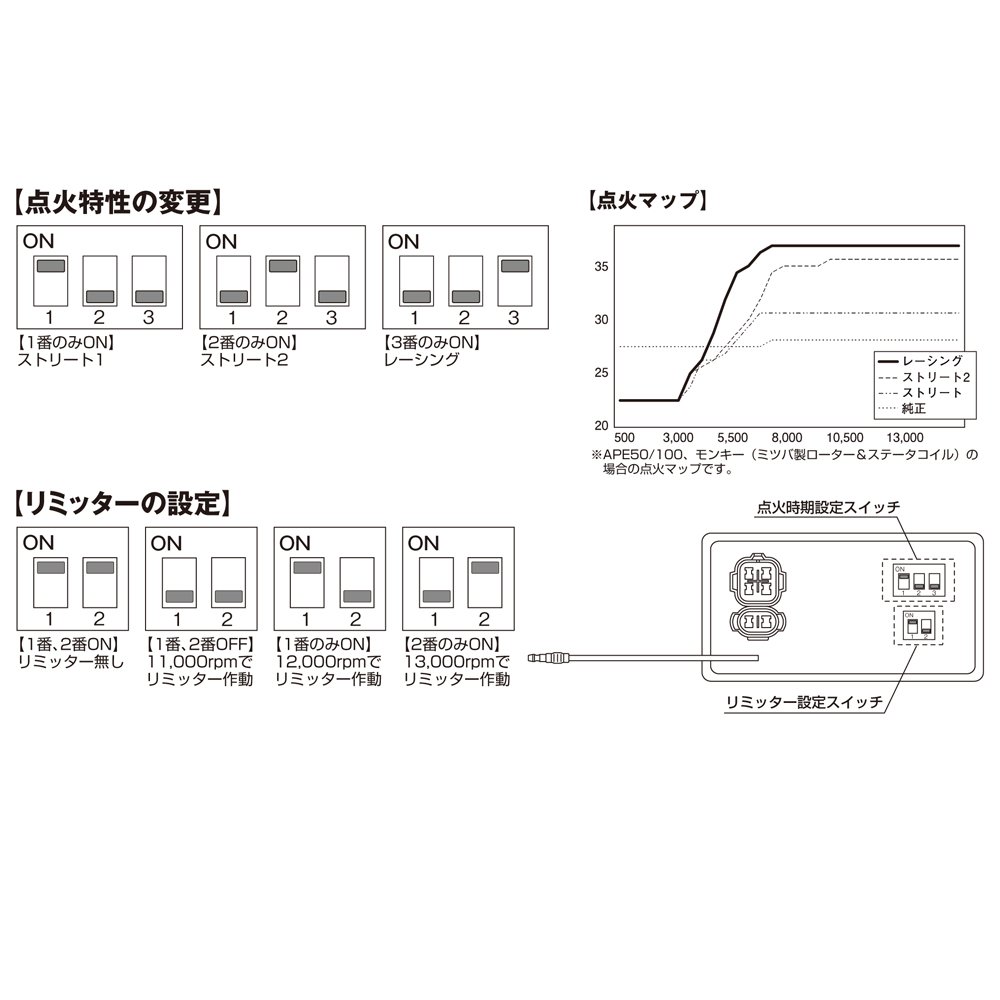

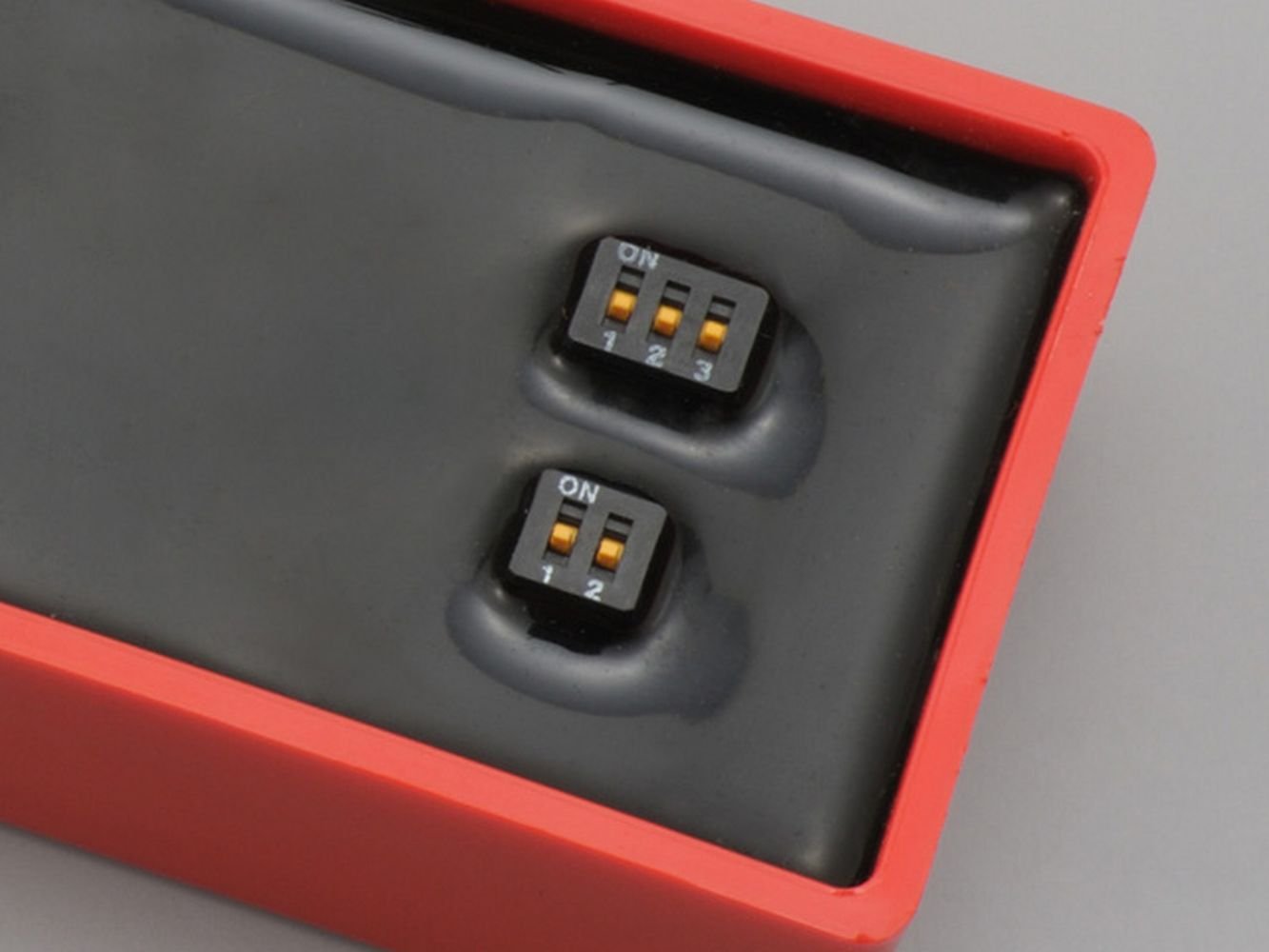

● Ignition pattern · Adjustment of reverberator can be done with DIP switch.
○ Ignition pattern: 3 stages of racing, street 2, street.
○ Limiter: None, four stages of 13,000 rpm, 12,000 rpm, 11,000 rpm.
● Wiring processing is required for mounting this product.
● Contributing to weight reduction by adopting resin case.

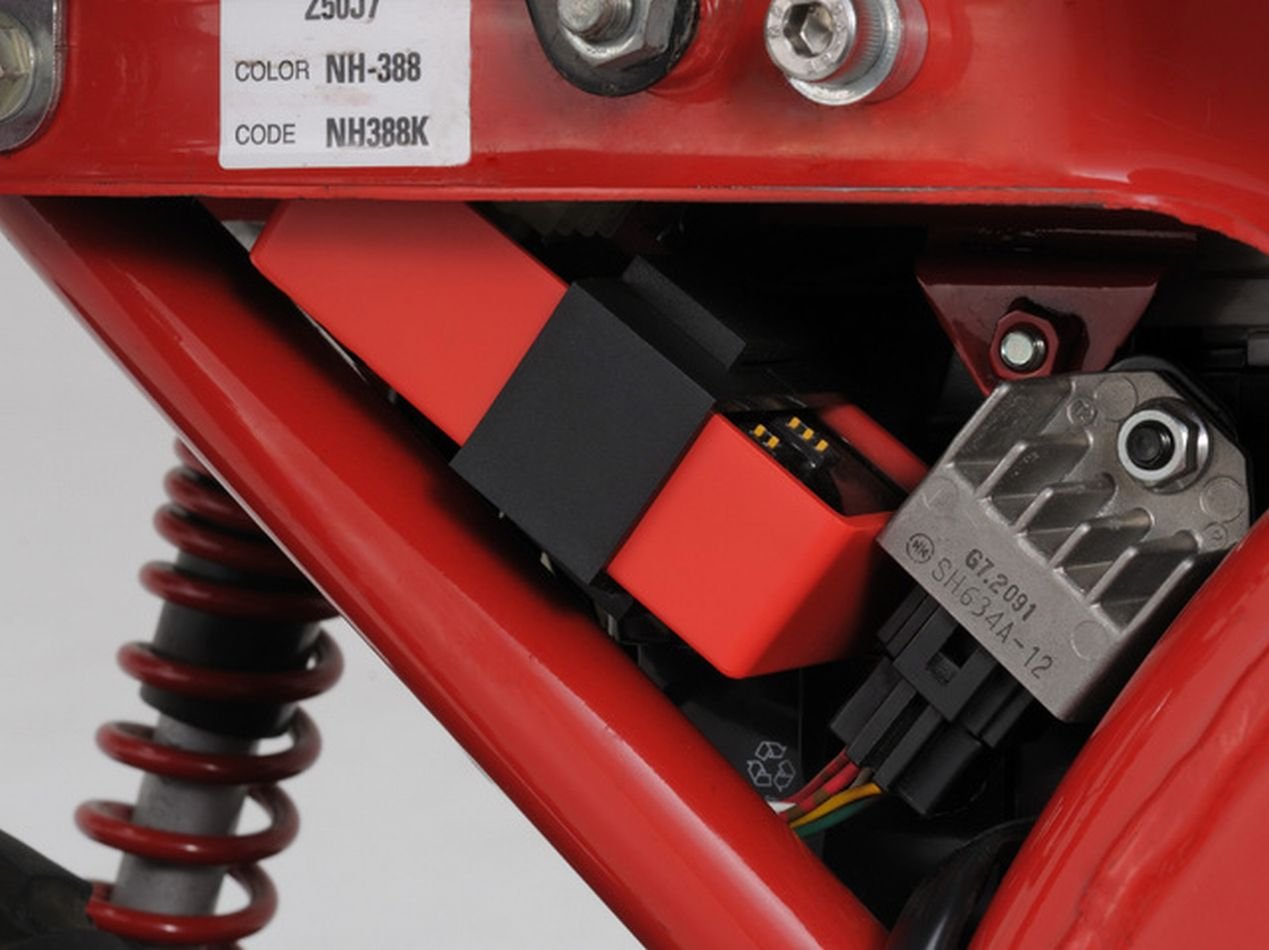

Review the installation method, it is possible to install with the attached fixing rubber at the same position as normal.
Contributing to vibration countermeasures by rubber mount.
Usage notes
● There is no tachometer pickup wiring.
● The safety device of the side stand does not operate.
※ When load is applied to the adjustment dip switch, there is a possibility that the switch body will be damaged, so please be careful when adjusting.
Features:
- Compatible model & year model: Monkey ('92 ~ '07: 12V) / gorilla ('92 ~' 07: 12V) / Ape 50 ('01 ~ '07) / Ape 100 ('02 ~ '09) / Ape 100
- Type D ('09) / XR 50 motard (' 05 - '07) / XR 100 motard (' 05 - '07)
- It is not compatible with the fuel injection model specification car of Monkey and Apex 50.
- Also, 6 V monkey and gorilla will not fit.
- Suitable vehicle number: Z50J-2000001 ~ / AB27-1000001 ~ / AC16-1000001 ~ 1599999 / HC07-1000001 ~ 1499999 / AD14-1000001 ~ / HD13-1000001 ~
- Manufacturer Part Number: 74696
Product information:
Shipping Weight: 213 g
Package Dimensions: 8.71 x 14.20 x 17.09 cm
