Item Descriptions:

It is small size, low power consumption, low noise, high output compact model but high output of 105 dBμV, high performance of UHF noise figure (NF) 1.5 or less.

In addition, the power consumption is 1.7 W low power consumption type.

◆ Various mast mounting methods (amplification section)

In addition to attaching to the conventional vertical mast, by replacing the mast mounting bracket, it is now possible to mount it on a horizontal mast such as the arm of the side base.

◆ Wall mounting of the power supply unit

In addition to wall mounting with conventional wood screws, you can hook the power supply to commercially available hooks etc. mounted on the wall with hook mounting plate on the back side.

◆ Abnormality Announcement Function

If short circuit or disconnection occurs between the amplification part and the power supply part, inform the color of the power supply part operation indicator lamp.

Confirmation at the time of reception malfunction becomes easy.

◆ Compatible with terrestrial digital broadcasting (470 to 710 MHz)

It corresponds to transmission frequency band 470 ~ 710 MHz (ch. 13 ~ 52).

We can suppress the impact of new services in the future 700 MHz band.

◆ Scissors-free waterproof cap

◆ Complies with RoHS Directive

Specification

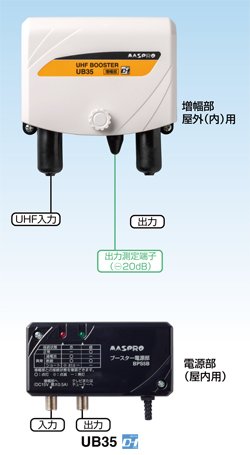

■ Amplification unit

Frequency band: 470 to 710 MHz

Gain: 32 to 37 dB

Practical input level: 41 to 88 dBμV

VSWR: 3 or less

Impedance: 75 Ω (F type connector)

Power supply: DC 15 V 0.07 A

Operating temperature range: -20 to + 50 ° C (indoor / external use)

Suitable mast diameter: 22 ~ 48.6 mm

Outside dimension: (width) 113 × (height) 87 × (depth) 54 mm

Weight: About 310 g

Accessory: F type connector (for 5 C cable) × 4, waterproof cap (large) × 2

■ Power supply unit (BPS 5B)

Primary voltage: AC 100 V 50 · 60 Hz

Power consumption: 1.7 W (UHF power supply 0.1 A: 3.7 W)

Output voltage: 15 VDC (maximum 0.5 A)

Operating temperature range: -10 to + 40 ° C (indoor use)

Outside dimension: (width) 112 × (height) 32 × (depth) 69 mm

Weight: About 210 g

※ It can not be used for FM · VHF, CATV.

Features:

• Please enter model number Confirm this is compatible:
• ■ Compatible with terrestrial digital broadcasting (470 ~ 710 MHz) ■ Industry's top class miniaturization, low power consumption, low noise, high output ■ Abnormal notice function ■ Various mast mounting method (amplification section) ■ New structure waterproof cap ■ Power supply
• Parts Wall mounting Molded resin case for outdoor (inside) F type Terminal power supply attached UHF power supply switch attached Output measuring terminal with F type connector (for 5C cable): 4 pieces included ※ Can not be used for FM · VHF.
• ※ Can not be used for cable television.

Product information:

Shipping Weight: 621 g

Package Dimensions: 6.20 x 12.80 x 21.41 cm
