Product Description
CHGeek Bluetooth FM Transmitter Dual USB Ports Car Kit with Hands-free Calling and USB Flash Drive Reader - CH05Our CHGeek CH05 Bluetooth FM Transmitter is multifunctional which can make your driving more interesting. 1.Bluetooth: Transmit music/phone call from your phone to car FM Stereo system wirelessly
2.Hands free Calling: Built-in clear microphone
3.Supports music playing from USB flash drive
4.Detect and display the voltage of car battery when power is on
5.With voice prompts
6.Incoming call number announcement
7.Supports last call redial
8.Supports pause, play next/previous songs and turn up/down the volume.
Next, let us tell you how to use this car kit: 1.Plug the FM transmitter kit into your vehicle's cigarette lighter.
2.Activate your phone's Bluetooth, then search new device. When the phone detects a unit named "BT_C27A", pls press it to connect.
3.Search a BLANK band in your area by Google, choose a HIGH Channel like 106.0~108.0, then long press the button of this kit until the Channel keep flashing, and match them to the same Channel.
4.After connection, the music from your iPhone 7 plus 7 6S/Samsung Galaxy S7 S6 edge/iPod/MP3 player will be streamed out.
Pay Attention: 1.If you connect 2 USB ports together, then please charge your Tablet by "A" USB port.
2.Only the "B" USB Port can be used as a USB Reader!
3.To avoid the interference while listening to your local FM station and charging your phone, pls tune your radio to 87.5-90.0 and tune this kit to 108.0.
Specifications * Bluetooth version: JL 2.1
* Frequency range: 87.5-108.0MHZ(106.0~108.0 would be better)
* Frequency stability: ±10ppml
* Product Input: 12V-24V
* Charging output: 5V/3.4A Total
* Music Format: MP3
* Mic:∮4.0MM*1.5MM
* USB Drive(Max capacity): 32GB
* USB: FAT32
* FM Transmit Distance: about 5M
* Material: ABS
Feature
Easy Operation & Broad Compatibility: Easy one button operation for pausing, skipping song and adjusting volume. Available for iPhone 7 plus 7 6S 6 Plus iPad iPod, Android Samsung Galaxy S7, S6 edge, Blackberry, Sony, Nexus 5X 6P, Moto, MP3 MP4 Player etc. Wireless stream music to the car FM stereo system and sound would be better if you tune the channel to 106.0~108.0

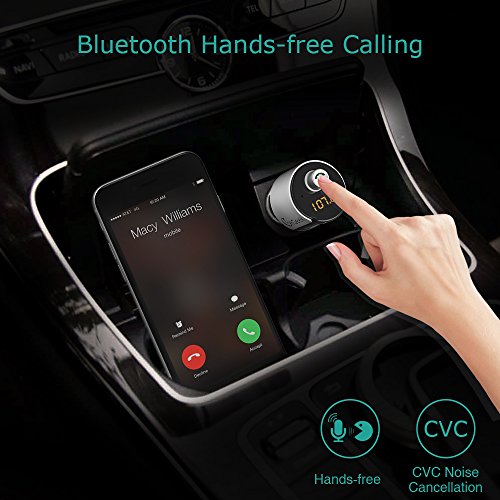

HANDS-FREE CALLING: The built-in microphone provides you with an amazing hands-free function after connect Bluetooth. Automatically switch to hands-free mode from music playing status when receiving a call

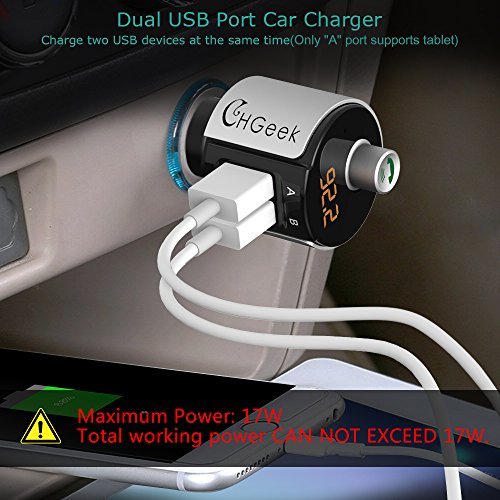

DUAL USB CAR CHARGER: Charge your USB enabled devices by the dual USB ports which output 3.4A total. Built-in smart charging IC, will auto detect your devices and charge them at optimal speed. Note: If you connect 2 USB ports together, then pls charge your Tablet by "A" USB port. To avoid the interference while charging your phone and listening to your local FM station, please tune your car radio to 87.5-90.0 and tune this kit to 108.0
USB / MP3 Player: You can plug a USB flash drive or card reader with TF card which contains MP3 files into the "B" USB port, then it will transmit and play the MP3 files automatically. Pay attention, only the "B" USB Port can be served as a USB Flash Drive Reader
LED VOLTAGE DISPLAY AND VOICE PROMPT: Detect and display the voltage of car battery when power is on. Voice prompt tells you whether connected successfully or not. Note: due to the radio frequency interference and car ground loop noise, it is almost impossible for any transmitter to produce a perfect sound, but CH05 does the best performance
Brand : CHGeek
Item model num : CH05
MPN(PartNumber) : F140270V
EAN : 0712265412817
Product Dimensions(LxWxH) : 4x4x9cm ; 50 g
Package Dimensions(LxWxH) : 11x8x5cm ; 50 g
