Caution:this glue gun is suit for 7mm glue sticks ONLY.

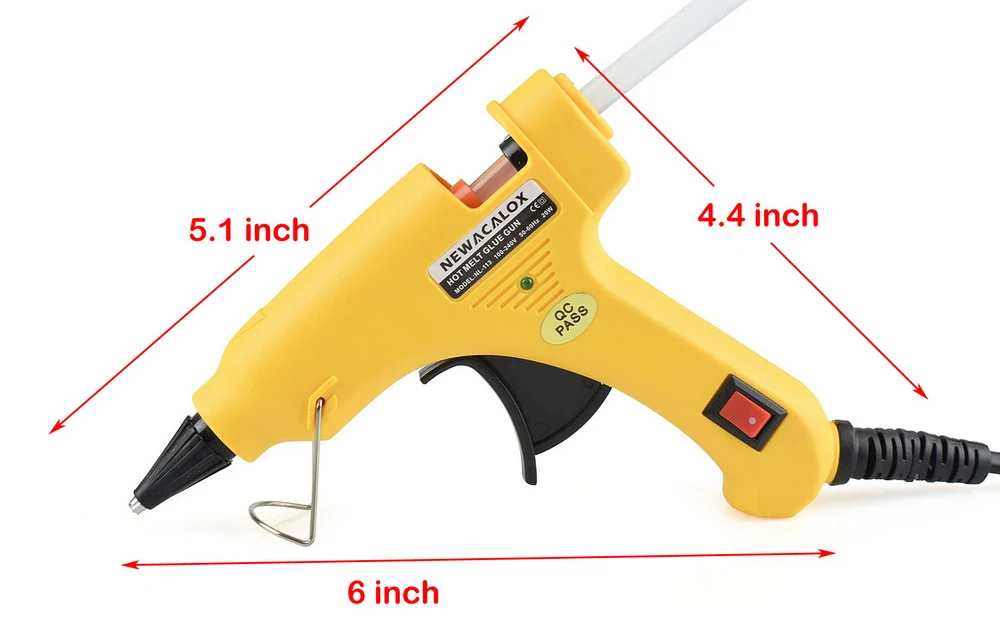

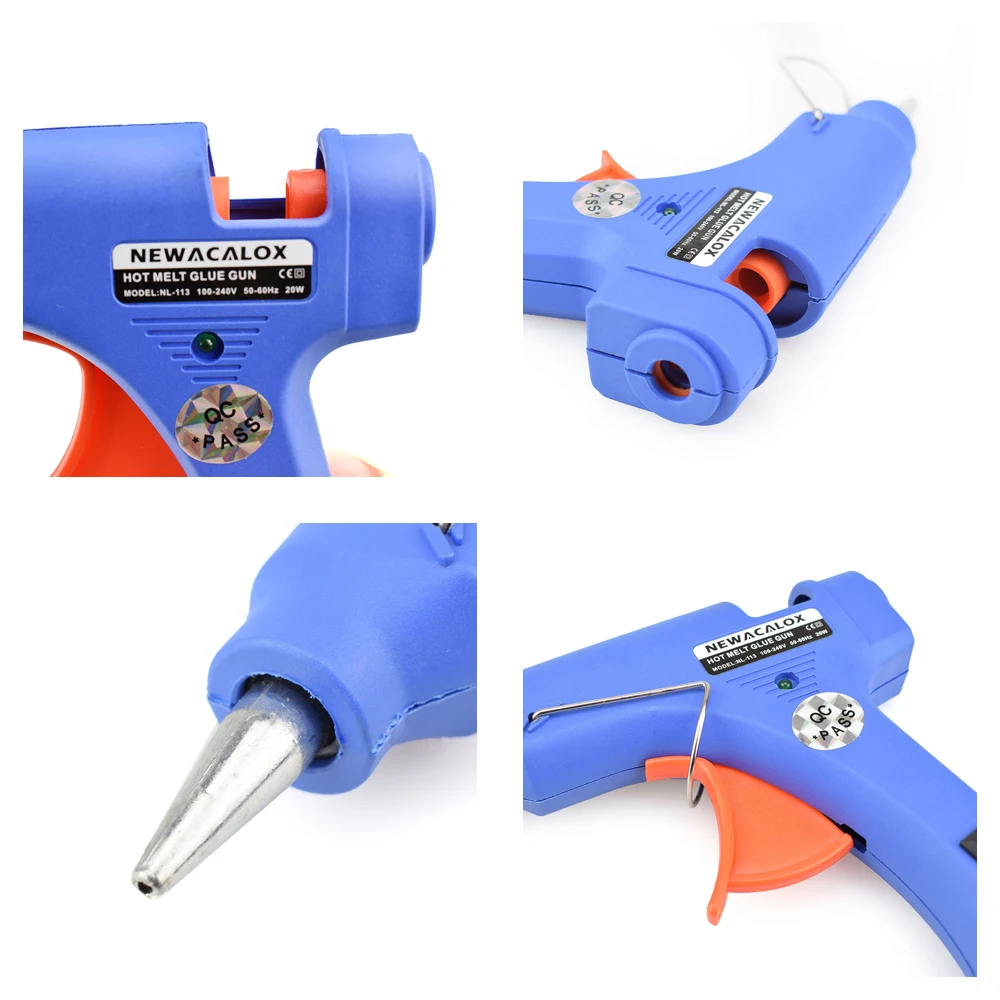

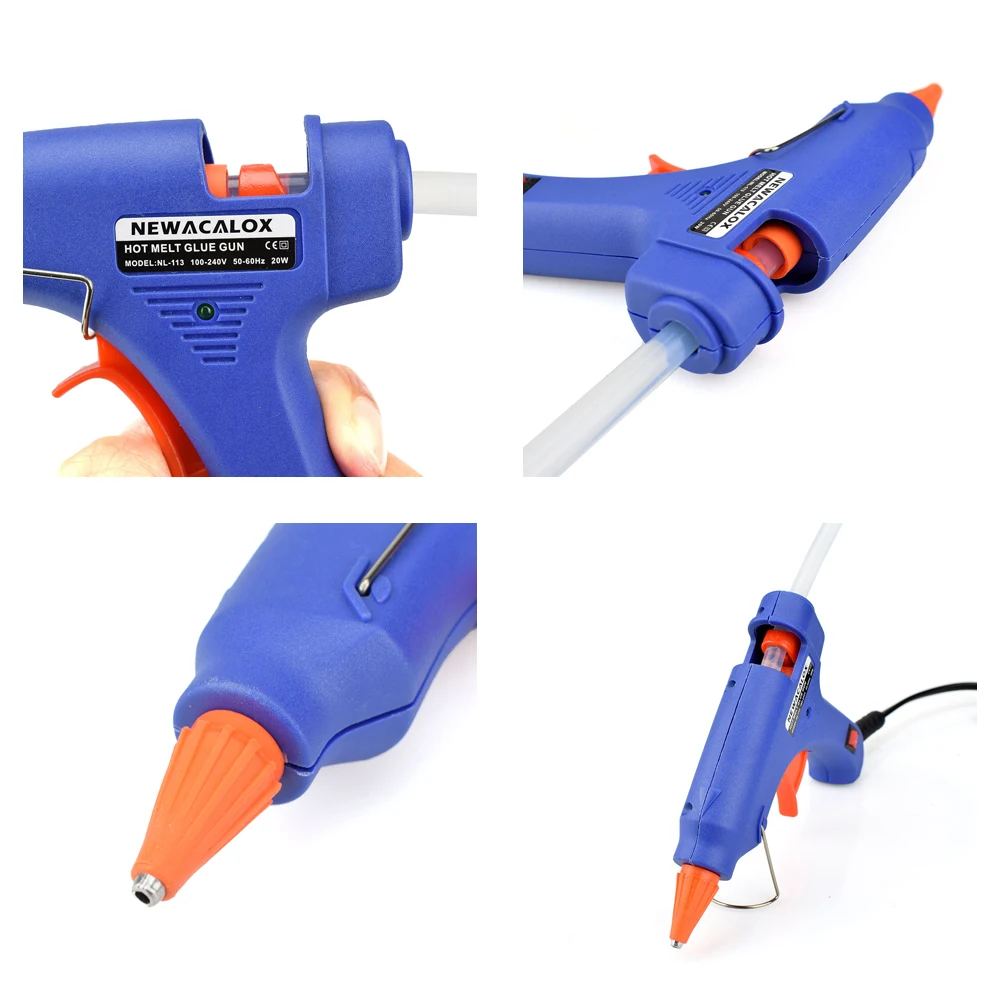

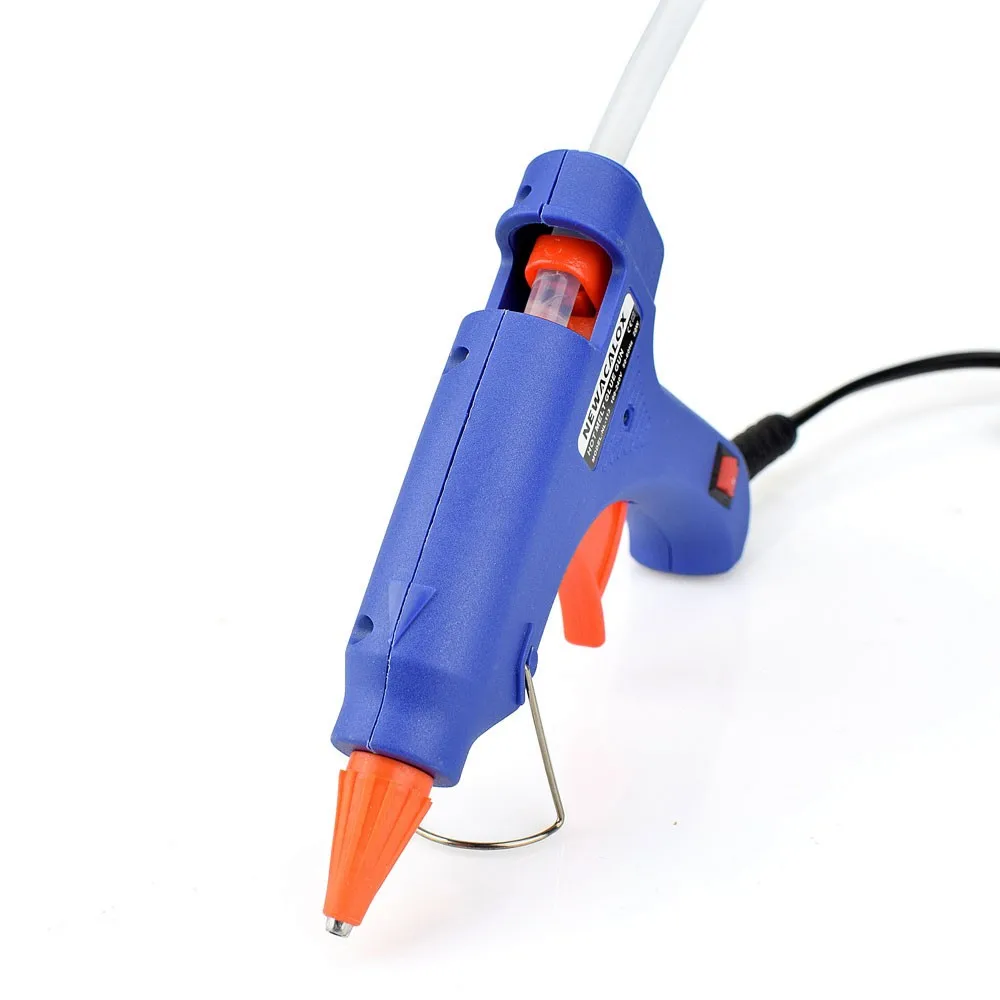

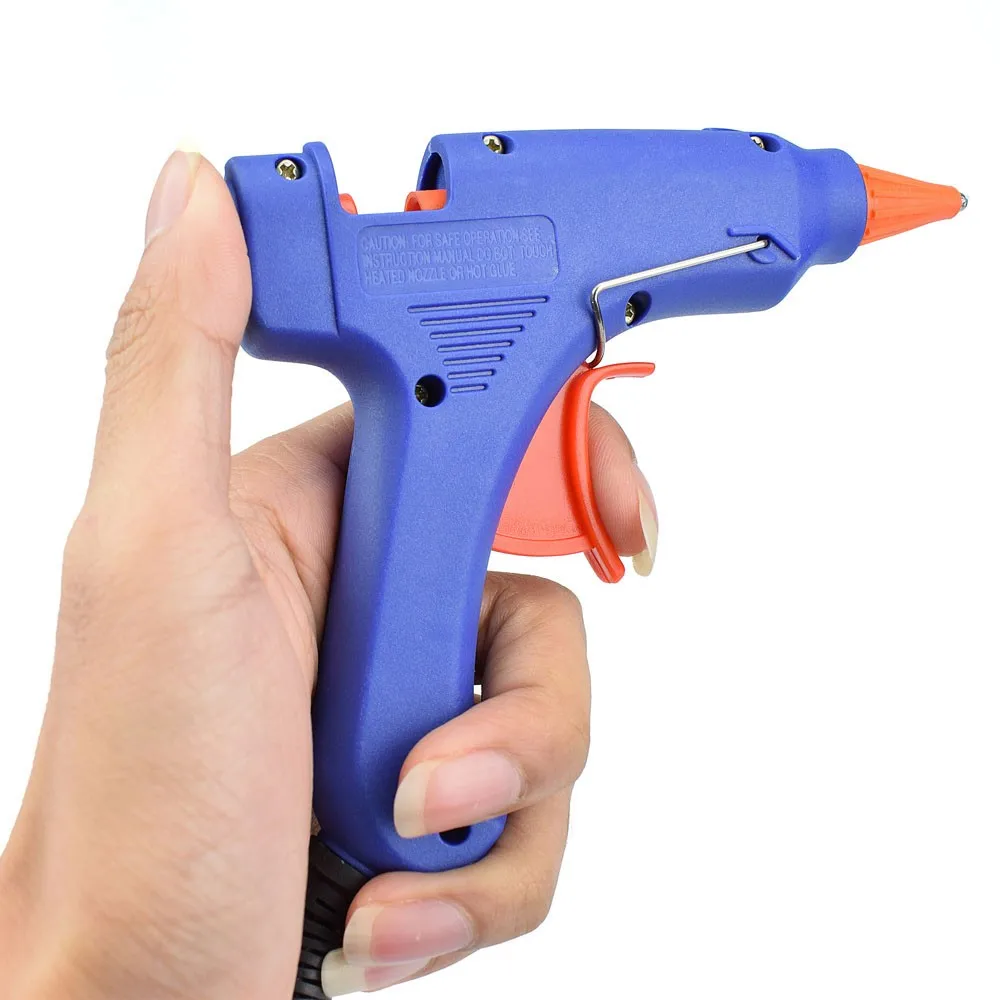

20W Hot Melt Glue Gun EU/3C/US Plug

Description:

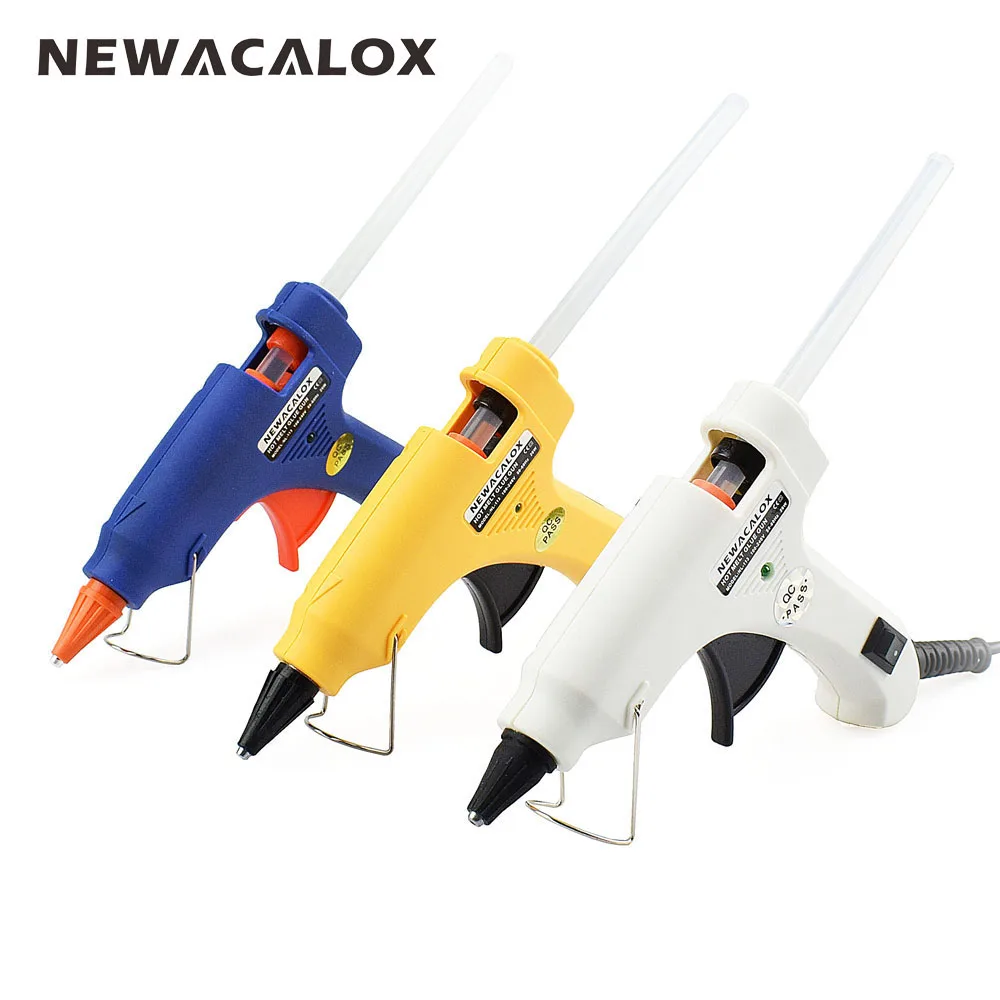

Color: Blue/mazarine/Yellow

Power:20w

Thermostat Operating temperature: 140 ~ 240 °

Working voltage: 100V-240V

Frequency: 50-60Hz.

Nozzle material: Aluminum

Indicator: LED

Plug type: EU/US/3C

Stick size: 6.8-7.8mm

Cable length: 136cm / 4.46ft

Product weight: 200g

Package size: 30 * 20 *10cm

Package Included:

1 Glue gun
1 Glue stick(diameter about :7mm,length about: 150mm)

YES!

It’s Safety use for Children.

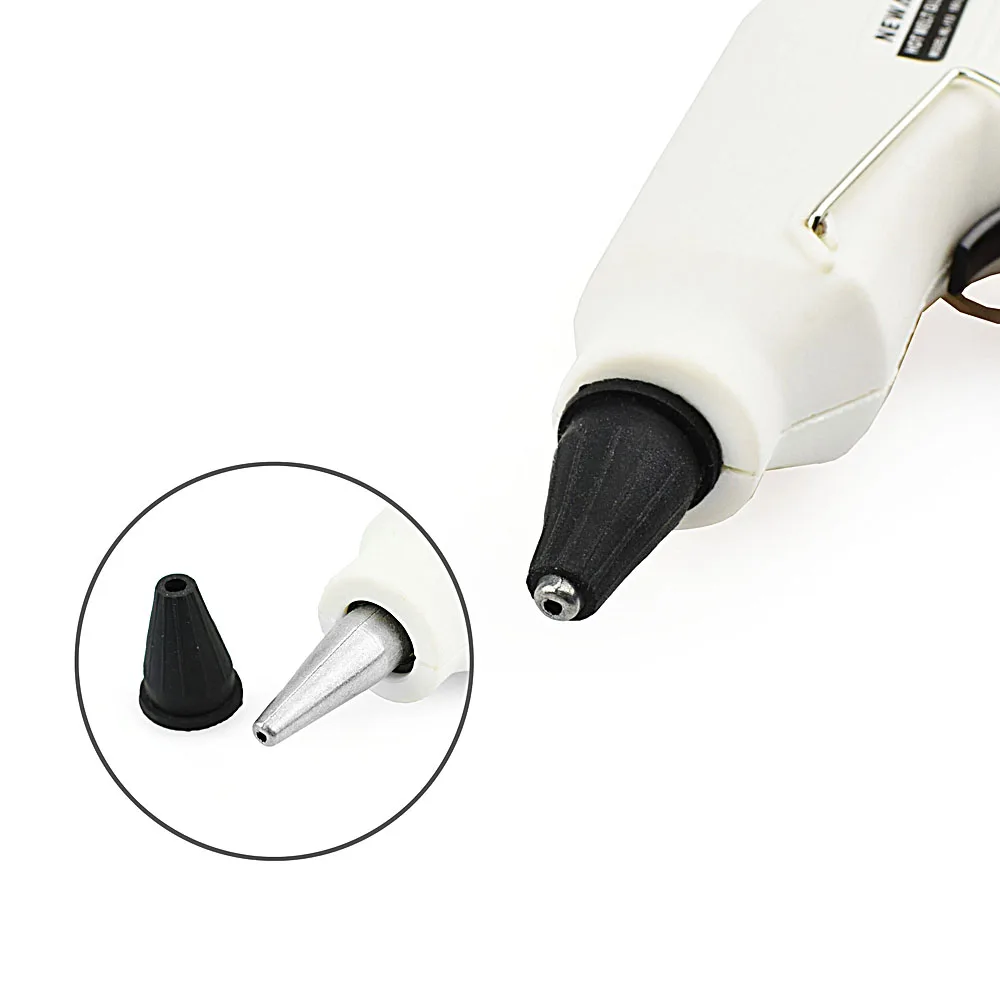

Rubber Protective Case.

Anti-hot Design.

More safety for Hand work.

Note: Adult must be present to supervise children in using the Glue Gun.

Newacalox Choice. Quality Guarantee.

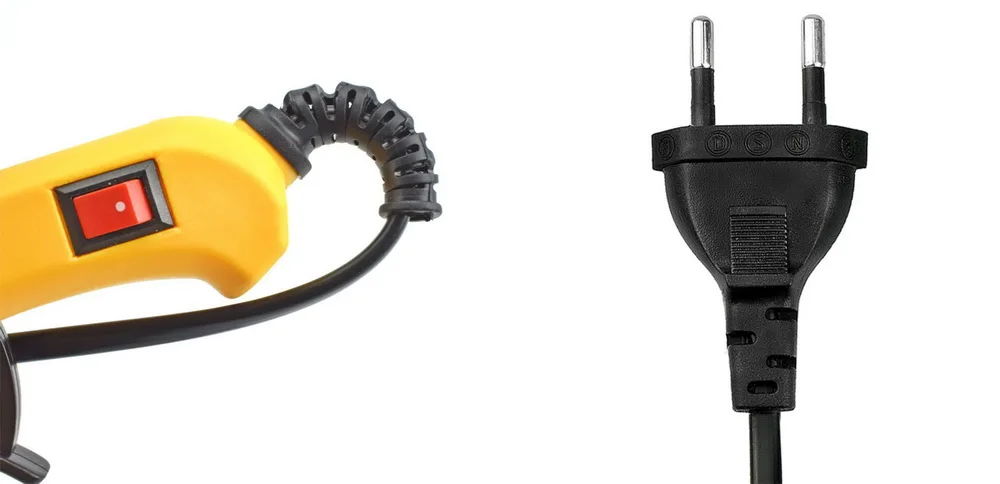

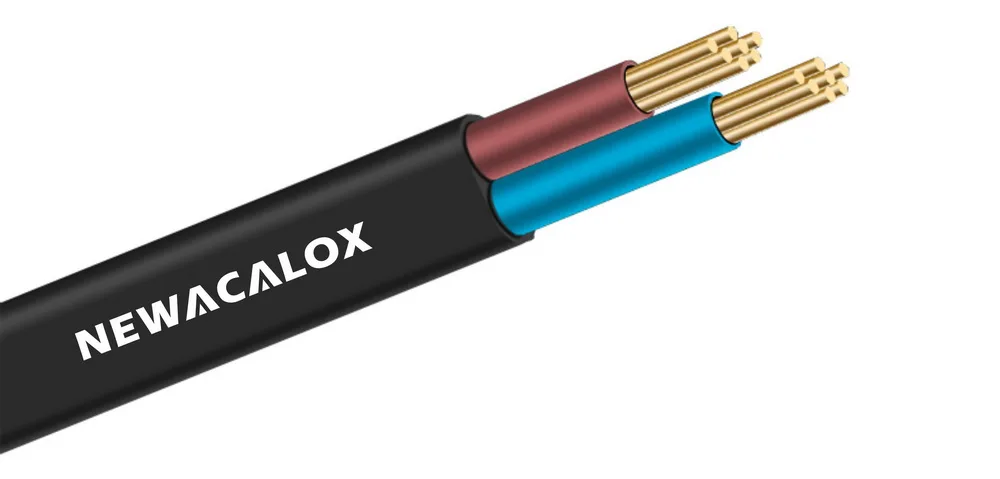

2 x 0.5mm2 VDE Standard Power Wires.

Pure Copper wire core.

Absolutely Safe for your work.

More details about the power wires.

High Temperature Fluorine Rubber

Long working time in 250℃（482℉）

Leakproof design

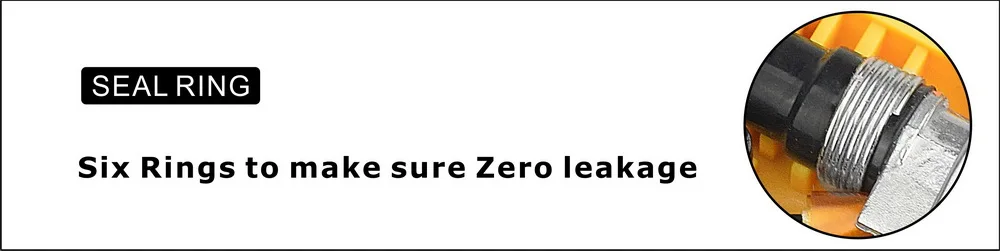

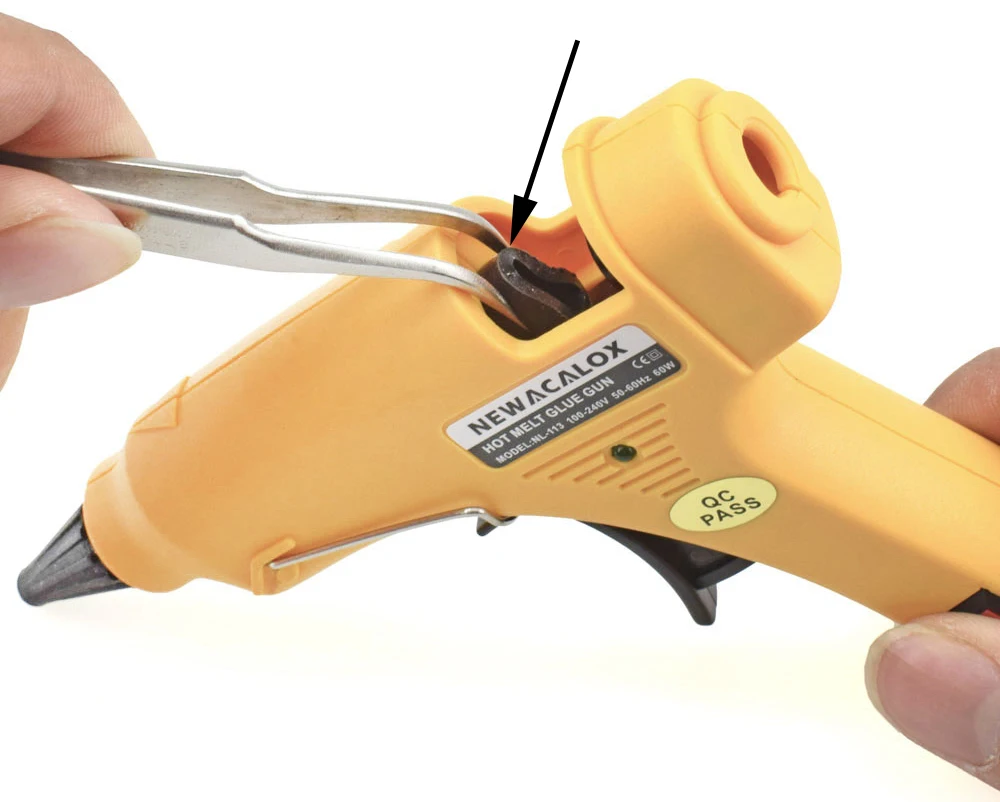

SEAL Ring

Six rings to make sure zero leekage inside.

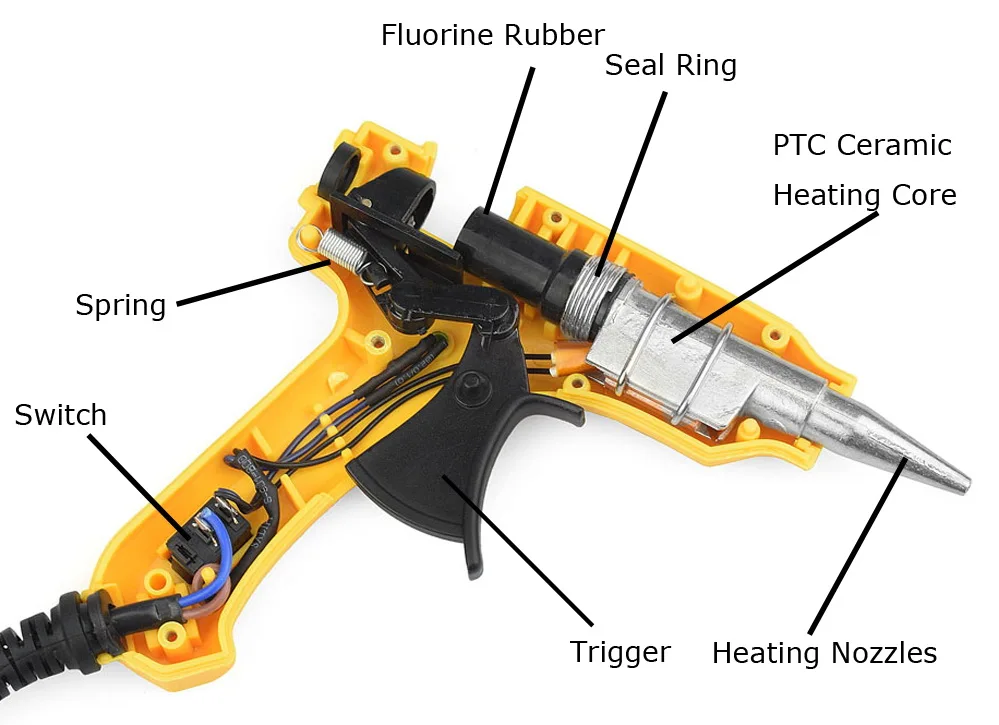

Internal structure

About Glue Leakage

when you stop working. the glue gun will have few Glue Leakage. This is the right situation.

this is NOT a Quality Problem.

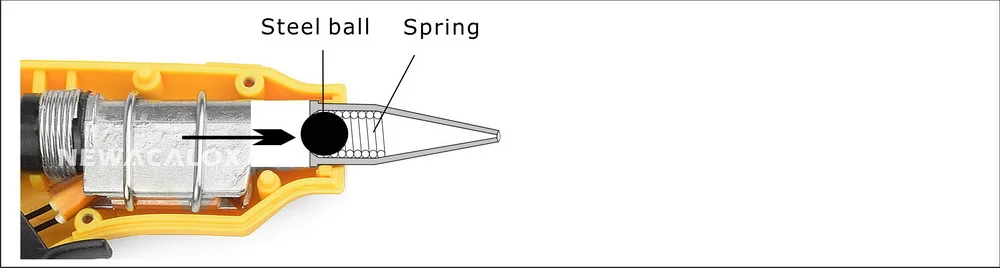

How the glue gun to prevent Leakage?

when you push the trigger. the glue will push the steel ball and make the glue flow out.when you stop working. the steel ball will spring back to stop the glue flow out.

Why my glue gun have glue leakage?

There are two reasons cause the glue leakage.

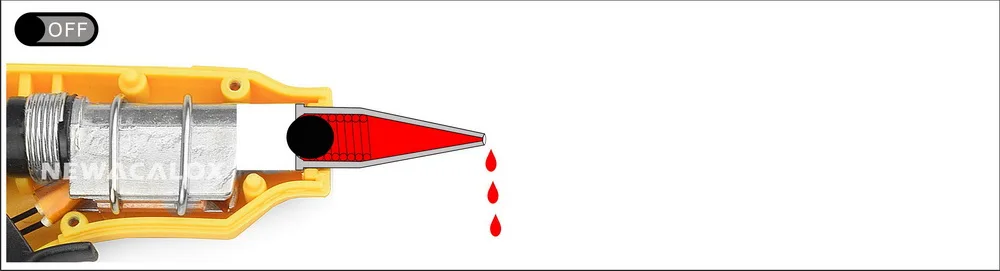

1. when you stop working. the red area still have some glue inside. they will flow out.

that’s why when you power off the switch. there is still have some glue flow out.

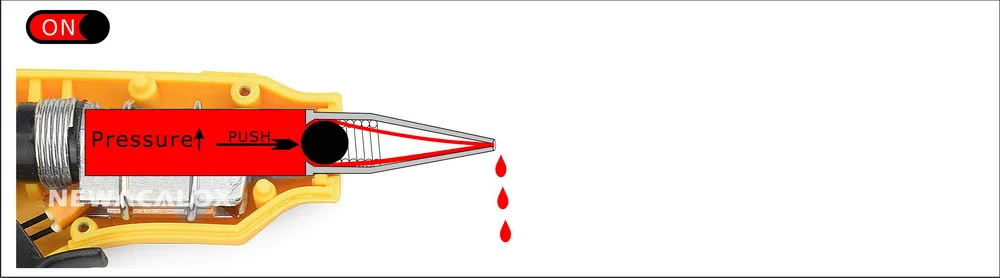

2.when you finish your work and you did not turn off the switch. the glue stick will keep melting.

and the heating room’s pressure will increases. the pressure will push the steel ball into s small gap.

so the glue will flow out from the gap.

How to reduce the glue leakage?

1.you can power off the switch when you are ready to finish your work.

2.If you did not used the glue gun for a long time. please power off the switch first.

Is there such a glue gun without on leakage completely?

No. because the glue is more Sticky than water. If you use a stronger spring to offset the glue heating room’s presure.

It will very different to make the glue glow out when you use the glue gun.

so the glue gun will have glue leakage. and the point is make the glue leakage in a Controlled state.

More Detail:

Application:

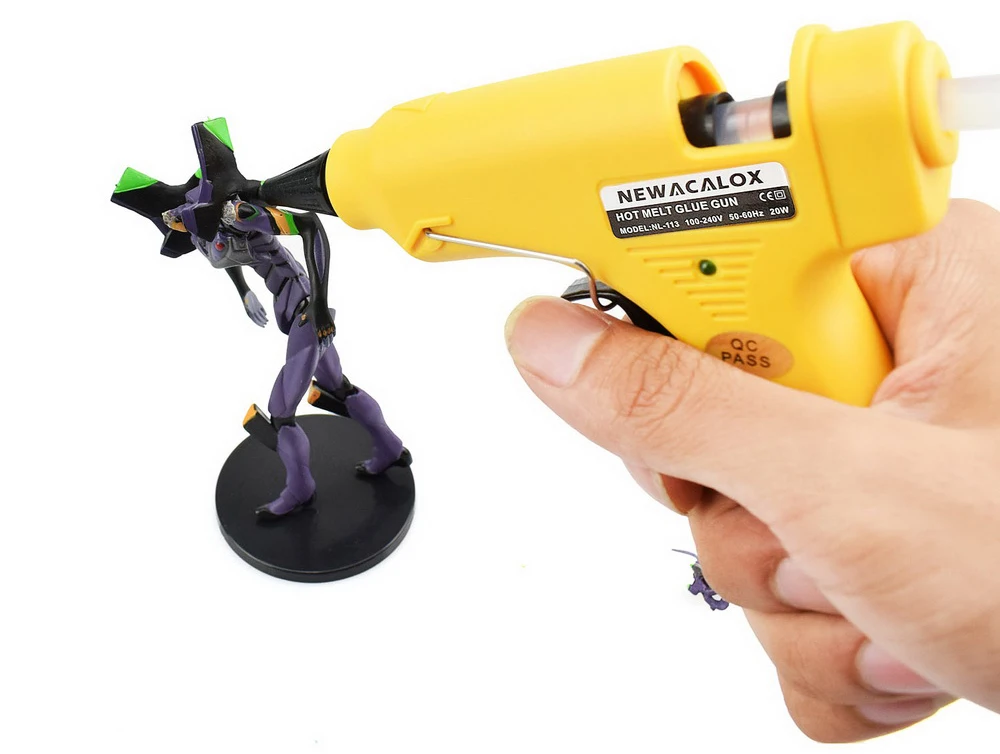

1.The toy model.

2.Artificial flowers,Christmas tree.

3.Decorations,the metals product.

4.The wood product,card paper.

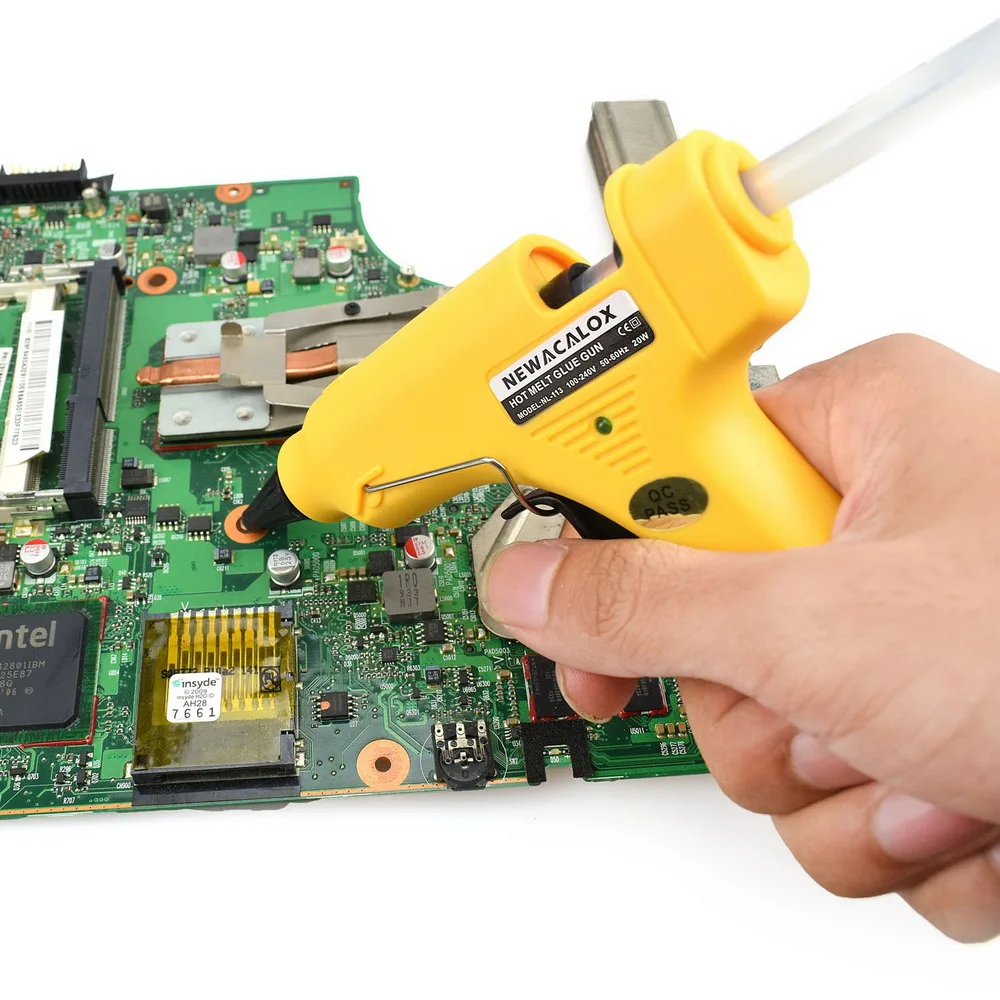

5.Electronics circuit plank ect.

Characteristics:

1.The heater component of the product is made of PositiveTemperture Coefficient Electric resistance(PTC).It is heating very fast and automatic of control temperature. The hot melt glue gun can use normally in 100V to 240V electrical,inside place the fuse,use more safe.

2.The heeater body installment was designed to insulates heat.It is work longer life.

Caution:

1.The hot melt glue gun is a high temperature product.If the customer used the size of the melt glue that types not agree with,it would cause the melt glue reflux and damaged the glue guns.

2.Do not touch the nozzle area and melted glue,for they are high temperature when they working.Forbid to use in the situation that easy fuel and explode easily.

3.While it is working,do not raise it ,and the nozzle can not upward.If the glue gun does not work continuously for 15 minutes,please unplug the eletrical.In order to prevent the melts glue to pour from the glue gun to damage it as all.

4.The new glue gun while using for the first time .It may emit a little smoke.This is mormal and should cease after a few moments.

5.Should usually keep the slippery piece of the glue gun tail sweep,for the melt glue can send into the gun Tube smoothly ,forbid to pull out the melt glue from the glue gun tail parts.

6.The glue gun shoule keep dry in the airiness of place ,out of the reach of children.

7.This tool at not use must place at it of support up.

8.Never use the glue gun if the power cable,or any part of the glue gun appears damaged or loose.There are no use serviceable parts in this glue gun .
