Item Descriptions:

size:

2.4 inches

Babies and children, care about elderly people and pets that need nursing care, I hear a noise from a room where no one is, I am concerned about crime prevention.

There is a lullaby, the baby gets sleep more comfortably earlier.

You can measure the temperature of your baby's bedroom.

Easy to operate, this product does not need to connect with the net or router, you can turn on the power, the image can be displayed immediately.

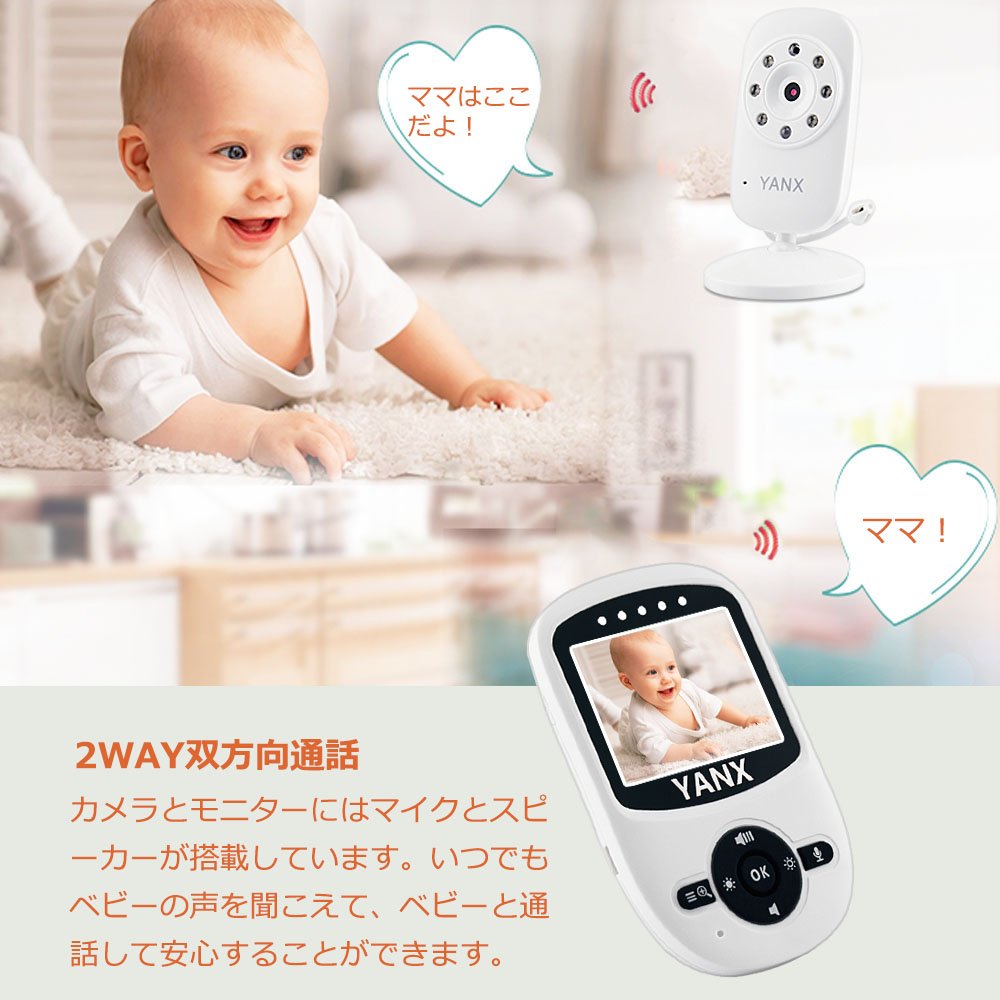

Two-way call

With voice sensor

, There is a two-way voice communication function.

Not only can you see the baby's condition and listen to your voice, but also you can deliver your voice to your baby.

You can hear the baby's voice anytime and rest assured by talking with the baby.

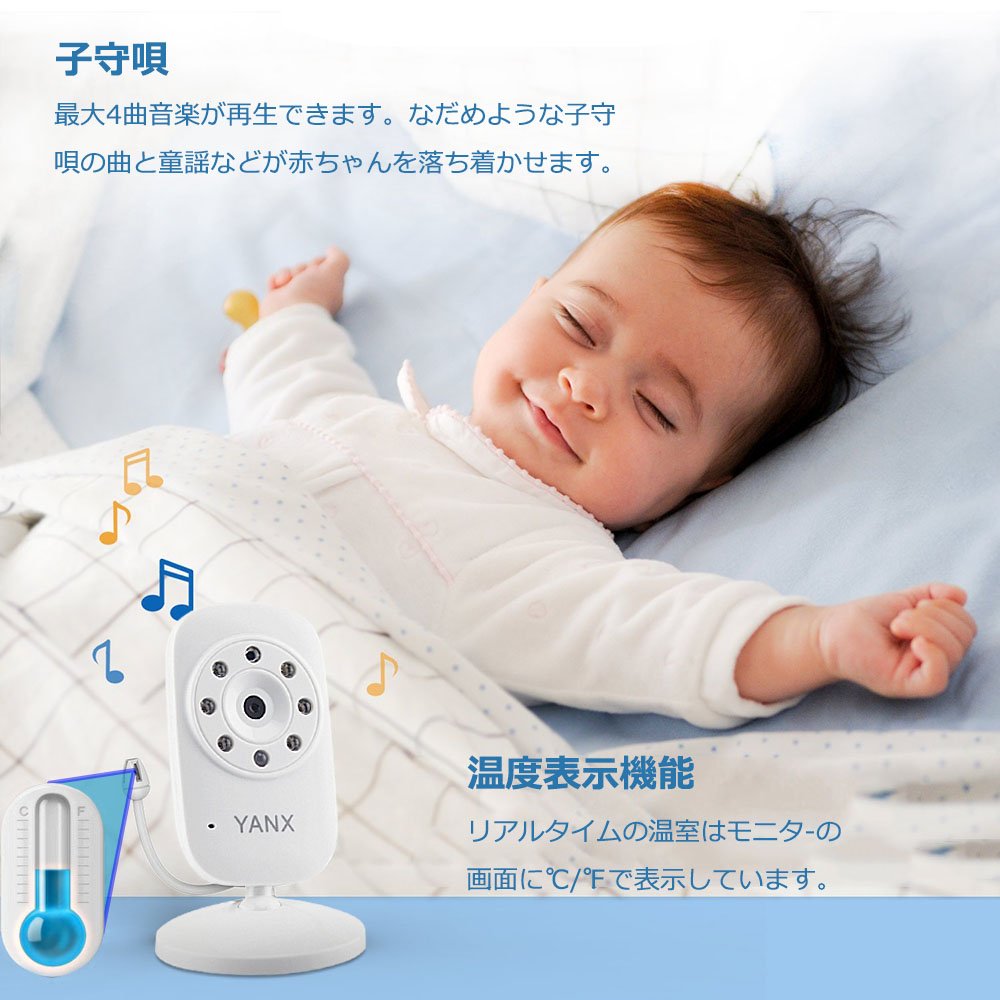

Lullaby function

Lullaby

4 songs built in

It is,

Remote operation with baby monitor

By as a baby camera by

Melody can be played

.

Moms and dads are busy with housework with remote control

I can let the baby calm down the music.

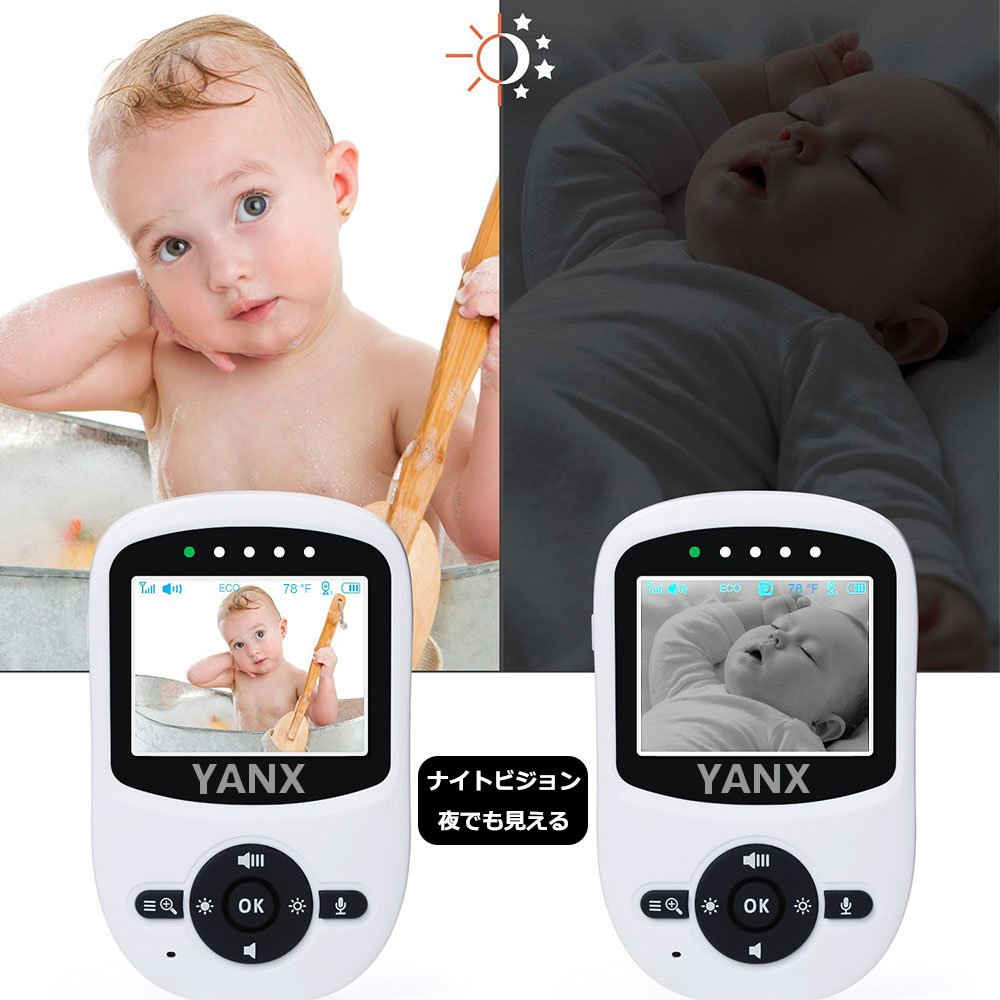

Night vision function

There is an infrared light

, At night

Infrared light turns on automatically

Therefore, even in a dark room, you can see the baby's appearance with night vision and you can check it with video.

I will notify you by feeling the sound

I put it beside the baby

When you catch the voice with "handset", send a signal!

The power of "parent machine" automatically turns on, and we inform you with the appearance of the baby on the screen.

Set ECO mode of this product.

You can control the power supply automatically, reduce power consumption, watch the baby for a long time.

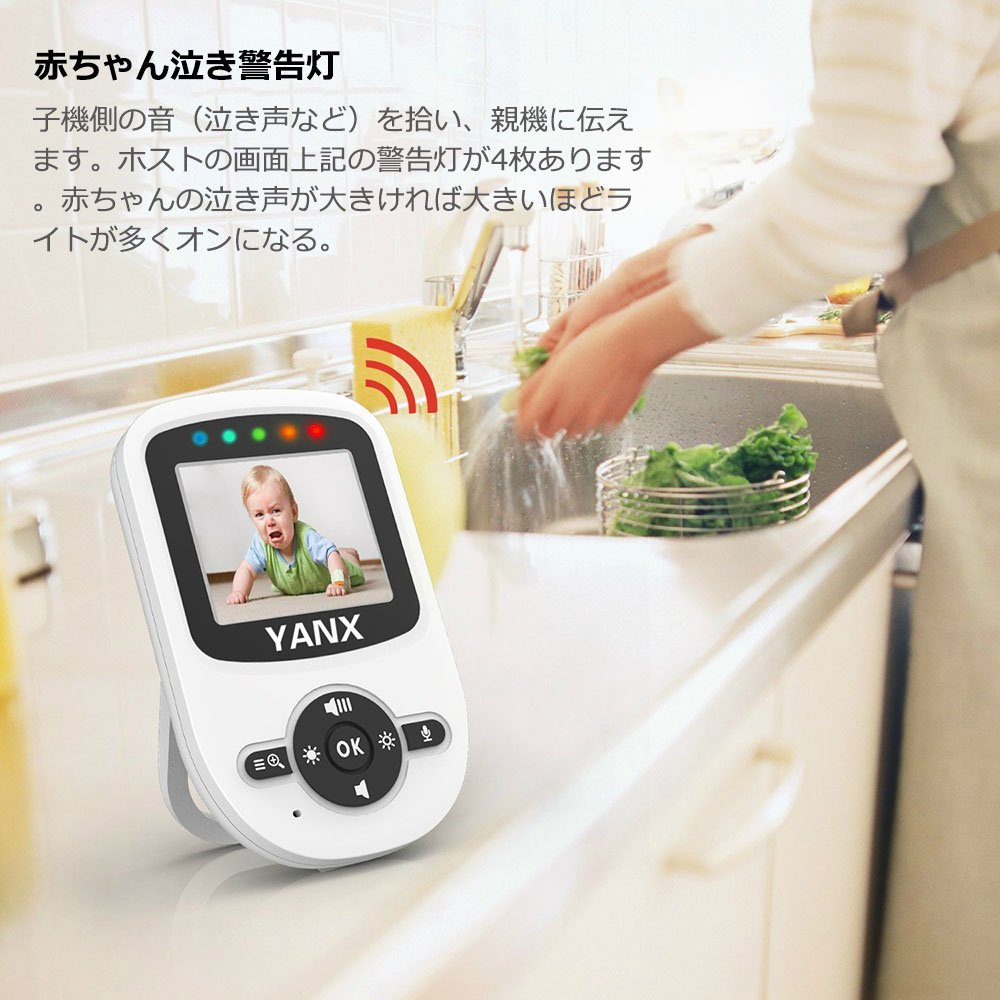

Baby crying warning light

Pick up the sound of the handset side (crying voice etc) and tell it to the parent machine.

Host screen above

Four warning lights

Yes.

The bigger the baby 's crying, the more lights turn on.

Temperature display function

A baby camera is placed in the baby monitor

The temperature of the room can be measured

.

For the baby

You can always check if the temperature is comfortable

Zoom function

We have a zoom function to display the appearance of the baby bigger on the screen.

Approximately twice the normal display can be projected large.

Adjust brightness and volume

After the baby is laid, as well as a baby monitor that is useful when you can not take your hands away from housekeeping or when visiting.

You can always watch it

I feel secure

When,

Mom's heart will be a little easier

It would be nice to take advantage of baby monitors and relax and face childcare.

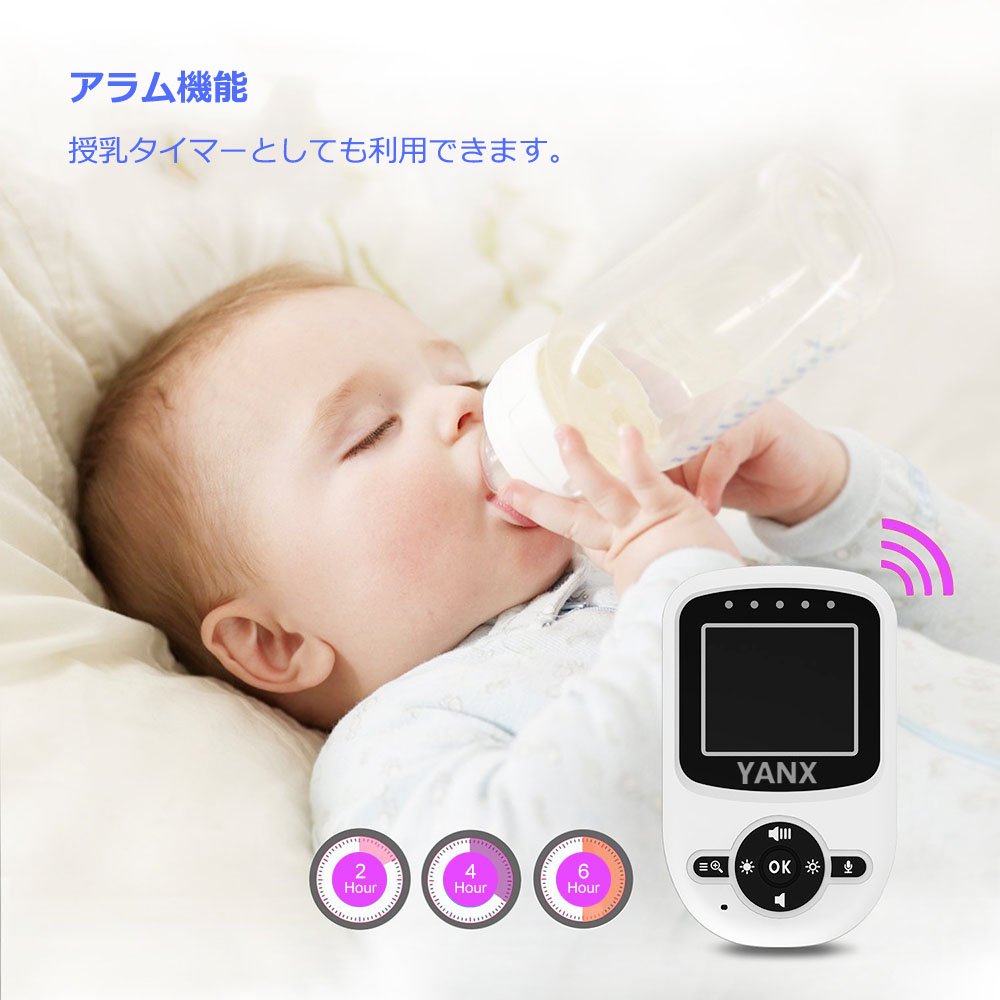

alarm

Off, 2H, 4H, 6H can be selected.

It can also be used as a nursing timer.

Simultaneous monitoring possible

From the monitor

Simultaneous monitoring of up to 4 cameras

I can do it.

When two (two or more) cameras pair,

Press the confirmation button to change the screen.

2.4 GHz Wireless

Since 2.4 GHz digital wireless is adopted,

The image can be received steady, clear sound will reach far.

Remote control

The surveillance camera can be operated easily.

On a monitor

Up to 900 meters

I can see the baby and the state of the room,

Remote operation realization

To do.

Ease of operation

This product

It is not necessary to connect with the Internet or router

Turn on the power

,Immediately

Image appears

be able to.

Frequently Asked Questions

Q: How long can the base unit and the slave unit communicate with each other?

A: Approximately 900 meters will arrive in a good outlook.

However, the distance that can communicate varies depending on the surrounding radio conditions, sandwiching obstacles.

Q: Why do not you get caught when using the same product in the neighborhood?

A: We are paired so that the master unit and the slave units do not get cropped.

Keep the same model nearby

There is no crosstalk even if you have one.

Q: Noise during communication.

A:

(1) The master unit and the slave unit are too far → In a place with good visibility, it is about 900 m.

If obstacles such as walls and furniture are located between the base unit and the slave unit, the distance the radio waves can reach will be shortened.

Please change the installation location so that the base unit and the child unit are close.

(2) It is affected by other electronic equipment, etc. → This product communicates using 2.4 GHz band radio waves.

Sound may be distorted due to the effect of using the same radio wave band [wireless LAN, microwave oven, personal computer, etc.].

In that case please release other electronic equipment or turn off the electricity.

Product Specifications

Frequency band: 2.4 GHz FHSS

Modulation method: GFSK

Transmission input: 18 dBm Max

Operating temperature: 0 to 40 ° C

Humidity during operation: 5% - 90% rh

Maximum transmission distance: 900 m (without obstacle)

Input: 100-240 VAC 50/60 Hz, 200 mA Max

Output: 5 V, 600 mA

LCD: 2.4 inch TFT liquid crystal

Battery: 3.7 V, 950 mAh, 3.515 Wh

Operating time with full charge: Up to 12 hours (ECO ON)

Photographing element: 1 / 6.5 "color CMOS image sensor

Infrared sensor: 940 nm

set

Camera * 1 Monitor - * 1

Power adapter * 2

Japanese manual * 1 English manual * 1

please note

1, monitor (master unit)

In case

The monitor

Before use

To

It must be fully charged.

Charging time is about 2 hours.

2, camera (handset)

Camera can not operate when power is not connected.

I am shooting with a camera

When the image is not displayed correctly on the host

, The product is not bad,

It may not be paired.

Could you please try the steps below?

(1) Press the menu / zoom button briefly to enter the setting screen.

(2) Press the Left button / Right button briefly to move to the pairing MAC.

There are four choices, and briefly pressing the Up button / Down button briefly selects the camera to be paired.

(3) Confirm by pressing confirmation button.

(4) When pairing, the screen is stationary,

After completion, the screen will appear.

Warranty period 12 months

With instruction manual, with normal usage

If it fails within the warranty period, free repair or replacement

It becomes correspondence.

If you have any questions, please contact us at any time by e-mail.

Features:

• [Interactive conversation] Since the camera and the monitor are equipped with a microphone and a speaker, two-way audio communication is possible.
• Not only can you see the baby's condition and listen to your voice, but also you can give Mom / Dad's voice to your baby.
• You can check important baby firmly from a remote place.
• [Voice activated] When the baby cries, the monitor starts automatically!
• In addition to the constantly monitoring function, it also has a function that reacts to the baby's lackliness and allows the monitor to automatically start up, and it is also OK to deliver your mother's voice.
• 【Temperature display function】 You can measure the temperature of the room where the baby camera is placed in the baby monitor.
• You can always check if the temperature is comfortable for your baby.
• [Night shooting] Since the night vision automatically turns on the infrared light at night, you can check the baby's condition with infrared rays even in a dark room after putting the baby in bed as it is equipped with night vision.
• Or, there is a led light on the camera body, at night, this light turns on, not only convenient for going to check the baby's condition, but also soft rays can protect the baby's eyes
• 【Easy to operate】 Wireless baby monitor with super convenience, super easy, energy saving, and intelligent!
• You do not need to connect to the net, the camera and the monitor can see the image when you connect the power!

Product information:

Shipping Weight: 449 g

Package Dimensions: 6.40 x 16.21 x 27.00 cm
