Item Descriptions:

"Product features":

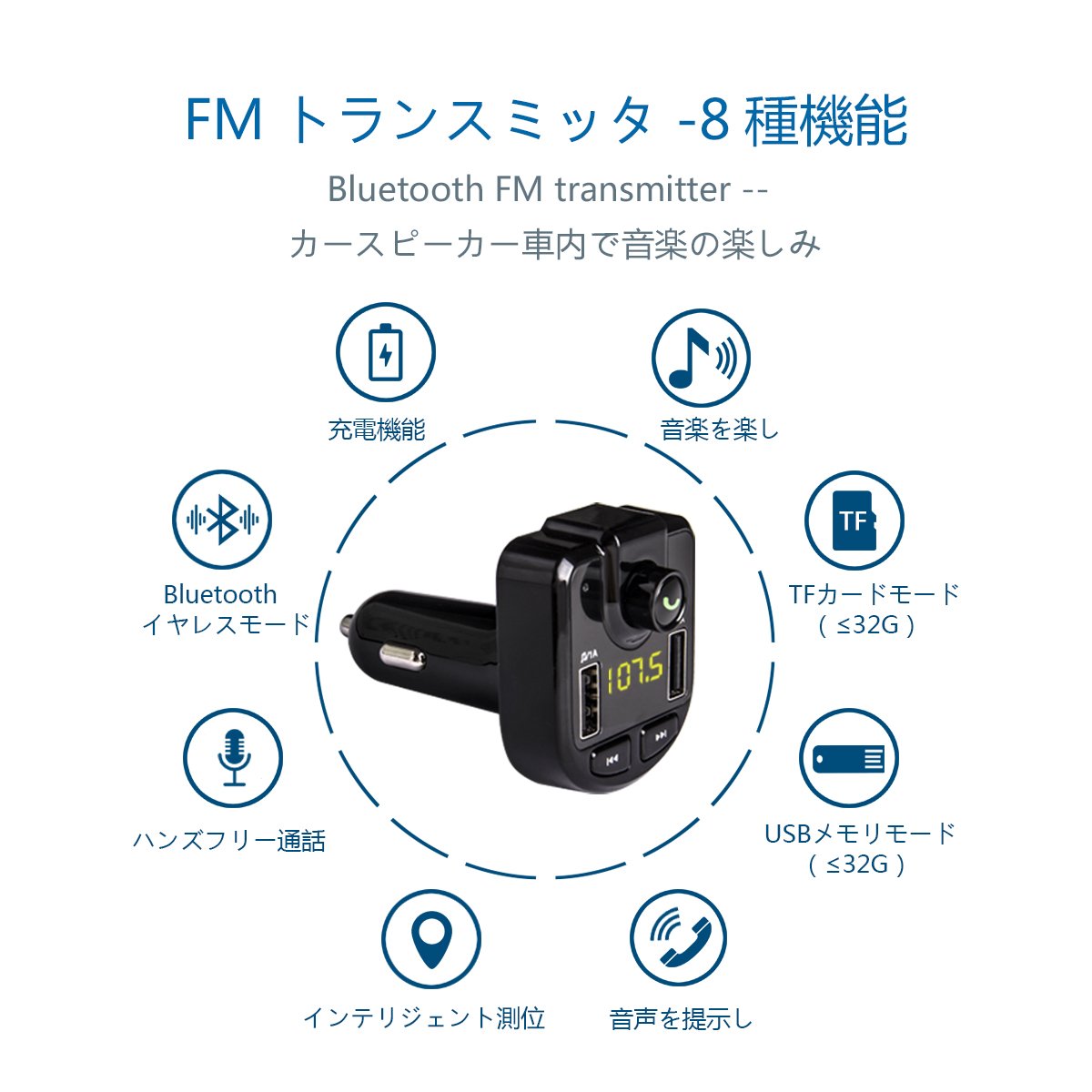

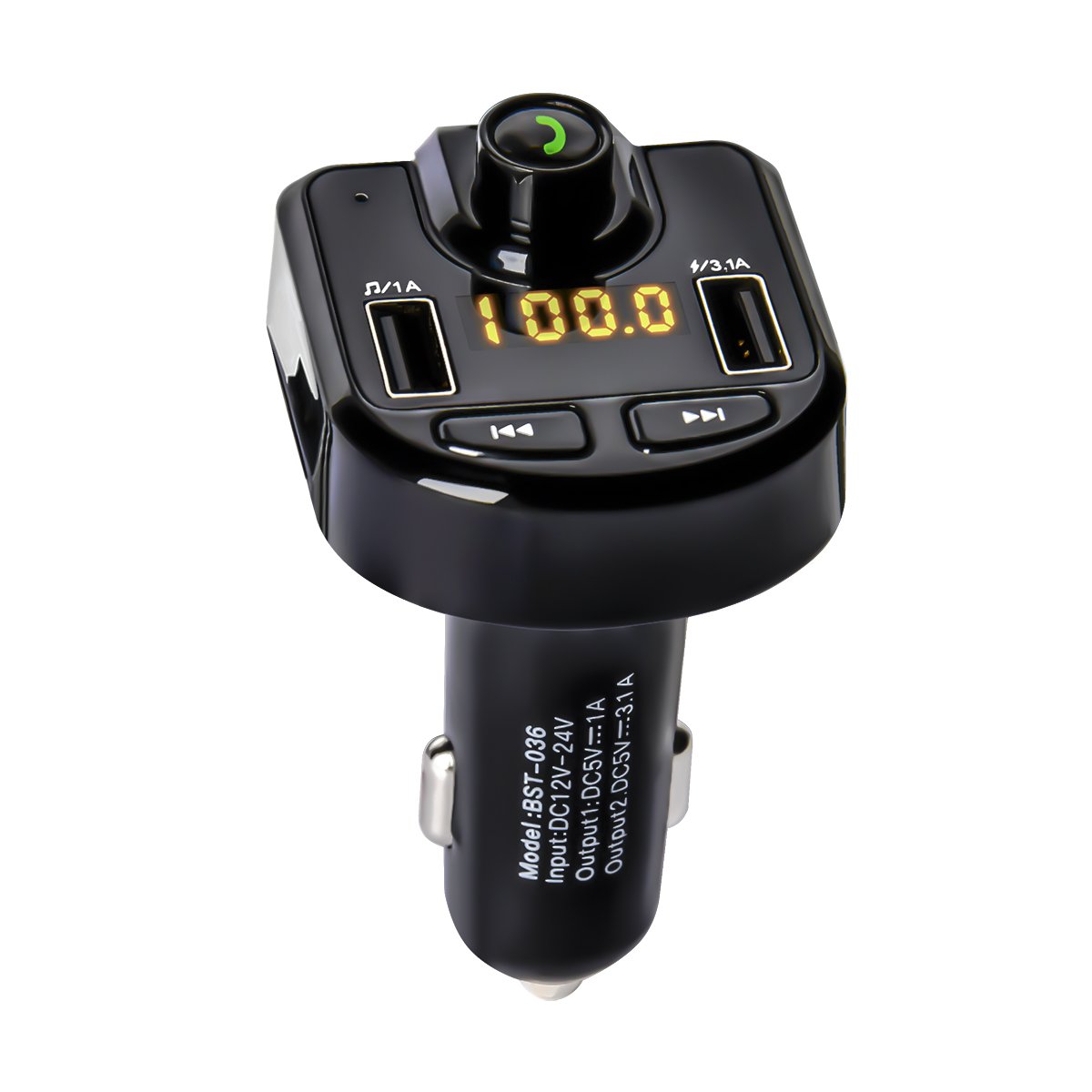

- Car FM radio is an FM transmitter that makes it easy to enjoy smart music.

● With display screen, voltage and frequency can be displayed.

● Frequency ranges from 87.5 to 108.0 MHz, it is adjustable in increments of 0.1 MHz while watching the LCD screen.

● With dual USB charging port, one for disk and the other for high-speed charging such as smartphone

● Hands-free calling is possible with built-in microphone.

● With battery voltage detection function, when the engine is on, you can check the voltage on the display screen.

● You can also broadcast music from a USB memory.

Hands-free call:

Built-in microphone, with muffler mounted, handsfree calling while driving is even more secure!

After pairing registration and Bluetooth connection are completed.

Receive a call: Press the multi function button at a time.

Reject phone: Press and hold the multi function button.

Hang up: Press the multi function button at a time during a call.

Place the last incoming call: Press the multifunction button twice.

FM radio broadcasting:

The frequency is in the range of 87.5 to 108.0 MHz, and it is adjustable in 0.1 MHz increments while watching the LCD screen.

Frequency adjustment: You can adjust the frequency to the range of 87.5 to 108.0 MHz clockwise / counterclockwise by pressing and holding the multifunction button for a multifunction button.

【specification】:

Weight: Approx 30 g USB interface: USB 2.0

Screen: LED display TF card / USB: ≤ 32 GB

Input voltage DC 12V - 24V Operating current 50-100mA DC 12V

Supported format MP3 / WMA / APE / FLAC / WAV

Bps 64 - 320 kbps

FM frequency 87.5 - 108 MHz

SNR 85 Db (FM: 65 dB)

Harmonic distortion <0.05% (FM: <0.1%)

Environmental temperature 0 - 60 ° C

Operating distance <10 meters

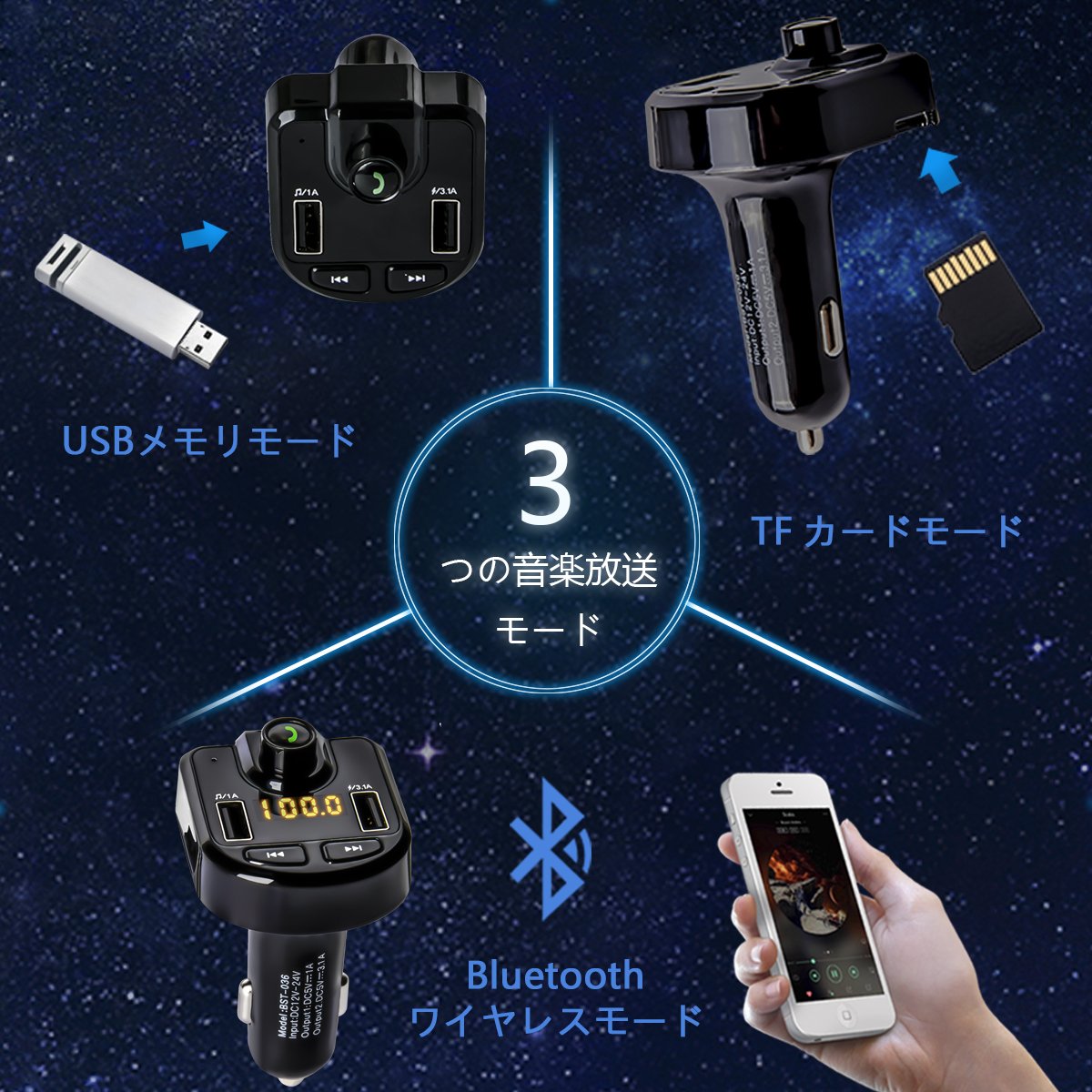

Three music broadcasting modes:

Priority of music broadcasting: Bluetooth device> TF card> U flash

Only one type of device is supported at that time.

Song feed: Press the button.

Return the song: Press the button.

Pause: While performing a music broadcast, do a multifunction button at once and stop music.

Volume up: You can adjust the sound to 30 by rotating the multi function button clockwise.

Volume down: Rotate the multifunction button counterclockwise.

You can adjust the sound to 0.

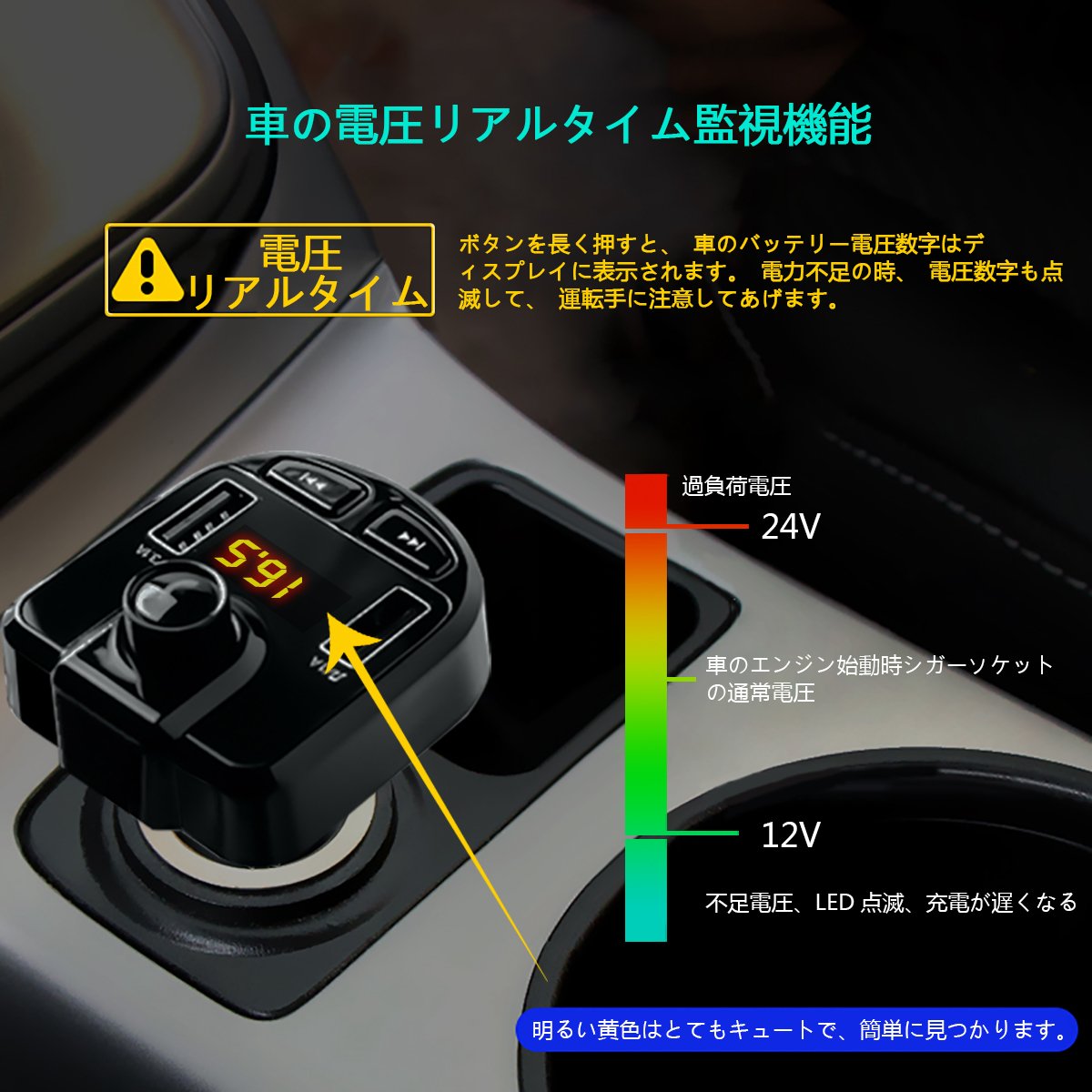

Car battery voltage measurement, 12V ~ 24V correspondence:

When the button is pressed for a long time, the battery voltage number of the car is displayed on the display.

When power is insufficient, the voltage figures also blink and we will pay attention to the driver.

This product can accommodate cars from 12V to 24V.

[Application range]:

It corresponds to 12 / 24V car.

Even in heavy-duty vehicles such as trucks, you can use it with confidence without using adapters.

Music automatic memory function:

Once the power is turned off, turn the power on again, press and hold the mode selector switch, and switch to the ON side again to automatically play back from the previous state.

You can hear music anytime and anywhere!

【Package Contents】:

1X Automotive FM transmitter body

1X Japanese

User's manual

★ Warranty card:

If it is a quality problem in 90 days, please click on [contact the exhibitor] and contact us.

We will process it soon, so do not worry.

Features:

• 【High-quality chip adoption Bluetooth 4.0】: Automotive FM transmitter is adopted high quality chip equipped with NEW version Bluetooth 4.0, you can enjoy music of iPad with smartphone by car speaker by sending Bluetooth and FM!
• Anytime, anywhere, listen to music, FM radio broadcasts and so on.
• Calls on the built-in microphone are hands-free and even more secure!
• ※ Free exchange period: one week ※ Product warranty period: one year ※ FM transmitter is "Technically qualified mark acquired product", please use with confidence.
• 【Three Music Playback Modes】 Bluetooth Wireless Mode, USB Memory Mode, TF Card Mode, Three Convenient Ways to Connect Various Smartphones, Tablets, Walkman, USB Flash, FM Transmission, Music from Car Radio
• It can play.
• 【Music Automatic Memory Function】 Once power is turned off, turn on the power again, long press the mode selector switch and switch to the ON side again to automatically play back from the previous state.

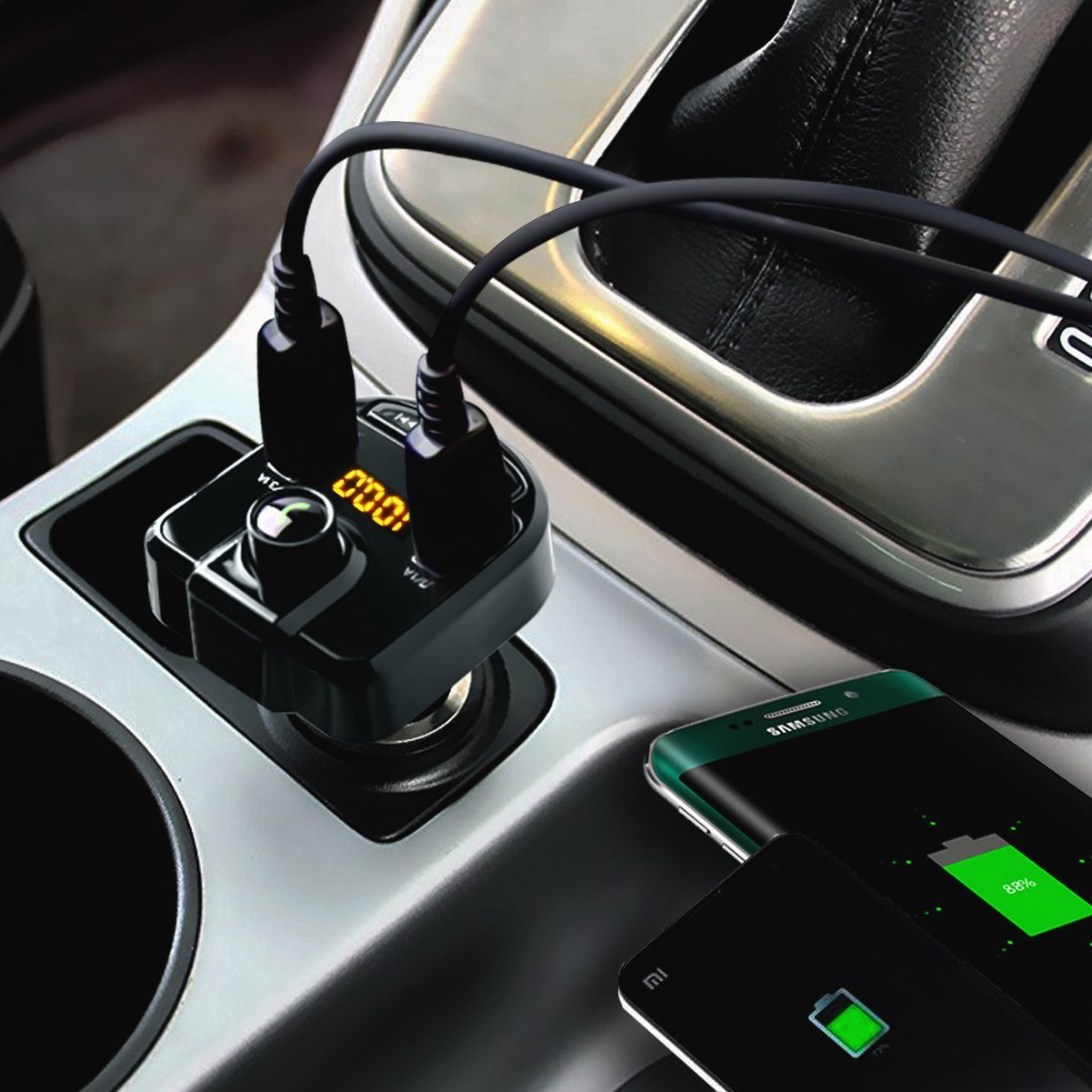

• [Two Charging Port Support] Two charging ports are installed and up to two devices can be charged at the same time.
• Maximum output 5V / 3.1A, fast charge is possible, 12V / 24V car correspondence.
• 【Car battery voltage measurement, 12V ~ 24V correspondence】 When you press the button for a long time, the battery voltage number of the car is displayed on the display.
• When power is insufficient, the voltage figures also blink and we will pay attention to the driver.
• This product can accommodate cars from 12V to 24V.

Product information:

Shipping Weight: 68 g

Package Dimensions: 5.69 x 7.80 x 13.49 cm
