Product Description
All of ICAN frame and wheelset will have 730 days warranty

Material: Full Carbon Fiber T700
Weave: UD Matt
Wheel Size : 26er
Available Sizes: 16/18/20 inch
BB Type : BSA (120MM BB SHELLS)
Brake Type: Disc Brakes - hydraulic pressure
Rear axle Spacing: 197
Seat post Size : 31.6mm
Seat clamp Size : 34.9mm
Headset:1-1/8' 1-1/2'
Frame Weight: 1260 -20g-16inch; 1280 -20g-18inch; 1330 -20g-20inch
Recommend Tire Wide 4.0 inch
18/20 Inch Max Tire 26erx4.8 inch
16 Inch Max Tire 26erx4.7 inch

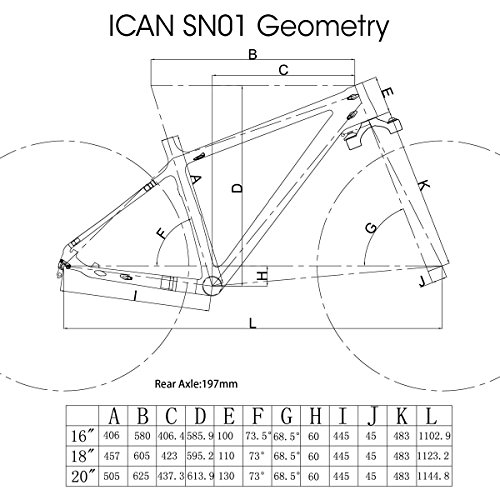

Geometry

Size 16inch(you can see other size geometry on the photo)
Top Tube (effective) 580mm
Seat Tube (BB Center to Top) 483mm
Chain Stay (actual) 445mm
Seat Tube Angle 73.5°
Bottom Bracket Drop 60mm
Head Tube Length 100mm
Head Tube Angle 68.5°
Fork offset 45mm
Wheelbase 1102.9mm

We have 29er and 29 wheelset which will fit this 26er carbon frame. pls contact us if you are interested in it.
