Product Description

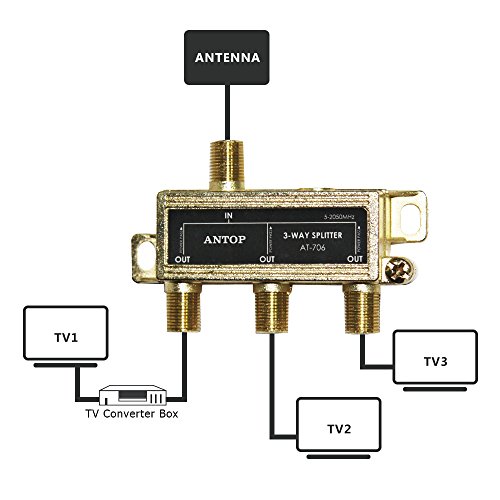

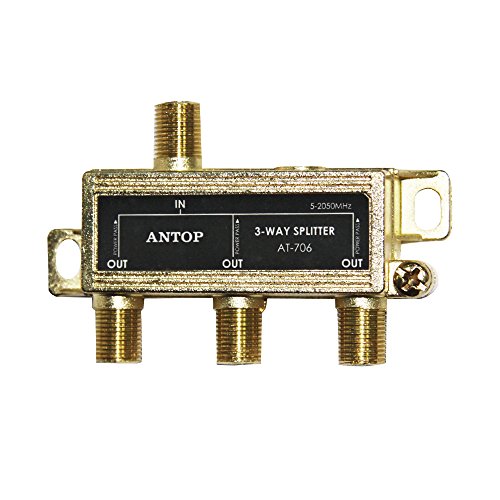

The ANTOP 3-ways Splitter splits a single incoming coaxial signal, such as satellite signal, over-the-air HD (digital TV) antenna signal, into three outgoing signals.

Product Information

All ports female F connector 75 Ohm
All ports DC power pass
Light weight and compact size

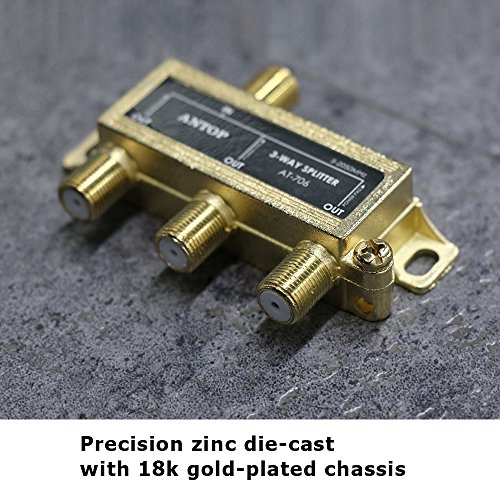

Zinc die-cast with 18K gold-plated
Low insertion loss, high return loss and isolation for satellite and over-the-air HDTV signal
Two pieces of screws attached

Technical Specification

Screening factor:5-300MHz?75dB,300-470MHz?75dB,470-1000MHz?65dB,1000-2050MHz?55dB
Insertion Loss: 6.5dB(5-47MHz),7.5dB (47-1000MHz), 8.5dB (1000-1750MHz), 9.5dB (1750-2050MHz)
Isolation:20dB (5-2050MHz)
Return Loss:10dB (5-47MHz)
Receiving Range: TV/SAT.
Impedance:75?
All Port DC Pass: 24V/200mA (max.)
