Item Descriptions:
Color:
white
Step 1 Remove the lower screw
Be sure to turn off the main unit before starting operation.
* Working without turning off the power may cause unexpected accidents and damage to the main body base.
Remove two star screws on each side of the dock connector.
Step 2 Remove the front panel
In the suction cup inside the tool kit, attach it to the part slightly above the home button.
(Please refer to the figure)
If the adsorption is weak, you can not remove the panel, so please make sure that it is adhering firmly.
After confirming that the sucker is securely attached, apply constant force with one hand and remove the front panel from the rear panel.
When floating at a certain height, as shown in the figure, slide the tool between the two panels and use the two forces of the tool and the suction cup to further float it.
In case
* Please be careful not to disassemble the panel quickly *
With the suction cup attached and continuing the height, the side also floats as shown in the figure.
In this case, please be careful not to open with too much force.
After the lower, left, right three points float, I will pull the suction cup and remove it further.
(At this time, since the upper cable is still caught, please do not remove all at a stretch)
Step 3 Remove the screws
Remove the following screws.
● 1.2 mm screw
● 1.6 mm screw
Removing the screw removes the plate as shown, as it can be removed.
Step 4 Remove the cable
Remove the cable below.
● Camera & sensor cable
● Digitizer cable
● LCD cable
Remove the front panel from the rear case.
Features:

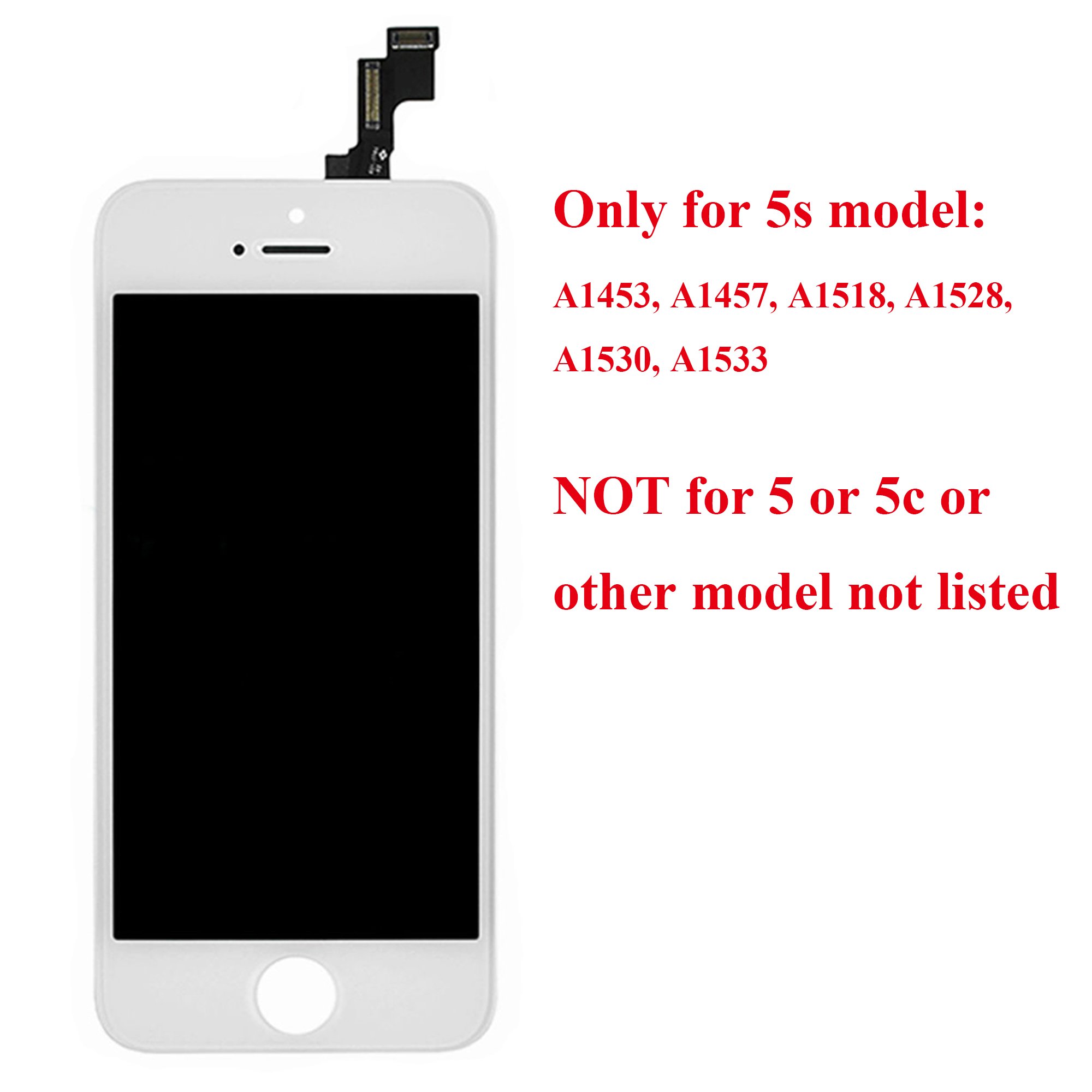

- Please enter model number Confirm this is compatible:

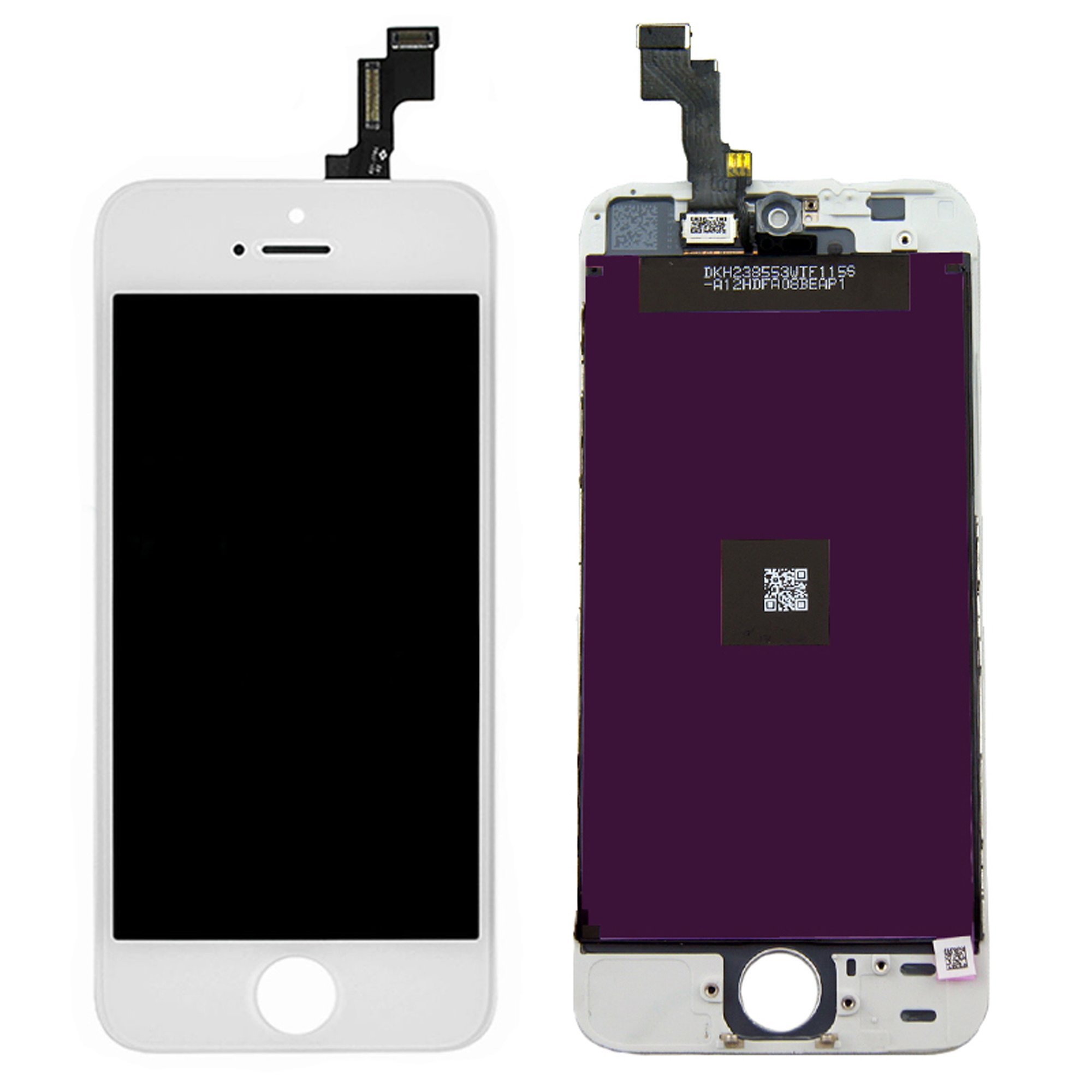

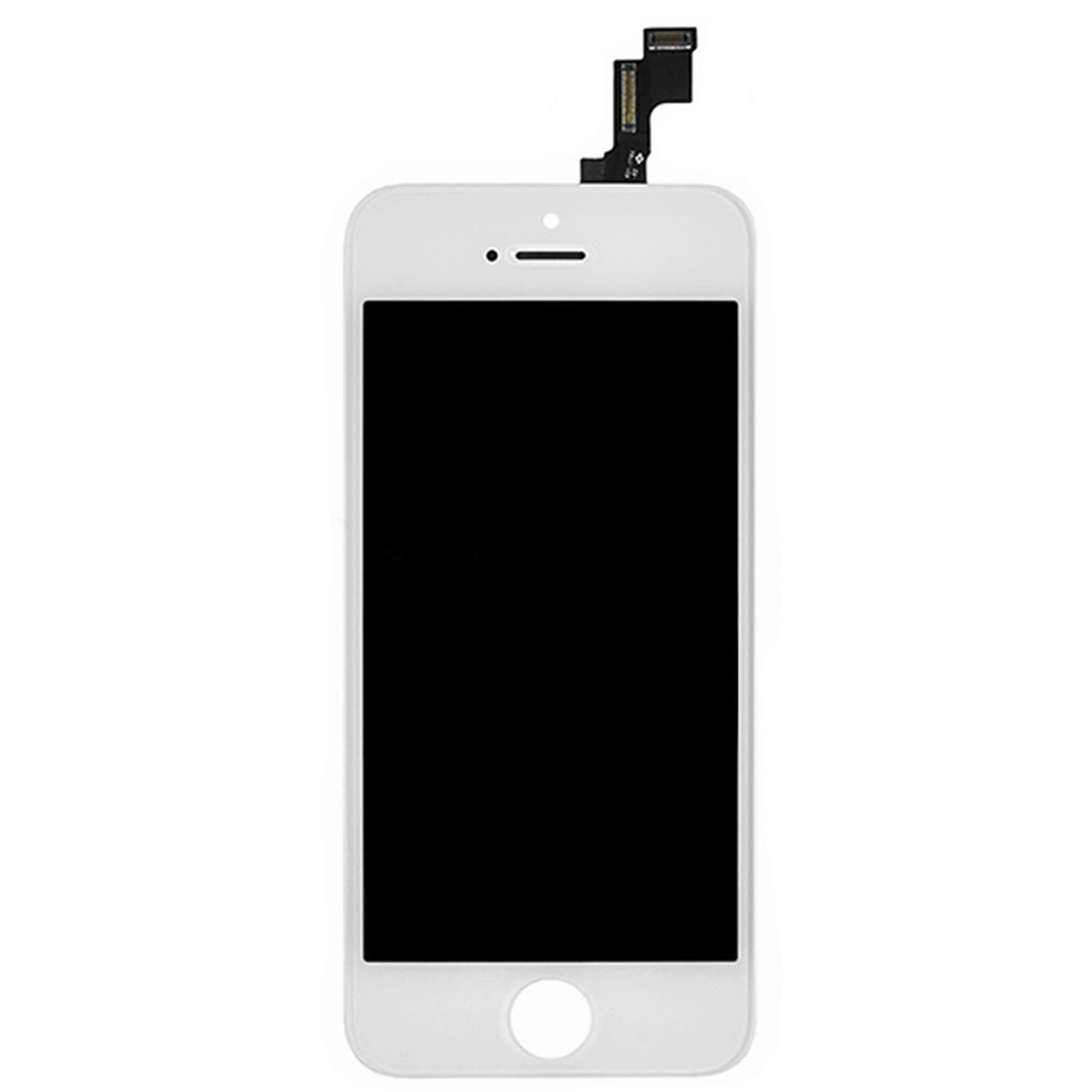

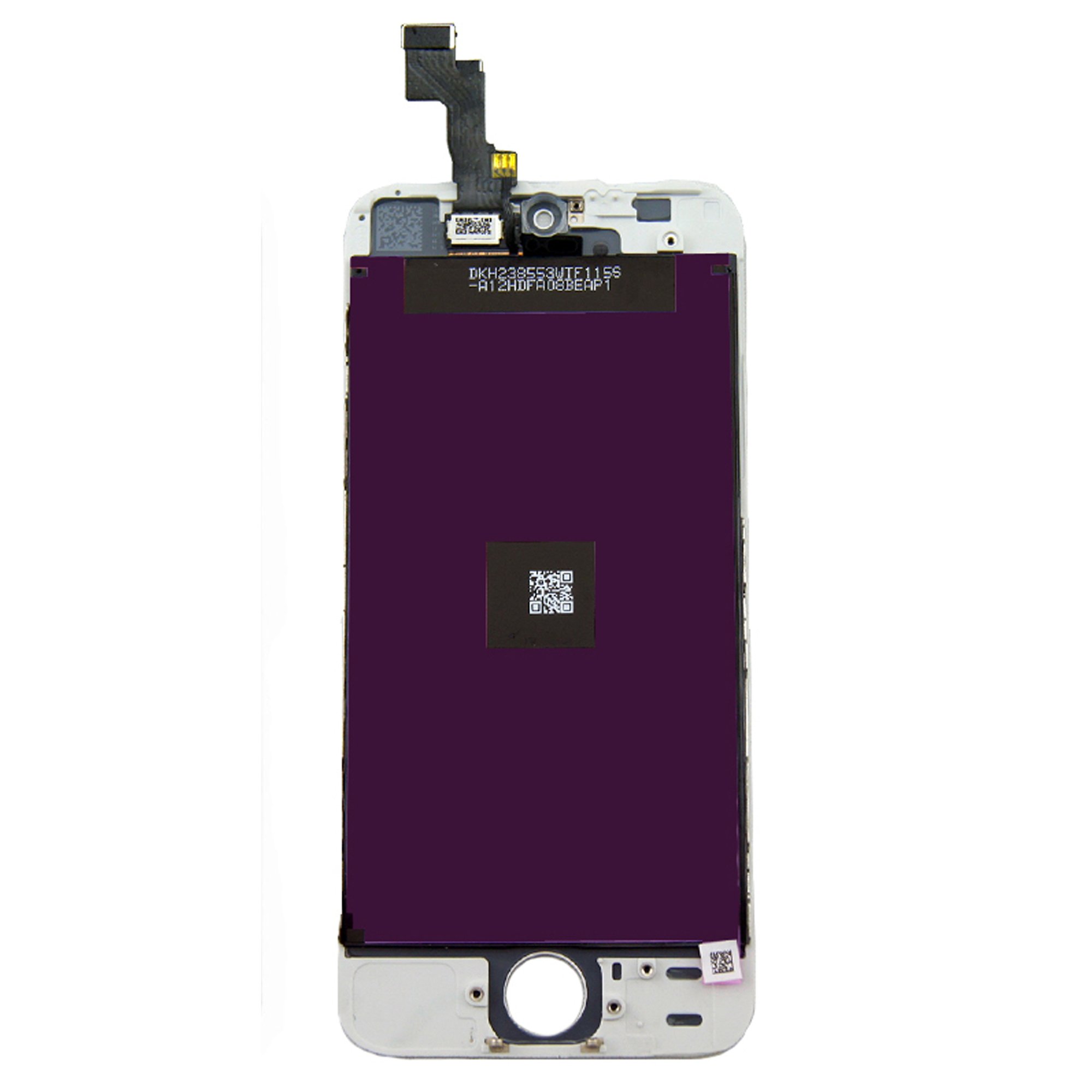

- Windshield for iPhone 5S, digitizer (touch panel) and liquid crystal LCD.
- To install it requires some knowledge and skill, so if you can not install it, you better ask experts or youtube.
- If there is something unclear point etc during the exchange, please contact with this place.

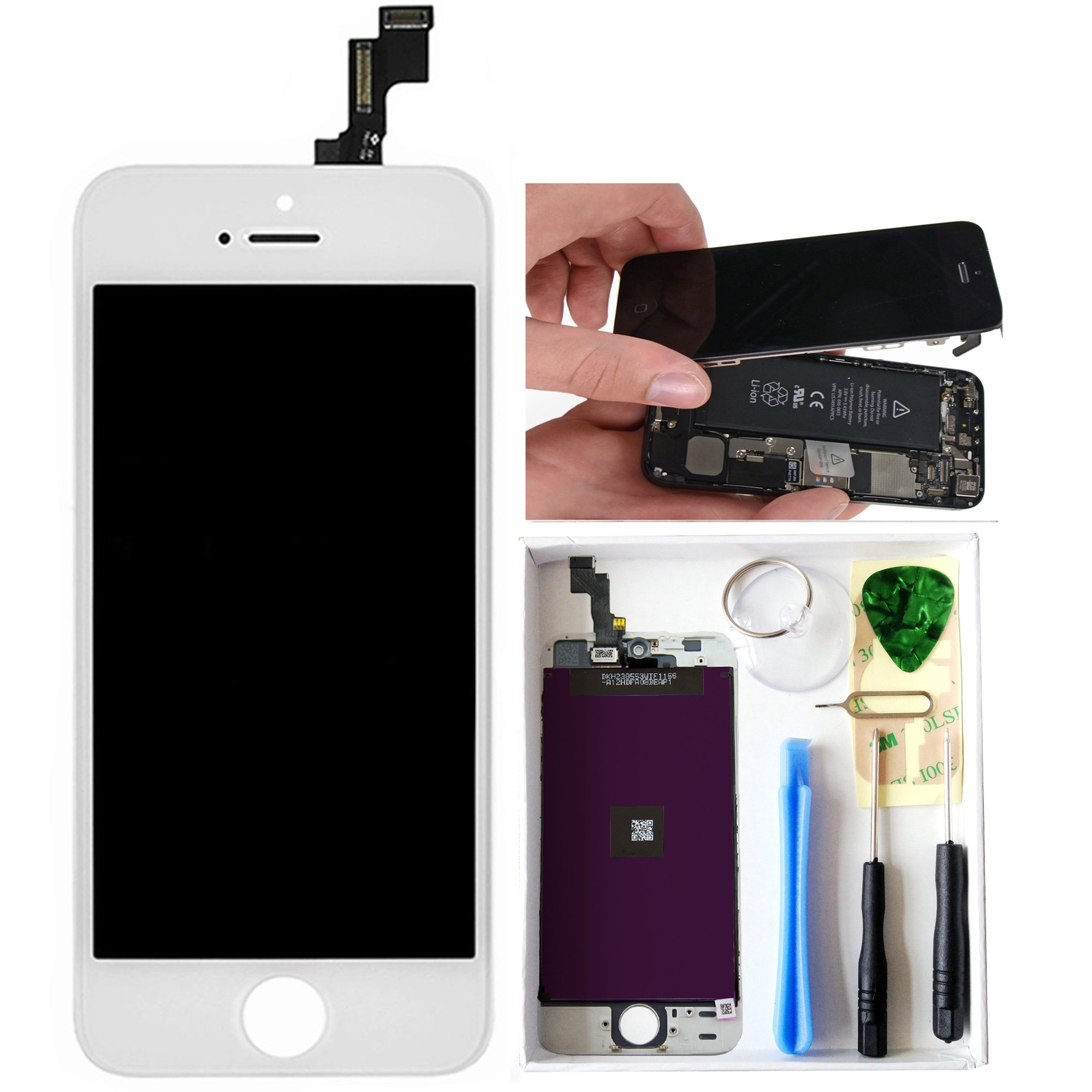

- Repair tools (Patz) are included as a free gift together, thank you for your understanding.
Product information:
Shipping Weight: 90 g
Package Dimensions: 2.79 x 14.71 x 16.89 cm
