Item Descriptions:
Product introduction
Electronic viewfinder for PEN equipped with 920,000 pixel liquid crystal.
Supports E-P2, E-PL 1, E-PL 1 s, E-PL 2, E-P 3, E-PL 3, E-PM 1
From Amazon

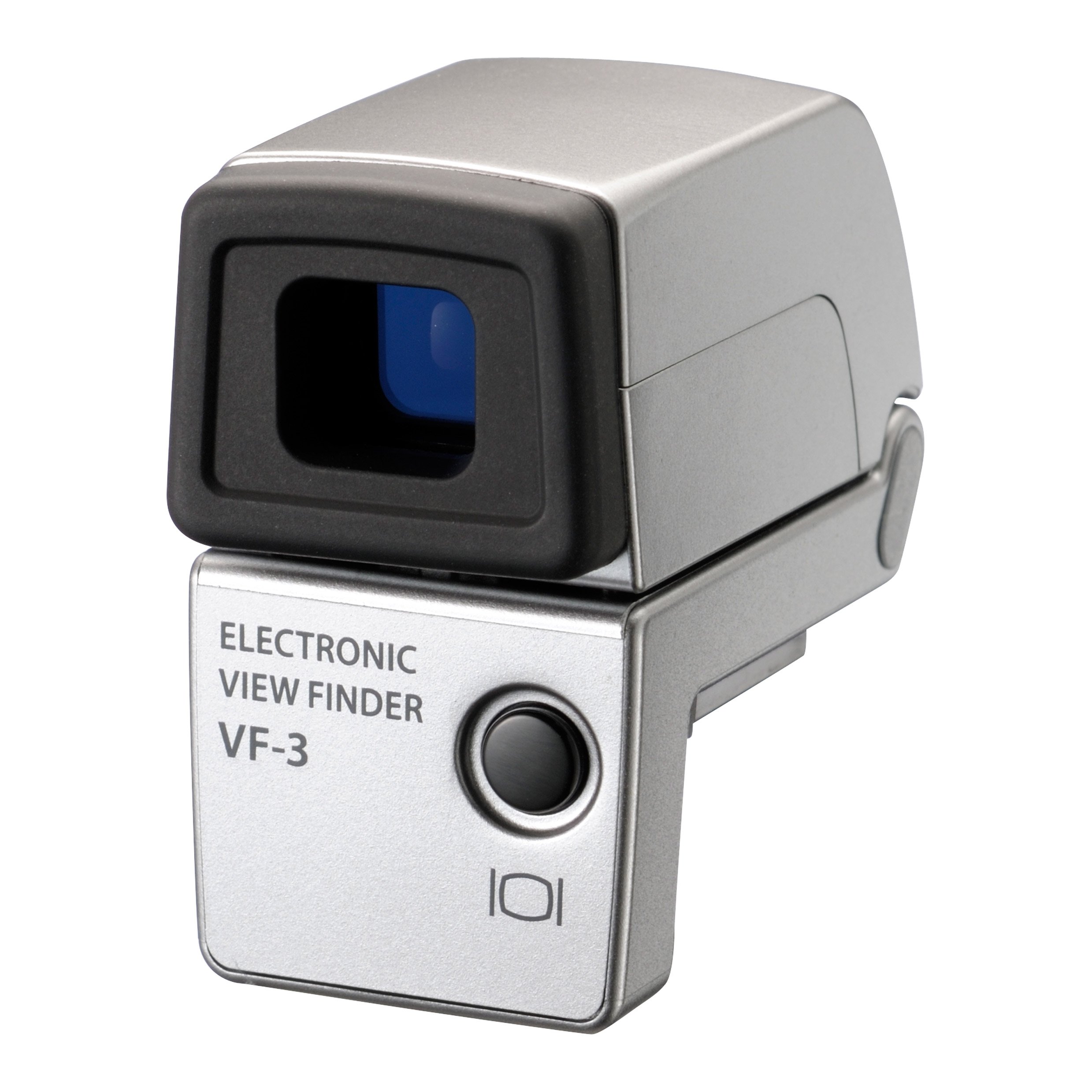

Light weight · Compact high definition 920,000 dots Electronic viewfinder VF - 3
It is an electronic viewfinder adopting a compact high-definition LCD panel.

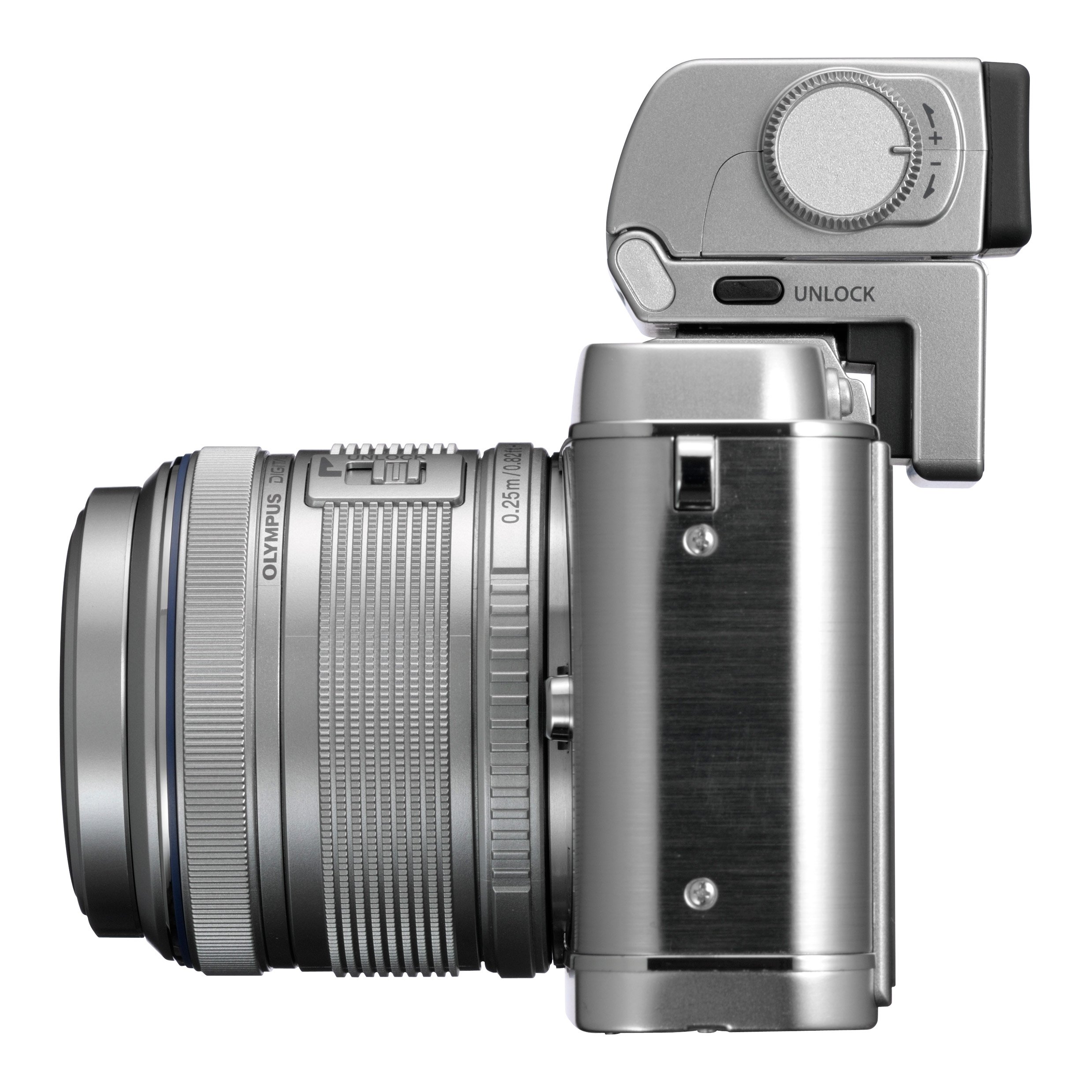

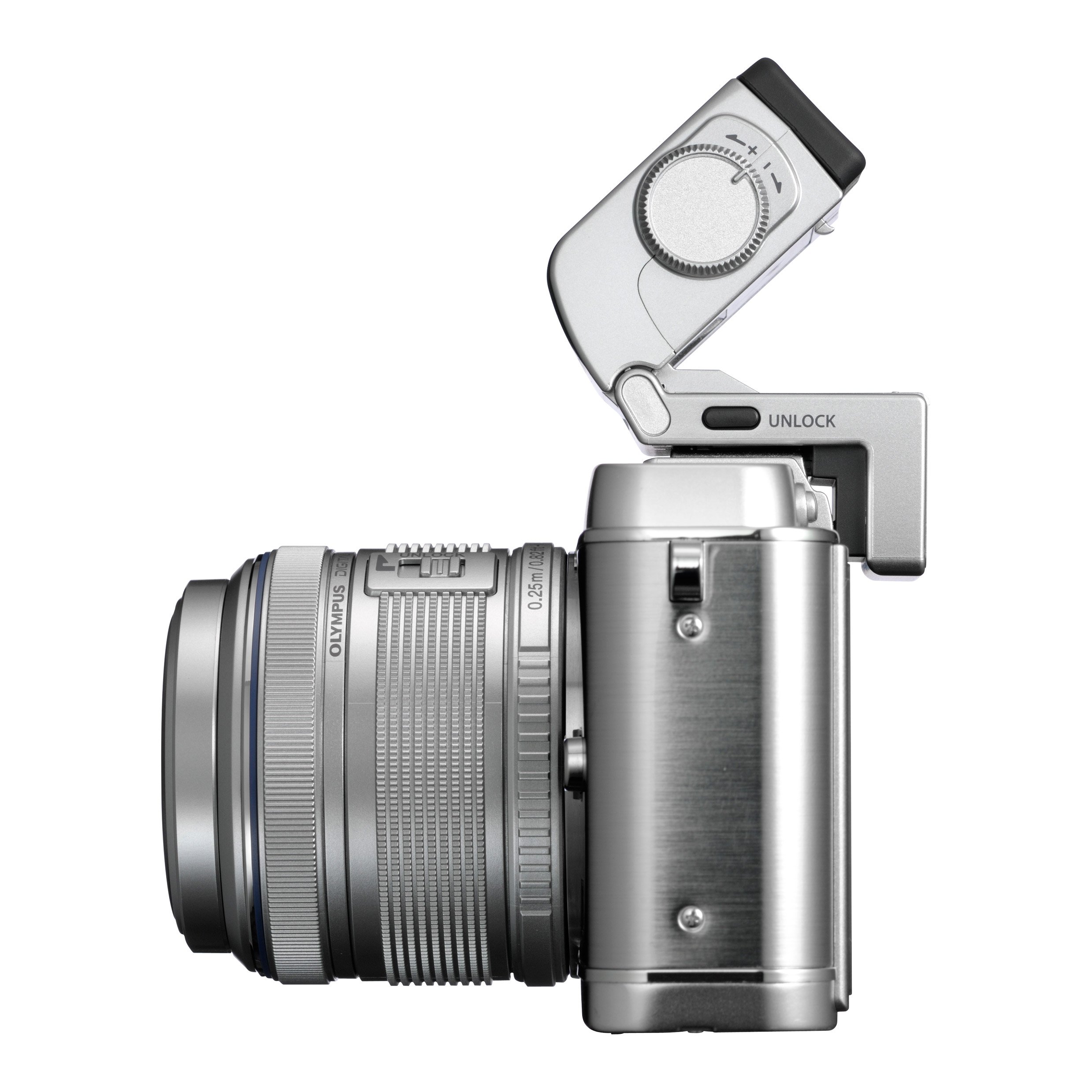

With a weight of 27 g, it is lightweight and compact, with high definition of 920,000 dots, field of view ratio of 100%, long eye relief of 17.4 mm, 90 ° tilt mechanism makes stable framing possible even in outdoor shooting and telephoto shooting.
A secure shoe lock mechanism is also carried.
* E-P2, E-PL1, E-PL1s, E-PL2, XZ-1 must update the firmware to the latest version.
Main Specifications
Number of display pixels: Approximately 920,000 dots
● Viewing ratio: 100%
● Viewfinder magnification: about 1.0 times * -1 m - 1: 50 mm lens / infinity
Eye point: 17.4 mm (from the tail end of the eyepiece) * -1 m - 1 o'clock
Diopter adjustment range: -3.0 to + 1.0 m - 1
● Weight: 28 g [Except connector cover]
● Size: 25.4 (Width) x 44.1 (Height) x 43.8 mm (Depth)
● Others: Shoe lock mechanism
- Accessories: Soft case, instruction manual, international warranty card
※ Specifications are subject to change without notice.
※ Can not be used with accessories to be attached to the hot shoe.
* E-P2, E-PL1, E-PL1s, E-PL2, XZ-1 must update the firmware to the latest version.
Main features
● External electronic viewfinder with 100% field of view and high definition of 920,000 dots.
It is possible to install via the accessory port installed on the camera body side of the following [compatible model].
● Since it is a live view, you can confirm the result by setting change before shooting, you can put the scenery you see in the photo.
● Since the diopter correction function is also equipped, it provides a stable viewfinder image according to the vision of the photographer.
● Compact, high-definition LCD panel is adopted.
With a weight of 27 g, it is lightweight and compact, and long eye relief 17.4 mm, 90 ° tilt mechanism makes stable framing possible even in outdoor shooting and telephoto shooting.
A secure shoe lock mechanism is also carried.
Compatible models

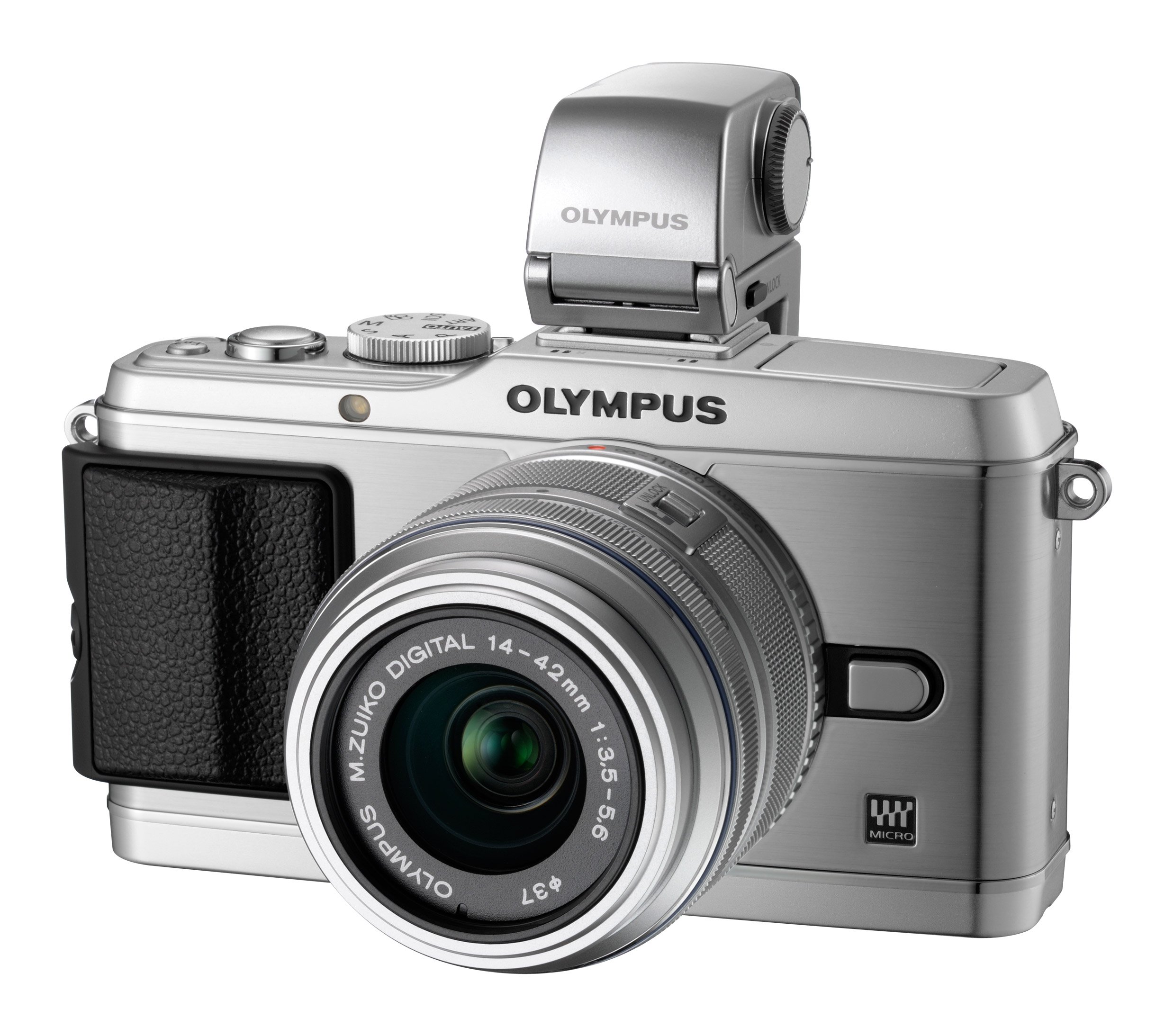

OLYMPUS PEN E - P2 (*) / E - P 3
OLYMPUS PEN Lite E - PL 1 (*) / E - PL 1 s (*) / E - PL 2 (*) / E - PL 3
OLYMPUS PEN mini E-PM 1
OLYMPUS XZ-1 (※)
* It is necessary to update the firmware to the latest version published on August 9, 2011.
● Size: 25.4 mm (width), 44.1 mm (height), 43.8 mm (depth)
● Weight: 28g
※ It can not be used for "E-P1".
Features:
- Please enter model number Confirm this is compatible:
- Compatible models: OLYMPUS PEN E-P2 / E-P3, PEN Lite E-PL1 / E-PL1s / E-PL2 / E-PL3, PEN mini E-PM1, XZ-1
- Display pixel number: Approximately 920,000 dots
- Viewing ratio: 100%
- Viewfinder magnification: approx. 1.0 times * -1 m - 1: 50 mm lens / infinity
- Eye point: 17.4 mm (from the end of the eyepiece) * -1 m - 1 o'clock
Product information:
Shipping Weight: 58 g
Package Dimensions: 4.29 x 8.99 x 16.00 cm
