Item Descriptions:

Product specification:

Waterproof specification: IP 56

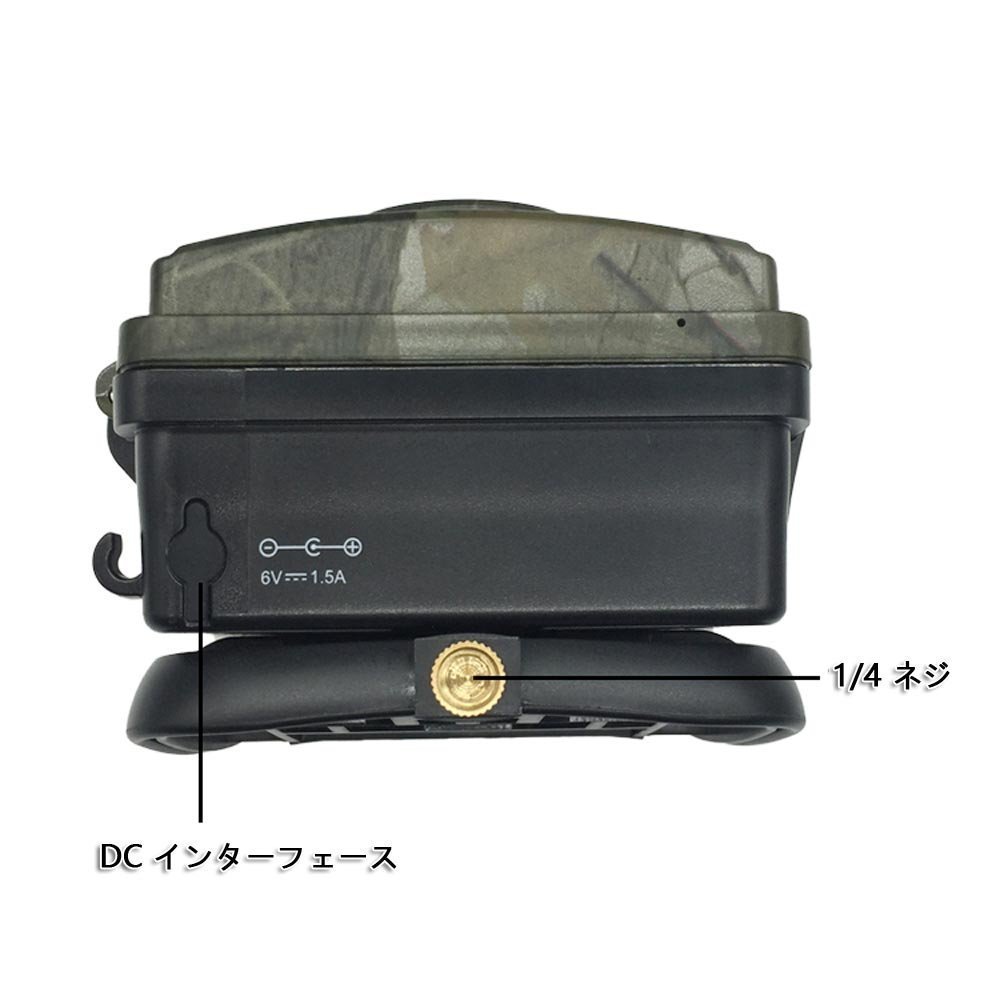

Power consumption: 6 V 1.5 A

Standby time: Up to 6 months

Infrared LED: 34 pieces

PIR detection angle: 60 degrees

Operating environment Humidity: 5% to 90%

Operating environment Temperature: -25 to 60 degrees

Video resolution: 1280 * 720p / 640 * 480p (VGA)

Supported SD card: 32GB ※ Optional

Infrared irradiation range: up to 20 m

PIR detection range: 3 m to 20 m

Day / Night Mode: Support

Still image shooting resolution: 12 M (4000 × 3000) / 5 M (2592 × 1944)

Video format: AVI

Still image format: JPEG

Time lapse function (interval shooting): 1 minute / 5 minutes / 10 minutes / 30 minutes can be set

Weight: 336 g

Dimensions: Width 9 cm x Height 13 cm x Thickness 6.5 cm

Power supply: 4 AA alkaline batteries or 8 AA batteries

Perfect flash range

60 ° Wide-angle PIR sensor and wide-angle lens ensure coverage and broaden the monitoring range and shooting range of the object.

Human Sensor

The human sensor senses the far infrared (heat) emitted from the human body and the animal, and detects it based on the temperature difference from the background.

Unlike the active active sensor, it does not radiate anything from the sensor, and it excels in power saving performance.

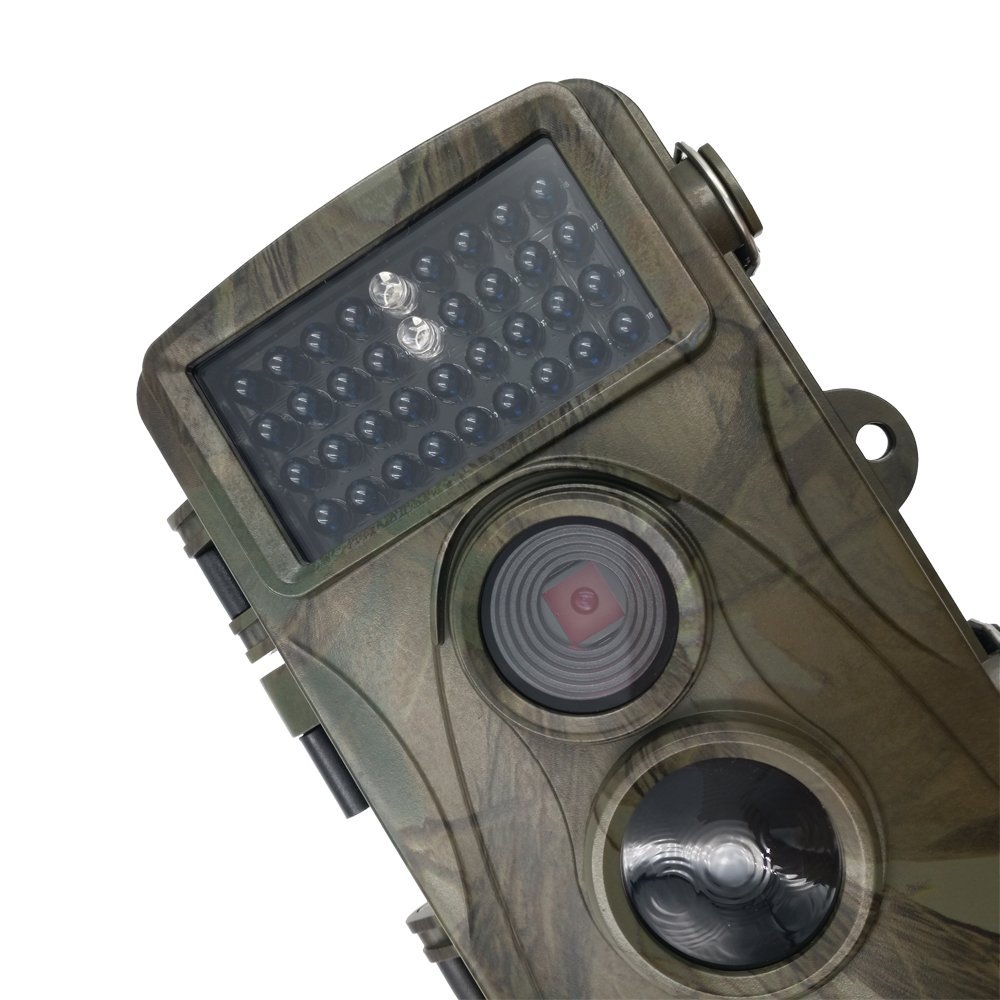

Infrared

LED

black

LED

It is a powerful infrared LED that can irradiate a range of up to 20 m, and shooting in the dark without any light is also possible.

It adopts 34 black LEDs, it is applied to all kinds of outdoors such as wildlife monitoring hidden, housing surveillance etc.

Interval shooting

We will set an interval time of 1 minute / 5 minutes / 10 minutes / 30 minutes shooting.

Take a video of 10 seconds.

For example, if you want to record the flower bloom of a plant, you can record the flower bamboo process one by one automatically by only setting the interval period.

Long time

Wait

Standby time It is supposed to correspond to long-term shooting / recording as long as it corresponds to a maximum of 6 months, and it is a detected recording at a place where people do not pass on a daily basis.

It is a security camera with a built-in human sensor that can be used in places where power can not be supplied on a vast site such as pastures or farms suffering from animal damage.

Wide range of applications

Wildlife trail camera function, monitoring stealing thief, plant growth monitoring, research record, warehouse security and surveillance, ease of installation is applicable in various situations.

It can be used for crime prevention measures such as parking lot and car vandalism, countermeasures against birds and beast damage, etc. In addition, it is the most suitable camera for wildlife investigation which is installed in a place not equipped with power such as illegal dumping of garbage.

please note

The drip-proof standard of this product is IP 56, and if direct water is applied etc., it may cause malfunction.

Please note that recording the video is infringement such as the right of portrait in some cases.

set content

Trail camera * 1

Fixing strap * 1

Fixed bracket * 1

USB cable * 1

AV cable * 1

Instructions * 2 (Japanese, English)

※ Operation explanation ※

※ Please energize 4 AA alkaline batteries or 8 pieces.

If it is 4, please put it all in the upper part or the lower part of the battery case.

Next, insert the 4-32 GB TF card.

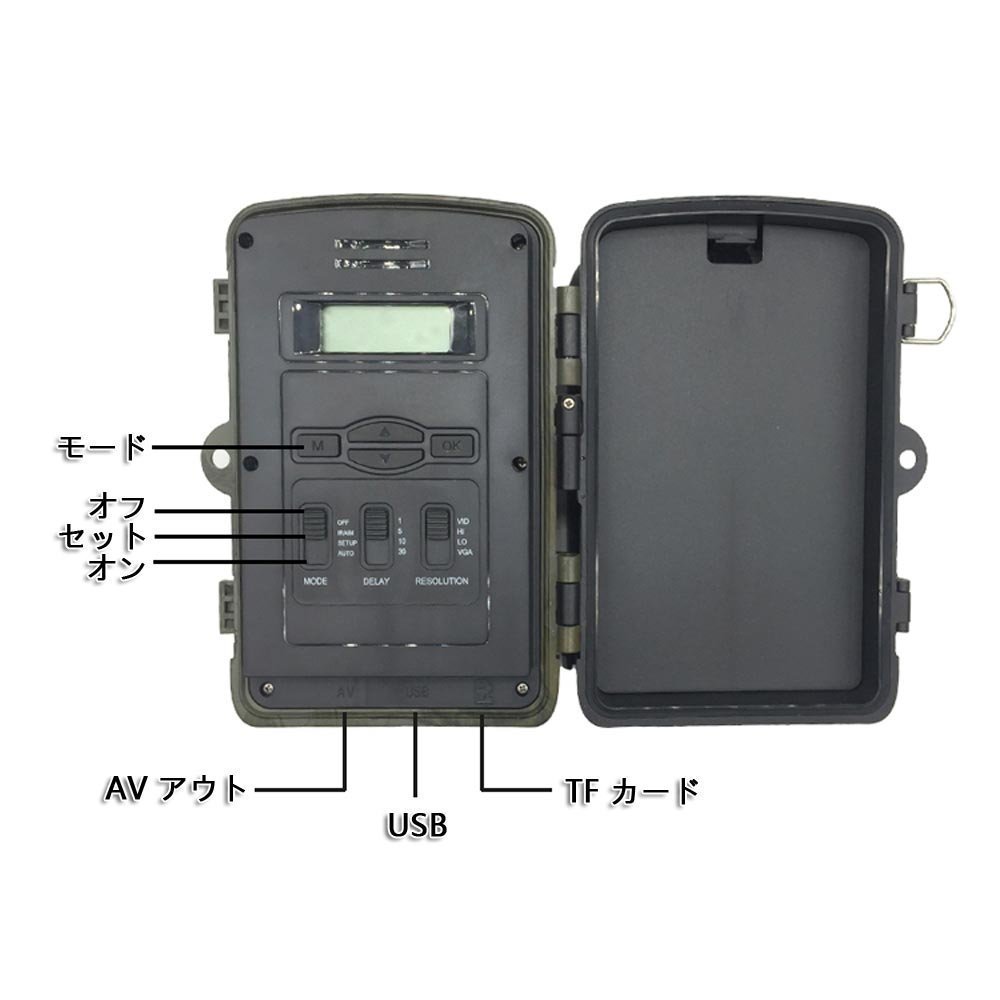

There are three kinds of switches.

【MODE】

⇒ Mode

【DELAY】

⇒ Time lapse

【RESOLUTION】

⇒ Resolution

MODE

】switch

OFF

: Switch the button to the OFF position and close the camera.

SET UP

(Installation): Switch to SET UP and install it on the camera.

When entering installation mode,

Press the button to switch.

OK

Check with the button.

▲ ▼

You can select the number you want to import by pressing the button.

After completion of installation, once again 【

Press the button to return.

time

date

Can be installed.

CLR:

You can select ON / OFF (ON / OFF).

In the memory card format data is deleted.

ID

: Numbers from 0 to 9 can be chosen, ID number can be set in the camera to identify other cameras that are monitoring at the same time.

BA (

Battery quantity

: BA 3 ⇒ Fool power

BA 2 ⇒ half power

BA 1 ⇒ low power

BA 0 → The amount of electricity is insufficient.

At that time, the LED light glows for 5 seconds, and the bbee's voice sometimes sings.

After that, the camera will automatically disconnect.

【RESOLUTION】 switch

VID: Record at low resolution 720P (1280 * 720)

HI: Shooting at high resolution 12M

LO: Shot at low resolution 5M

VGA: Record at high resolution VGA (640 * 480)

IRAIM

: Switch the button to the OFF position and the camera enters the test mode.

At that time, you can measure the installation location while moving the lens of the camera.

Tie the camera to trees or trees with a height of 2 to 3 M and gradually adjust the direction of the lens.

When the light turns on, the thermal sensitivity sensor has caught the moving object.

That's right, you can check the installation location of the camera.

With the TEST mode alone, the light turns on, but in the standby state the light closes.

Features:

• Please enter model number Confirm this is compatible:
• [Night vision function] With an infrared sensor, there are 34 infrared lights, it can sense infrared rays emitted by people and animals, sharp and clear color images during the day and clear black and white images at night can be taken.
• Data is stored in the internal SD card (maximum 32 GB).
• [Motion Detection] With 5 million CMOS sensor, 1080 * 720 P, 12 million pixels Trigger speed of 0.2 - 0.5 second, so you can record clearly.
• 【Ultra long standby】 It provides very low consumption voltage and long operation time in standby operation.
• If you use 8 AA batteries, it will reach up to 6 months.
• 【PIR Detection Angle】 Since the PIR detection angle is 60 degrees, it provides a wider detection angle and improves the response time of the camera.
• It can be used at extreme temperatures between -20 ° C and 60 ° C.
• 【IP56 waterproof】 Dustproof specification allows installation outdoors.
• For ease of installation it is applicable in various situations.
• It can be used for crime prevention measures such as parking lot and car vandalism, countermeasures against birds and beast damage, etc. In addition, it is the most suitable camera for wildlife investigation which is installed in a place not equipped with power such as illegal dumping of garbage.

Product information:

Shipping Weight: 680 g

Package Dimensions: 9.65 x 16.26 x 19.56 cm
