Item Descriptions:

Product introduction

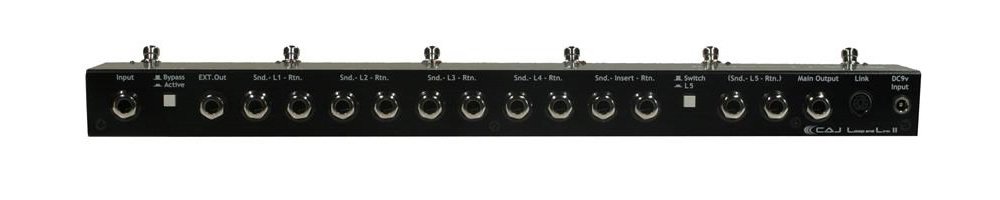

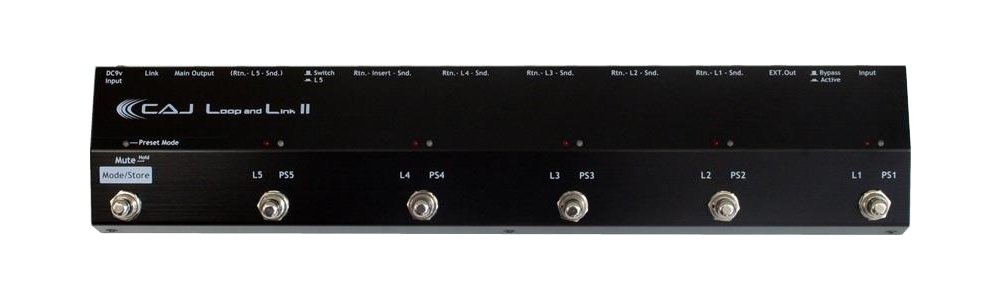

● CAJ Loop and Link II

CAJ Loop and Link won the greatest trust as a top pro as a simple & high cost performance controller and was further upgraded and model upgraded.

In addition to adding mute function and buffer ON / OFF switch, we succeeded in astonishing weight reduction of about half of the current model.

All uncompromised sound quality and new usability polished at the top professional site.

[Designer`s Talk - What is Loop and Link -]

"Simple and compact loop system that also responds to professional needs".

The development concept of Loop and Link is easy to put in words, but as a Custom Audio Japan produces many sound systems and it is a very high hurdle for us who truly understands the "professional musician's needs" in a true sense

was.

For example, it is natural that the original sound is not damaged in terms of sound quality.

In addition, it is called "good sound of effector sound" which bring out the merit of the effecter.

Also, for those who instantly need to create the best guitar sounds, equipment that is complex to use is absolutely unacceptable.

I thought about a simple loop system that presets five loops in six.

MIDI functions that make usage more complicated are dared out, and one loop can also be used as a switch to switch channels of the amplifier.

Evolution obtained with 2 links.

Loop and Link is equipped with functions to assume requests from musicians and respond.

In Loop and Link II, we responded to the request from the musician (as expected, as it is selfish) received over the next few years, to further enhance the functionality.

[Main improvements from the original Loop and Link]

■ Mute Function

By pressing and holding the Store / Mode switch, Output is muted.

It is mandatory to mute the output when tuning or exchanging guitar.

Although it was common to use a volume pedal for output muting, in recent years wanting to make the effect board as compact as possible In the recent trend, using a large volume pedal only for output mute tends to be avoided,

The mute system used is common.

The Mute function that controls the newly provided mute relay with the existing Store / Mode switch has the same effect as increasing the number of loops by one in the same case size.

■ Switch? Or Loop?

It was made possible to switch whether to use L5 as a loop or as a switch to switch the amplifier channel with one touch.

Loop and Link had an independent loop composed of IN - SEND - RETURN - OUT completely independent as L5.

Since it is a completely independent loop, there was no occurrence of hum noise by the ground loop when L5 was used for the effect loop of the amp, but on the other hand, even when it is used as a series loop placed behind L4, two patch cables

There was a tendency that the system became complicated, such as being necessary.

In Loop and Link II, one touch switches whether to use L5 as a loop or as a switch to switch the amplifier channel.

It made it possible to build a simple system.

Even when connecting the loop to the effect loop of the amp, it is possible to take measures against noise by using two ground lift cables.

■ Buffer Bypass / Active switch

We made Bypass / Active of Buffer easy to access from the outside.

The INPUT buffer must be bypassed depending on the effector connected at a later time.

Whether or not to use the buffer is decided by the effector effector, but it may be possible to select by taste of sound quality.

By making Bypass / Active of Buffer set by internal switch easily accessible from the outside easily, change of sound quality by on / off of Buffer can be confirmed after system production.

Adoption of lightweight aluminum case

We adopted aluminum case corresponding to world tour class.

As a result, we successfully succeeded in reducing weight by nearly 50%.

Accessory: CAJ PB05DC9 / Support Angle

Dimension: 406 (w) x 77.4 (d) x 32.7 (h) mm

Weight: about 660 g

Current consumption: 400 mA

Attention (Disclaimer)> Please be sure to read

★ Items on sale are sold at shops and other EC sites in parallel.

Although we make maximum efforts to update inventory information, there is a case that we can not prepare with sold out even if ordering is completed.

In that case we will cancel your order, so please be forewarned.

Features:

• Please enter model number Confirm this is compatible:
• CAJ Loop and Link won overwhelming trust in Top Pro as a simple & high cost performance audio controller has been model changed and further upgraded
• In addition to adding mute function and buffer ON / OFF switch, we succeeded in tremendous weight reduction of about half of current model
• All uncompromised sound quality and new usability polished at the top professional site
• Accessory: CAJ PB05DC9 / Support Angle
• Dimension: 406 (w) × 77.4 (d) × 32.7 (h) mm / weight: about 660 g / consumption current: 400 mA

Product information:

Shipping Weight: 1079 g

Package Dimensions: 7.80 x 10.21 x 45.01 cm
