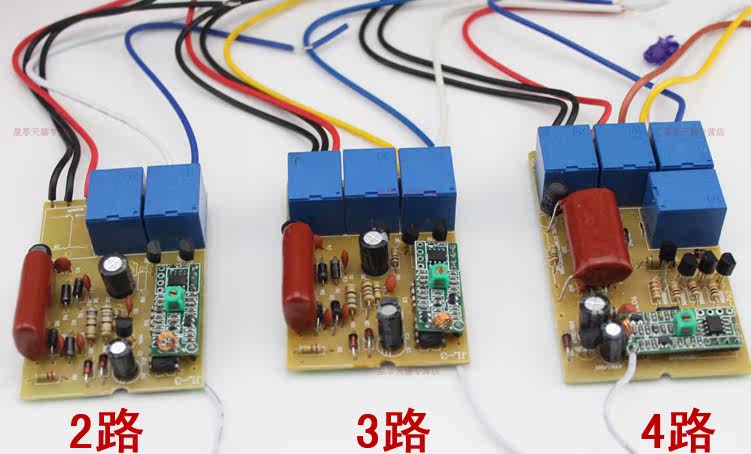

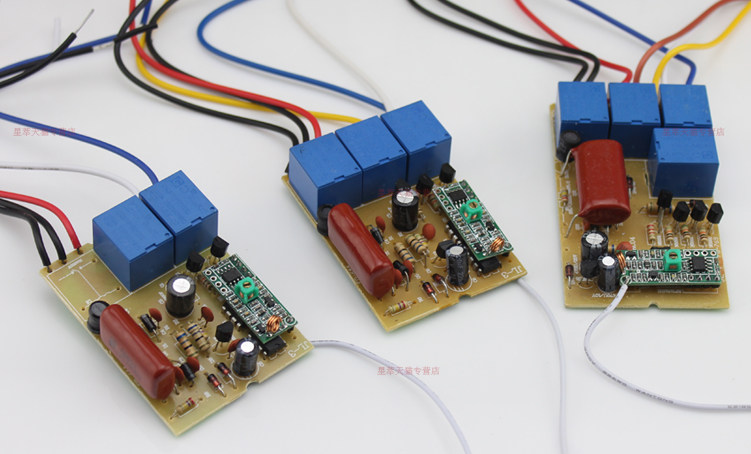

接收器内部拆解图

1.

   Product: digital remote control switch

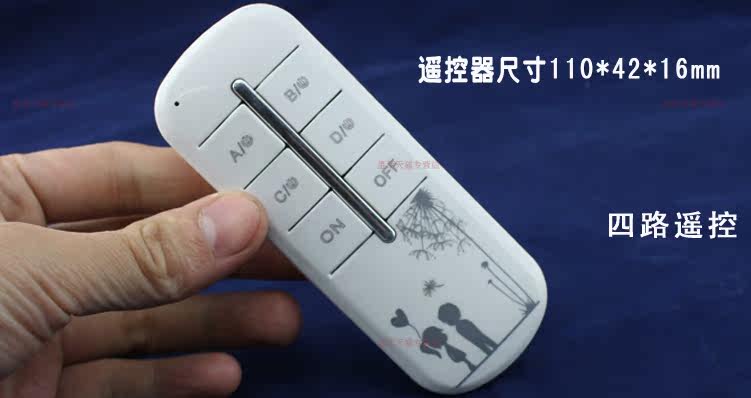

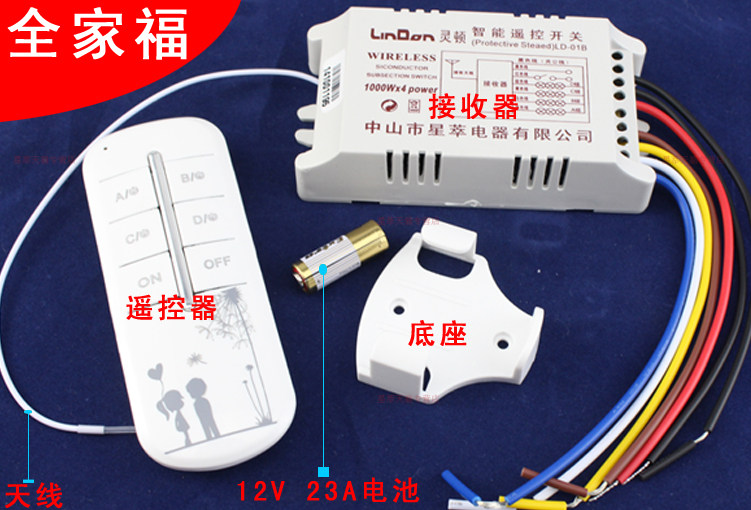

   This product is used for remote control lighting switch， composed of the transmitter and receiver. The transmitter is the controller. Receiver for connecting lamps， similar to ordinary switches. The transmitter and receiver communicate via radio， both using the same encoding. This product makes your lighting system more convenient.

   2. The output of each group of outputs:

   When the voltage is 180-260 volts

   Tungsten wire ≤ 1000W

   Energy saving lamp ≤ 300W

   The number of energy-saving lamps ≤ 6

   3. Installation

   1) Select the applicable model according to the voltage and ensure that the lamp power does not exceed the load capacity of this product.

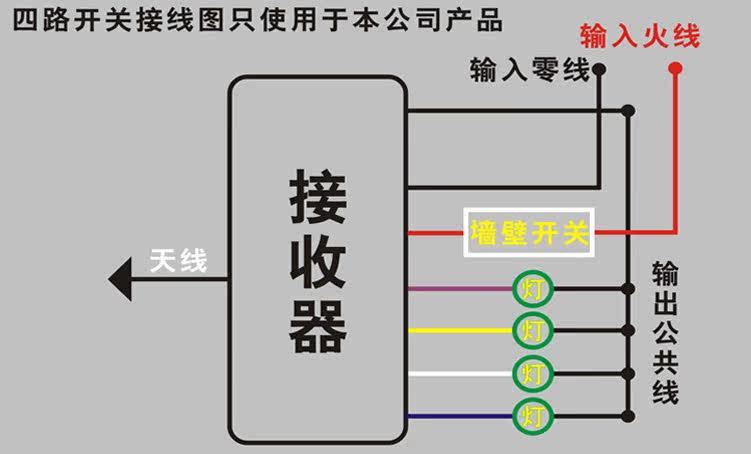

   2) Connect the wires and receivers according to the wiring diagram on the receiver. There are three lines on the receiver: power input， output and antenna.

4. 操作方法
