DESKRIPSI Baofeng Walkie Talkie HT (Handy Talkie) UV-5RC merupakan HT dengan berbagai fitur seperti FM radio, PTT (Push To Talk), Emergency Alarm, Built In Monochrome LED, Torch LED Light. Handy Talkie ini didesain menarik dengan beberapa fitur pendukungnya. Baofeng UV-5RC siap menemani aktivitas outdoor Anda. Cocok untuk Anda yang bekerja di lapangan maupun pecinta alam, maupun untuk keperluan komunikasi lainya.
This 4th Generation Baofeng UV-5R Series

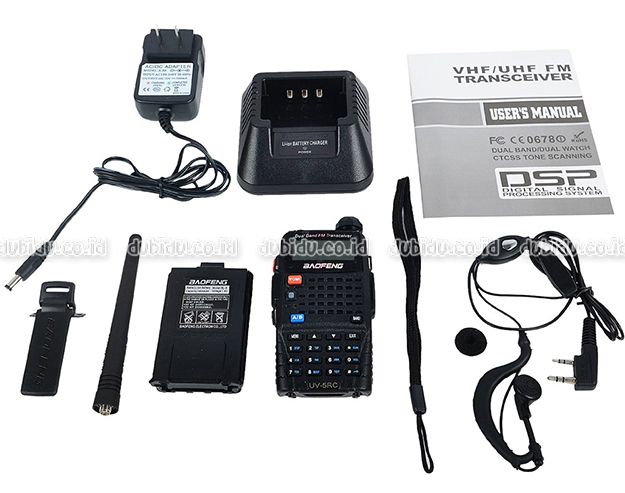

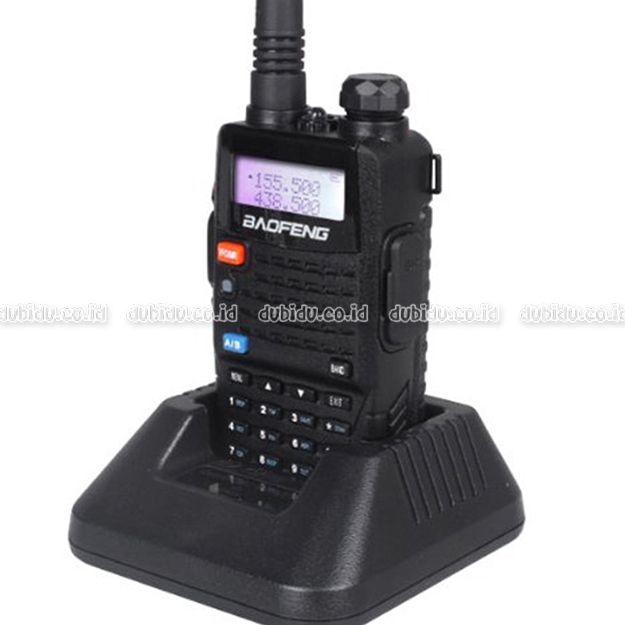

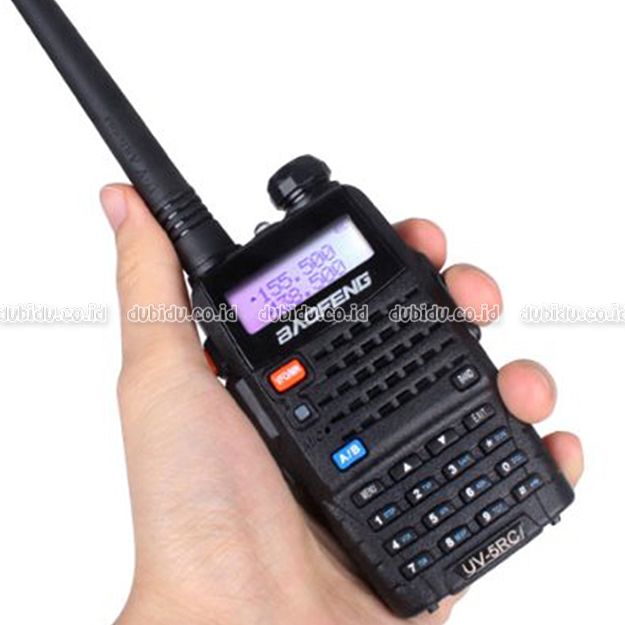

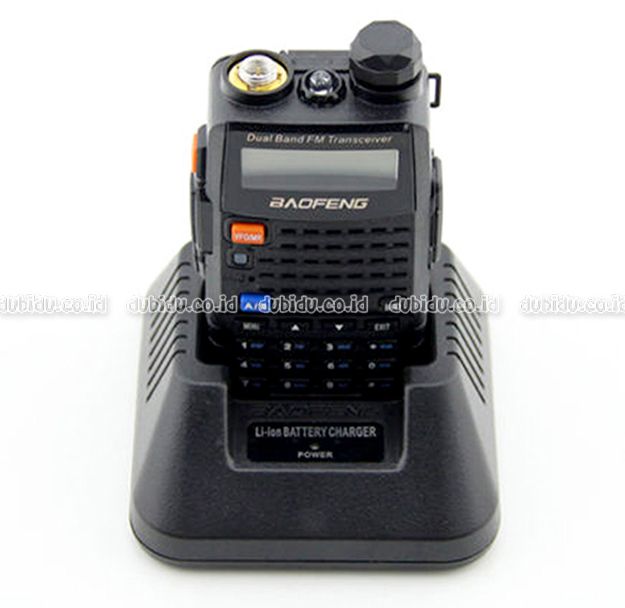

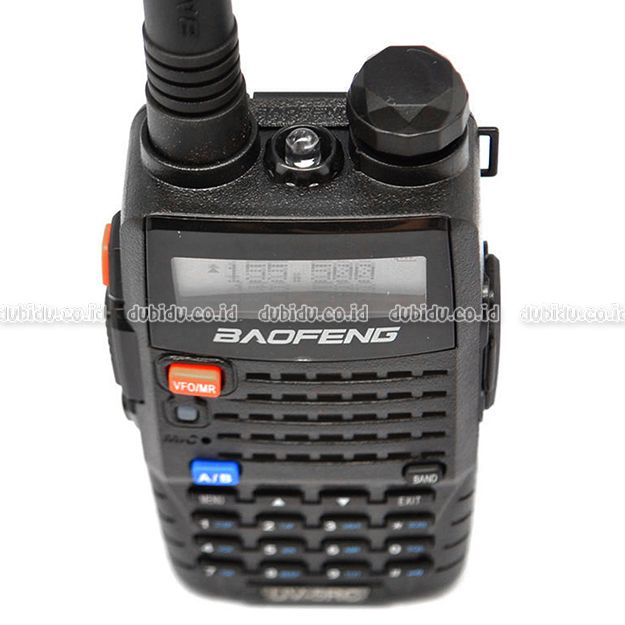

The BaoFeng UV-5RC is a compact hand held transceiver providing 4 watts in the frequency range of 136-174 MHz and 400-480 MHz. It is a compact, economical HT that includes a special VHF receive band from 65 - 108 MHz which includes the regular FM broadcast band. Dual watch and dual reception is supported. You get up to 128 memories. Other features include: selectable wide/narrow, battery save function, VOX, DCS/CTCSS encode, key lock and built in flashlight. Selectable frequency steps include: 2.5, 5, 6.25, 10, 12.5 and 25 kHz. RF power may be selected at 4 or 1 watts. This radio comes with an SMA-Female antenna, flexible antenna, BL-5 Li-ion battery (7.4V 1500 mAh), belt clip, wrist strap, AC adapter (8.4V 600ma) and drop-in charging tray. This radio requires the PC03 FTDI programming cable.

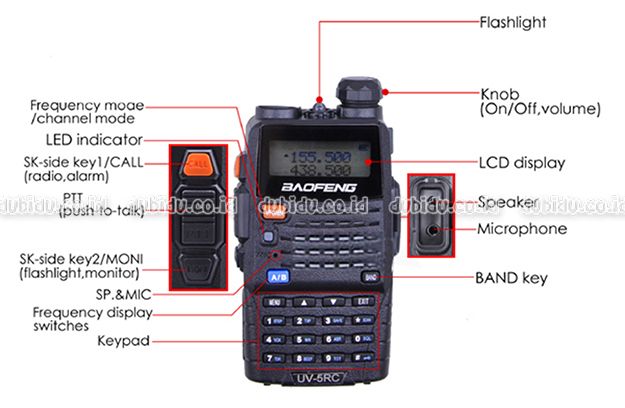

FEATURE Dual PTT keys; A/B band independent operation Incorporates 105 codes "DCS" and 50 privacy codes "CTCSS" programmable CTCSS & DCS Scanning/ CTCSS & DCS Direct input Emergency Alarm; LED Flashlight; Built-in key lock Tri-color background light selectable; 0~9 grades VOX selectable Frequency Range: 136-174 / 400-479.995 MHz. Upgrade the frame material. Metallic, more durable and more fashionable. With full high two colors LED definition display, the screen exquisite clarity Output Power: 4 /1Watts 128 Channels 50 CTCSS and 104 DCS Built-in VOX Function 1750Hz Brust Tone FM Radio (65.0MHz-108.0MHz) LED Flashlight Large LCD Display Hight /Low RF Power Switchable 25KHz/12.5KHz Switchable
SPESIFICATIONS Dual-Band Display, Dual Freq. Display, Dual-Standby Output Power: 5 /1Watts 128 Channels 50 CTCSS and 104 CDCSS Built-in VOX Function 1750Hz Brust Tone FM Radio (65.0MHz-108.0MHz) LED Flashlight Large LCD Display Hight /Low RF Power Switchable 25KHz/12.5KHz Switchable Emergency Alert Low Battery Alert Battery Saver Time-out Timer Keypad Lock Monitor Channel Channel Step: 2.5/5/6.25/10/12.5/25KHz ROGER SET Frequency Range 65-108MHz(FM Receive only) 136-174MHZ and 400-480HZ (TX/RX) Channel No. 128 Frequency Stability 2.5ppm Antenna High gain DualBand antenna Antenna Impedance 50 Operating Voltage DC 7.4V Mode of operation Simple or semi-duplex Dimension(W x H x D) 100 x 52 x 32 mm Weight 250g(including battery, antenna) Transmitter Output power 4W / 1W (Max 5W) Modulation Mode 16kF3E / 11kF3E Maximum deviation <5kHz(Wide) / <2.5kHz(Narrow) Pre-emphasis characteristics 6dB Current 1.6A(5W) CTCSS/DCS deviation 0.50.1kHz(Wide) / 0.30.1kHz(Narrow) Intermediation sensitivity 8-12mv Intermediation distortion <10% Antenna : SMA -Female
DETAIL SPESIFICATIONS
Device: Memory Channel: Up to 128 channels Frequency Stability: 2.5ppm Frequency Step: 2.5/5/6.25/10/12.5/20/25kHz Antenna Impedance: 50 Ohm Supply Voltage: Rechargeable Lithium-Ion 7.4V/3000mAh Consumption in Standby: 380mA Consumption in Transmission: <=1.4A Mode of Operation: Simple or semi-duplex Duty cycle: 03/03/54 min (Rx/Tx Standby
Transmitter: RF power: 5W / 1W Type of Modulation: FM Modulation Mode: 16kF3E / 11kF3E(W/N) Maximum Deviation: <=5kHz / <=2.5kHz(W/N) Spurious emissions: <-60dB.
